Edelbrock Perf. Rpm Cam & Lifters Kit Ford FE 352-428

Big-Block Ford Camshafts and Matching Components

PERFORMER RPM CAMSHAFTS

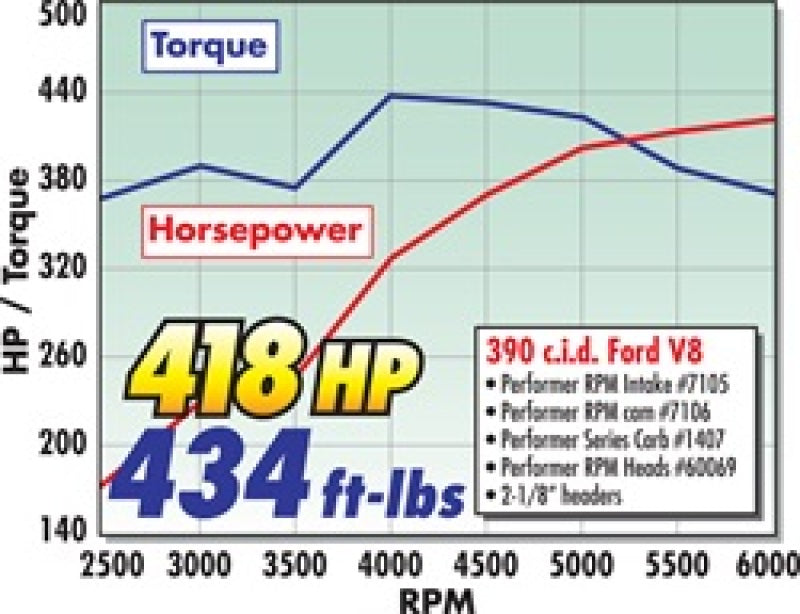

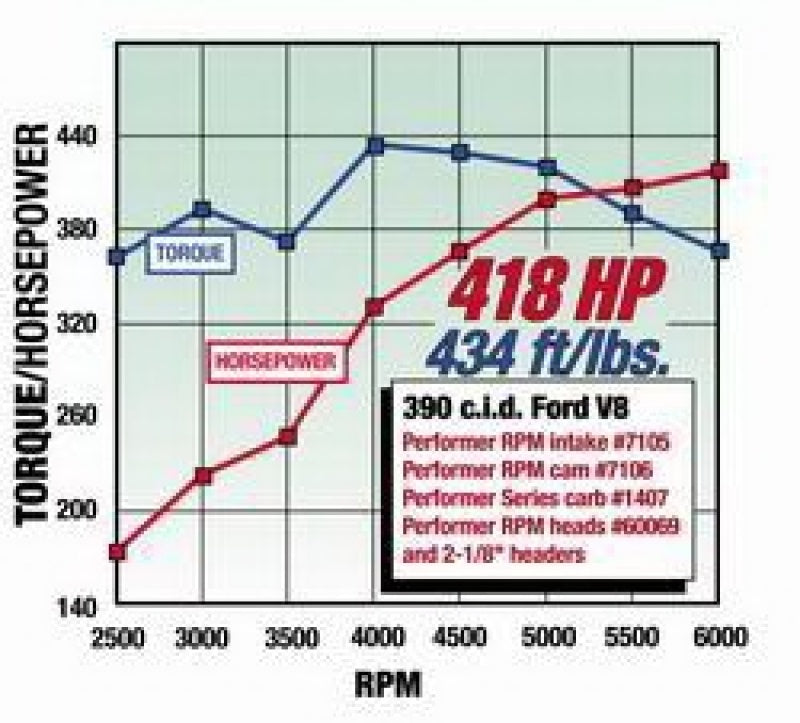

Designed for street high-performance applications, Performer RPM cams provide power from 1500 to 6500 rpm. These hydraulic lifter camshafts are dyno-matched to Performer RPM manifolds for high-rpm horsepower while still maintaining acceptable low-end torque. With 10 to 12 inches of manifold vacuum at idle, Performer RPM cams have more lift and duration than most street camshafts. In the manifold section, you'll find horsepower graphs showing the power levels obtainable when the Performer RPM package is used with the right combination of Edelbrock components. Hydraulic flat tappet lifters are included with each Performer RPM camshaft.

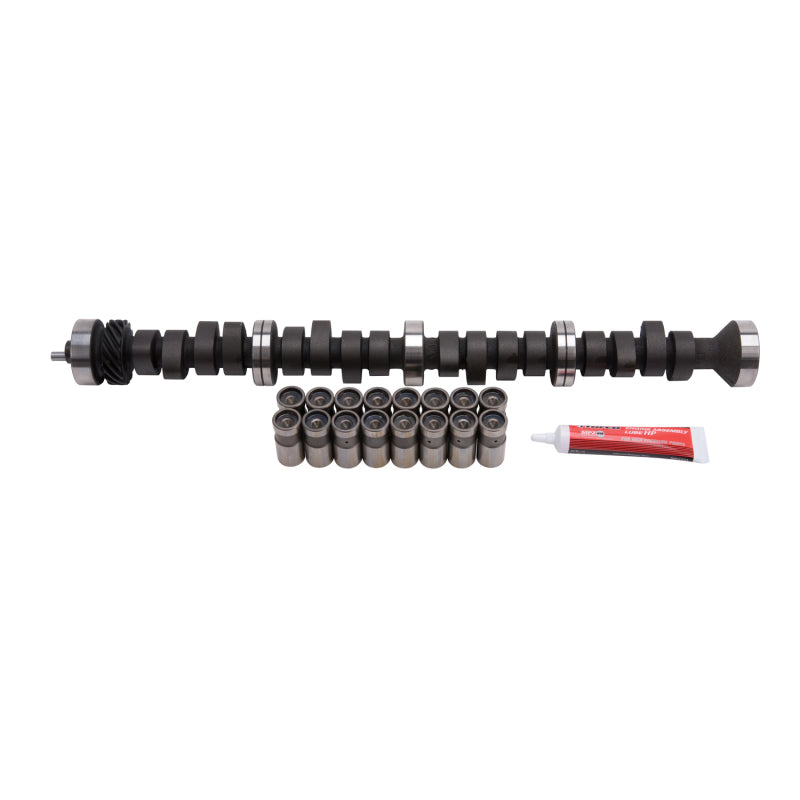

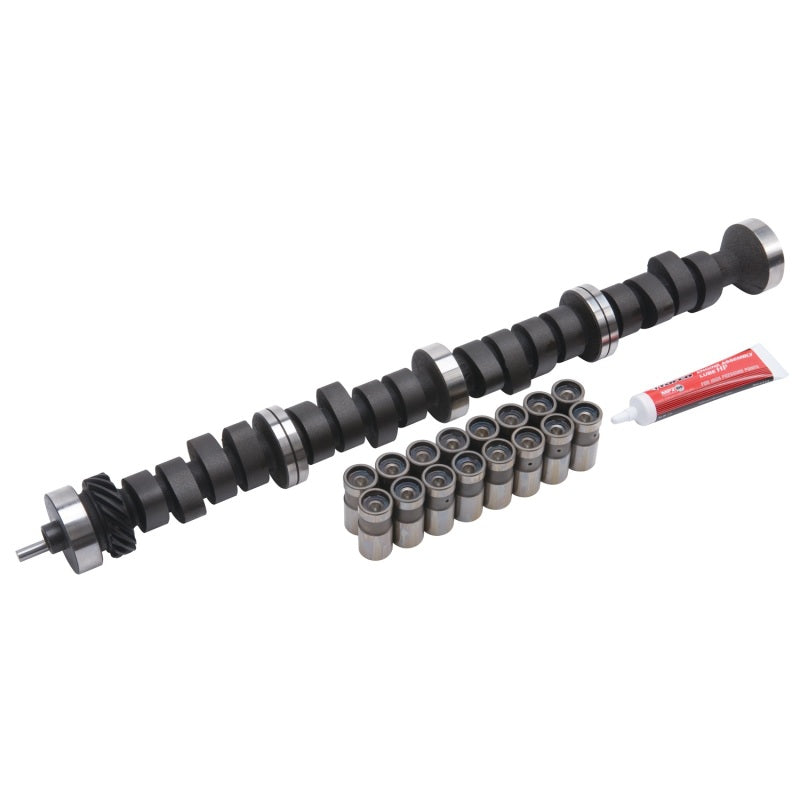

Performer RPM Camshaft Kit

• Ford FE 390-428ci
• Lift: .572''/.572''
• Duration @ .050: 236°/236°
• Advertised Duration: 296°/296°
• 1500-6500 RPM Range

Application	Emissions	Part #	Cam Card	Duration @ .050 Int/Exh	Lift @ Valve Int/Exh	Lobe Seps.	Intake Center Line	Idle Vac. @ 1000 RPM
390-428 V8		7106		236° / 236°	.572" / .572"	108°	103°	11"

PRODUCT EMISSIONS GUIDE
The following guide is designed to help you determine which Edelbrock components are legal for use on your vehicle.

 50-State Legal
 For Racing Use ONLY
 For Use on Pre-Pollution Controlled Vehicles (PPCV)
 Stock Replacement Part
 Engine Swaps

Vehicle Fitments:
