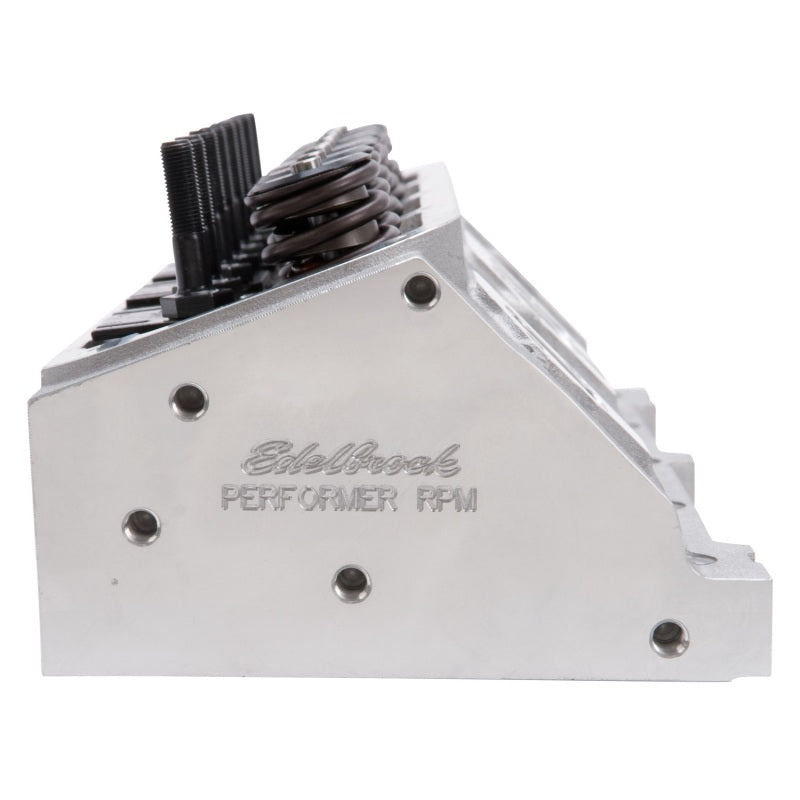

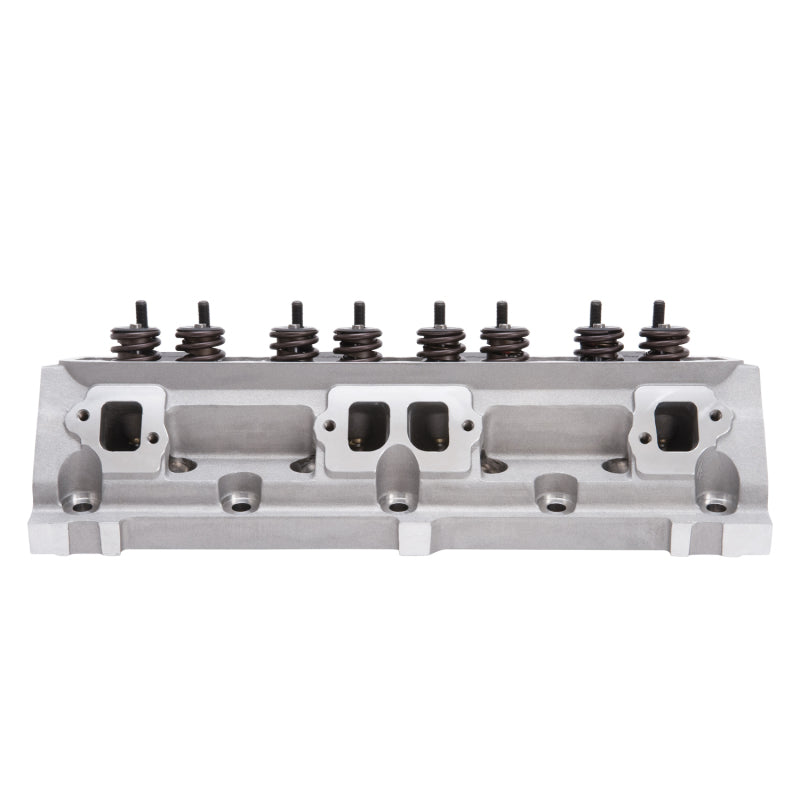

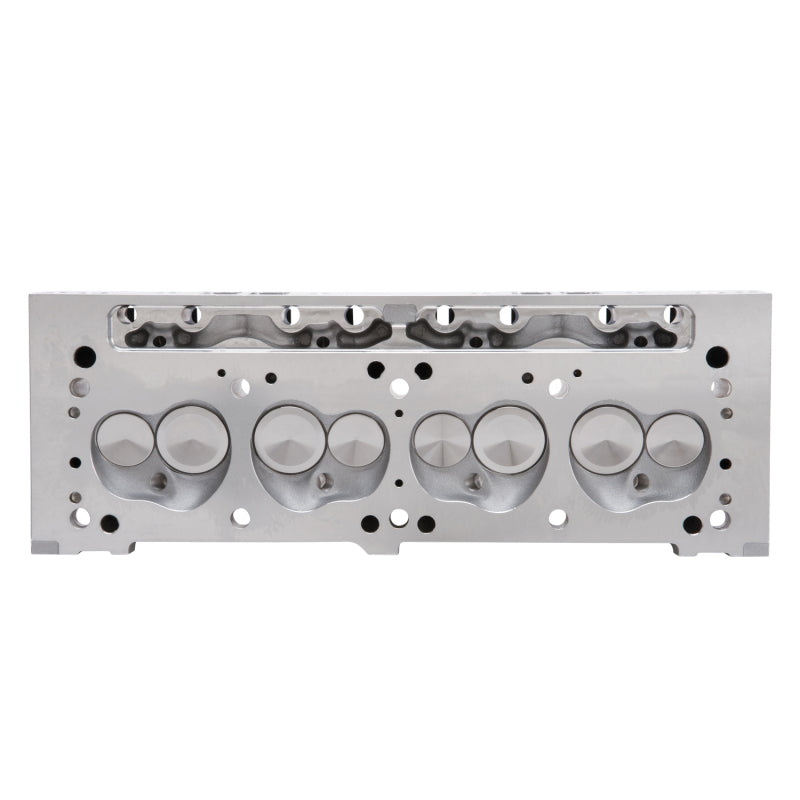

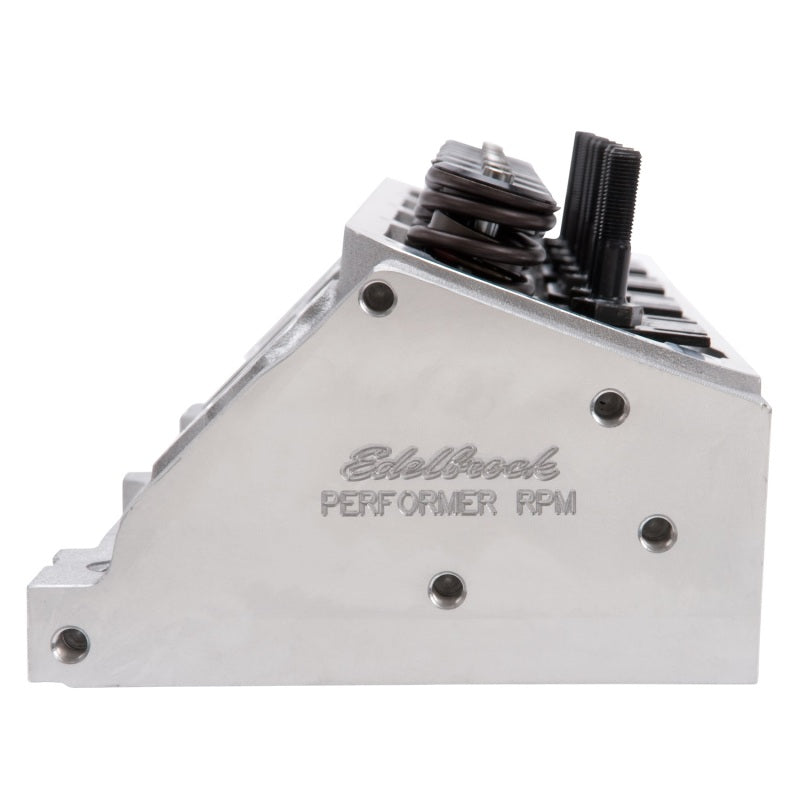

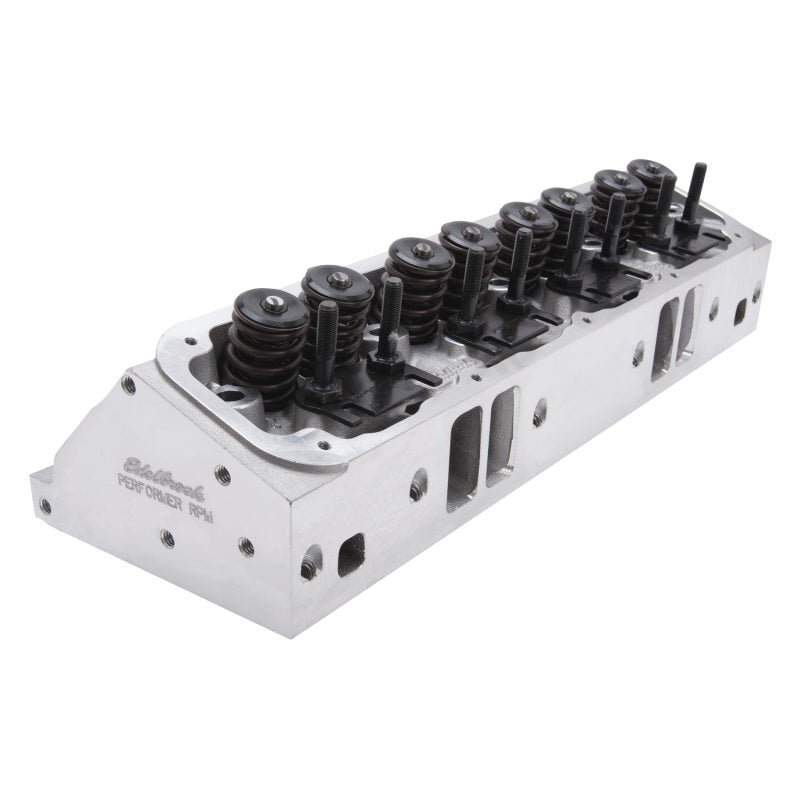

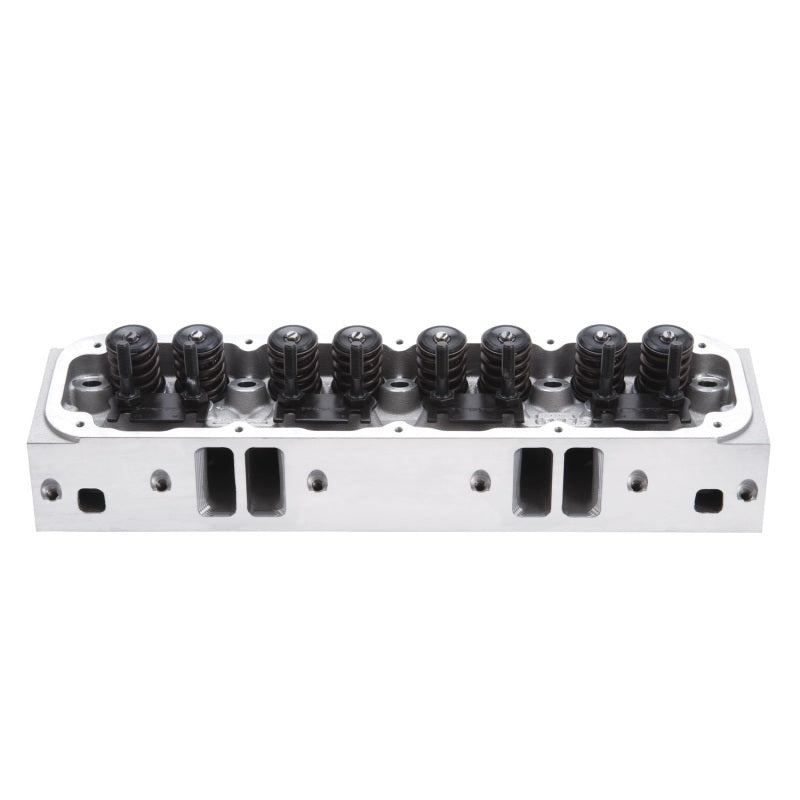

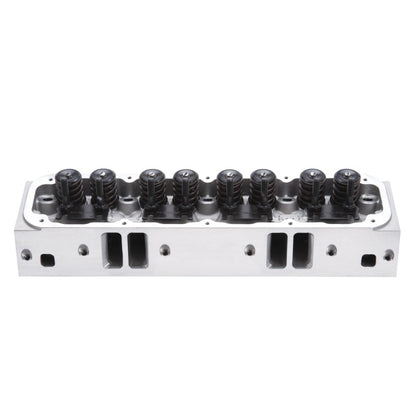

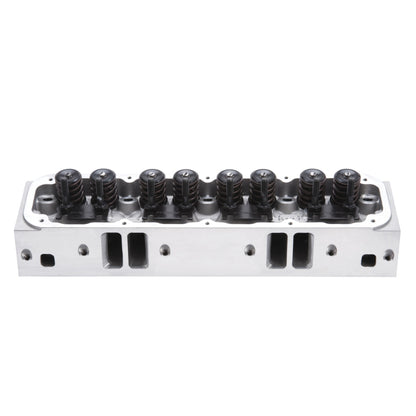

Edelbrock Cylinder Head, SB Chrysler, Performer RPM, 5.2 & 5.9L Magnum

The Edelbrock #61775 Performer RPM cylinder heads are designed for use with 1992 & later 5.2L (318 c.i.d.) and 1993 & later 5.9L (360 c.i.d.) Chrysler Magnum style V8 applications. The Edelbrock #61775 Performer RPM heads are perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. These cylinder heads deliver great throttle response and power from 1500 to 6500 rpm. They also feature the highest quality intake and exhaust valves and valve springs. For use on pre-pollution controlled vehicles only.INSTALLATION NOTE: EQUIPPED WITH SPRINGS FOR USE IN HYDRAULIC ROLLER CAMSHAFT APPLICATIONS Match with the Edelbrock RPM Air-Gap Magnum manifold #7577 Cylinder heads exhaust flanges in stock location to allow use of stock exhaust if desired Accepts small-block Chevy adjustable 1.6 ratio rockers and classic valve covers #4177 and #41773 Requires hardened pushrods, #9638. Match with Edelbrock head gasket sets. Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat. Deck thickness: 5/8" Rocker stud diameter: 3/8" Pushrod diameter: 5/16" (width of slot in guide plate).

Specification

Application: Universal
GTIN: 00085347617753
Availability Note: Available to Order
Hazardous Materials Warning WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm.
CNC Ported: No
Combustion Chamber Volume: 63.0 cu.in
Deck Height: 9.600 in
Deck Thickness: 0.562 in
Exhaust Valve Diameter: 1.600 in
Guide Plates Included: No
Intake Runner Volume: 225.0 cu.in
Intake Valve Diameter: 2.020 in
Material: Aluminum
Push Rod Diameter: 0.312 in
Valve Angle: 16 deg
Valve Spring Diameter: 1.460 in
Valve Spring Maximum Lift: 0.580 in
Valve Stem Diameter: 0.341 in

Vehicle Fitments:
