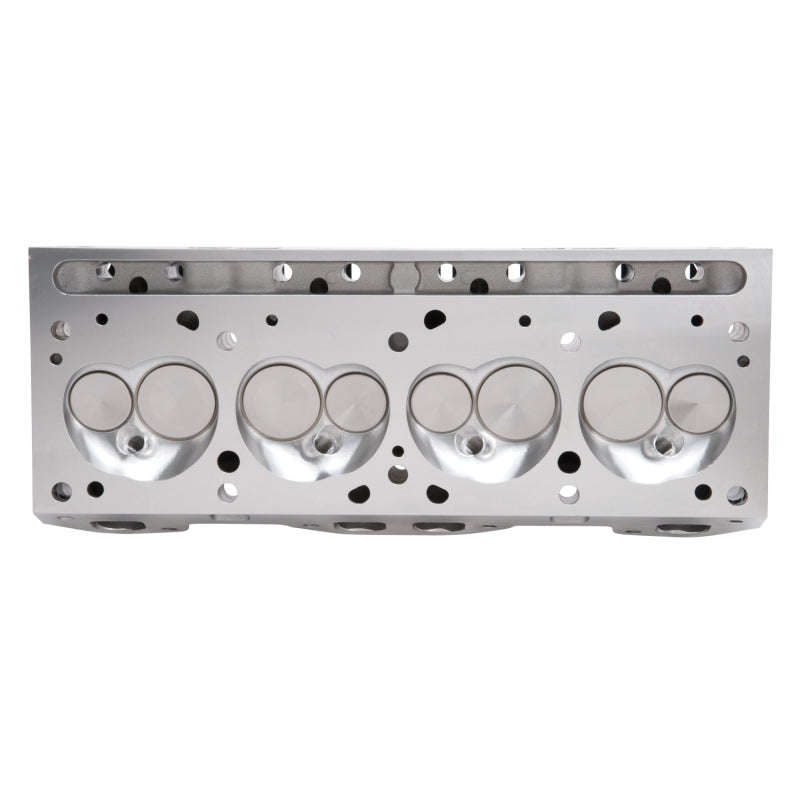

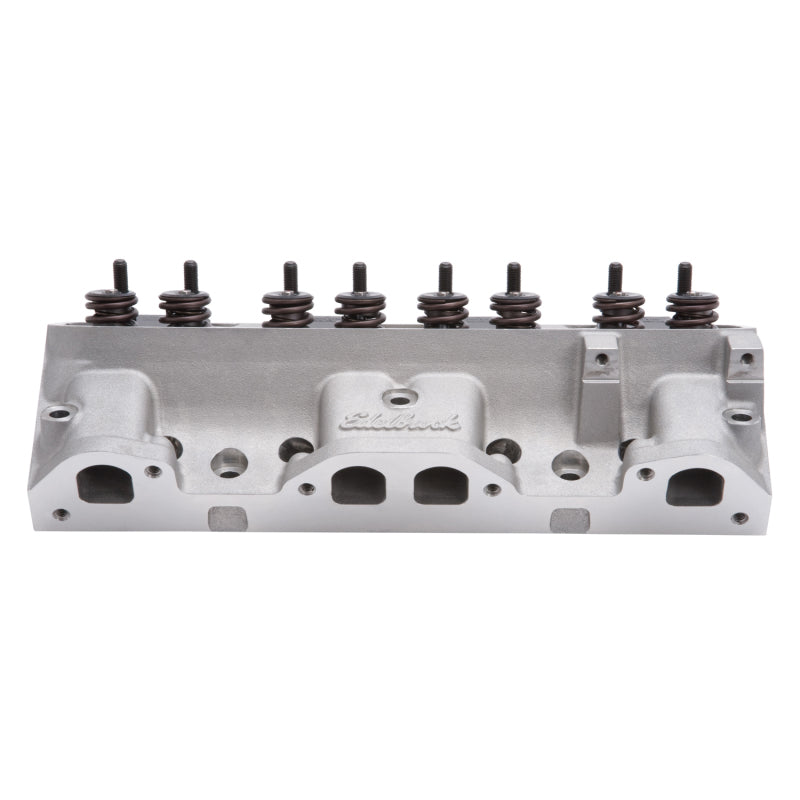

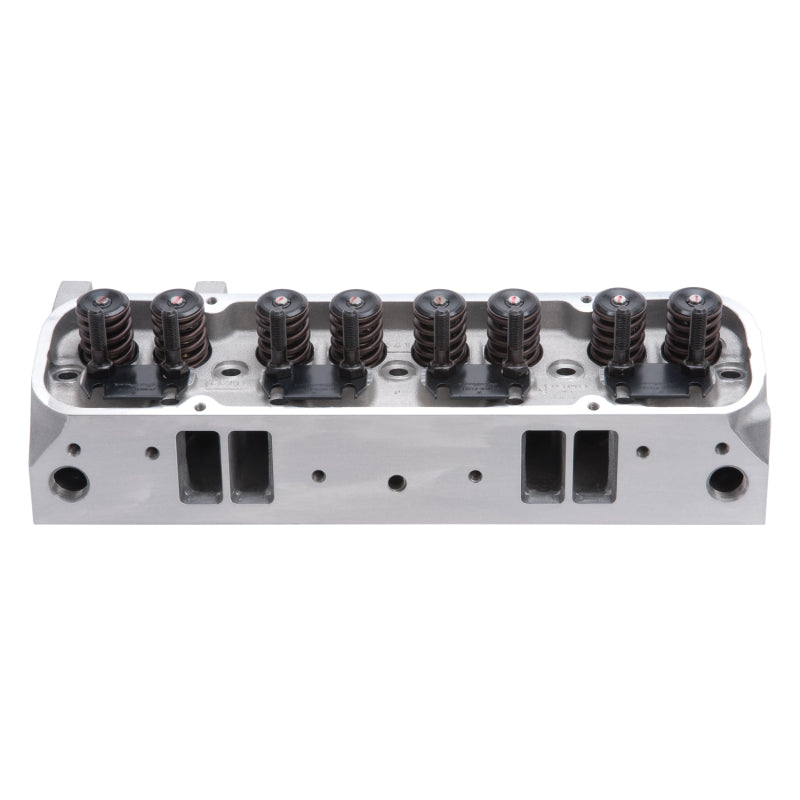

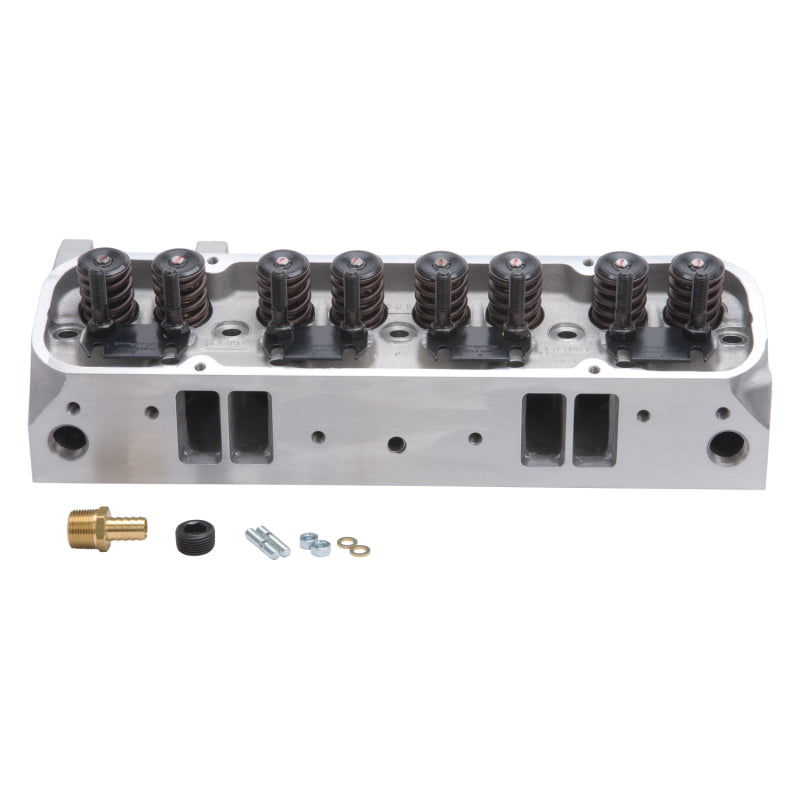

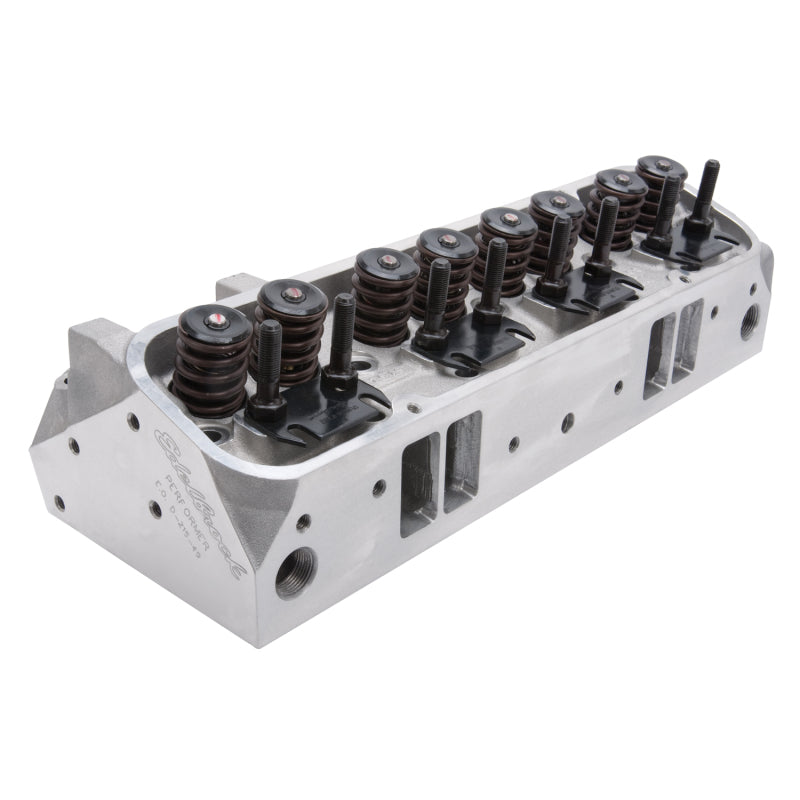

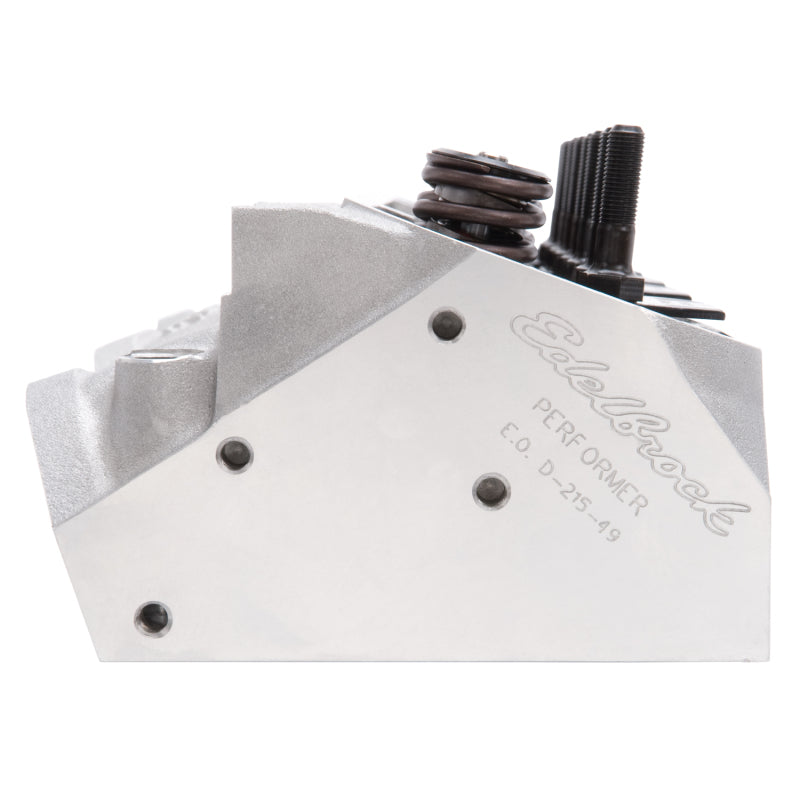

Edelbrock Cylinder Head, Performer RPM CNC, Pontiac, 1962-1969 455 C.I.D V8, 87
Cylinder Head, Performer RPM CNC, Pontiac, 1962-1969 455 C.I.D V8, 87cc
The Edelbrock #61525 Performer RPM CNC Cylinder Heads have the same specifications as our popular Performer RPM cylinder heads for 1962-79 389-455 c.i.d. Pontiac engines, but feature a CNC machined combustion chamber. The CNC machined chamber results in a consistent and precise chamber for improved flow performance. Performer RPM CNC cylinder heads are available in two chamber sizes. The 87cc chamber version is ideal for 9.5:1 engines and will deliver excellent street performance on low octane fuel. The Edelbrock #61525 Performer RPM CNC Cylinder Heads are patterned after the same port flange configuration as the 1969-1970 Ram-Air IV Pontiac Cylinder Head.
Specs:
- Application: Universal
- GTIN: 00085347615254
- CNC Ported: Yes
- Combustion Chamber Volume: 87.0 cu.in
- Deck Height: 10.250 in
- Deck Thickness: 0.625 in
- Exhaust Valve Diameter: 1.660 in
- Guide Plates Included: Yes
- Intake Runner Volume: 215.0 cu.in
- Intake Valve Diameter: 2.110 in
- Material: Aluminum
- Push Rod Diameter: 0.312 in
- Rocker Stud Diameter: 0.437 in
- Valve Angle: 14 deg
- Valve Spring Diameter: 1.460 in
- Valve Spring Maximum Lift: 0.575 in
- Valve Stem Diameter: 0.341 in
Installation Notes:
EQUIPPED WITH SPRINGS FOR USE IN HYDRAULIC ROLLER CAMSHAFT APPLICATIONS
- These heads require Ram Air IV (round port) style exhaust manifolds or headers
- Edelbrock head bolt kit #8549
- Match with Edelbrock complete head gasket set #7382.
- Deck thickness: 5/8"
- Rocker stud diameter: 7/16"
- Pushrod diameter: 5/16" (width of slot in guide plate).
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1975 | Buick | LeSabre | Custom, Base |
| 1975 | Oldsmobile | 98 | Luxury, Regency |
| 1975 | Oldsmobile | Custom Cruiser | Panel, Base |
| 1975 | Oldsmobile | Delta 88 | Base, Royale |
| 1970 - 1971 | Pontiac | Acadian | Base |
| 1962 - 1978 | Pontiac | Bonneville | Base, Safari |
| 1976 - 1978 | Pontiac | Bonneville | Brougham |
| 1962 | Pontiac | Bonneville | Custom |
| 1964 - 1967 | Pontiac | Catalina | 2+2 |
| 1971 - 1972 | Pontiac | Catalina | Brougham |
| 1962 - 1978 | Pontiac | Catalina | Safari, Base |
| 1962 - 1970 | Pontiac | Catalina | Ventura |
| 1967 - 1970 | Pontiac | Executive | Base, Safari |
| 1967 | Pontiac | Firebird | 326 |
| 1968 - 1969 | Pontiac | Firebird | 350 |
| 1969 | Pontiac | Firebird | 350 HO |
| 1967 - 1979 | Pontiac | Firebird | Base |
| 1970 - 1979 | Pontiac | Firebird | Formula, Esprit |
| 1967 - 1968 | Pontiac | Firebird | HO |
| 1967 - 1969 | Pontiac | Firebird | Sprint, 400 |
| 1969 - 1979 | Pontiac | Firebird | Trans Am |
| 1973 - 1975 | Pontiac | Grand Am | Base |
| 1975 - 1977 | Pontiac | Grand LeMans | Base, Safari |
| 1976 | Pontiac | Grand LeMans | BR |
| 1976 - 1977 | Pontiac | Grand LeMans | LE |
| 1962 - 1977 | Pontiac | Grand Prix | Base |
| 1975 - 1977 | Pontiac | Grand Prix | LJ, SJ |
| 1971 - 1978 | Pontiac | Grand Safari | Base |
| 1971 - 1974 | Pontiac | Grandville | Base |
| 1975 | Pontiac | Grandville | Brougham |
| 1964 - 1973 | Pontiac | GTO | Base |
| 1970 - 1971 | Pontiac | GTO | The Judge |
| 1968 - 1977 | Pontiac | LeMans | Base |
| 1972 - 1974 | Pontiac | LeMans | Luxury |
| 1969 - 1977 | Pontiac | LeMans | Safari |
| 1974 | Pontiac | LeMans | Safari Luxury |
| 1970 - 1977 | Pontiac | LeMans | Sport |
| 1976 - 1977 | Pontiac | LeMans | Sport Coupe |
| 1971 | Pontiac | LeMans | T37 |
| 1962 - 1966 | Pontiac | Star Chief | Base |
| 1966 | Pontiac | Star Chief | Executive |
| 1968 - 1970 | Pontiac | Tempest | Base |
| 1968 - 1969 | Pontiac | Tempest | Custom, Safari |
| 1970 | Pontiac | Tempest | GT |
