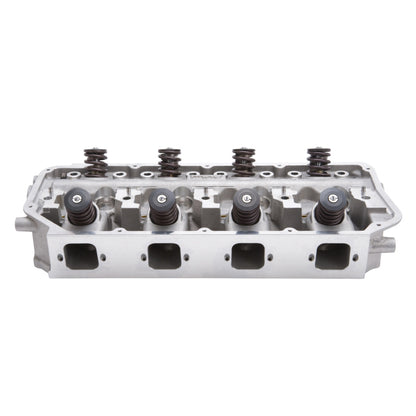

Edelbrock Victror JR. Cylinder Head, CNC, Chrysler, 426-572 C.I.D V8, Complete
Edelbrock Victror JR. Cylinder Head, CNC, Chrysler, 426-572 C.I.D V8, Complete
16 in stock
Emissions
California: Non-compliant parts may be used only on designated closed-course racing vehicles that are never registered for highway use.
Other: Please consult your local statutes and ordinances to ensure compliance with regional emissions standards.
Couldn't load pickup availability
- Ships Worldwide
- Easy Returns
- Fast Shipping

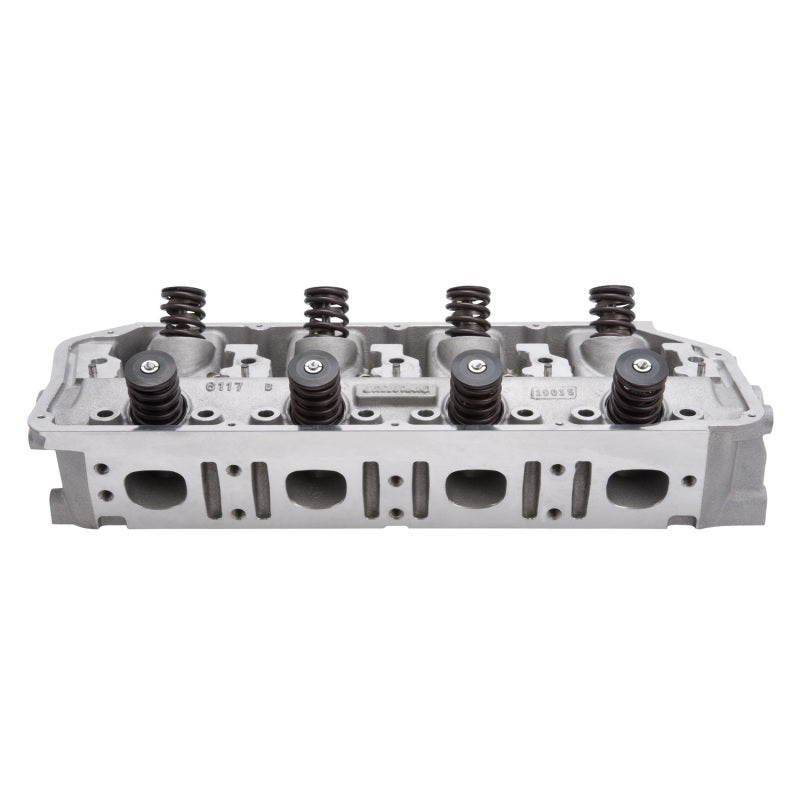

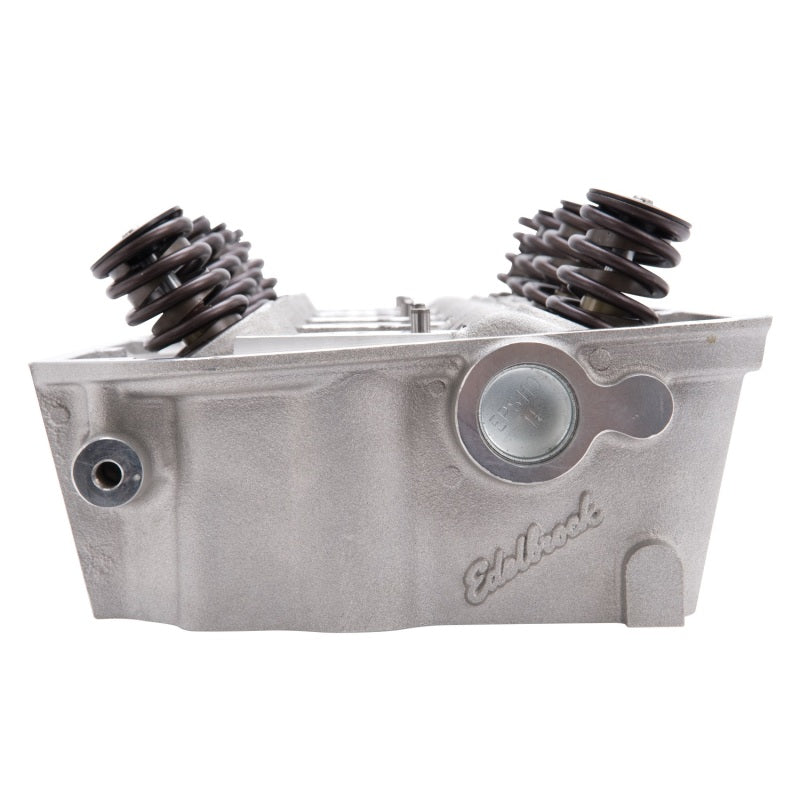

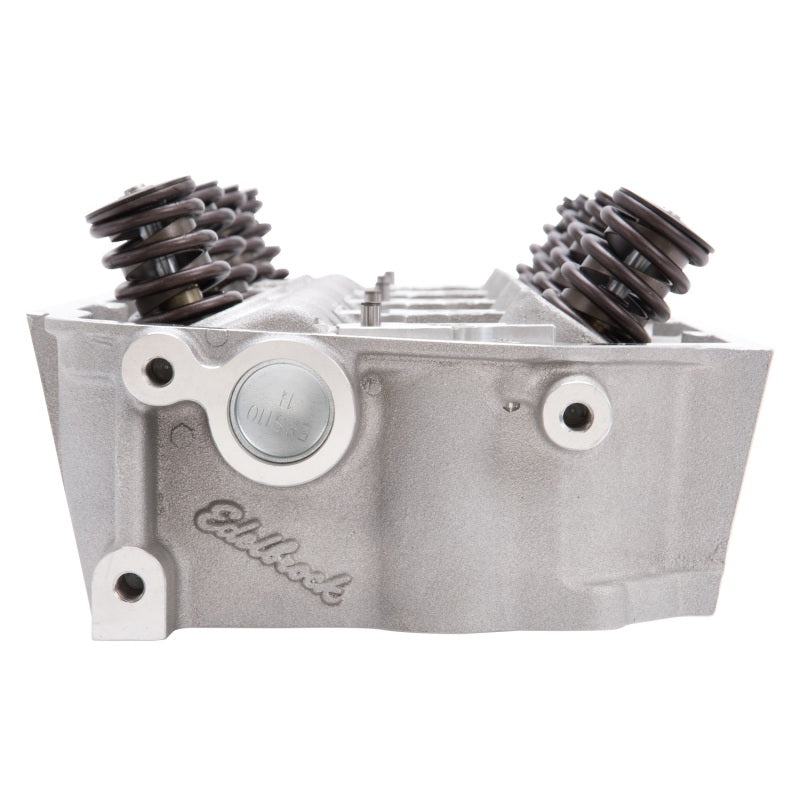

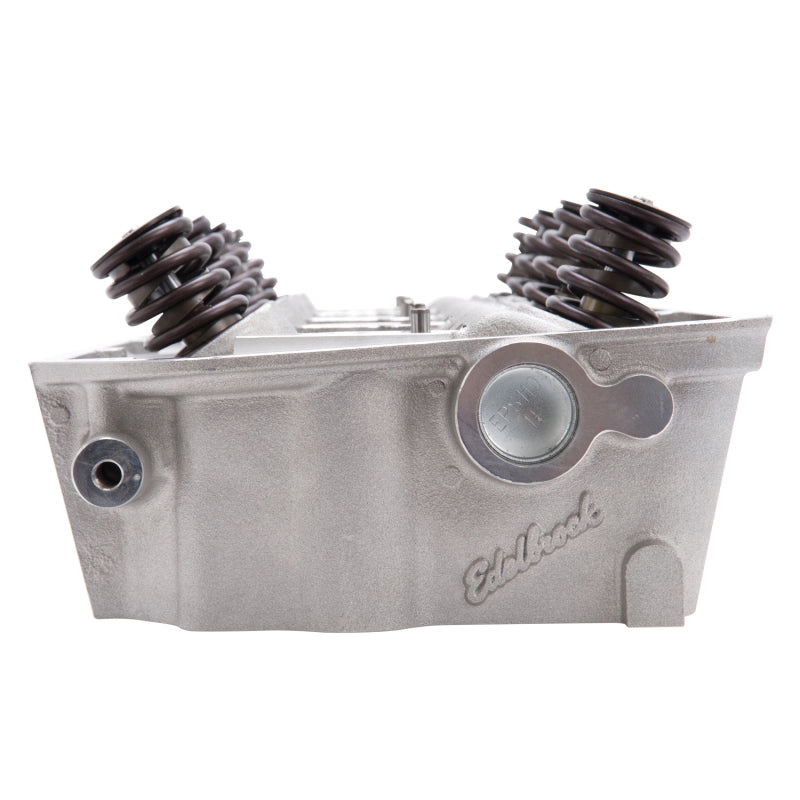

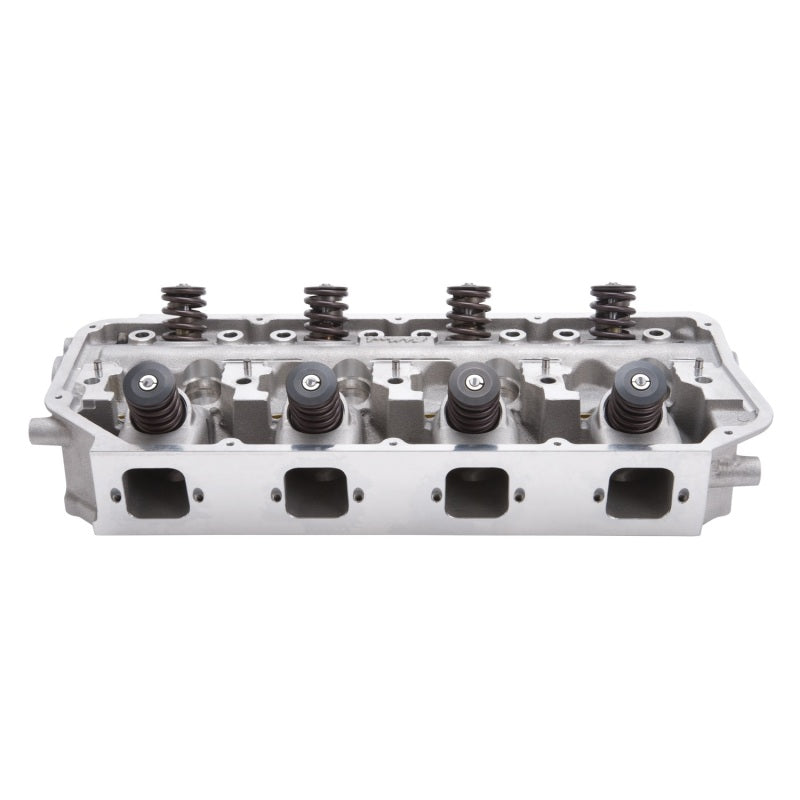

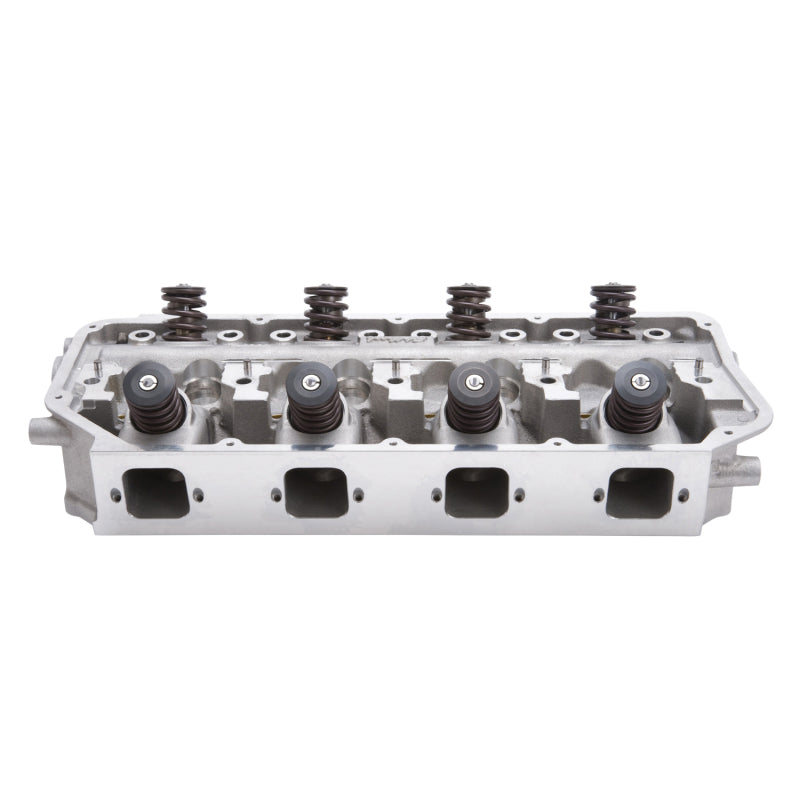

Victror JR. Cylinder Head, CNC, Chrysler, 426-572 C.I.D V8, Complete Flat Tappet Cam

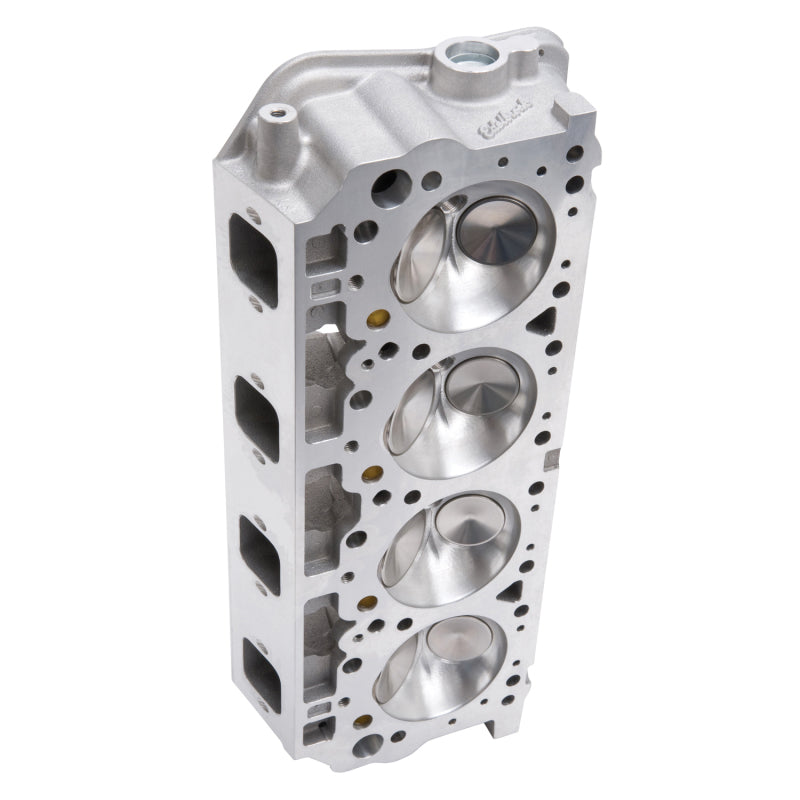

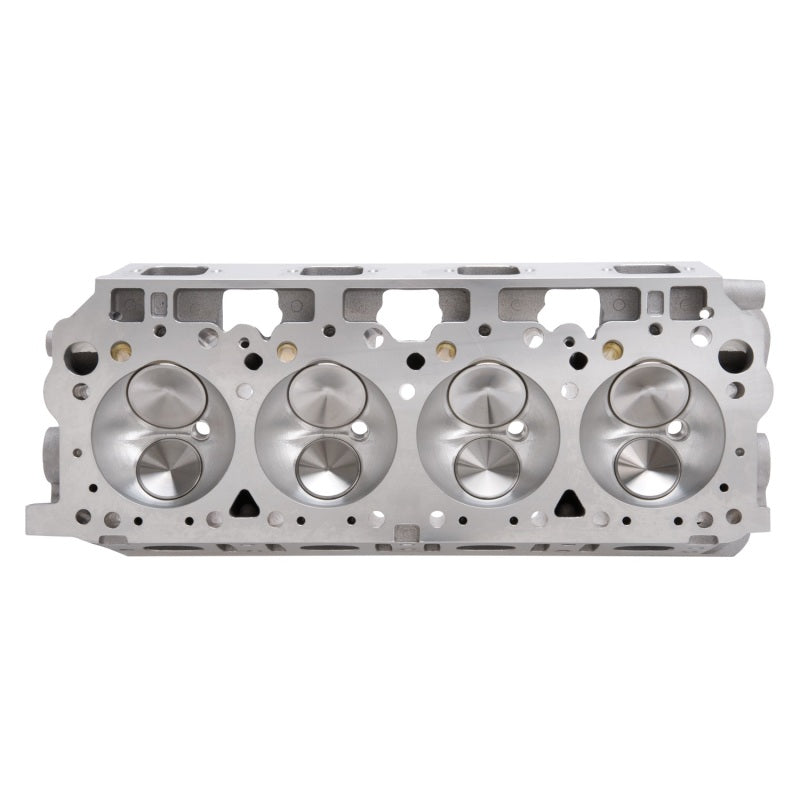

Our new Edelbrock #61179 Victor Jr. Cylinder Heads are designed for high output 650+ hp Chrysler 426-572 HEMI® engines. They feature fully CNC'd combustion chambers and CNC blended seats for optimal air flow performance. These cylinder heads also feature a revised exhaust valve angle to accommodate larger intake valves. They also feature brass tubes installed in exhaust pushrod holes to allow maximum clearance with minimal port intrusion.
Specs:
- Application: Universal
- GTIN: 00085347611799
- Combustion Chamber Volume: 170.0 cu.in
- Deck Height: 10.720 in
- Deck Thickness: 0.625 in
- Exhaust Valve Diameter: 1.940 in
- Intake Runner Volume: 245.0 cu.in
- Intake Valve Diameter: 2.320 in
- Material: Aluminum
- Push Rod Diameter: 0.375 in
- Valve Spring Diameter: 1.540 in
- Valve Spring Maximum Lift: 0.700 in
- Valve Stem Diameter: 0.310 in
Installation Notes:
EQUIPPED WITH SPRINGS FOR USE IN HYDRAULIC FLAT TAPPET CAMSHAFT APPLICATIONS
- Victor Jr. CNC cylinder heads #61179 are complete and ready to run right out of the box.
- Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat.
