Edelbrock Single SBC Chevy Cylinder Head, Hydraulic Flat ETEC-200 Complete

Single SBC Chevy Cylinder Head, Hydraulic Flat Tappet Cam, ETEC-200 Complete

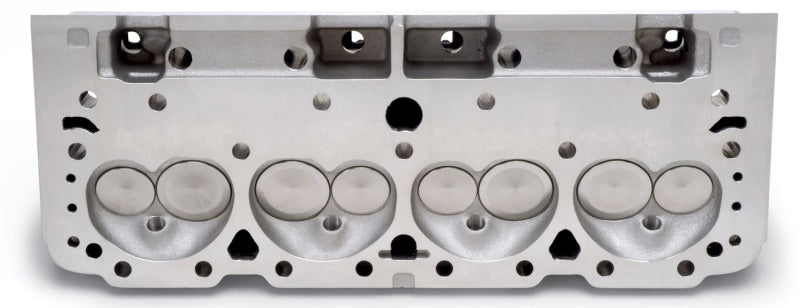

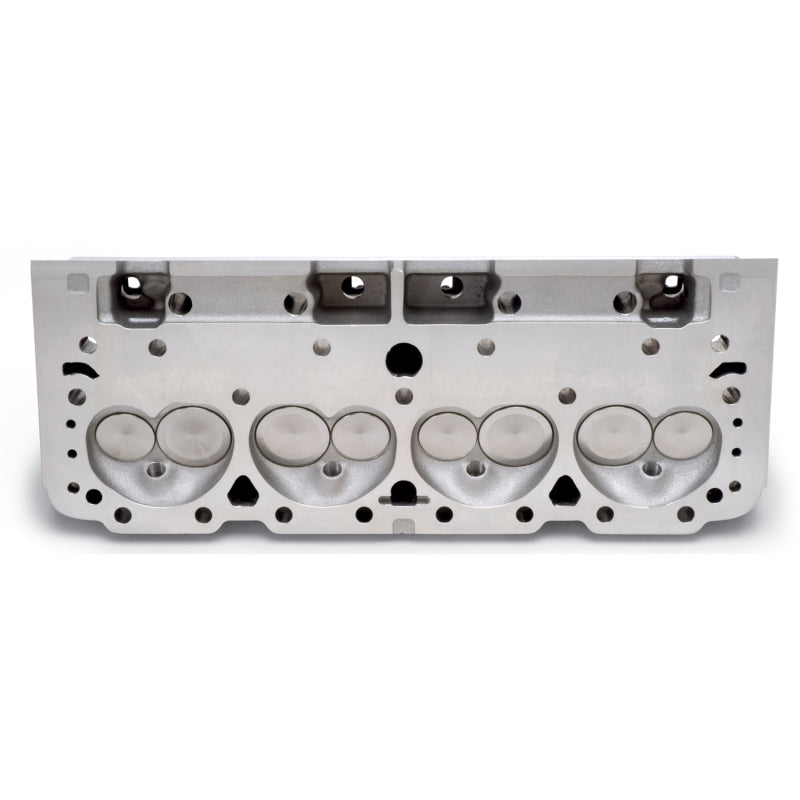

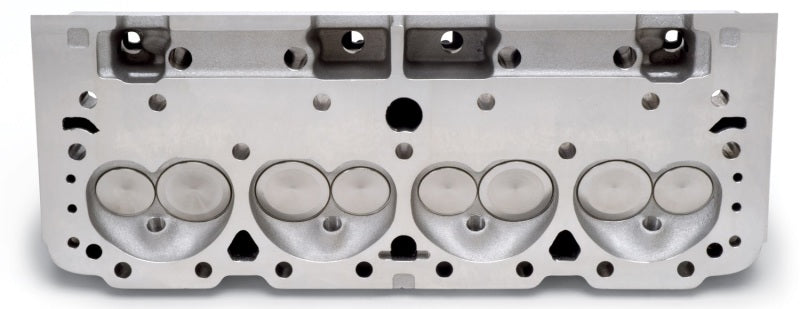

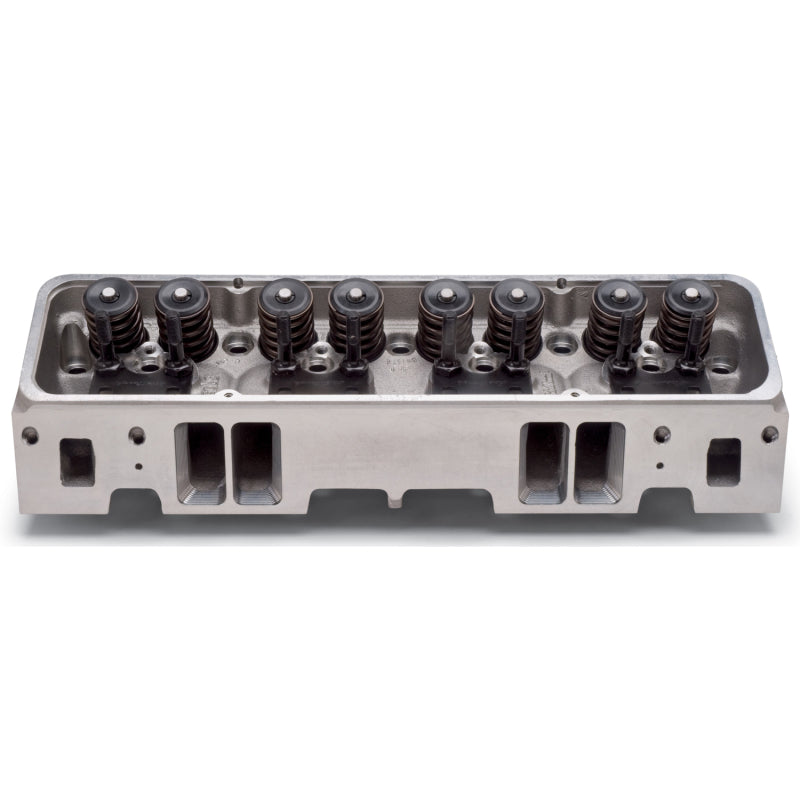

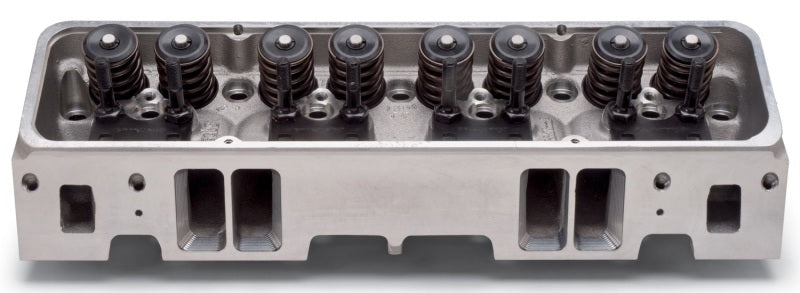

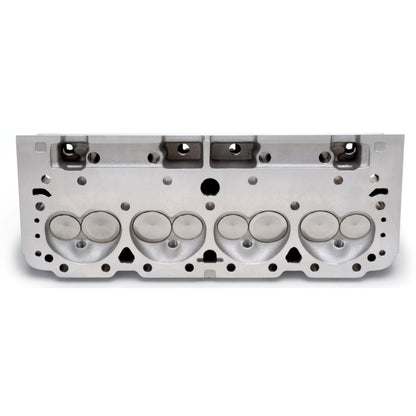

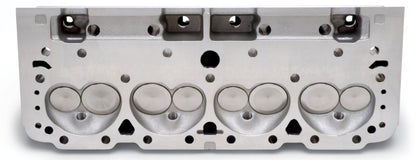

The Edelbrock #60989 E-Tec Cylinder Heads are replacements for 302, 327, 350 & 400 c.i.d. S/B Chevy engines with "Vortec-style" manifolds. They feature an LT1-style raised runner intake port design for increased air-flow and ultimate performance. A unique combustion chamber design positions the spark plug closer to the center of the cylinder, promoting a more efficient combustion resulting in more power. These heads include an adjustable rocker stud and guide plate set-up for use with adjustable rockers or washers to properly position the stud height to accommodate factory style self-aligning rocker arms. They have 20% more exhaust flow than cast iron Vortec heads, great performance up to 6000 rpm and can produce 9.5:1 compression with stock pistons in 350 cubic-inch engines. RPM E-Tec cylinder heads are dual-drilled and will accept 1987-95 center bolt and/or 1986 & prior perimeter flange mount valve covers and most stock exhaust manifolds.
Specs:
- Application: Universal
- GTIN: 00085347609895
- Combustion Chamber Volume: 64.0 cu.in
- Deck Height: 9.025 in
- Deck Thickness: 0.562 in
- Exhaust Valve Diameter: 1.600 in
- Guide Plates Included: Yes
- Intake Runner Volume: 200.0 cu.in
- Intake Valve Diameter: 2.020 in
- Material: Aluminum
- Push Rod Diameter: 0.312 in
- Rocker Stud Diameter: 0.375 in
- Valve Angle: 23 deg
- Valve Spring Diameter: 1.460 in
- Valve Spring Maximum Lift: 0.575 in
- Valve Stem Diameter: 0.341 in
Installation Notes:
EQUIPPED WITH SPRINGS FOR USE IN HYDRAULIC FLAT TAPPET CAMSHAFT APPLICATIONS
- Match with Edelbrock head gasket sets.
- Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat.
- To use stock rockers on small-block Chevy heads, .100" longer than stock pushrods are required. Edelbrock pushrods #9629 are recommended.
- Use Head Bolt Kits for easy installation. S/B Chevy heads may not be used on engines with less than 4" bore (262, 265, 283, 305, 307 c.i.d.) except with cams having less than .450" valve lift.
Vehicle Fitments:
Year | Make | Model | Submodel |
---|---|---|---|
1980 - 1991 | Avanti | II | Base |
1985 | Avanti | II | GT |
1980 | Buick | Century | Estate, Base, Limited, Sport |
1991 - 1993 | Buick | Commercial Chassis | Base |
1980 | Buick | Regal | Limited, Base, Sport |
1992 - 1993 | Buick | Roadmaster | Base, Limited |
1991 - 1993 | Buick | Roadmaster | Estate Wagon |
1980 - 1982 | Checker | Marathon | Base, Deluxe |
1980 - 1981 | Chevrolet | C10 | Cheyenne |
1980 | Chevrolet | C10 | Custom Deluxe, Big Ten |
1981 | Chevrolet | C10 | Deluxe |
1980 - 1986 | Chevrolet | C10 | Silverado, Custom, Scottsdale |
1981 - 1986 | Chevrolet | C10 Suburban | Custom |
1980 | Chevrolet | C10 Suburban | Custom Deluxe |
1981 | Chevrolet | C10 Suburban | Deluxe |
1980 - 1986 | Chevrolet | C10 Suburban | Silverado, Scottsdale |
1986 | Chevrolet | C20 | Base |
1980 - 1986 | Chevrolet | C20 | Cheyenne, Scottsdale, Silverado |
1981 - 1986 | Chevrolet | C20 | Custom |
1980 | Chevrolet | C20 | Custom Deluxe |
1981 | Chevrolet | C20 | Deluxe |
1981 - 1986 | Chevrolet | C20 Suburban | Custom |
1980 | Chevrolet | C20 Suburban | Custom Deluxe |
1981 | Chevrolet | C20 Suburban | Deluxe |
1980 - 1986 | Chevrolet | C20 Suburban | Silverado, Scottsdale |
1980 - 1982 | Chevrolet | C30 | Base |
1980 - 1981 | Chevrolet | C30 | Cheyenne |
1981 - 1986 | Chevrolet | C30 | Custom |
1980 | Chevrolet | C30 | Custom Deluxe |
1981 | Chevrolet | C30 | Deluxe |
1980 - 1986 | Chevrolet | C30 | Silverado, Scottsdale |
1985 - 1986 | Chevrolet | Camaro | Iroc-Z |
1980 | Chevrolet | Camaro | Rally Sport, Base |
1981 - 1986 | Chevrolet | Camaro | Sport |
1982 | Chevrolet | Camaro | Z28 Indianapolis 500 Pace Car |
1980 - 1986 | Chevrolet | Camaro | Z28, Berlinetta |
1986 | Chevrolet | Caprice | Classic Brougham |
1981 - 1982 | Chevrolet | Caprice | Classic Estate |
1980 - 1981 | Chevrolet | Caprice | Classic Landau |
1980 | Chevrolet | Caprice | Classic Sport |
1980 - 1986 | Chevrolet | Caprice | Classic, Base |
1980 - 1986 | Chevrolet | Corvette | Base |
1982 | Chevrolet | Corvette | Collector's Edition |
1986 | Chevrolet | Corvette | Indianapolis 500 Pace Car |
1980 - 1986 | Chevrolet | El Camino | Base, SS |
1981 - 1986 | Chevrolet | El Camino | Conquista |
1980 - 1981 | Chevrolet | El Camino | Royal Knight |
1983 | Chevrolet | G10 | Base |
1981 - 1986 | Chevrolet | G10 | Bonaventure |
1980 - 1986 | Chevrolet | G10 | Sportvan, Beauville, Chevy Van |
1983 - 1984 | Chevrolet | G20 | Bonaventure |
1980 - 1981 | Chevrolet | G20 | Nomad |
1980 - 1986 | Chevrolet | G20 | Sportvan, Beauville, Chevy Van |
1983 - 1984 | Chevrolet | G30 | Bonaventure |
1980 - 1986 | Chevrolet | G30 | Chevy Van, Beauville, Sportvan, Hi-Cube |
1980 - 1985 | Chevrolet | Impala | Base |
1981 - 1982 | Chevrolet | Impala | Estate |
1980 | Chevrolet | Impala | Sport |
1980 - 1981 | Chevrolet | K10 | Cheyenne |
1981 - 1986 | Chevrolet | K10 | Custom |
1980 | Chevrolet | K10 | Custom Deluxe |
1981 | Chevrolet | K10 | Deluxe |
1980 - 1986 | Chevrolet | K10 | Silverado, Scottsdale |
1981 - 1986 | Chevrolet | K10 Suburban | Custom |
1980 | Chevrolet | K10 Suburban | Custom Deluxe |
1981 | Chevrolet | K10 Suburban | Deluxe |
1980 - 1986 | Chevrolet | K10 Suburban | Silverado, Scottsdale |
1980 - 1981 | Chevrolet | K20 | Cheyenne |
1981 - 1986 | Chevrolet | K20 | Custom |
1980 | Chevrolet | K20 | Custom Deluxe |
1981 | Chevrolet | K20 | Deluxe |
1980 - 1986 | Chevrolet | K20 | Scottsdale, Silverado |
1981 - 1986 | Chevrolet | K20 Suburban | Custom |
1980 | Chevrolet | K20 Suburban | Custom Deluxe |
1981 | Chevrolet | K20 Suburban | Deluxe |
1980 - 1986 | Chevrolet | K20 Suburban | Scottsdale, Silverado |
1980 - 1981 | Chevrolet | K30 | Cheyenne |
1981 - 1986 | Chevrolet | K30 | Custom |
1980 | Chevrolet | K30 | Custom Deluxe |
1981 | Chevrolet | K30 | Deluxe |
1980 - 1986 | Chevrolet | K30 | Silverado, Scottsdale |
1980 | Chevrolet | K5 Blazer | Cheyenne, Custom Deluxe |
1981 - 1986 | Chevrolet | K5 Blazer | Custom |
1981 | Chevrolet | K5 Blazer | Deluxe |
1984 | Chevrolet | K5 Blazer | Scottsdale |
1980 - 1986 | Chevrolet | K5 Blazer | Silverado |
1980 - 1981 | Chevrolet | Malibu | Base, Classic Landau |
1980 - 1983 | Chevrolet | Malibu | Classic |
1980 | Chevrolet | Malibu | Classic Sport, Estate, Classic Estate, Sport |
1981 - 1986 | Chevrolet | Monte Carlo | Base |
1983 | Chevrolet | Monte Carlo | CL |
1980 - 1981 | Chevrolet | Monte Carlo | Landau |
1986 | Chevrolet | Monte Carlo | LS |
1980 | Chevrolet | Monte Carlo | Sport |
1983 - 1986 | Chevrolet | Monte Carlo | SS |
1985 | Excalibur | Phaeton | Anniversary |
1983 - 1989 | Excalibur | Phaeton | Base |
1980 | GMC | C1500 | Heavy Half |
1980 - 1986 | GMC | C1500 | Sierra Classic, High Sierra, Base |
1980 - 1982 | GMC | C1500 | Sierra Grande, Street Coupe |
1980 - 1986 | GMC | C1500 Suburban | Sierra Classic, Base, High Sierra |
1980 - 1982 | GMC | C1500 Suburban | Sierra Grande |
1980 - 1986 | GMC | C2500 | High Sierra, Base, Sierra Classic |
1980 - 1982 | GMC | C2500 | Sierra Grande |
1980 - 1986 | GMC | C2500 Suburban | Base, High Sierra, Sierra Classic |
1980 - 1982 | GMC | C2500 Suburban | Sierra Grande |
1980 - 1986 | GMC | C3500 | Base, High Sierra, Sierra Classic |
1980 - 1982 | GMC | C3500 | Sierra Grande |
1981 - 1986 | GMC | Caballero | Amarillo |
1980 - 1986 | GMC | Caballero | Base, Diablo |
1981 | GMC | Caballero | Conquista, Royal Knight |
1980 | GMC | Caballero | Laredo |
1983 - 1984 | GMC | G1500 | Rally Custom |
1980 - 1986 | GMC | G1500 | Rally STX, Vandura, Rally |
1983 - 1984 | GMC | G2500 | Rally Custom |
1980 - 1986 | GMC | G2500 | Rally, Rally STX, Vandura |
1980 - 1988 | GMC | G3500 | Magnavan, Rally Camper Special, Vandura, Rally, Rally STX, Vandura Special |
1981 - 1988 | GMC | G3500 | Rally Custom |
1980 - 1986 | GMC | Jimmy | Base, Sierra Classic |
1980 - 1985 | GMC | Jimmy | High Sierra |
1980 - 1982 | GMC | Jimmy | Sierra Grande, Street Coupe |
1986 | GMC | Jimmy | Silverado |
1980 - 1986 | GMC | K1500 | Base, High Sierra, Sierra Classic |
1980 - 1982 | GMC | K1500 | Sierra Grande |
1980 - 1986 | GMC | K1500 Suburban | Base, High Sierra, Sierra Classic |
1980 - 1982 | GMC | K1500 Suburban | Sierra Grande |
1980 - 1986 | GMC | K2500 | Base, High Sierra, Sierra Classic |
1980 - 1982 | GMC | K2500 | Sierra Grande |
1980 - 1986 | GMC | K2500 Suburban | Base, Sierra Classic, High Sierra |
1980 - 1982 | GMC | K2500 Suburban | Sierra Grande |
1980 - 1986 | GMC | K3500 | Base, High Sierra, Sierra Classic |
1980 - 1982 | GMC | K3500 | Sierra Grande |
1980 | Oldsmobile | Cutlass | LS, Base, Brougham |
1980 | Oldsmobile | Cutlass Calais | Base |
1980 - 1982 | Oldsmobile | Cutlass Cruiser | Base |
1980 | Oldsmobile | Cutlass Cruiser | Brougham |
1980 | Oldsmobile | Cutlass Salon | Brougham, Base |
1980 | Oldsmobile | Cutlass Supreme | Base, Brougham |
1983 - 1986 | Pontiac | Bonneville | Base, Brougham |
1984 - 1986 | Pontiac | Bonneville | LE |
1980 - 1986 | Pontiac | Firebird | Base, Trans Am |
1980 - 1981 | Pontiac | Firebird | Esprit, Formula |
1982 - 1986 | Pontiac | Firebird | S/E |
1980 | Pontiac | Grand Am | Base |
1980 | Pontiac | Grand LeMans | Safari, LE, Base |
1980 - 1986 | Pontiac | Grand Prix | Base |
1983 - 1986 | Pontiac | Grand Prix | Brougham |
1984 - 1986 | Pontiac | Grand Prix | LE |
1980 - 1983 | Pontiac | Grand Prix | LJ |
1980 | Pontiac | Grand Prix | SJ |
1980 | Pontiac | LeMans | Base, Safari |
1983 - 1986 | Pontiac | Parisienne | Brougham, Base |
