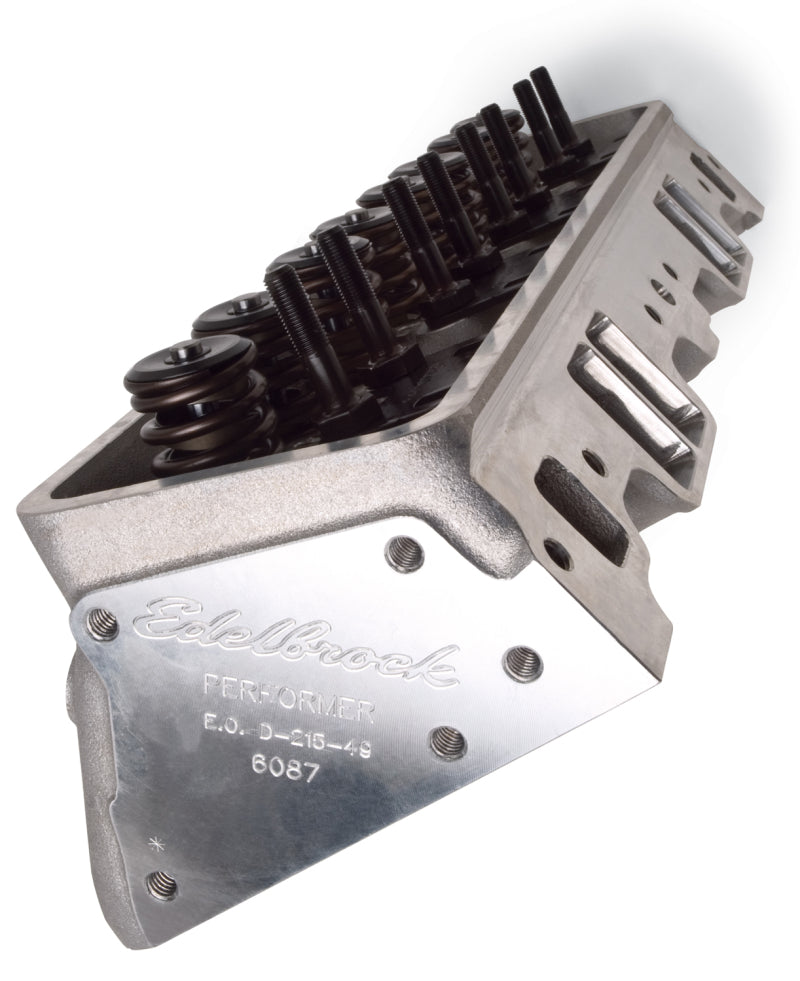

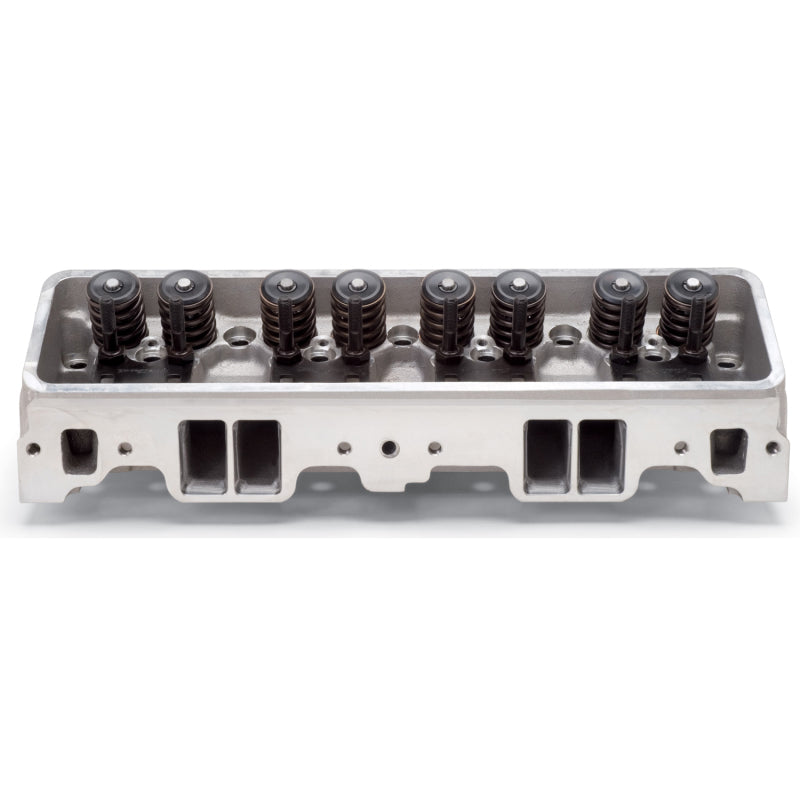

Edelbrock Intake Manifolds 60879 Item Image
Edelbrock Single Perf. 5.7 Corvette Head Comp
Edelbrock Single Perf. 5.7 Corvette Head Comp
Edelbrock

Edelbrock Single Perf. 5.7 Corvette Head Comp

SKU: 00M8F | MPN:  60879
Sale price$1,107.79 USD
Sold out

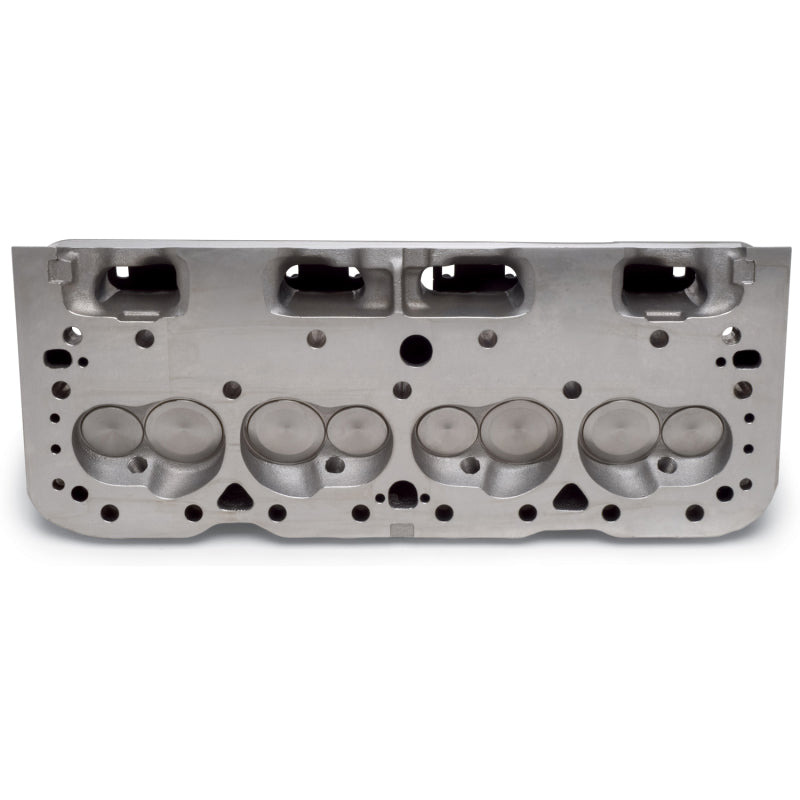

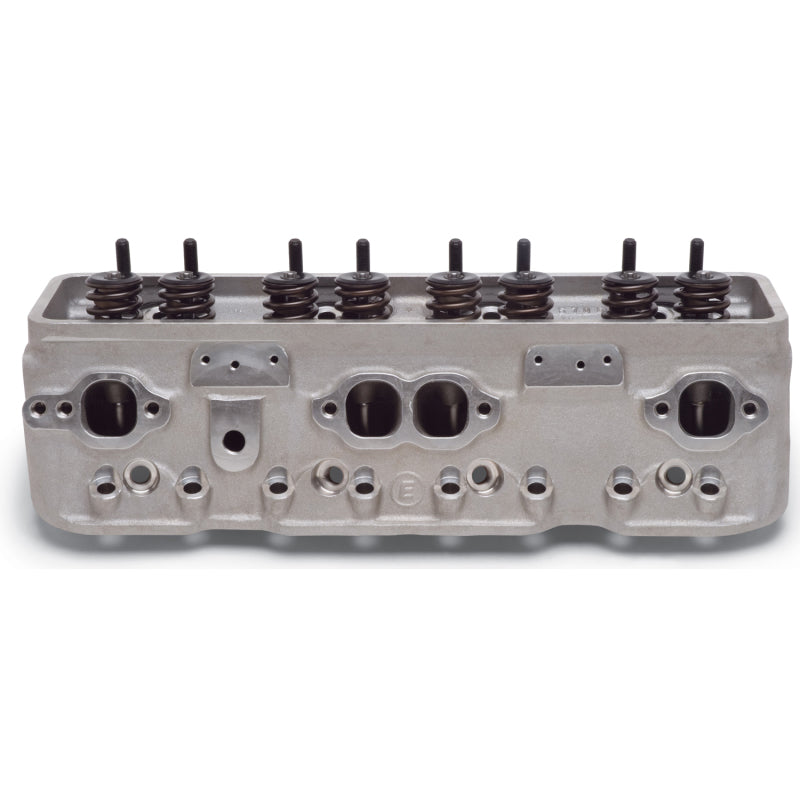

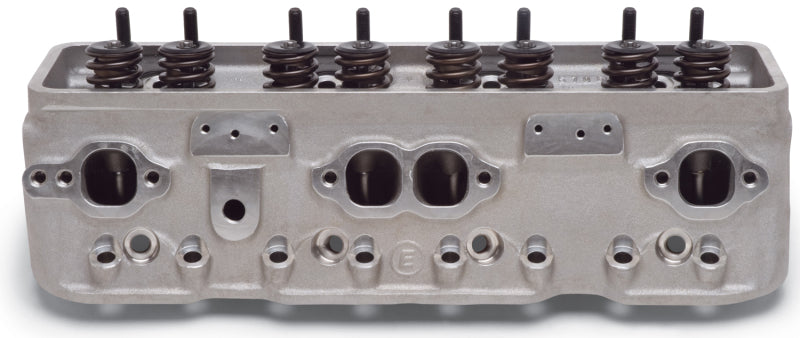

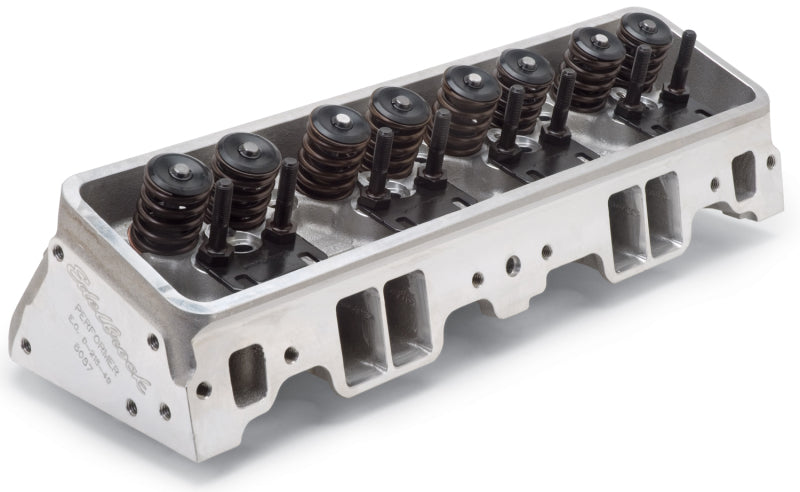

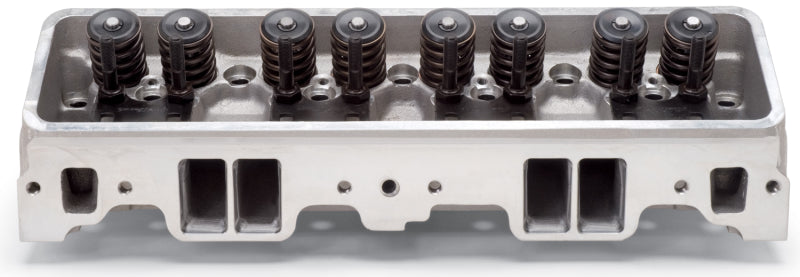

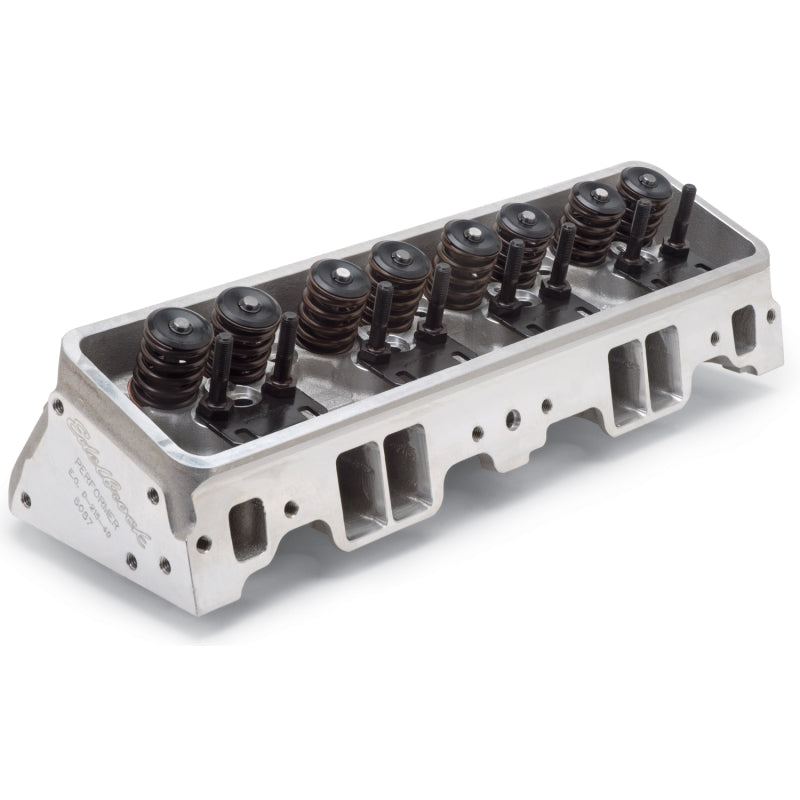

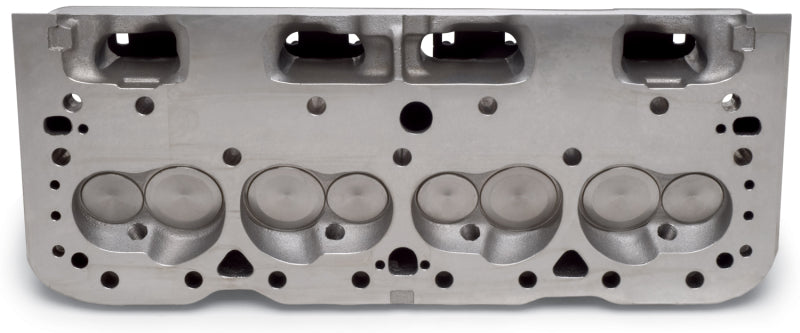

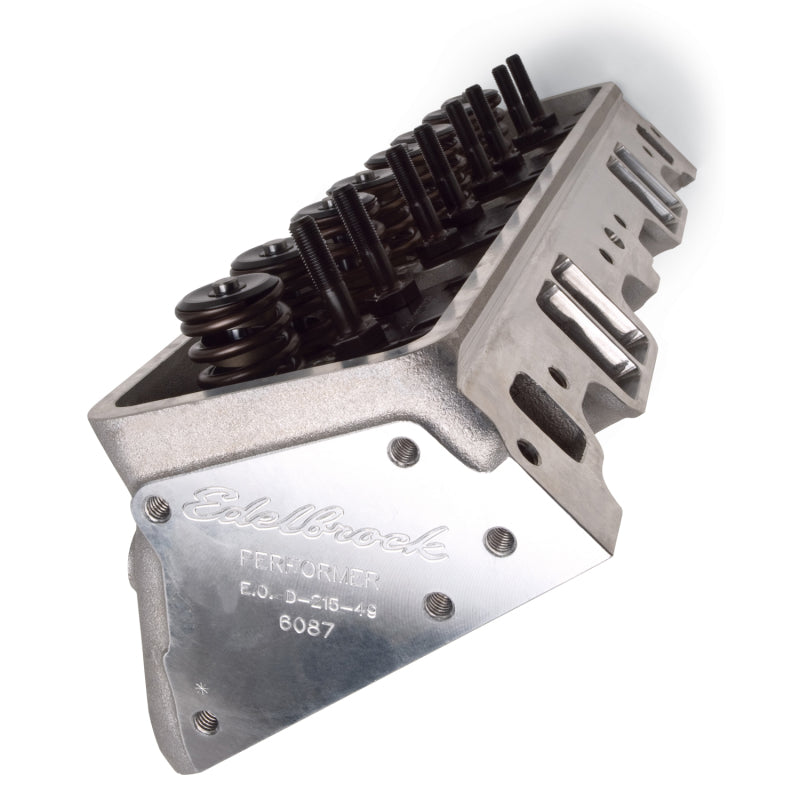

The Edelbrock #60879 Corvette center bolt cylinder head is designed for 1986-91 Tuned Port Injected (T.P.I) 5.7L small-block Chevy Corvette engines originally equipped with center bolt valve covers. Performer center bolt cylinder heads are 50-state street legal and accept factory center bolt valve covers. The intake bolt pattern utilizes the 1986-91 (straight) 90° angle on all bolts. Spark plugs are angled like stock O.E. heads. The Edelbrock Performer heads are perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. They also feature the highest quality intake and exhaust valves and valve springs.

SPECS

Application Universal
Emissions Code  EO Number: D-215-94
Combustion Chamber Volume 60.0 cu.in
Deck Height 9.025 in
Deck Thickness 0.562 in
Exhaust Valve Diameter 1.600 in
Guide Plates Included Yes
Intake Runner Volume 165.0 cu.in
Intake Valve Diameter 2.020 in
Material Aluminum
Push Rod Diameter 0.312 in
Rocker Stud Diameter 0.375 in
Valve Angle 23 deg
Valve Spring Diameter 1.460 in
Valve Spring Maximum Lift 0.575 in
Valve Stem Diameter 0.341 in
