Edelbrock Single Perf. SBC 70CC Head Comp
Edelbrock Single Perf. SBC 70CC Head Comp
Shipping calculated at checkout.
To United StatesChange
Final options and totals are confirmed at checkout.
19 in stock
Not sure this is the right part? Ask us to check fitment. Include your year, make, model, engine and manufacturer part number.
Shipping & returns
Shipping details
In-stock orders are processed within 48 hours; transit time is additional.
International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.

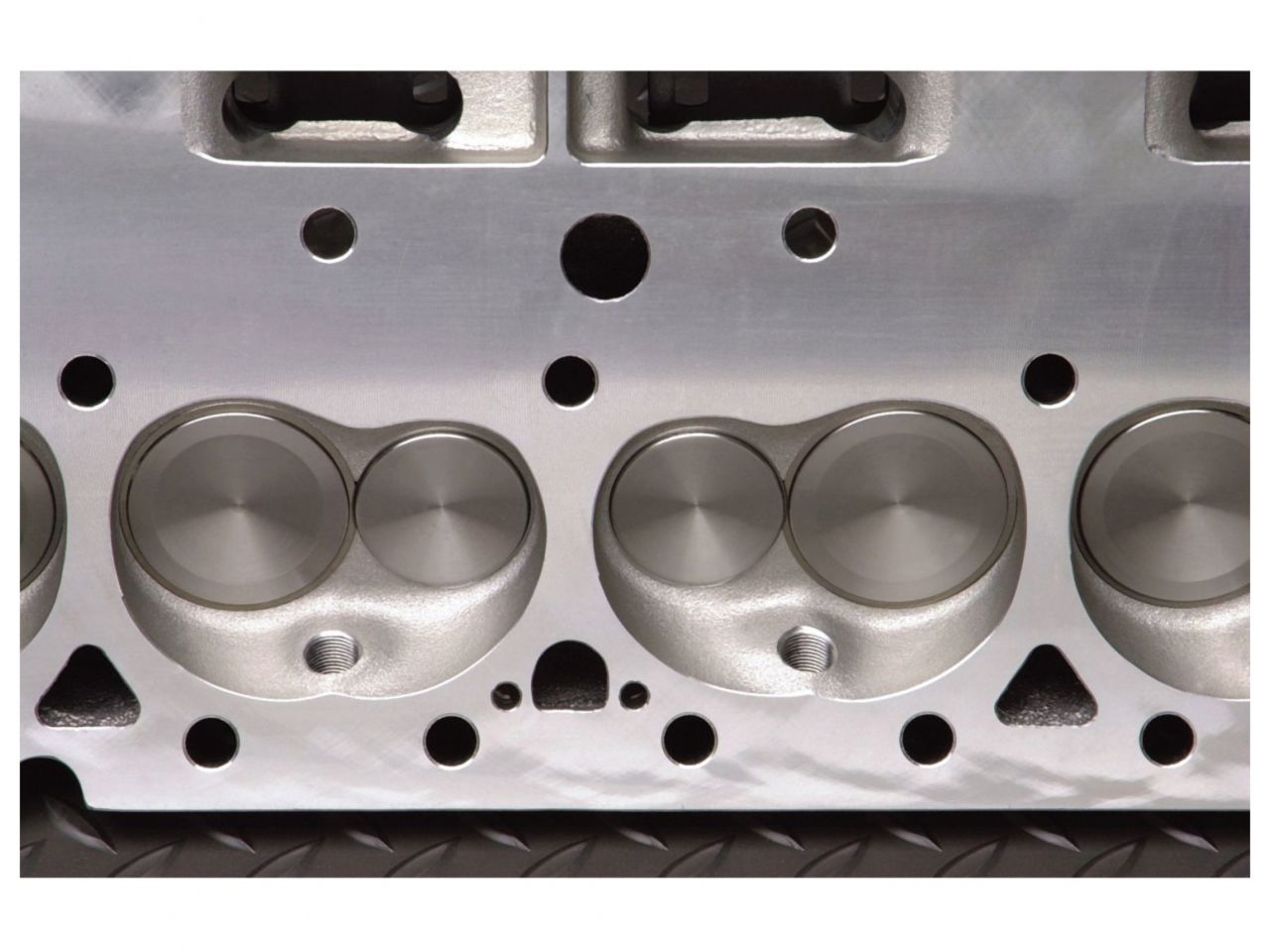

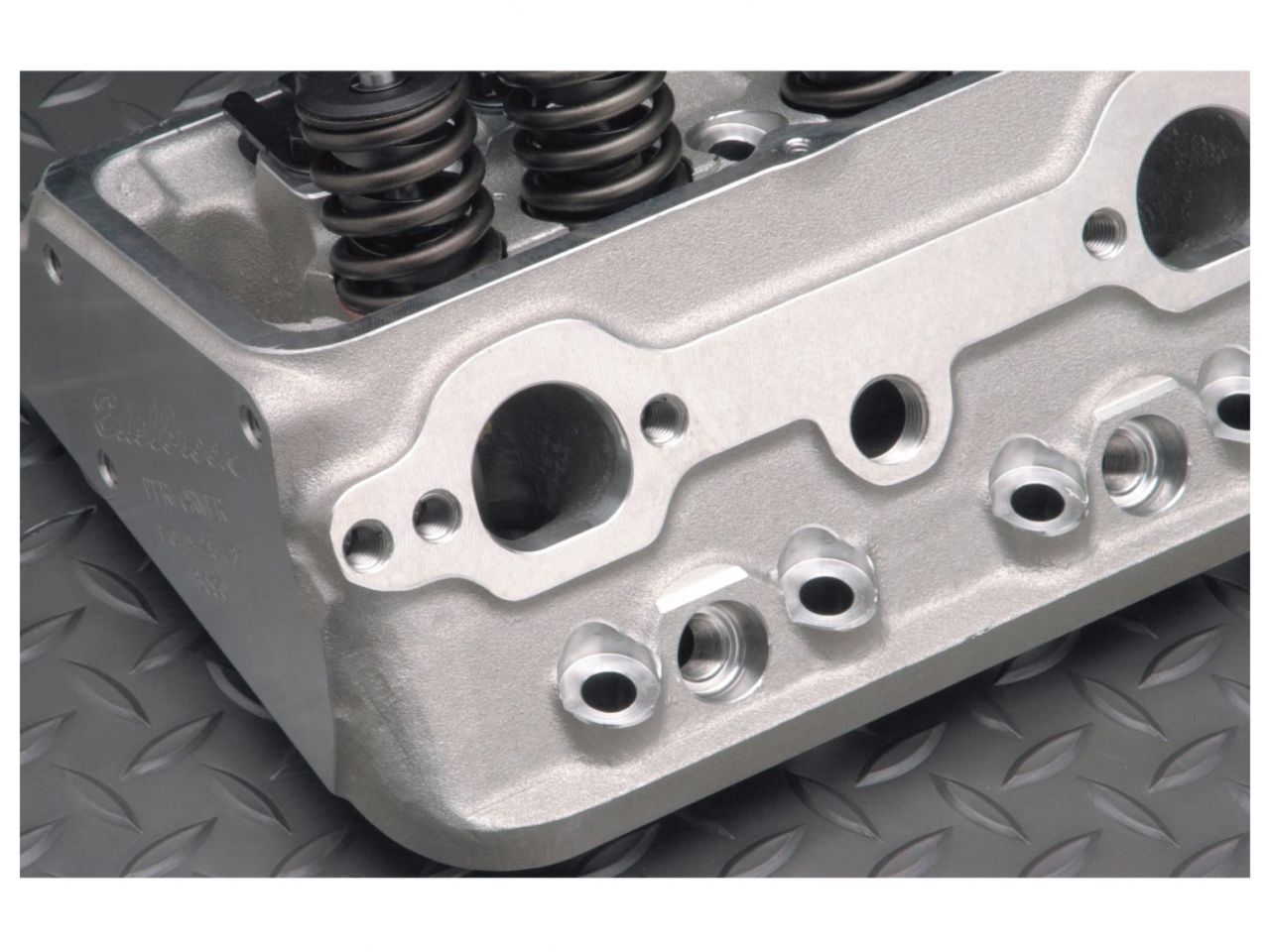

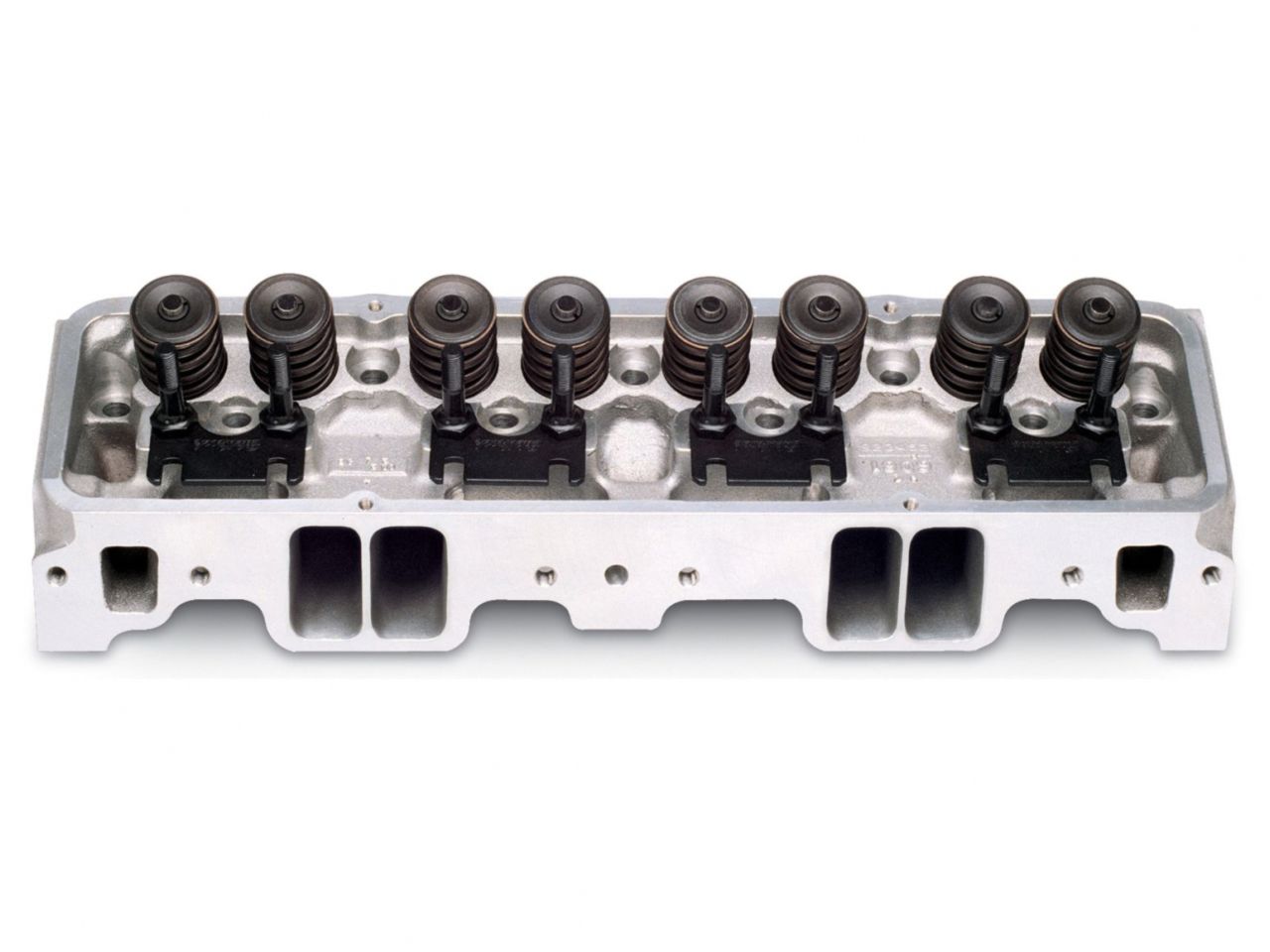

Read the shipping policyThe Edelbrock #60759 Performer Cylinder Heads are designed for 302, 327, 350 and 400 cid small-block Chevy engines up to 1986. These cylinder heads include your choice of 64cc (In order to retain stock compression ratio on 1970 and earlier small-blocks) or 70cc combustion chambers and high flow intake and exhaust ports. Complete heads include larger-than-stock 1.46" valve springs to handle most high-lift cams. These heads retain the stock intake port location for compatibility with standard manifolds and headers. Heat crossover is machined for 50-state emissions legal performance.
SPECS
| Application | Universal |
|---|---|
| Emissions Code | EO Number: D-215-94 |
| Combustion Chamber Volume | 70.0 cu.in |
| Deck Height | 9.025 in |
| Deck Thickness | 0.562 in |
| Exhaust Valve Diameter | 1.600 in |
| Guide Plates Included | Yes |
| Intake Runner Volume | 185.0 cu.in |
| Intake Valve Diameter | 2.020 in |
| Material | Aluminum |
| Push Rod Diameter | 0.312 in |
| Rocker Stud Diameter | 0.375 in |
| Valve Angle | 23 deg |
| Valve Spring Diameter | 1.460 in |
| Valve Spring Maximum Lift | 0.575 in |
| Valve Stem Diameter | 0.341 in |
