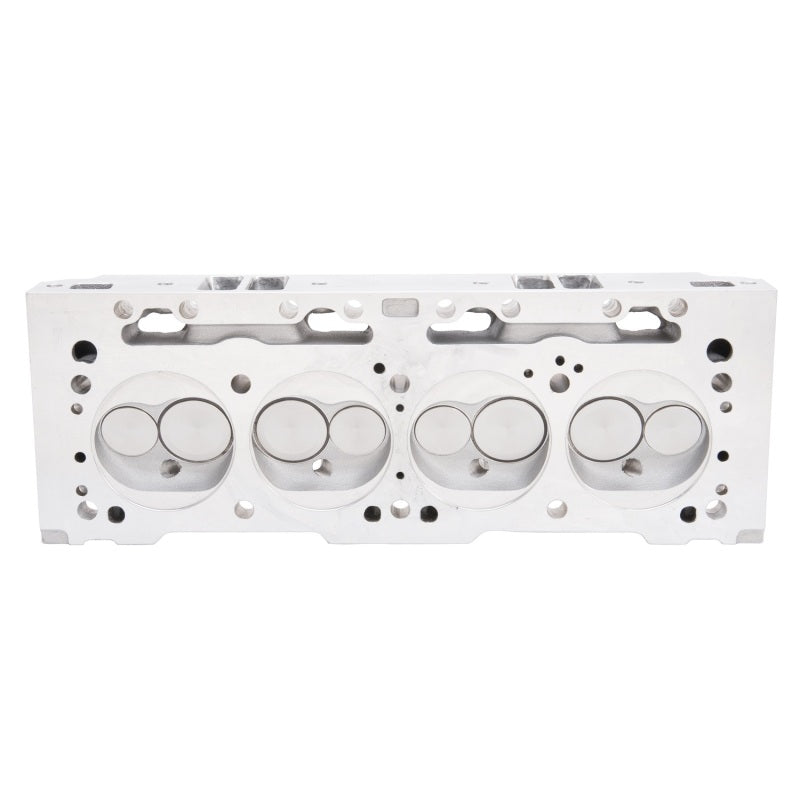

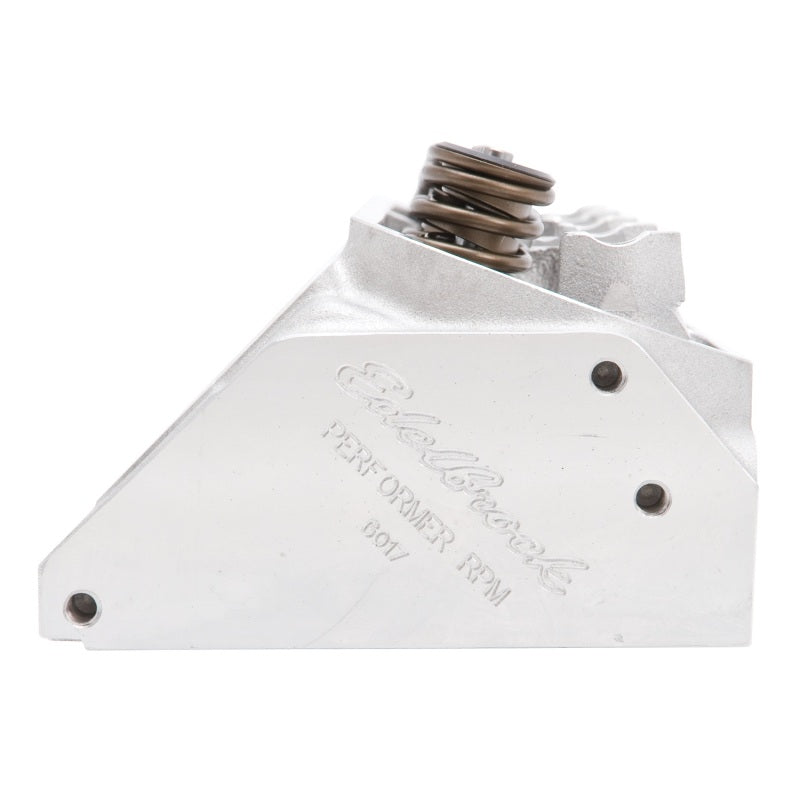

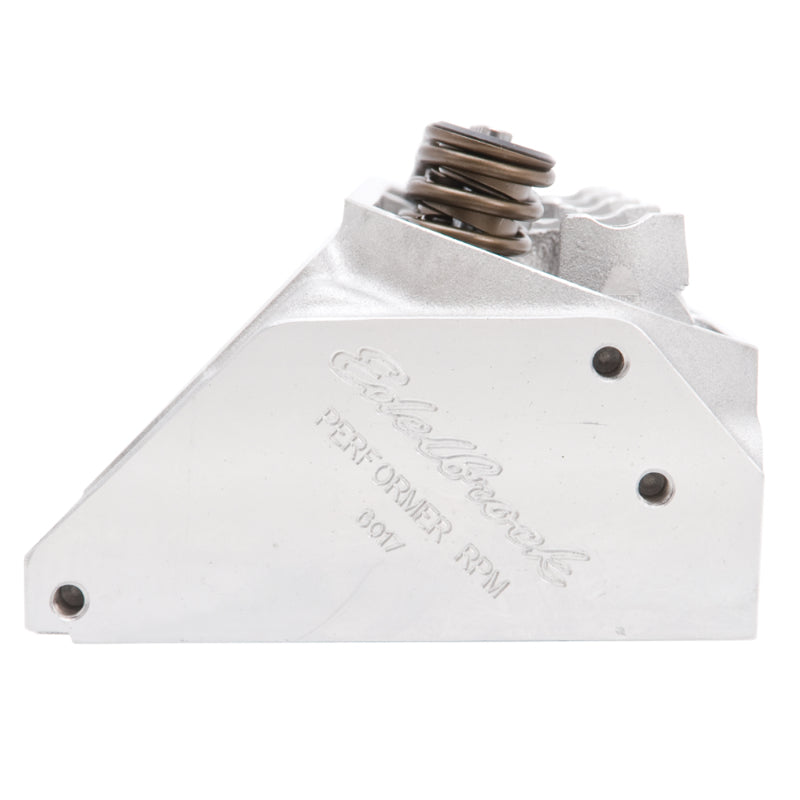

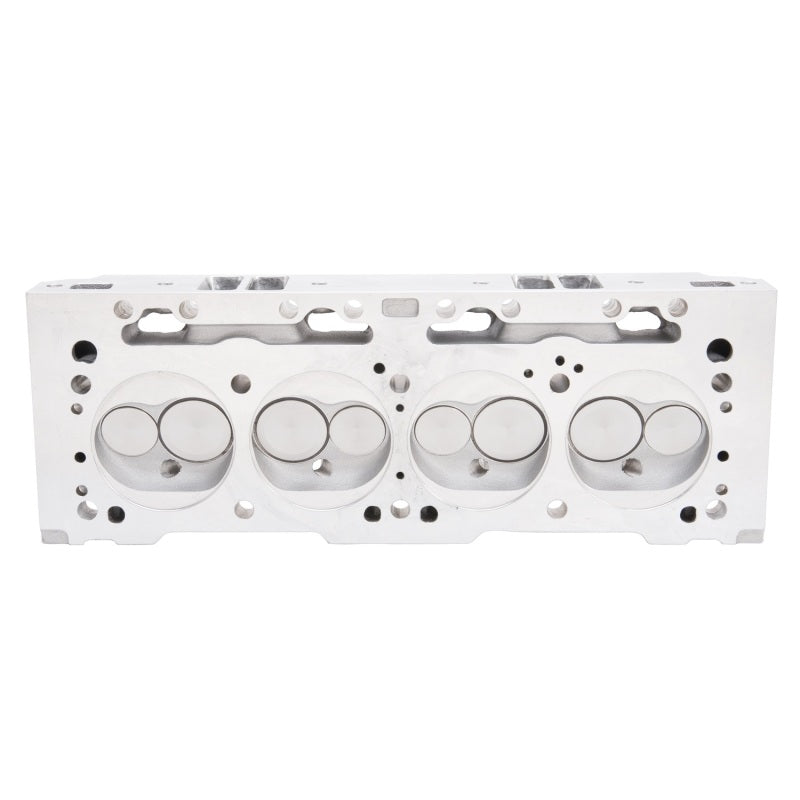

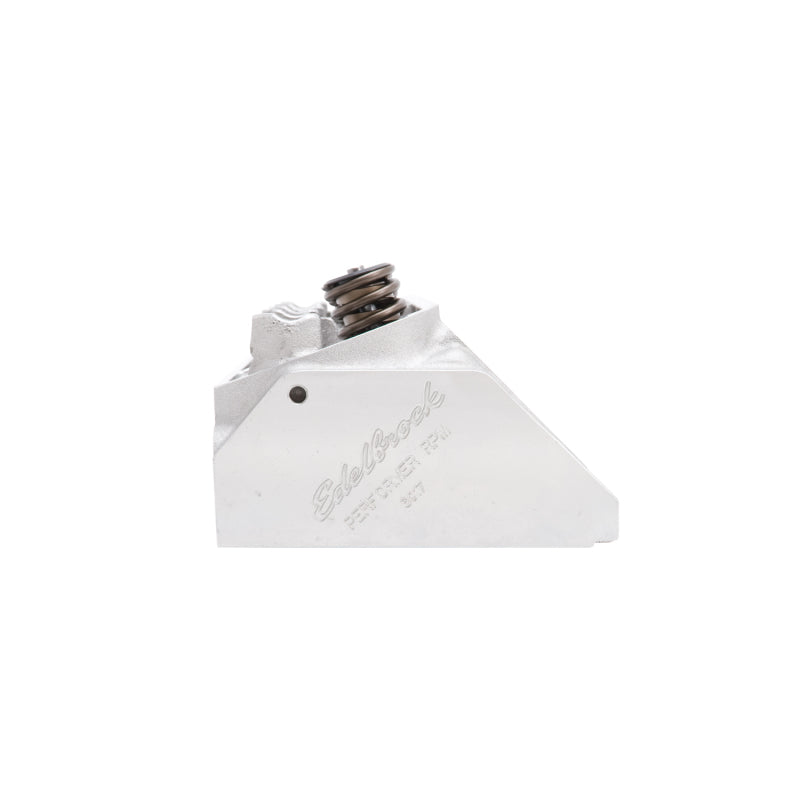

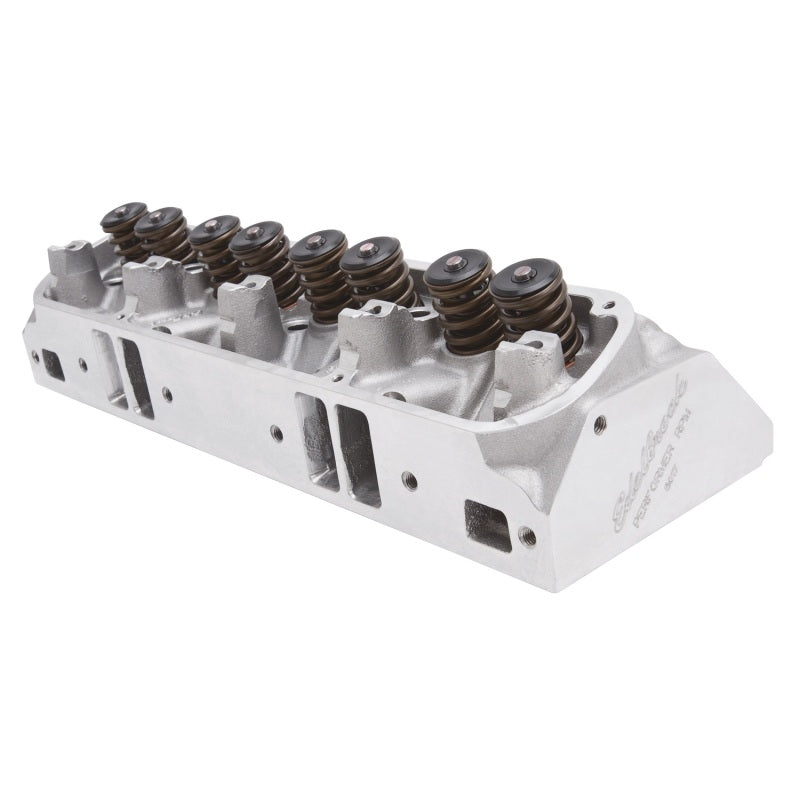

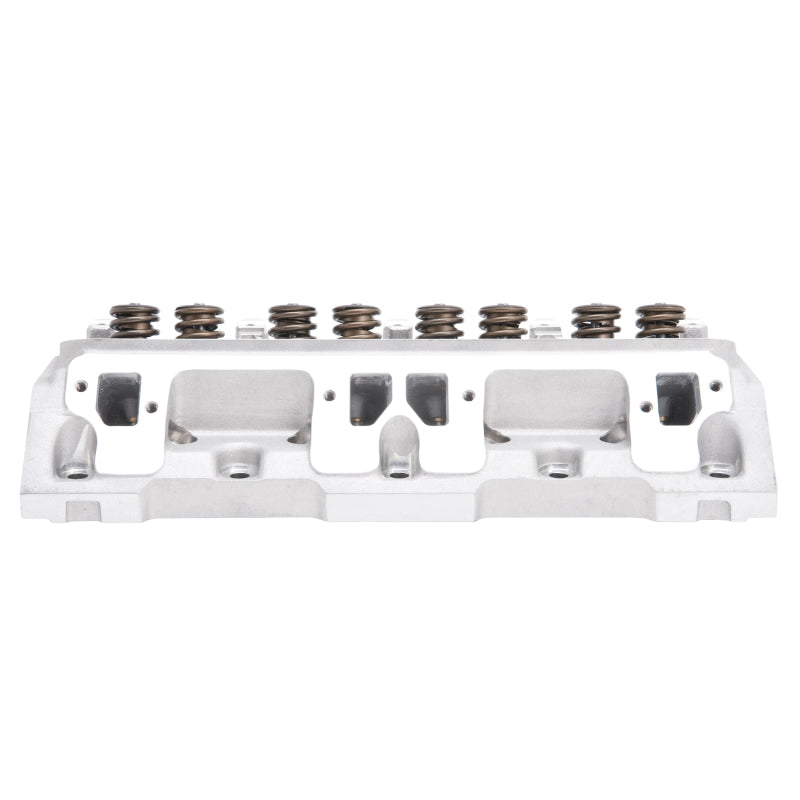

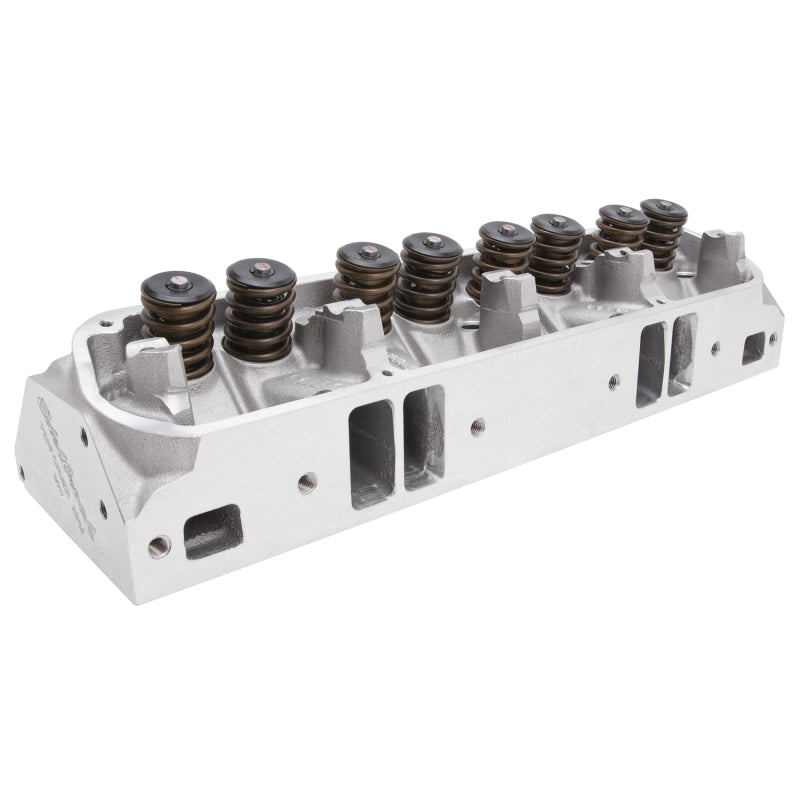

Edelbrock Cylinder Head, SB Chrysler, Performer RPM For Hydraulic Roller Cam

The Edelbrock #60175 Performer RPM heads are designed for use with non-emission 1968-73 Chrysler 340 c.i.d. engine applications. The Edelbrock #60175 Performer RPM heads are perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. These cylinder heads deliver great throttle response and power from 1500 to 6500 rpm. They also feature the highest quality intake and exhaust valves and valve springs. For use on pre-pollution controlled vehicles only.Designed for non-emission 1968-73 340 c.i.d. Chryslers, RPM Chrysler 340 cylinder heads have chambers machined .060" for clearance with early high-compression engines Make 417 horsepower and 397 ft-lbs. of torque on pump gas with an Edelbrock Performer RPM intake manifold and matching camshaft The special valvetrain in the 1970 340 T/A is not compatible with these cylinder heads. Match with Edelbrock head gasket sets. Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat. Deck thickness: 5/8", pushrod diameter: 5/16".

Specification

Application: Universal
GTIN: 00085347601752
Availability Note: Available to Order
Hazardous Materials Warning WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm.
CNC Ported: No
Combustion Chamber Volume: 65.0 cu.in
Deck Height: 9.600 in
Deck Thickness: 0.562 in
Exhaust Valve Diameter: 1.600 in
Guide Plates Included: No
Intake Runner Volume: 171.0 cu.in
Intake Valve Diameter: 2.020 in
Material: Aluminum
Push Rod Diameter: 0.312 in
Valve Angle: 18 deg
Valve Spring Diameter: 1.460 in
Valve Spring Maximum Lift: 0.575 in
Valve Stem Diameter: 0.341 in

Vehicle Fitments:
