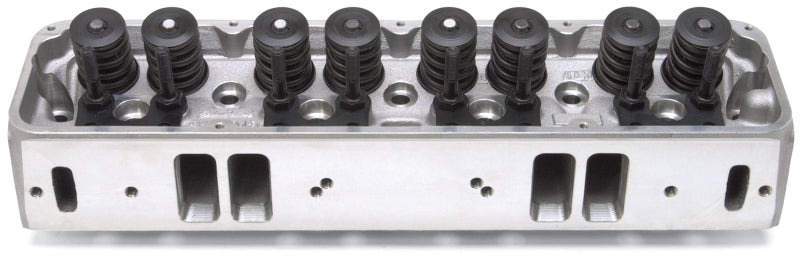

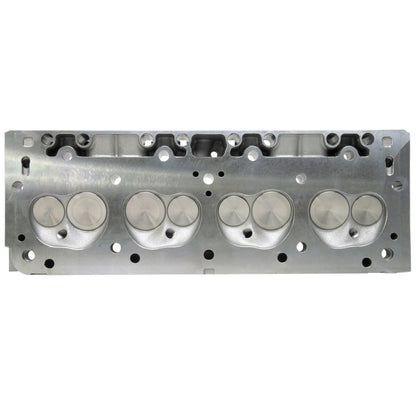

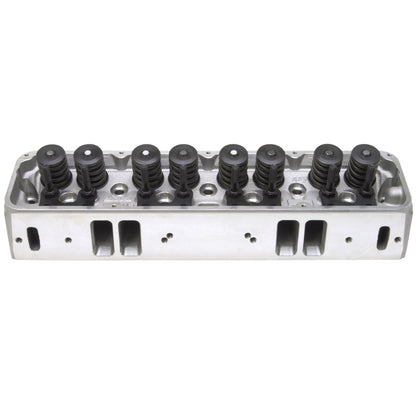

Edelbrock Performer Rpm Amc Head (Complete)
RPM AMC/ Jeep Cylinder Head No Crossover Complete

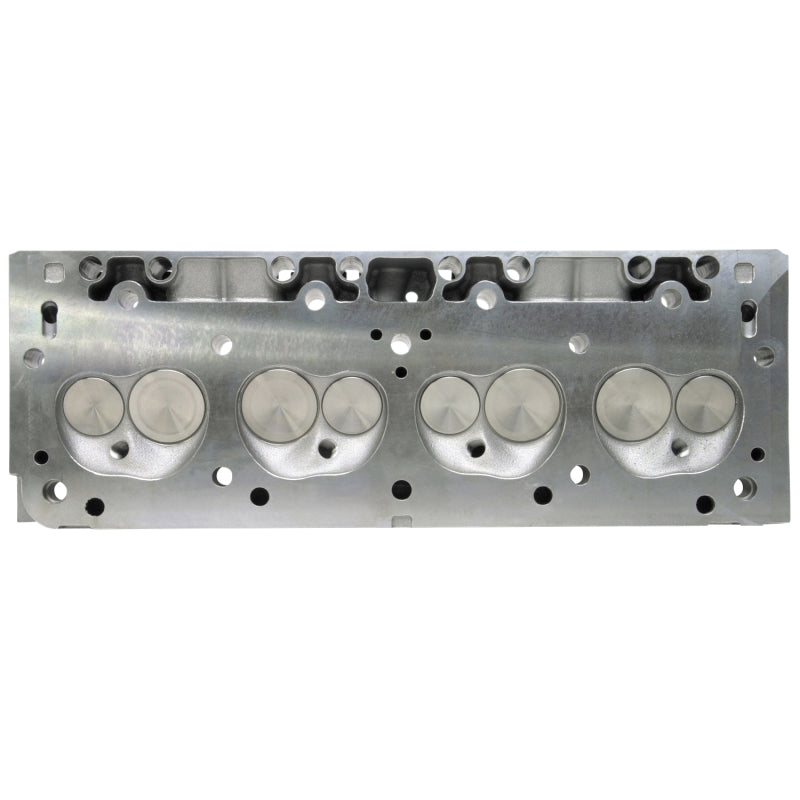

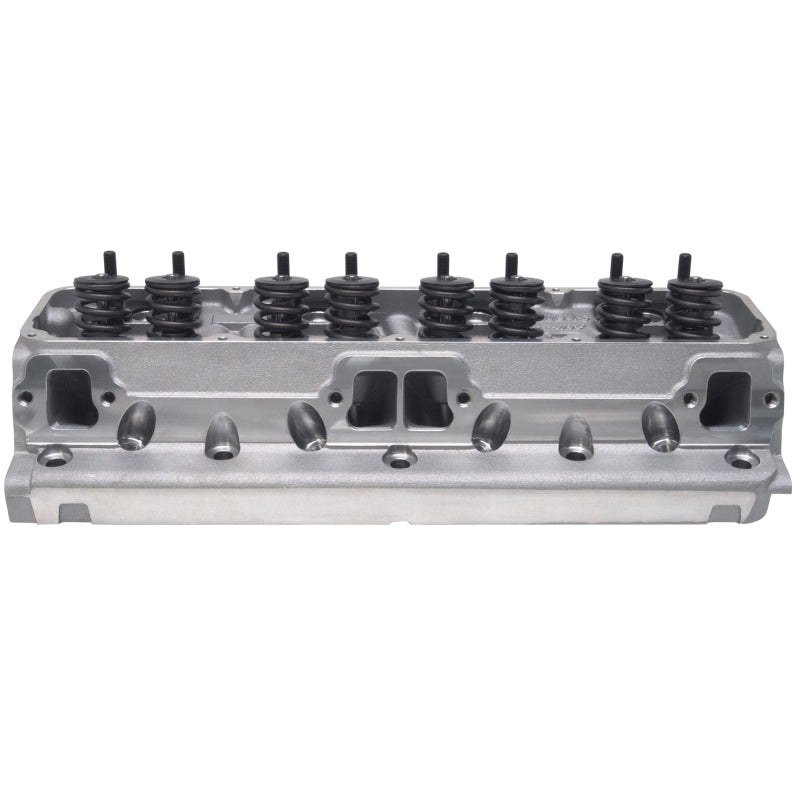

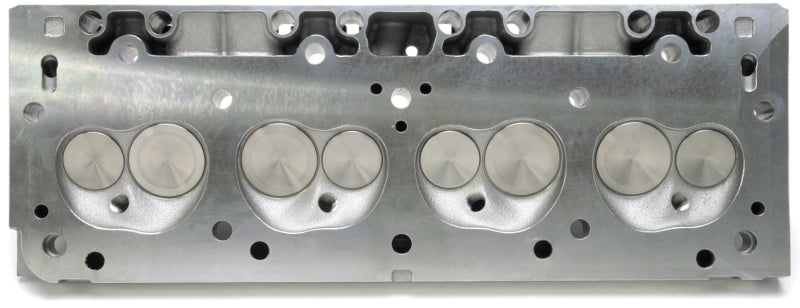

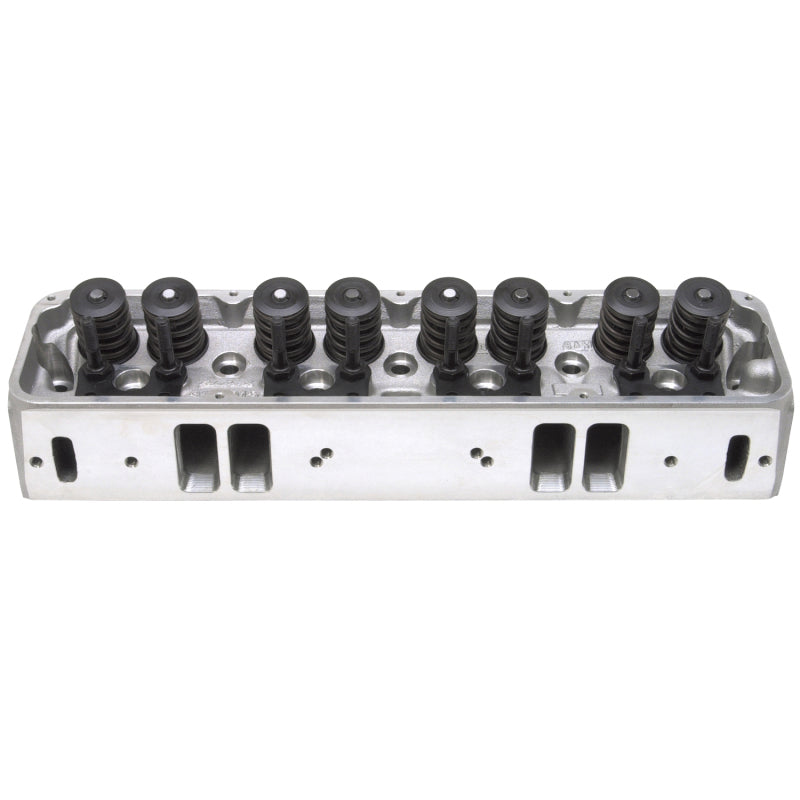

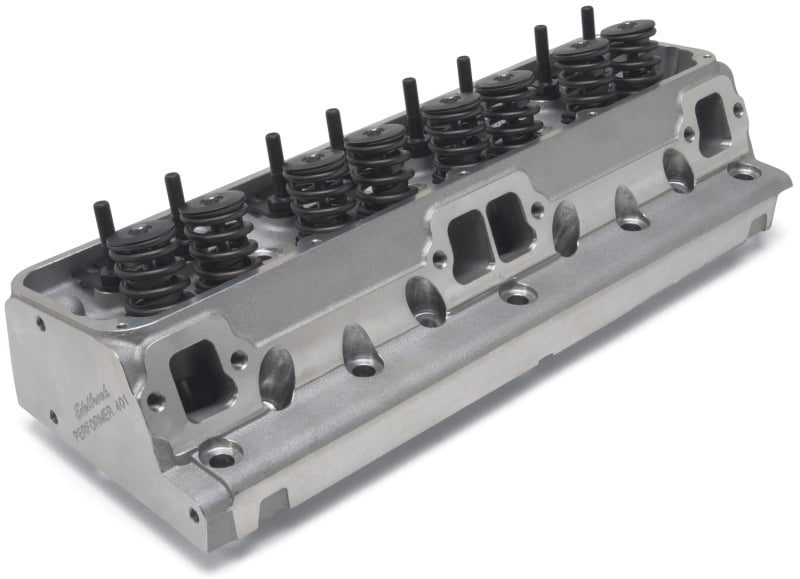

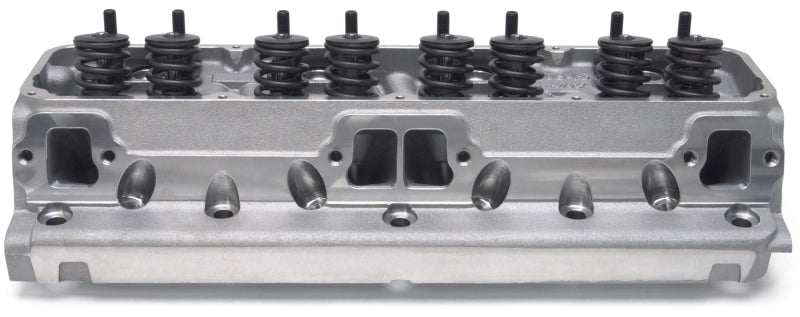

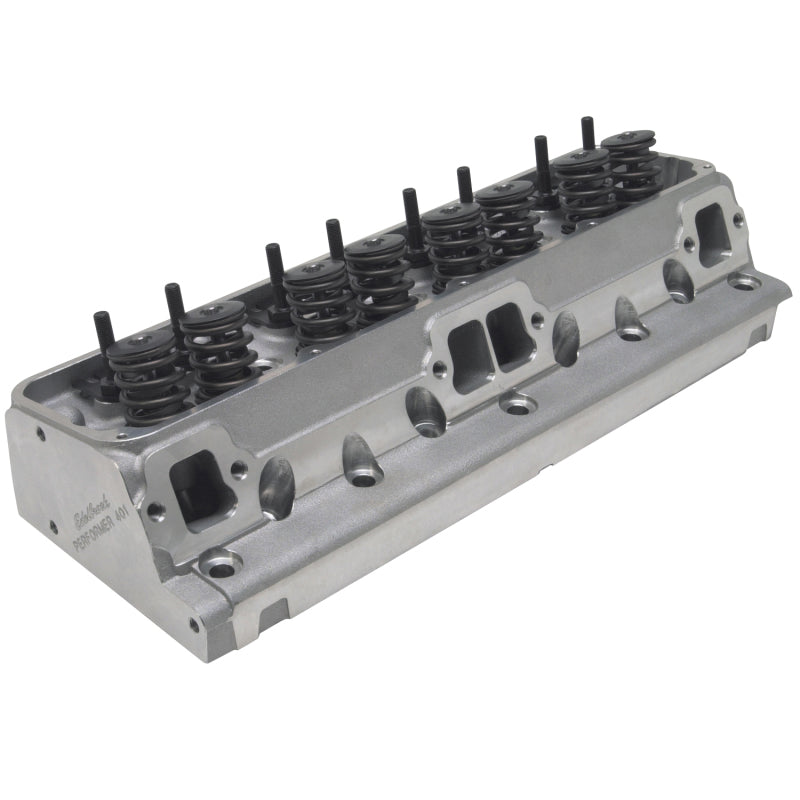

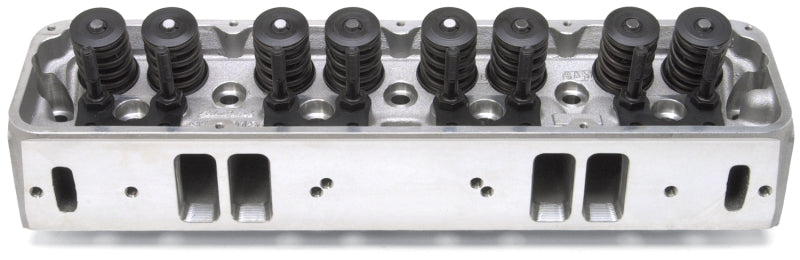

The Edelbrock #60119 Performer RPM Cylinder Heads are designed as a bolt-on performance upgrade for any 1967-91 AMX, Javelin or Jeep with a 343, 360, 390 or 401 AMC V8 engine. They include adjustable rocker studs and guide plates set-up for use with small-block Ford style adjustable 1.6:1 ratio rockers. The intake flange is dual-drilled to accommodate early and late model intake bolt patterns, covering 1967-91. Complete heads include larger than- stock valve springs to handle most high-lift cams. They feature stock location ports for compatibility with standard manifolds and headers. A direct bolt-on for 1970 and later engines with 1/2" head bolts, these heads include step-dowel pins for pre-1970 engines. Their dual-quench combustion chambers produce approximately 9.5:1 compression in 401 V8 engines. The 45° intake seat angle offers improved mid- to high-lift flow over the stock 30° angle.
SPECS
| Application | Universal |
|---|---|
| Installation Notes |
|
| Combustion Chamber Volume | 54.0 cu.in |
| Deck Height | 9.208 in |
| Deck Thickness | 0.625 in |
| Exhaust Valve Diameter | 1.600 in |
| Guide Plates Included | Yes |
| Intake Runner Volume | 185.0 cu.in |
| Intake Valve Diameter | 2.020 in |
| Material | Aluminum |
| Push Rod Diameter | 0.312 in |
| Rocker Stud Diameter | 0.375 in |
| Valve Angle | 18 deg |
| Valve Spring Diameter | 1.550 in |
| Valve Spring Maximum Lift | 0.580 in |
| Valve Stem Diameter | 0.341 in |
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1967 | American Motors | Ambassador | 990 |
| 1967 - 1970 | American Motors | Ambassador | Base |
| 1971 - 1974 | American Motors | Ambassador | Brougham |
| 1967 - 1971 | American Motors | Ambassador | DPL |
| 1968 - 1972 | American Motors | Ambassador | SST |
| 1967 | American Motors | American | 440, Rogue, Base |
| 1968 - 1970 | American Motors | AMX | Base |
| 1971 | American Motors | Hornet | SC/360 |
| 1971 - 1974 | American Motors | Hornet | Sportabout, Base |
| 1971 - 1972 | American Motors | Hornet | SST |
| 1971 - 1974 | American Motors | Javelin | AMX |
| 1968 - 1974 | American Motors | Javelin | Base |
| 1968 - 1972 | American Motors | Javelin | SST |
| 1970 | American Motors | Javelin | SST Trans Am, SST Mark Donohue |
| 1971 - 1978 | American Motors | Matador | Base |
| 1974 | American Motors | Matador | X, Brougham |
| 1969 | American Motors | Rambler | Hurst SC/Rambler, Base, 440, Rogue |
| 1968 | American Motors | Rebel | 550 |
| 1967 - 1968 | American Motors | Rebel | 770 |
| 1967 - 1970 | American Motors | Rebel | Base, SST |
| 1970 | American Motors | Rebel | The Machine |
| 1974 - 1983 | Jeep | Cherokee | Base |
| 1981 - 1983 | Jeep | Cherokee | Chief |
| 1981 | Jeep | Cherokee | Laredo |
| 1983 | Jeep | Cherokee | Pioneer |
| 1974 - 1980 | Jeep | Cherokee | S |
| 1978 - 1980 | Jeep | Cherokee | Wide Track |
| 1975 - 1982 | Jeep | Cherokee | Wide Track Chief |
| 1979 - 1980 | Jeep | Cherokee | Wide Track Golden Eagle |
| 1980 - 1983 | Jeep | Cherokee | Wide Track Laredo |
| 1980 | Jeep | Cherokee | Wide Track Limited |
| 1984 - 1991 | Jeep | Grand Wagoneer | Base |
| 1984 - 1985 | Jeep | Grand Wagoneer | Limited |
| 1972 - 1973 | Jeep | J-2500 | Base |
| 1972 - 1973 | Jeep | J-2600 | Base |
| 1972 - 1973 | Jeep | J-4800 | Base |
| 1974 - 1988 | Jeep | J10 | Base |
| 1982 - 1984 | Jeep | J10 | Laredo |
| 1974 - 1988 | Jeep | J20 | Base |
| 1983 | Jeep | Wagoneer | Alpina |
| 1972 - 1983 | Jeep | Wagoneer | Base |
| 1982 - 1983 | Jeep | Wagoneer | Brougham |
| 1973 - 1976 | Jeep | Wagoneer | Custom |
| 1979 - 1983 | Jeep | Wagoneer | Limited |
