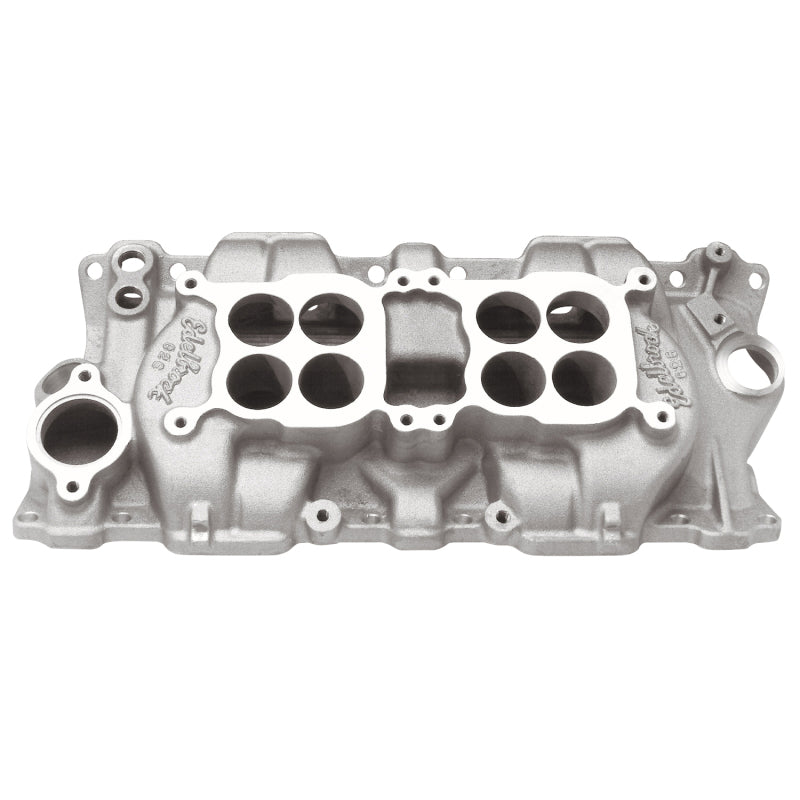

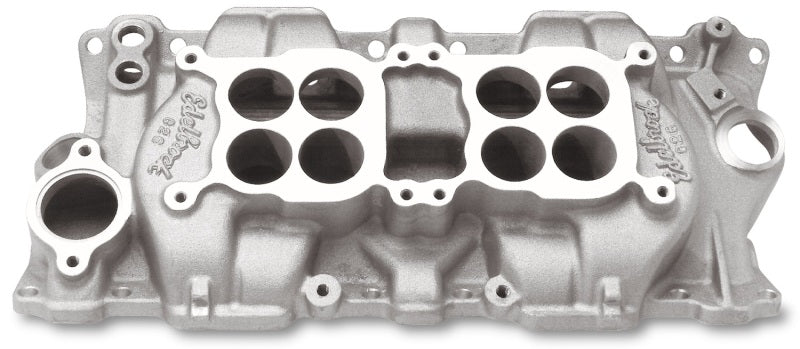

Edelbrock Manifold Dual Quad Intake C-26 for Small-Block Chevy, 1955-86

• Application: Universal
• GTIN: 00085347054251
• Center Maximum Height: 3.250 in
• Color: Satin
• Front Maximum Height: 2.950 in
• Material: Aluminum
• Rear Maximum Height: 3.550 in
• Single Or Dual Plane Type: Dual Plane

Installation Notes:

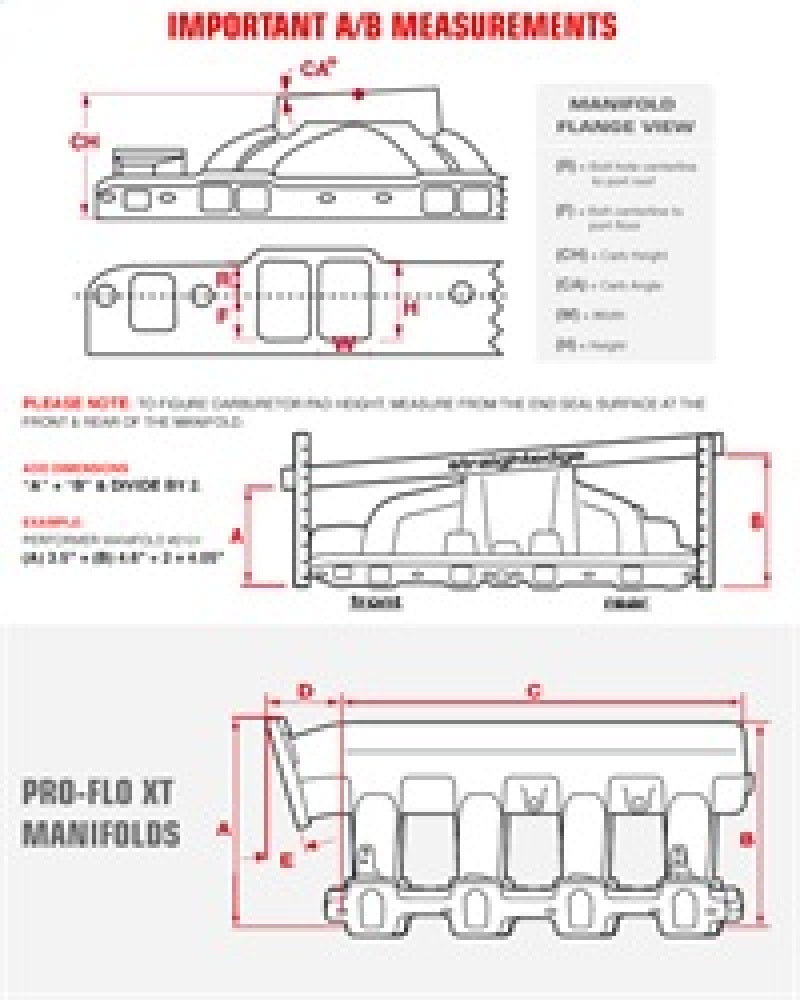

• Manifold ht: A-2.95", B-3.55"
• Carb pad height: 3.25"
• Carb recommendations: EdelbrockAVS2 Series # 1903 and # 1904 500 cfm.
• Port exit dimensions: 1.18" x 1.90"
• Recommended intake gasket: Edelbrock # 7201.
• Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant # 1076, DO NOT USE END SEALS GASKETS.
• Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage.
• NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure proper seal.
• DO NOT OVERTIGHTEN NPT/Pipe fittings, this may cause the aluminum to crack around the fitting boss. NPT/Pipe thread is a tapered thread.
• Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.
• H.E.I. will fit
• Even though manifolds are compatible with EGR systems, this does not mean they are legal for use on emissions controlled vehicles. Check local laws for legality.
• Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage.
