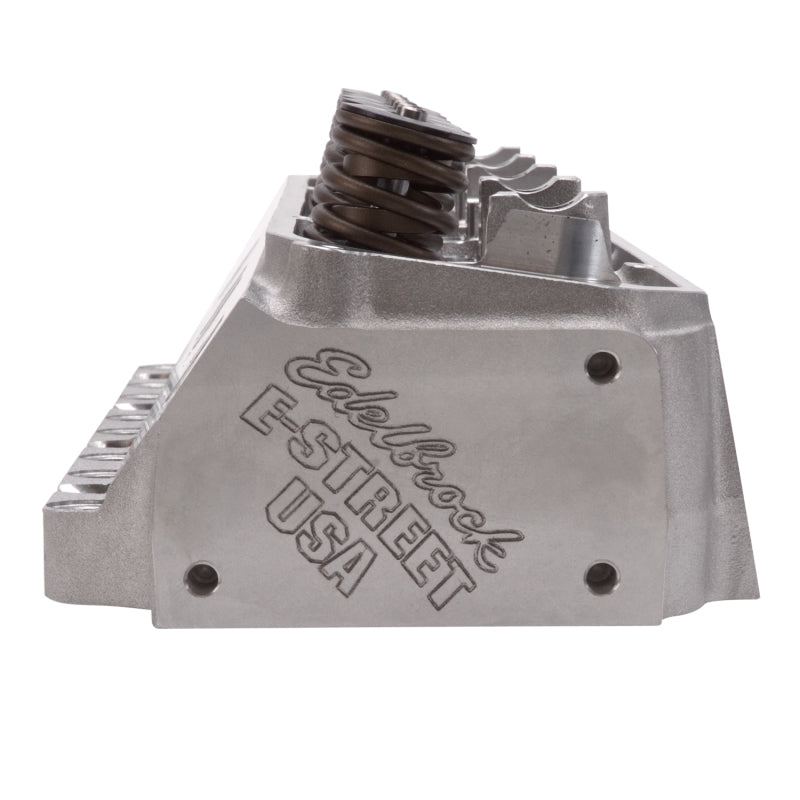

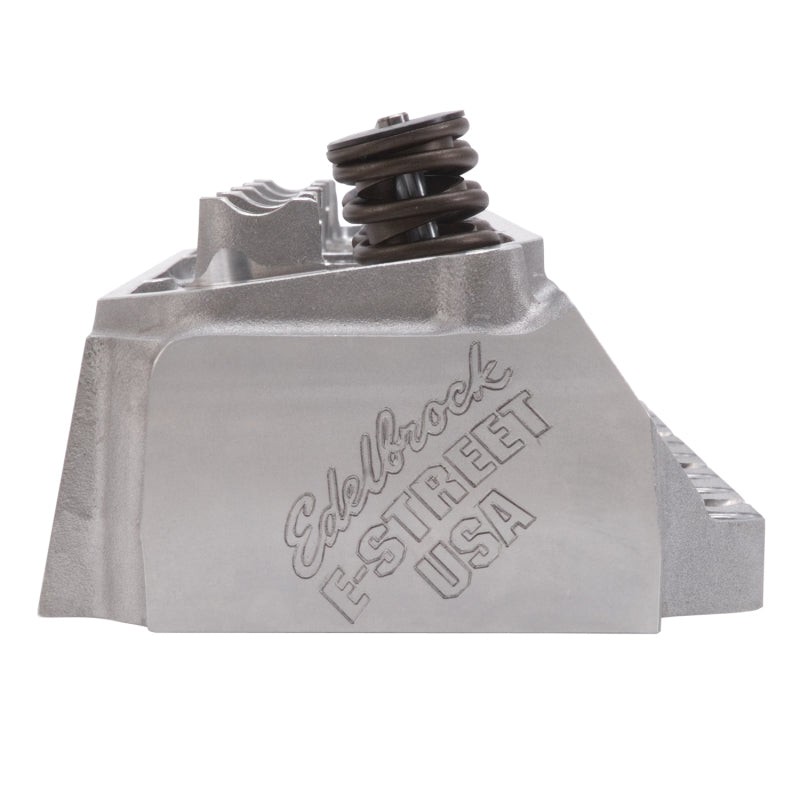

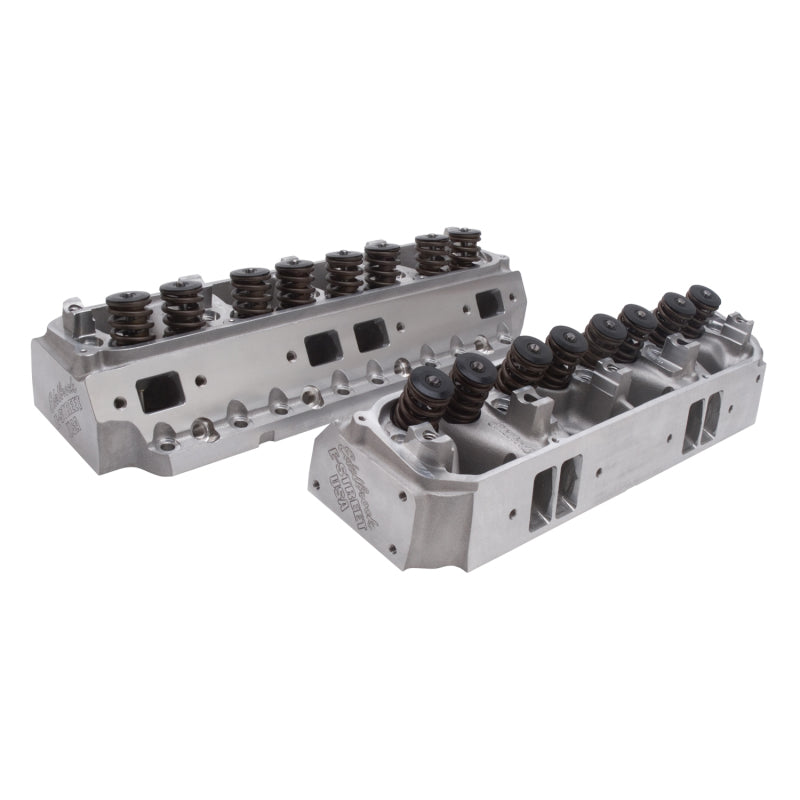

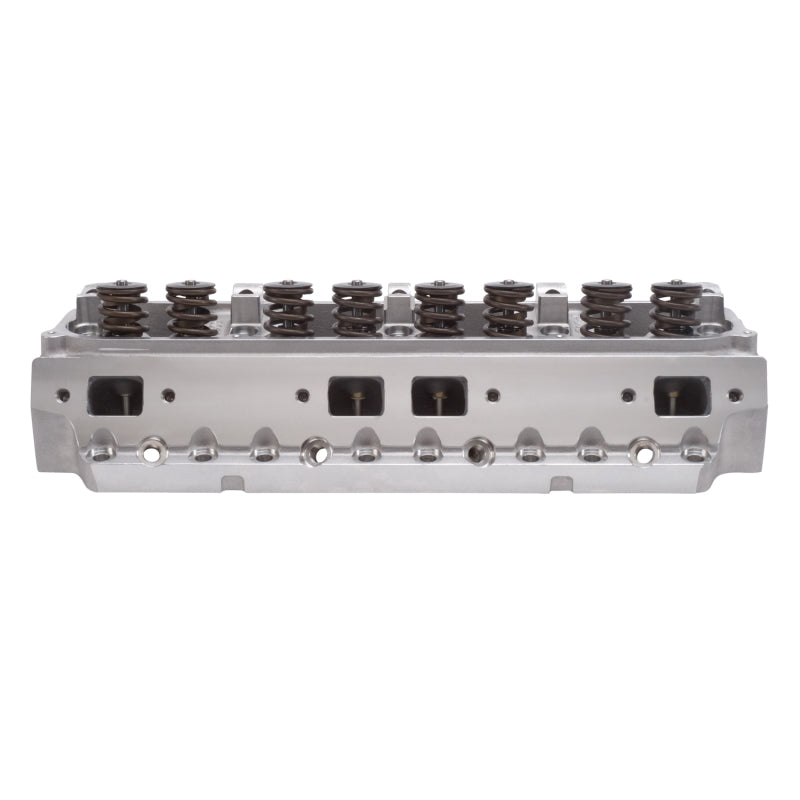

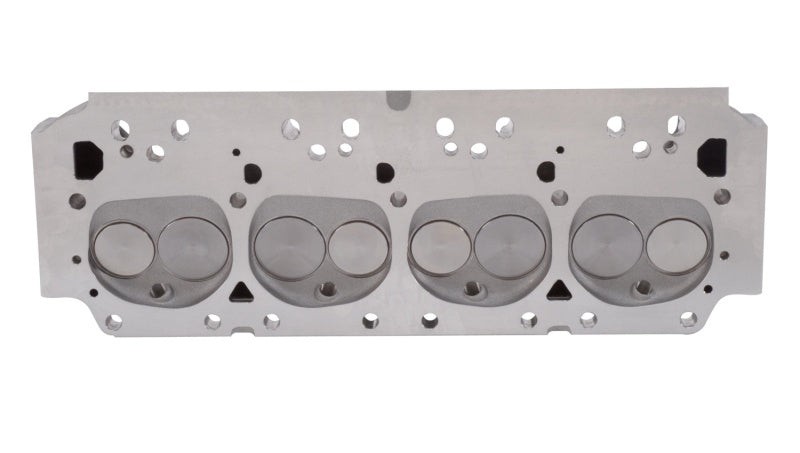

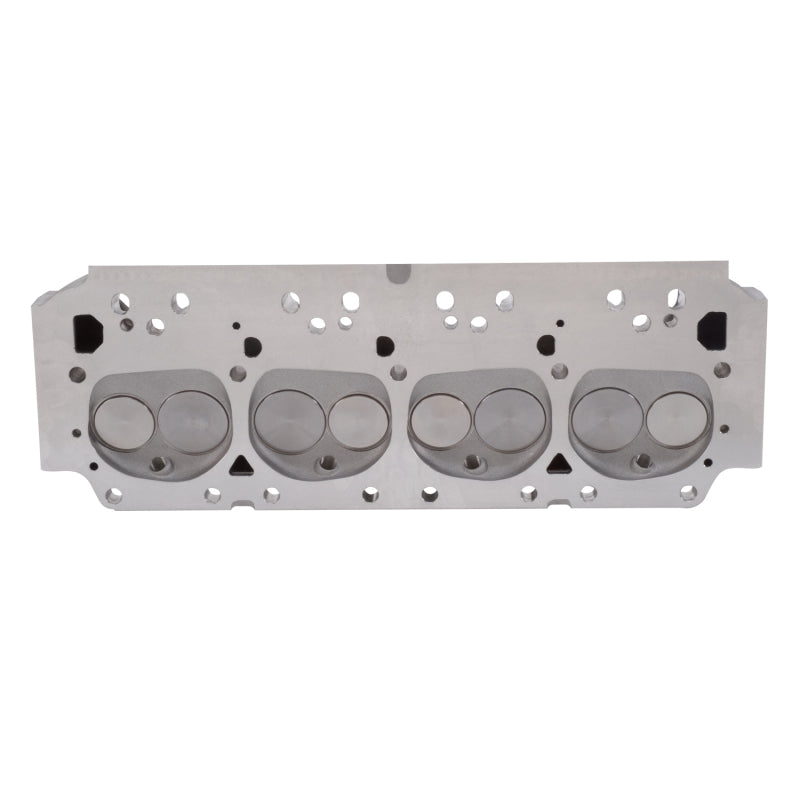

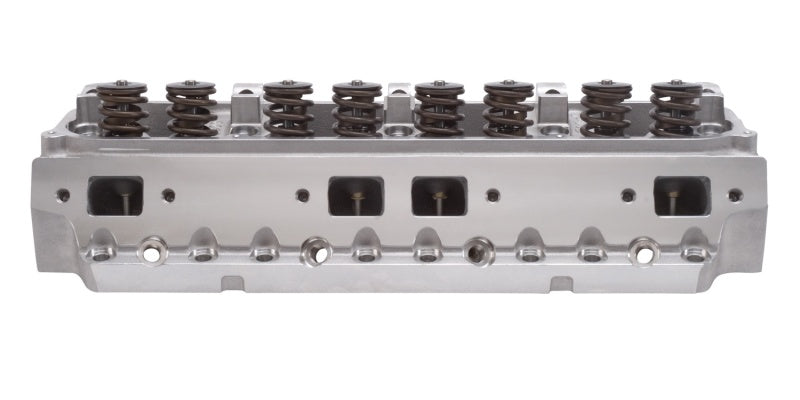

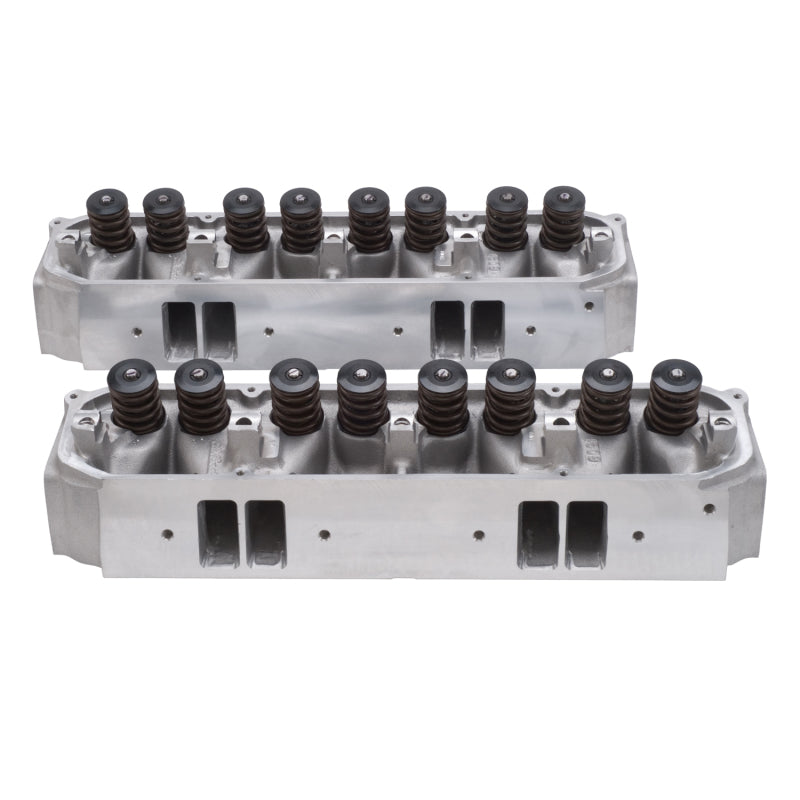

Edelbrock Cylinder Heads, E-Street, Big-Block Chrysler, Complete, Pair
Cylinder Heads, E-Street, Big-Block Chrysler, Complete, Pair
The Edelbrock #5093 E-Street cylinder heads are designed for use with 1961-1979 Chrysler 361-440 c.i.d. Wedge engine applications. The Edelbrock E-Street cylinder heads offer American made quality and affordable performance. E-Street cylinder heads feature as-cast ports and are designed for entry-level street performance applications operating in the idle-to-5500 rpm range. The modern combustion chamber designs improve the combustion process and larger than stock intake and exhaust ports move more air through your engine for improve efficiency. For use on pre-pollution controlled vehicles only.
INSTALLATION NOTE:
Equipped with Springs for use in Hydraulic Flat Tappet Camshaft Applications
- Deck thickness: 5/8",
- Pushrod diameter: 3/8"
- Vacuum advance distributor may not clear cylinder head.
- The 75cc combustion chamber allows this cylinder head to be used with stock pistons, retaining the 9.5:1 compression
- The modern combustion chamber design also improves the combustion process and the larger than stock intake and exhaust ports move more air through your engine. These features improve the engine's efficiency, resulting in more horsepower and torque
- These cylinder heads are sold in pairs
Specs:
- Combustion Chamber Volume: 84.0 cu.Inches
- Deck Height: 10.725 Inches
- Deck Thickness: 0.625 Inches
- Exhaust Valve Diameter: 1.810 Inches
- Intake Runner Volume: 210.0 cu.Imches
- Intake Valve Diameter: 2.140 Inches
- Material: Aluminum
- Push Rod Diameter: 0.375 Inches
- Valve Angle: 15 Degrees
- Valve Spring Maximum Lift: 0.600 Inches
- Valve Stem Diameter: 0.341 Inches
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1969 - 1974 | Bristol | 411 | Base |
| 1959 - 1971 | Chrysler | 300 | Base |
| 1962 - 1963 | Chrysler | 300 | Sport |
| 1975 - 1978 | Chrysler | Cordoba | Base |
| 1959 - 1967 | Chrysler | Imperial | Base |
| 1959 - 1970 | Chrysler | Imperial | Crown |
| 1959 - 1975 | Chrysler | Imperial | LeBaron |
| 1959 - 1974 | Chrysler | New Yorker | Base |
| 1972 - 1978 | Chrysler | New Yorker | Brougham |
| 1959 - 1978 | Chrysler | Newport | Base |
| 1967 - 1976 | Chrysler | Newport | Custom |
| 1971 - 1972 | Chrysler | Newport | Royal |
| 1959 - 1960 | Chrysler | Saratoga | Base |
| 1959 - 1977 | Chrysler | Town & Country | Base |
| 1959 - 1961 | Chrysler | Windsor | Base |
| 1959 - 1960 | DeSoto | Adventurer | Base |
| 1959 | DeSoto | Firedome | Base |
| 1959 | DeSoto | Fireflite | Base |
| 1963 - 1964 | Dodge | 330 | Base |
| 1963 - 1964 | Dodge | 440 | Base |
| 1962 - 1965 | Dodge | 880 | Base, Custom |
| 1974 | Dodge | B100 Van | Sportsman, Base |
| 1975 - 1978 | Dodge | B200 | Base |
| 1971 - 1974 | Dodge | B200 Van | Base, Sportsman |
| 1972 - 1974 | Dodge | B200 Van | Maxi, Maxi Wagon |
| 1975 - 1978 | Dodge | B300 | Base |
| 1971 - 1974 | Dodge | B300 Van | Base, Sportsman |
| 1972 - 1974 | Dodge | B300 Van | Maxi Wagon, Maxi |
| 1976 - 1979 | Dodge | CB300 | Base |
| 1970 - 1974 | Dodge | Challenger | Base |
| 1970 - 1971 | Dodge | Challenger | R/T |
| 1972 | Dodge | Challenger | Rallye |
| 1970 | Dodge | Challenger | T/A |
| 1969 - 1971 | Dodge | Charger | 500 |
| 1966 - 1976 | Dodge | Charger | Base |
| 1969 | Dodge | Charger | Daytona, SE |
| 1967 - 1971 | Dodge | Charger | R/T |
| 1971 - 1978 | Dodge | Charger | Special Edition |
| 1976 | Dodge | Charger | Sport |
| 1971 | Dodge | Charger | Super Bee |
| 1965 - 1970 | Dodge | Coronet | 500, 440 |
| 1959 - 1976 | Dodge | Coronet | Base |
| 1971 - 1976 | Dodge | Coronet | Crestwood, Brougham |
| 1971 - 1975 | Dodge | Coronet | Custom |
| 1966 - 1970 | Dodge | Coronet | Deluxe |
| 1967 - 1970 | Dodge | Coronet | R/T |
| 1968 - 1970 | Dodge | Coronet | Super Bee |
| 1959 - 1961 | Dodge | Custom | Base |
| 1978 | Dodge | D100 | Adventurer |
| 1977 - 1978 | Dodge | D100 | Club Cab |
| 1975 - 1978 | Dodge | D100 | Custom, Base |
| 1976 - 1978 | Dodge | D100 | Warlock |
| 1968 - 1974 | Dodge | D100 Pickup | Base |
| 1967 | Dodge | D100 Series | Base |
| 1977 - 1978 | Dodge | D150 | Base |
| 1978 | Dodge | D150 | Li'l Red Express |
| 1977 - 1978 | Dodge | D200 | Base |
| 1975 - 1976 | Dodge | D200 | Custom |
| 1968 - 1974 | Dodge | D200 Pickup | Base |
| 1967 | Dodge | D200 Series | Base |
| 1975 - 1978 | Dodge | D300 | Base, RD |
| 1975 - 1976 | Dodge | D300 | Custom |
| 1977 | Dodge | D300 | RS |
| 1968 - 1974 | Dodge | D300 Pickup | Base |
| 1967 | Dodge | D300 Series | Base |
| 1967 - 1968 | Dodge | Dart | 270 |
| 1962 | Dodge | Dart | 440, 330 |
| 1960 - 1969 | Dodge | Dart | Base |
| 1967 - 1969 | Dodge | Dart | GT |
| 1968 - 1969 | Dodge | Dart | GTS |
| 1960 - 1961 | Dodge | Dart | Pioneer, Phoenix |
| 1969 | Dodge | Dart | Swinger, Swinger 340, Custom |
| 1961 | Dodge | Lancer | 770 |
| 1959 - 1961 | Dodge | Lancer | Base |
| 1978 | Dodge | Magnum | XE |
| 1960 | Dodge | Matador | Base |
| 1967 - 1968 | Dodge | Monaco | 500 |
| 1965 - 1978 | Dodge | Monaco | Base |
| 1974 - 1978 | Dodge | Monaco | Brougham |
| 1977 - 1978 | Dodge | Monaco | Crestwood |
| 1974 | Dodge | Monaco | Custom |
| 1975 - 1976 | Dodge | Monaco | Royal Brougham, Royal |
| 1960 - 1961 | Dodge | Phoenix | Base |
| 1961 | Dodge | Pioneer | Base |
| 1963 - 1969 | Dodge | Polara | 500 |
| 1960 - 1973 | Dodge | Polara | Base |
| 1971 | Dodge | Polara | Brougham |
| 1970 - 1973 | Dodge | Polara | Custom |
| 1970 | Dodge | Polara | Special |
| 1974 - 1978 | Dodge | Ramcharger | Base |
| 1975 - 1978 | Dodge | Ramcharger | SE |
| 1959 | Dodge | Royal | Base |
| 1975 - 1977 | Dodge | Royal Monaco | Base, Brougham |
| 1961 | Dodge | Seneca | Base |
| 1959 | Dodge | Sierra | Base, Custom |
| 1975 - 1977 | Dodge | W100 | Custom |
| 1968 - 1974 | Dodge | W100 Pickup | Base |
| 1967 | Dodge | W100 Series | Base |
| 1977 - 1978 | Dodge | W150 | Base |
| 1975 - 1978 | Dodge | W200 | Base |
| 1968 - 1974 | Dodge | W200 Pickup | Base |
| 1967 | Dodge | W200 Series | Base |
| 1977 - 1978 | Dodge | W300 | Base |
| 1975 - 1976 | Dodge | W300 | Custom |
| 1968 - 1974 | Dodge | W300 Pickup | Base |
| 1967 | Dodge | W300 Series | Base |
| 1960 - 1963 | Dual-Ghia | L6.4 | Base |
| 1959 - 1963 | Facel Vega | Excellence | Base |
| 1962 - 1964 | Facel Vega | Facel II | Base |
| 1959 - 1961 | Facel Vega | HK500 | Base |
| 1964 - 1966 | Jensen | C-V8 | Base |
| 1967 - 1971 | Jensen | Interceptor | FF |
| 1967 - 1969 | Jensen | Interceptor | MK I |
| 1970 - 1971 | Jensen | Interceptor | MK II |
| 1972 - 1976 | Jensen | Interceptor | MK III |
| 1972 - 1973 | Jensen | Interceptor | SP |
| 1964 - 1972 | Plymouth | Barracuda | Base |
| 1970 - 1971 | Plymouth | Barracuda | Gran Coupe |
| 1960 - 1970 | Plymouth | Belvedere | Base |
| 1968 - 1970 | Plymouth | Belvedere | Satellite |
| 1965 - 1967 | Plymouth | Belvedere II | Base |
| 1970 - 1972 | Plymouth | Cuda | Base |
| 1960 - 1961 | Plymouth | Custom | Base |
| 1960 - 1963 | Plymouth | Fleet Special | Base |
| 1960 - 1978 | Plymouth | Fury | Base |
| 1971 - 1975 | Plymouth | Fury | Custom |
| 1968 - 1975 | Plymouth | Fury | Custom Suburban |
| 1970 - 1972 | Plymouth | Fury | Gran Coupe |
| 1972 | Plymouth | Fury | Gran Sedan |
| 1974 | Plymouth | Fury | Police |
| 1970 | Plymouth | Fury | S-23, GT |
| 1976 - 1978 | Plymouth | Fury | Salon |
| 1962 - 1978 | Plymouth | Fury | Sport |
| 1970 - 1971 | Plymouth | Fury | Sport GT |
| 1968 - 1978 | Plymouth | Fury | Suburban, Sport Suburban |
| 1966 - 1969 | Plymouth | Fury | VIP |
| 1968 - 1974 | Plymouth | Fury I | Base, Suburban |
| 1965 - 1974 | Plymouth | Fury II | Base |
| 1968 - 1974 | Plymouth | Fury II | Custom Suburban |
| 1965 - 1974 | Plymouth | Fury III | Base |
| 1968 - 1974 | Plymouth | Fury III | Sport Suburban |
| 1975 - 1976 | Plymouth | Gran Fury | Custom |
| 1972 - 1976 | Plymouth | Gran Fury | Custom Suburban |
| 1975 - 1977 | Plymouth | Gran Fury | Sport, Brougham |
| 1972 - 1977 | Plymouth | Gran Fury | Suburban, Base, Sport Suburban |
| 1967 - 1971 | Plymouth | GTX | Base |
| 1976 - 1978 | Plymouth | PB200 | Voyager |
| 1974 | Plymouth | PB200 Van | Voyager, Voyager EX, Base, Voyager EX Wagon |
| 1976 - 1978 | Plymouth | PB300 | Voyager |
| 1974 | Plymouth | PB300 Van | Voyager EX, Base, Voyager EX Wagon, Voyager |
| 1968 - 1975 | Plymouth | Road Runner | Base |
| 1965 - 1974 | Plymouth | Satellite | Base |
| 1971 | Plymouth | Satellite | Brougham |
| 1971 - 1974 | Plymouth | Satellite | Sebring, Custom, Sebring Plus, Regent |
| 1968 - 1970 | Plymouth | Satellite | Sport |
| 1960 - 1964 | Plymouth | Savoy | Base |
| 1960 - 1961 | Plymouth | Savoy | Deluxe |
| 1960 - 1961 | Plymouth | Sport Wagon | Base |
| 1960 - 1961 | Plymouth | Suburban | Custom, Base, Sport |
| 1961 | Plymouth | Suburban | Deluxe |
| 1970 | Plymouth | Superbird | Base |
| 1974 - 1978 | Plymouth | Trailduster | Base |
| 1967 | Plymouth | VIP | Base |
Edelbrock Cylinder Heads, E-Street, Big-Block Chrysler, Complete, Pair
Sale price$2,464.36 USD
