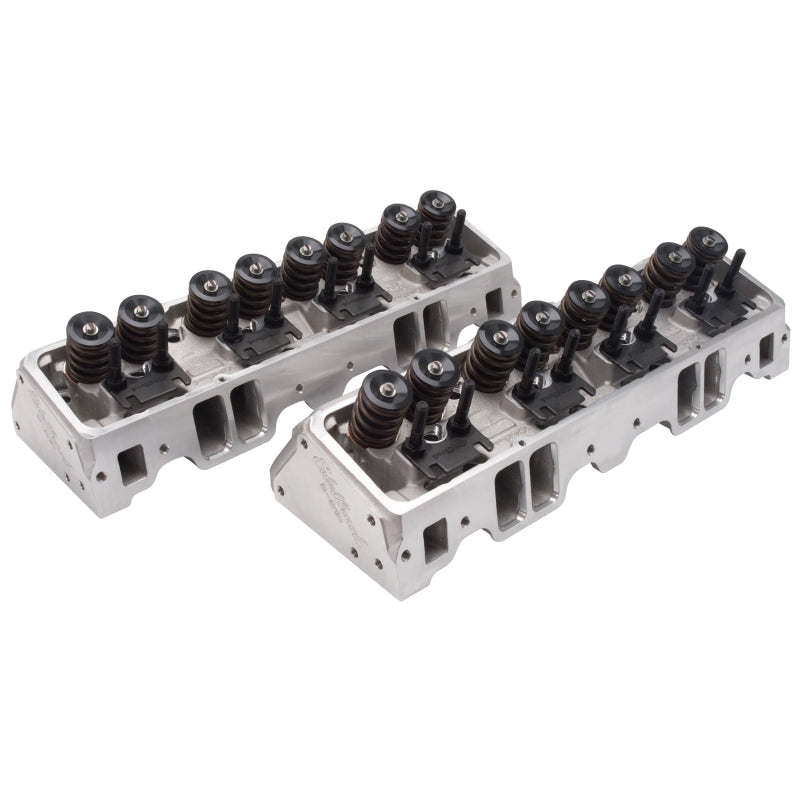

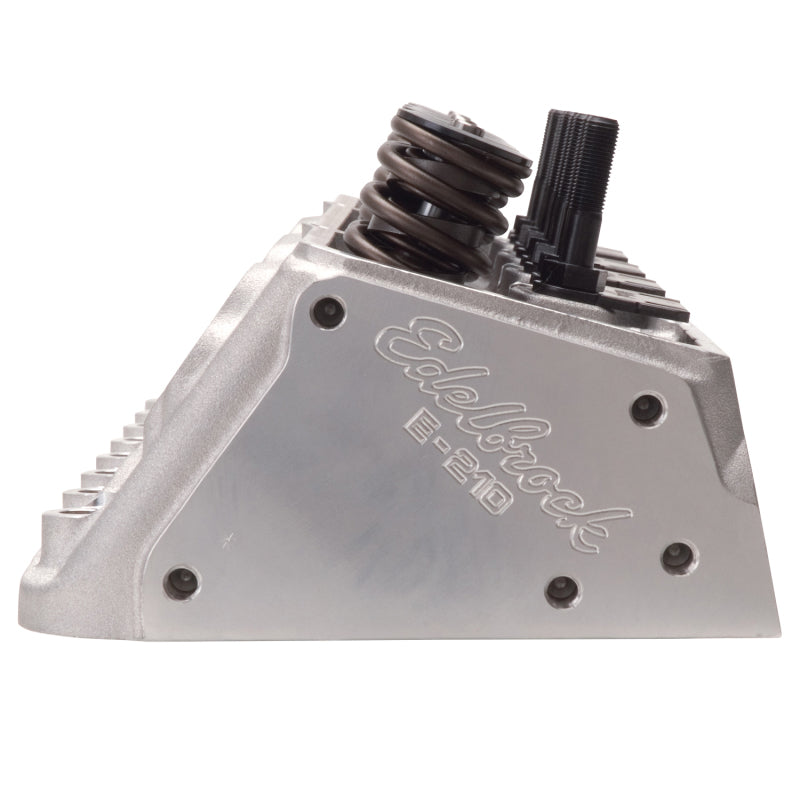

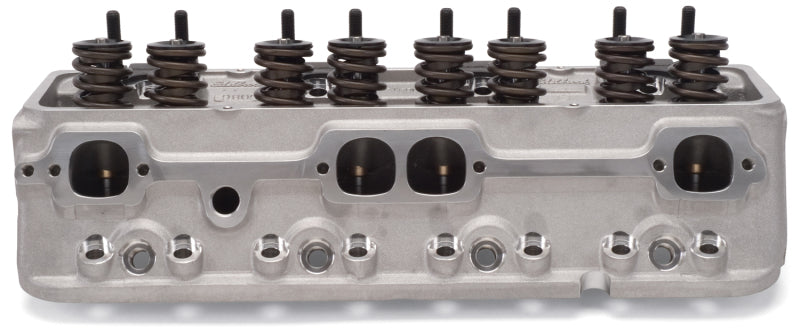

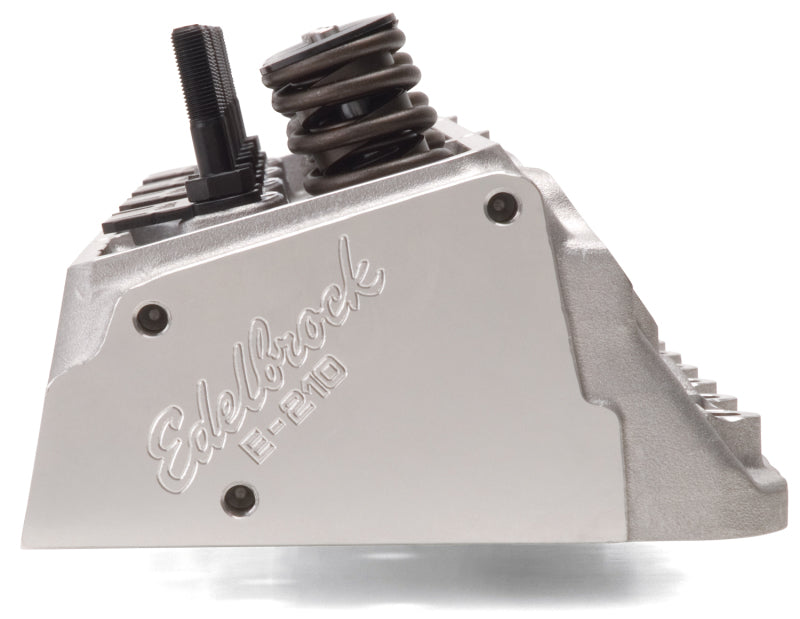

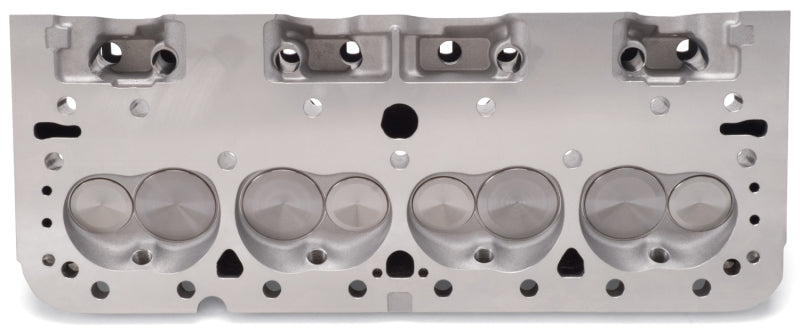

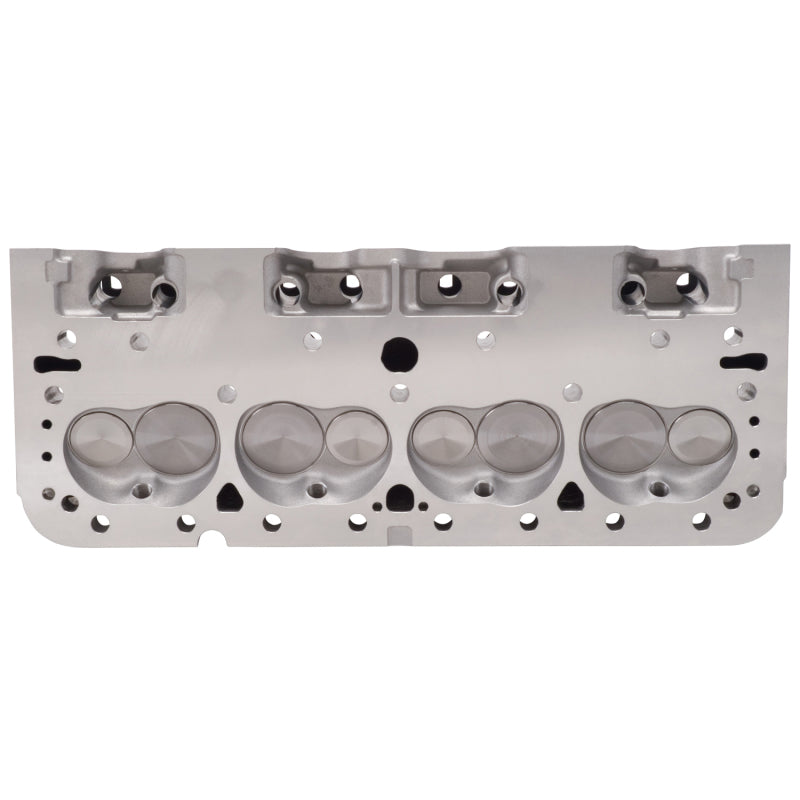

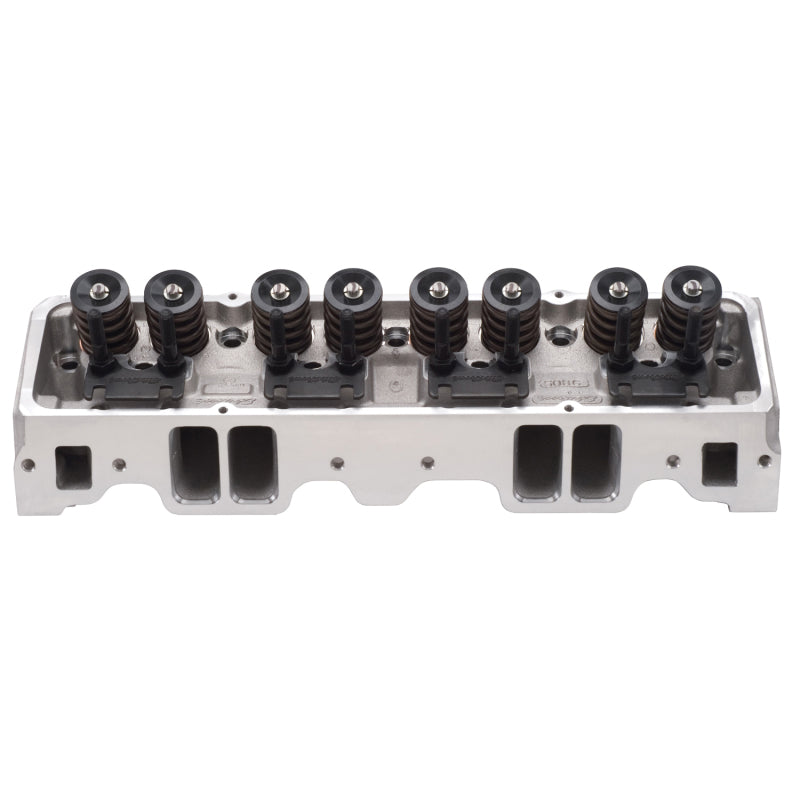

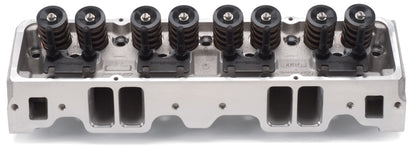

Edelbrock Cylinder Head, E-Series, E-210 SB Chevrolet (Complete, Pair)
Small-Block Chevy E-Series Cylinder Head E-210 Hydraulic Roller Cam

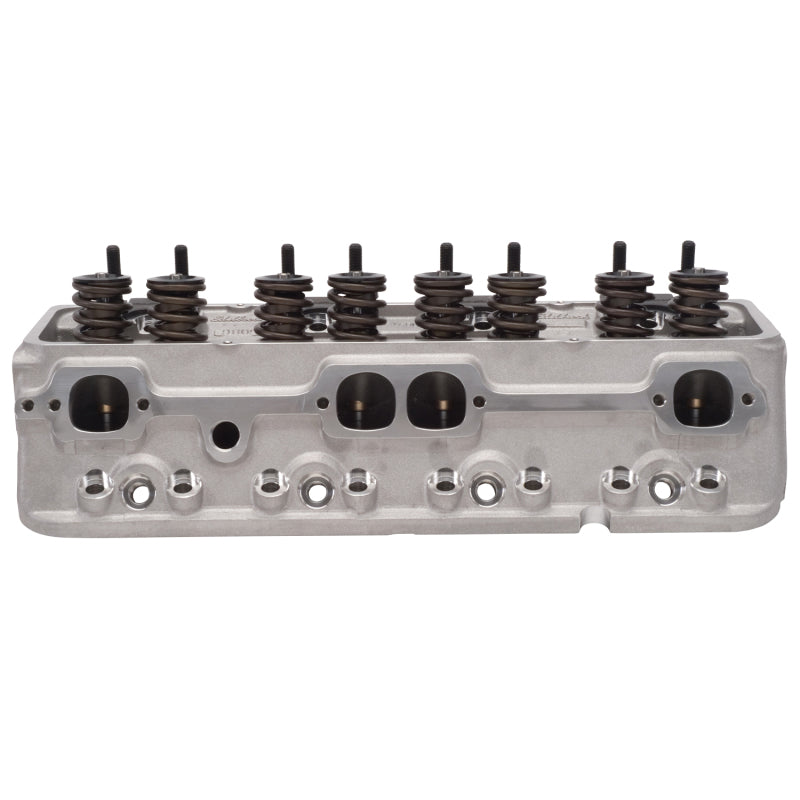

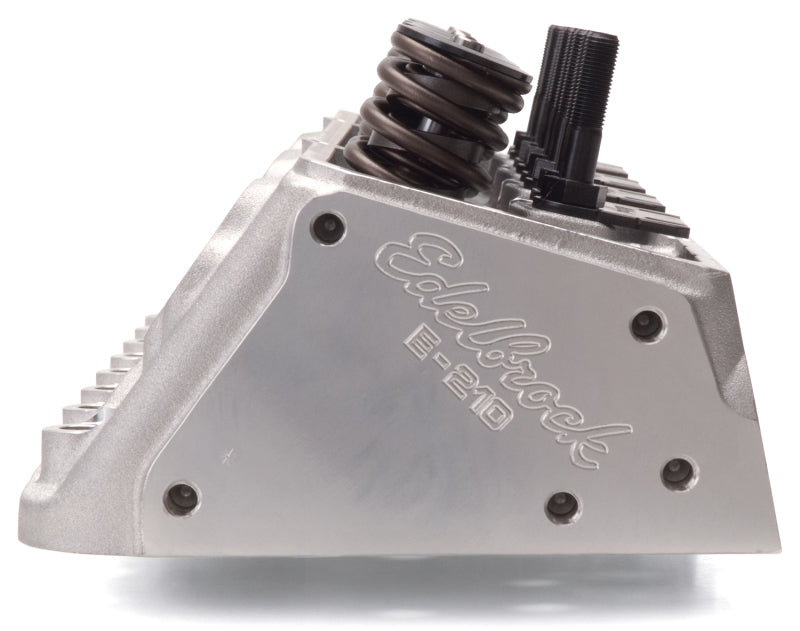

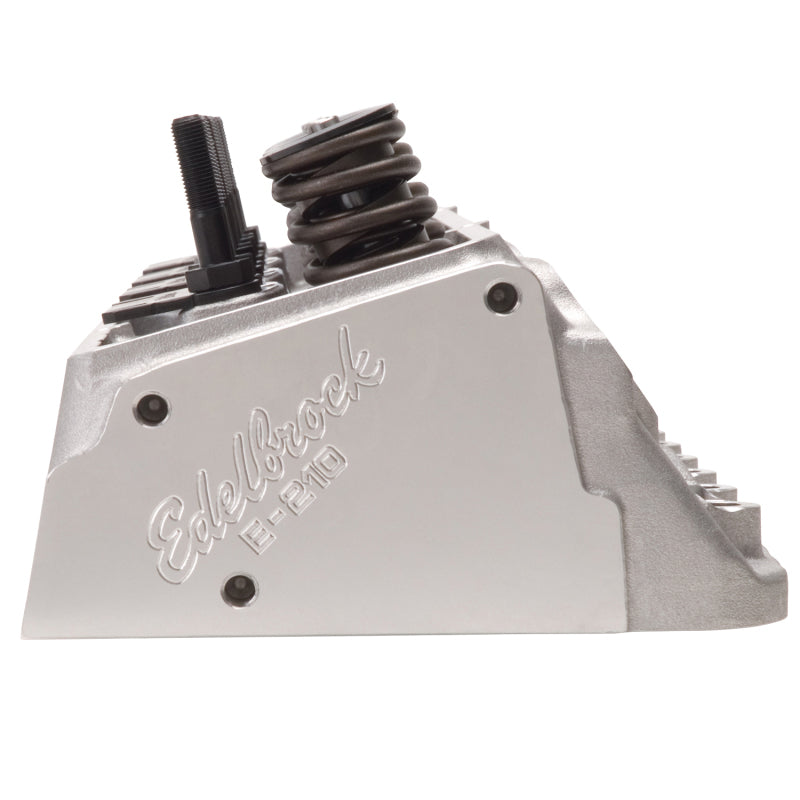

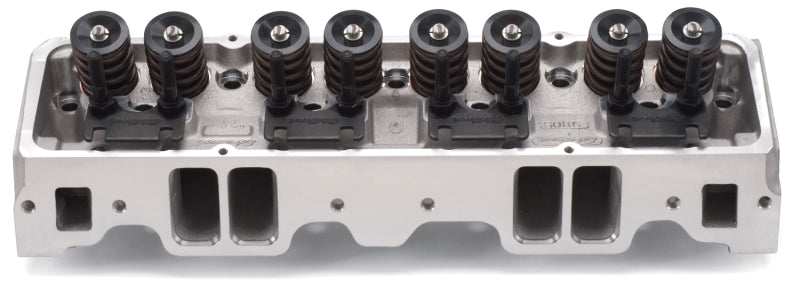

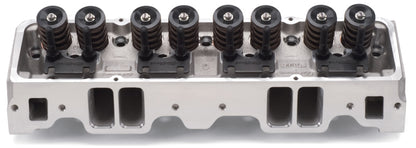

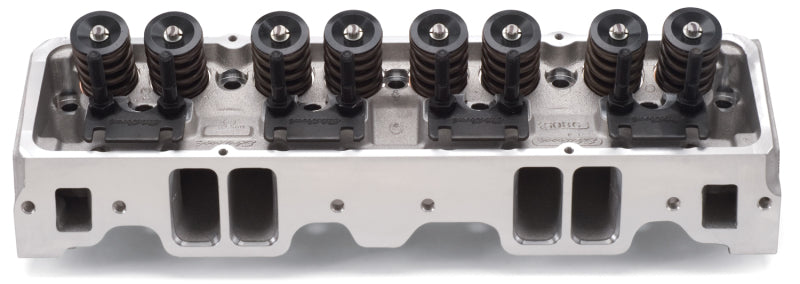

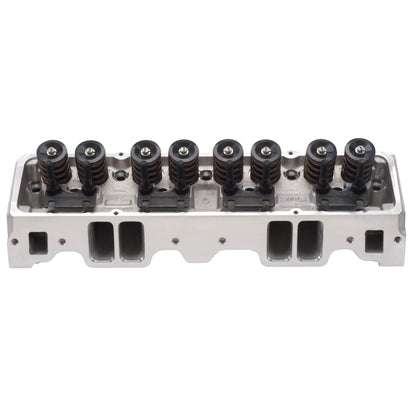

The Edelbrock #5087 E-210 Cylinder heads are designed for use with 1955-1986 Small-Block Chevy applications. The Edelbrock E-Series cylinder heads are a step up in affordable performance from our E-Street line. They feature larger runners for increased airflow, revised exhaust ports and larger diameter springs for higher lift camshafts, making them ideal for a spec series racer and larger displacement engines. The Edelbrock #5027 E-Series Cylinder heads also have as-cast ports and maintain the stock exhaust port location, making them compatible with OEM headers and hardware.
INSTALLATION NOTE:
Equipped with Springs for use in Mechanical Flat Tappet and Hydraulic Roller Camshaft
- Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat.
- Requires hardened pushrods.
- Edelbrock recommends Fel-Pro #1206 intake gaskets for use with E-210 cylinder heads.
- Cylinder heads provides race-level performance while maintaining full compatibility with off-the-shelf headers and hardware
- Features larger runners for increased airflow and revised exhaust ports and larger diameter springs for higher lift camshafts

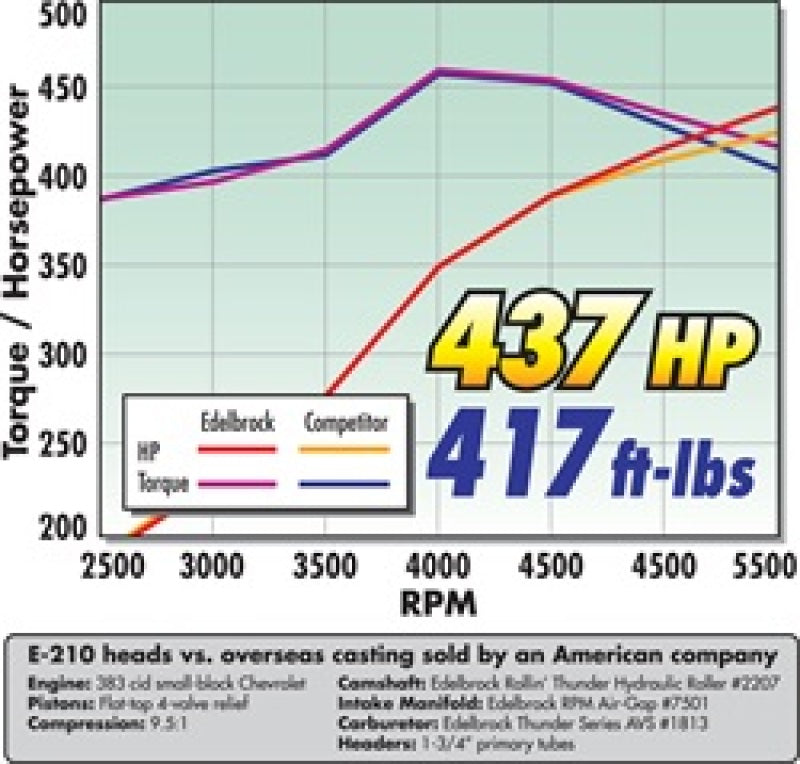

- Capable of supporting more than 500 naturally aspirated horsepower, and even more in forced induction applications
Specs:
- Application: Universal
- GTIN: 00085347050871
- Combustion Chamber Volume: 64.0 cu.Inches
- Deck Height: 9.025 Inches
- Deck Thickness: 0.562 Inches
- Exhaust Valve Diameter: 1.600 Inches
- Guide Plates Included: Yes
- Intake Runner Volume: 210.0 cu.Inches
- Intake Valve Diameter: 2.080 Inches
- Material: Aluminum
- Push Rod Diameter: 0.312 Inches
- Rocker Stud Diameter: 0.375 Inches
- Valve Angle: 23 Degrees
- Valve Spring Diameter: 1.540 Inches
- Valve Spring Maximum Lift: 0.650 Inches
- Valve Stem Diameter: 0.341 Inches
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1980 - 1991 | Avanti | II | Base |
| 1985 | Avanti | II | GT |
| 1980 | Buick | Century | Base, Estate, Sport, Limited |
| 1991 - 1993 | Buick | Commercial Chassis | Base |
| 1980 | Buick | Regal | Base, Limited, Sport |
| 1992 - 1993 | Buick | Roadmaster | Base, Limited |
| 1991 - 1993 | Buick | Roadmaster | Estate Wagon |
| 1980 - 1982 | Checker | Marathon | Deluxe, Base |
| 1980 - 1981 | Chevrolet | C10 | Cheyenne |
| 1980 | Chevrolet | C10 | Custom Deluxe, Big Ten |
| 1980 - 1986 | Chevrolet | C10 | Custom, Scottsdale, Silverado |
| 1981 | Chevrolet | C10 | Deluxe |
| 1981 - 1986 | Chevrolet | C10 Suburban | Custom |
| 1980 | Chevrolet | C10 Suburban | Custom Deluxe |
| 1981 | Chevrolet | C10 Suburban | Deluxe |
| 1980 - 1986 | Chevrolet | C10 Suburban | Scottsdale, Silverado |
| 1986 | Chevrolet | C20 | Base |
| 1980 - 1986 | Chevrolet | C20 | Cheyenne, Silverado, Scottsdale |
| 1981 - 1986 | Chevrolet | C20 | Custom |
| 1980 | Chevrolet | C20 | Custom Deluxe |
| 1981 | Chevrolet | C20 | Deluxe |
| 1981 - 1986 | Chevrolet | C20 Suburban | Custom |
| 1980 | Chevrolet | C20 Suburban | Custom Deluxe |
| 1981 | Chevrolet | C20 Suburban | Deluxe |
| 1980 - 1986 | Chevrolet | C20 Suburban | Silverado, Scottsdale |
| 1980 - 1982 | Chevrolet | C30 | Base |
| 1980 - 1981 | Chevrolet | C30 | Cheyenne |
| 1981 - 1986 | Chevrolet | C30 | Custom |
| 1980 | Chevrolet | C30 | Custom Deluxe |
| 1981 | Chevrolet | C30 | Deluxe |
| 1980 - 1986 | Chevrolet | C30 | Silverado, Scottsdale |
| 1980 | Chevrolet | Camaro | Base, Rally Sport |
| 1985 - 1986 | Chevrolet | Camaro | Iroc-Z |
| 1981 - 1986 | Chevrolet | Camaro | Sport |
| 1982 | Chevrolet | Camaro | Z28 Indianapolis 500 Pace Car |
| 1980 - 1986 | Chevrolet | Camaro | Z28, Berlinetta |
| 1980 - 1986 | Chevrolet | Caprice | Base, Classic |
| 1986 | Chevrolet | Caprice | Classic Brougham |
| 1981 - 1982 | Chevrolet | Caprice | Classic Estate |
| 1980 - 1981 | Chevrolet | Caprice | Classic Landau |
| 1980 | Chevrolet | Caprice | Classic Sport |
| 1980 - 1986 | Chevrolet | Corvette | Base |
| 1982 | Chevrolet | Corvette | Collector's Edition |
| 1986 | Chevrolet | Corvette | Indianapolis 500 Pace Car |
| 1980 - 1986 | Chevrolet | El Camino | Base, SS |
| 1981 - 1986 | Chevrolet | El Camino | Conquista |
| 1980 - 1981 | Chevrolet | El Camino | Royal Knight |
| 1983 | Chevrolet | G10 | Base |
| 1981 - 1986 | Chevrolet | G10 | Bonaventure |
| 1980 - 1986 | Chevrolet | G10 | Chevy Van, Sportvan, Beauville |
| 1980 - 1986 | Chevrolet | G20 | Beauville, Sportvan, Chevy Van |
| 1983 - 1984 | Chevrolet | G20 | Bonaventure |
| 1980 - 1981 | Chevrolet | G20 | Nomad |
| 1983 - 1984 | Chevrolet | G30 | Bonaventure |
| 1980 - 1986 | Chevrolet | G30 | Sportvan, Beauville, Chevy Van, Hi-Cube |
| 1980 - 1985 | Chevrolet | Impala | Base |
| 1981 - 1982 | Chevrolet | Impala | Estate |
| 1980 | Chevrolet | Impala | Sport |
| 1980 - 1981 | Chevrolet | K10 | Cheyenne |
| 1981 - 1986 | Chevrolet | K10 | Custom |
| 1980 | Chevrolet | K10 | Custom Deluxe |
| 1981 | Chevrolet | K10 | Deluxe |
| 1980 - 1986 | Chevrolet | K10 | Scottsdale, Silverado |
| 1981 - 1986 | Chevrolet | K10 Suburban | Custom |
| 1980 | Chevrolet | K10 Suburban | Custom Deluxe |
| 1981 | Chevrolet | K10 Suburban | Deluxe |
| 1980 - 1986 | Chevrolet | K10 Suburban | Silverado, Scottsdale |
| 1980 - 1981 | Chevrolet | K20 | Cheyenne |
| 1981 - 1986 | Chevrolet | K20 | Custom |
| 1980 | Chevrolet | K20 | Custom Deluxe |
| 1981 | Chevrolet | K20 | Deluxe |
| 1980 - 1986 | Chevrolet | K20 | Silverado, Scottsdale |
| 1981 - 1986 | Chevrolet | K20 Suburban | Custom |
| 1980 | Chevrolet | K20 Suburban | Custom Deluxe |
| 1981 | Chevrolet | K20 Suburban | Deluxe |
| 1980 - 1986 | Chevrolet | K20 Suburban | Silverado, Scottsdale |
| 1980 - 1981 | Chevrolet | K30 | Cheyenne |
| 1981 - 1986 | Chevrolet | K30 | Custom |
| 1980 | Chevrolet | K30 | Custom Deluxe |
| 1981 | Chevrolet | K30 | Deluxe |
| 1980 - 1986 | Chevrolet | K30 | Silverado, Scottsdale |
| 1981 - 1986 | Chevrolet | K5 Blazer | Custom |
| 1980 | Chevrolet | K5 Blazer | Custom Deluxe, Cheyenne |
| 1981 | Chevrolet | K5 Blazer | Deluxe |
| 1984 | Chevrolet | K5 Blazer | Scottsdale |
| 1980 - 1986 | Chevrolet | K5 Blazer | Silverado |
| 1980 - 1981 | Chevrolet | Malibu | Base, Classic Landau |
| 1980 - 1983 | Chevrolet | Malibu | Classic |
| 1980 | Chevrolet | Malibu | Estate, Sport, Classic Estate, Classic Sport |
| 1981 - 1986 | Chevrolet | Monte Carlo | Base |
| 1983 | Chevrolet | Monte Carlo | CL |
| 1980 - 1981 | Chevrolet | Monte Carlo | Landau |
| 1986 | Chevrolet | Monte Carlo | LS |
| 1980 | Chevrolet | Monte Carlo | Sport |
| 1983 - 1986 | Chevrolet | Monte Carlo | SS |
| 1985 | Excalibur | Phaeton | Anniversary |
| 1983 - 1989 | Excalibur | Phaeton | Base |
| 1980 | GMC | C1500 | Heavy Half |
| 1980 - 1986 | GMC | C1500 | Sierra Classic, Base, High Sierra |
| 1980 - 1982 | GMC | C1500 | Sierra Grande, Street Coupe |
| 1980 - 1986 | GMC | C1500 Suburban | Base, Sierra Classic, High Sierra |
| 1980 - 1982 | GMC | C1500 Suburban | Sierra Grande |
| 1980 - 1986 | GMC | C2500 | Base, Sierra Classic, High Sierra |
| 1980 - 1982 | GMC | C2500 | Sierra Grande |
| 1980 - 1986 | GMC | C2500 Suburban | Sierra Classic, High Sierra, Base |
| 1980 - 1982 | GMC | C2500 Suburban | Sierra Grande |
| 1980 - 1986 | GMC | C3500 | Sierra Classic, Base, High Sierra |
| 1980 - 1982 | GMC | C3500 | Sierra Grande |
| 1981 - 1986 | GMC | Caballero | Amarillo |
| 1980 - 1986 | GMC | Caballero | Diablo, Base |
| 1980 | GMC | Caballero | Laredo |
| 1981 | GMC | Caballero | Royal Knight, Conquista |
| 1983 - 1984 | GMC | G1500 | Rally Custom |
| 1980 - 1986 | GMC | G1500 | Rally STX, Rally, Vandura |
| 1983 - 1984 | GMC | G2500 | Rally Custom |
| 1980 - 1986 | GMC | G2500 | Vandura, Rally, Rally STX |
| 1981 - 1988 | GMC | G3500 | Rally Custom |
| 1980 - 1988 | GMC | G3500 | Rally, Vandura Special, Magnavan, Rally Camper Special, Vandura, Rally STX |
| 1980 - 1986 | GMC | Jimmy | Base, Sierra Classic |
| 1980 - 1985 | GMC | Jimmy | High Sierra |
| 1980 - 1982 | GMC | Jimmy | Sierra Grande, Street Coupe |
| 1986 | GMC | Jimmy | Silverado |
| 1980 - 1986 | GMC | K1500 | Base, Sierra Classic, High Sierra |
| 1980 - 1982 | GMC | K1500 | Sierra Grande |
| 1980 - 1986 | GMC | K1500 Suburban | High Sierra, Sierra Classic, Base |
| 1980 - 1982 | GMC | K1500 Suburban | Sierra Grande |
| 1980 - 1986 | GMC | K2500 | High Sierra, Sierra Classic, Base |
| 1980 - 1982 | GMC | K2500 | Sierra Grande |
| 1980 - 1986 | GMC | K2500 Suburban | Sierra Classic, High Sierra, Base |
| 1980 - 1982 | GMC | K2500 Suburban | Sierra Grande |
| 1980 - 1986 | GMC | K3500 | High Sierra, Sierra Classic, Base |
| 1980 - 1982 | GMC | K3500 | Sierra Grande |
| 1980 | Oldsmobile | Cutlass | Base, LS, Brougham |
| 1980 | Oldsmobile | Cutlass Calais | Base |
| 1980 - 1982 | Oldsmobile | Cutlass Cruiser | Base |
| 1980 | Oldsmobile | Cutlass Cruiser | Brougham |
| 1980 | Oldsmobile | Cutlass Salon | Base, Brougham |
| 1980 | Oldsmobile | Cutlass Supreme | Brougham, Base |
| 1983 - 1986 | Pontiac | Bonneville | Brougham, Base |
| 1984 - 1986 | Pontiac | Bonneville | LE |
| 1980 - 1981 | Pontiac | Firebird | Formula, Esprit |
| 1982 - 1986 | Pontiac | Firebird | S/E |
| 1980 - 1986 | Pontiac | Firebird | Trans Am, Base |
| 1980 | Pontiac | Grand Am | Base |
| 1980 | Pontiac | Grand LeMans | Base, LE, Safari |
| 1980 - 1986 | Pontiac | Grand Prix | Base |
| 1983 - 1986 | Pontiac | Grand Prix | Brougham |
| 1984 - 1986 | Pontiac | Grand Prix | LE |
| 1980 - 1983 | Pontiac | Grand Prix | LJ |
| 1980 | Pontiac | Grand Prix | SJ |
| 1980 | Pontiac | LeMans | Base, Safari |
| 1983 - 1986 | Pontiac | Parisienne | Brougham, Base |
Edelbrock Cylinder Head, E-Series, E-210 SB Chevrolet (Complete, Pair)
Sale price$1,756.20 USD
