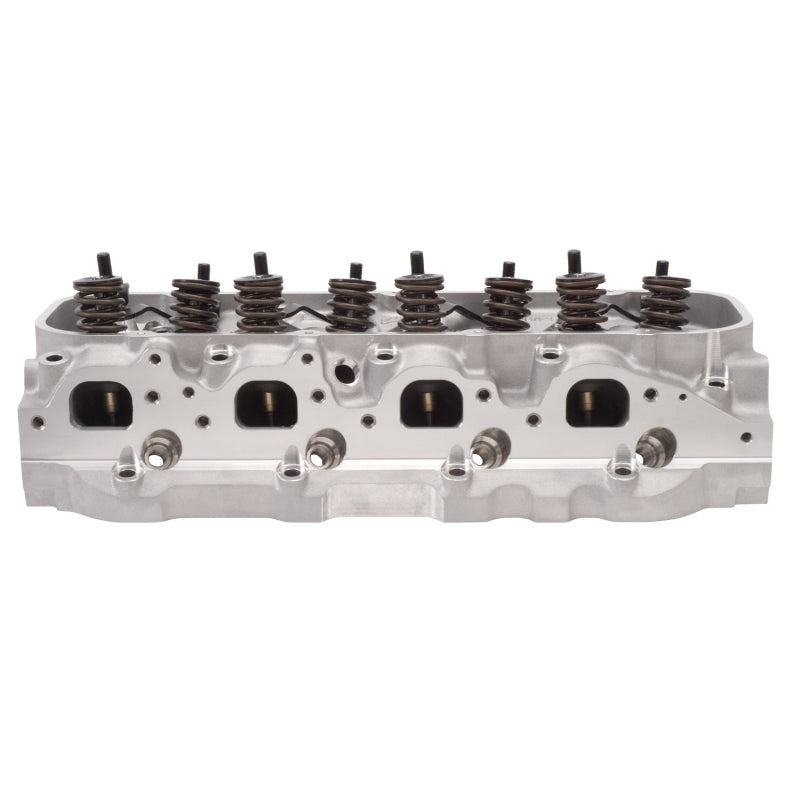

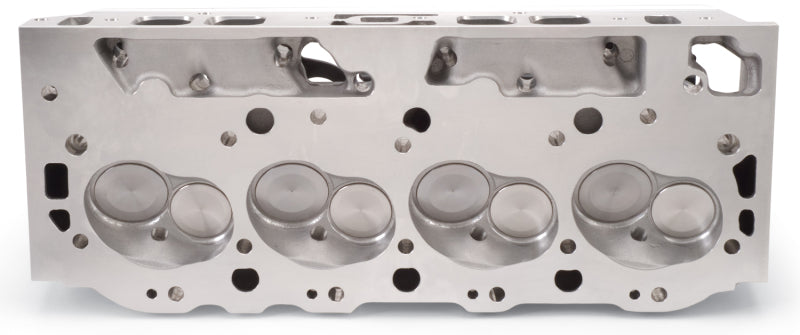

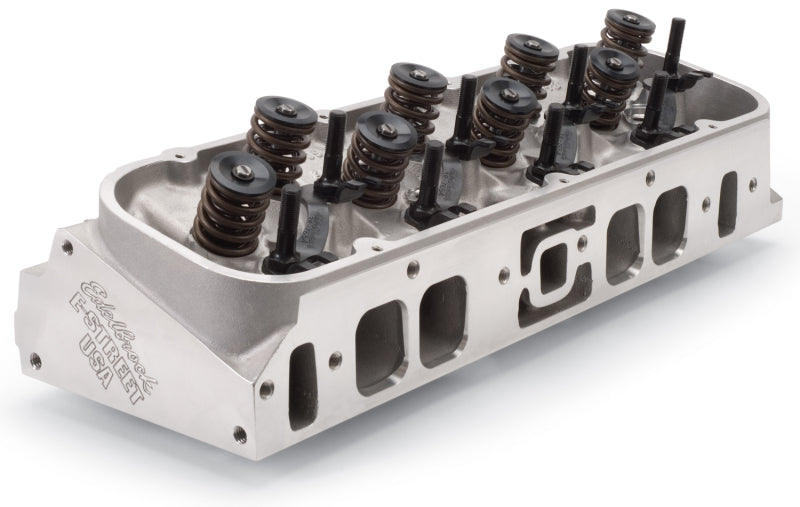

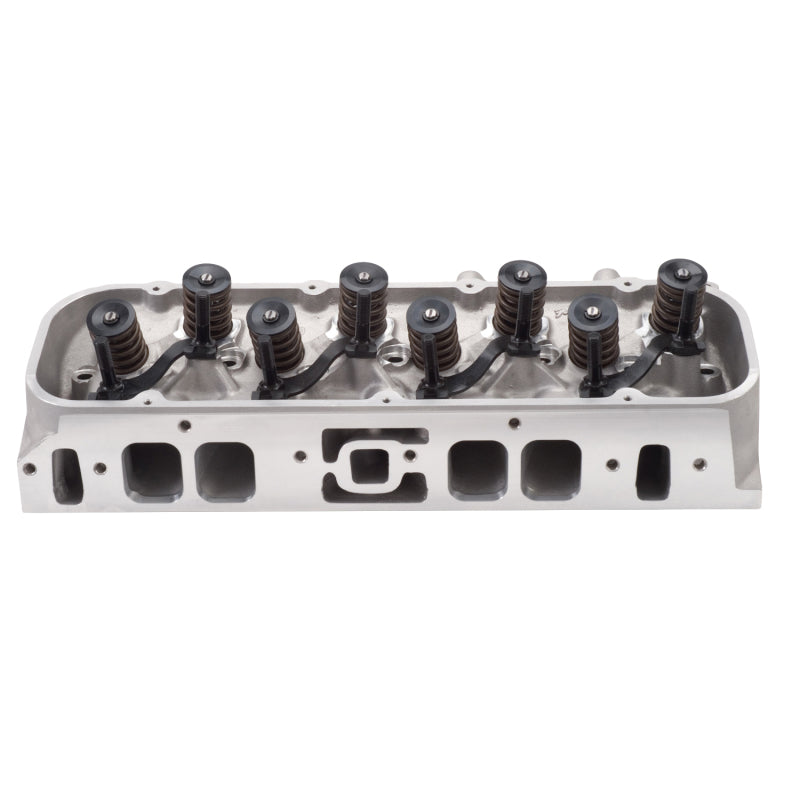

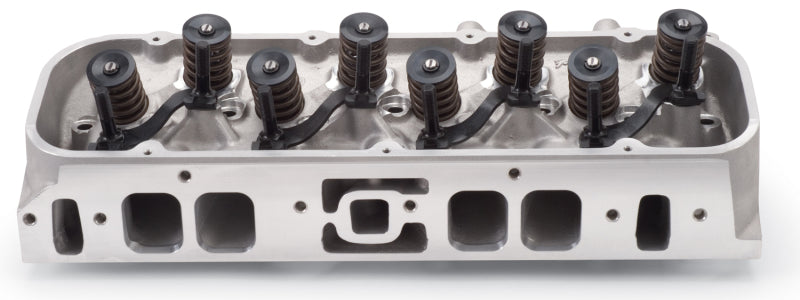

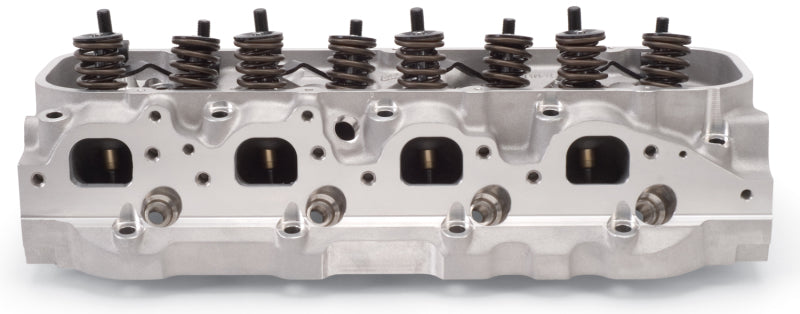

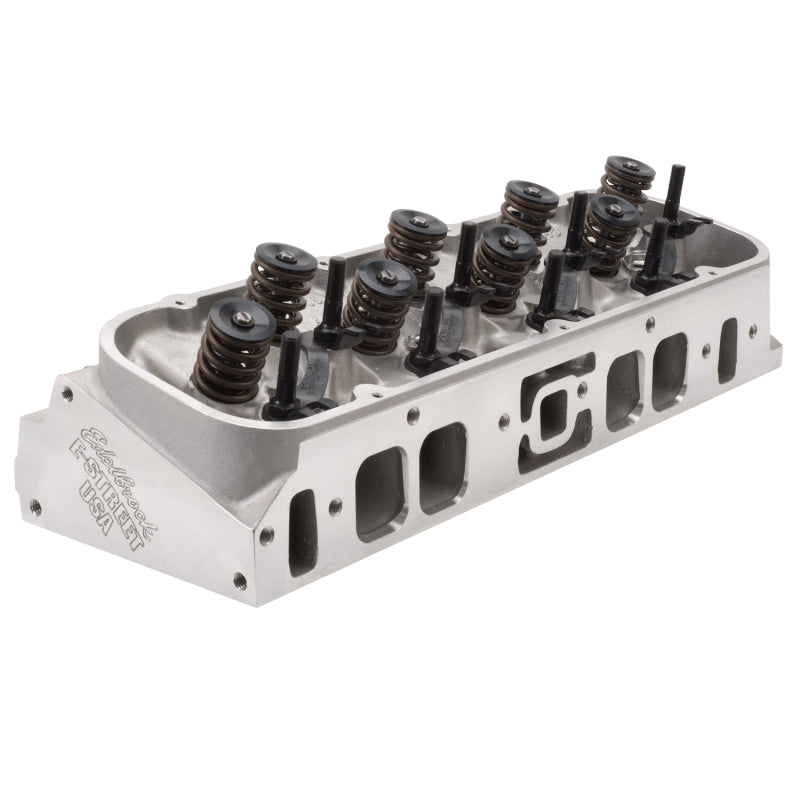

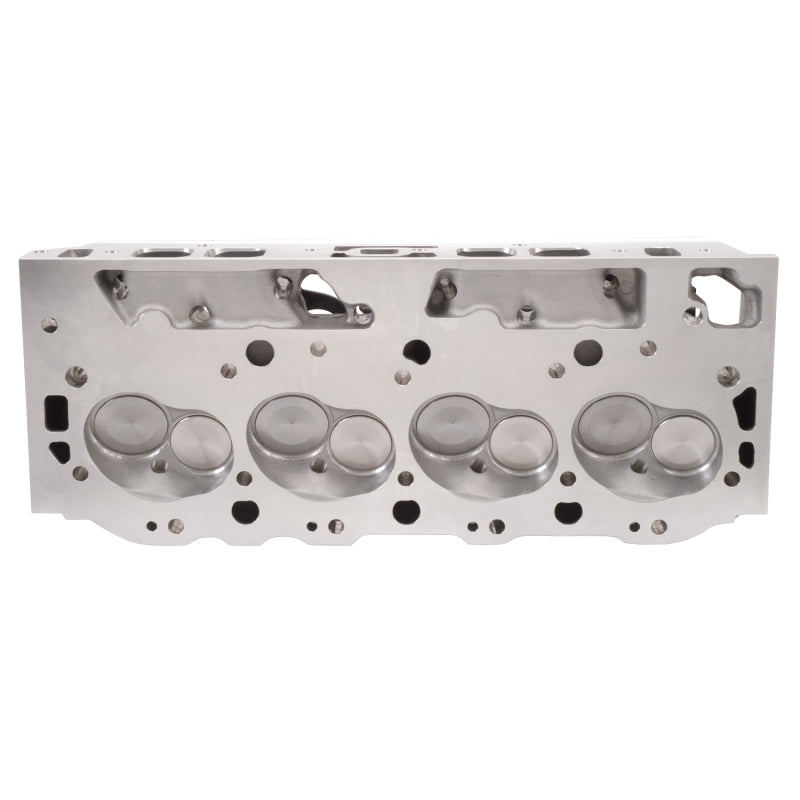

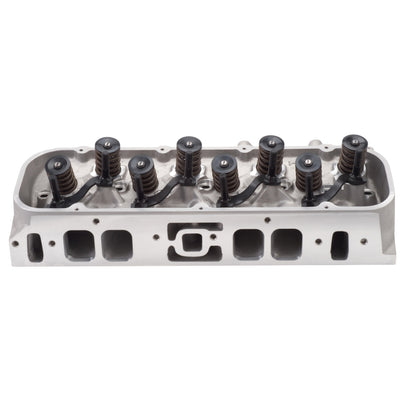

Edelbrock CYL Head, E-Street BB Chevy Oval Port Complete, Single
![](http://frsport.com/cdn/shop/files/we-ship-worldwide_3.webp?v=1709782563&width=300)
E-Street Big-Block Chevy Head Cylinder Head Oval Complete Single
The Edelbrock #50459 E-Street cylinder 290 Oval Port heads are designed for Big-Block applications. The Edelbrock E-Street cylinder heads offer American made quality and affordable performance. E-Street cylinder heads feature as-cast ports and are designed for entry-level street performance applications operating in the idle-to-5500 rpm range. The modern combustion chamber designs improve the combustion process and larger than stock intake and exhaust ports move more air through your engine for improve efficiency. For use on pre-pollution controlled vehicles only.
Installation Note:
- Match with Edelbrock head gasket sets.
- Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat
- Designed for entry-level street performance engines and ideal for operating in the idle to 5500 rpm range
- Includes hardened spring cups and Heli-Coil® threaded inserts in the rocker stud bosses for increased strength; these are the details that most low-cost competitors leave out of their heads.
- These cylinder heads are sold separately and Made in the USA!
Specs:
- Application: Universal
- GTIN: 00085347504596
- Combustion Chamber Volume: 110.0 cu.Inches
- Deck Height: 10.2 Inches
- Deck Thickness: 0.562 Inches
- Exhaust Valve Diameter: 1.880 Inches
- Guide Plates Included: Yes
- Intake Runner Volume: 220.0 cu.Inches
- Intake Valve Diameter: 2.190 Inches
- Material: Aluminum
- Push Rod Diameter: 0.375 Inches
- Rocker Stud Diameter: 0.437 Inches
- Valve Angle: 26 Degree
- Valve Spring Diameter: 1.500 Inches
- Valve Spring Maximum Lift: 0.700 Inches
- Valve Stem Diameter: 0.341 Inches
Vehicle Fitments:
Year | Make | Model | Submodel |
---|---|---|---|
1963 - 1975 | Chevrolet | Bel Air | Base |
1963 - 1972 | Chevrolet | Biscayne | Base |
1973 - 1974 | Chevrolet | Blazer | Base |
1969 - 1972 | Chevrolet | Brookwood | Base |
1978 - 1980 | Chevrolet | C10 | Big Ten |
1975 - 1980 | Chevrolet | C10 | Custom, Scottsdale, Cheyenne, Custom Deluxe, Silverado |
1968 - 1974 | Chevrolet | C10 Pickup | Base |
1968 - 1974 | Chevrolet | C10 Suburban | Base |
1975 - 1980 | Chevrolet | C10 Suburban | Scottsdale, Silverado, Custom Deluxe |
1990 - 1991 | Chevrolet | C1500 | Base |
1990 - 1993 | Chevrolet | C1500 | Cheyenne, WT, 454 SS, Silverado |
1990 - 1992 | Chevrolet | C1500 | Scottsdale |
1986 | Chevrolet | C20 | Base |
1981 - 1986 | Chevrolet | C20 | Custom |
1975 - 1980 | Chevrolet | C20 | Custom Deluxe |
1981 | Chevrolet | C20 | Deluxe |
1975 - 1986 | Chevrolet | C20 | Scottsdale, Cheyenne, Silverado |
1968 - 1974 | Chevrolet | C20 Pickup | Base |
1968 - 1974 | Chevrolet | C20 Suburban | Base |
1981 - 1986 | Chevrolet | C20 Suburban | Custom |
1975 - 1980 | Chevrolet | C20 Suburban | Custom Deluxe |
1981 | Chevrolet | C20 Suburban | Deluxe |
1975 - 1986 | Chevrolet | C20 Suburban | Silverado, Scottsdale |
1991 - 1995 | Chevrolet | C2500 | Base, Cheyenne, Silverado |
1993 | Chevrolet | C2500 | Custom, 400 SS |
1991 - 1992 | Chevrolet | C2500 | Scottsdale |
1994 - 1995 | Chevrolet | C2500 | WT |
1992 - 1995 | Chevrolet | C2500 Suburban | Base |
1995 | Chevrolet | C2500 Suburban | LS, LT |
1992 - 1994 | Chevrolet | C2500 Suburban | Silverado |
1975 - 1982 | Chevrolet | C30 | Base |
1975 - 1981 | Chevrolet | C30 | Cheyenne |
1981 - 1986 | Chevrolet | C30 | Custom |
1975 - 1980 | Chevrolet | C30 | Custom Deluxe |
1981 | Chevrolet | C30 | Deluxe |
1975 - 1986 | Chevrolet | C30 | Silverado, Scottsdale |
1968 - 1974 | Chevrolet | C30 Pickup | Base |
1994 - 1995 | Chevrolet | C3500 | Base |
1988 - 1995 | Chevrolet | C3500 | Cheyenne, Silverado |
1988 - 1992 | Chevrolet | C3500 | Scottsdale |
1967 - 1972 | Chevrolet | Camaro | Z28, Base, SS, RS |
1966 - 1974 | Chevrolet | Caprice | Base |
1973 - 1976 | Chevrolet | Caprice | Classic |
1976 | Chevrolet | Caprice | Classic Estate, Classic Landau |
1975 - 1976 | Chevrolet | Caprice | Classic Sport |
1973 - 1974 | Chevrolet | Caprice | Estate |
1975 | Chevrolet | Caprice | Estate Wagon |
1967 - 1968 | Chevrolet | Chevelle | 300 |
1967 - 1969 | Chevrolet | Chevelle | 300 Deluxe |
1967 - 1972 | Chevrolet | Chevelle | Concours |
1969 - 1972 | Chevrolet | Chevelle | Concours Estate, Greenbrier |
1965 - 1973 | Chevrolet | Chevelle | Deluxe |
1968 - 1972 | Chevrolet | Chevelle | Malibu, Nomad |
1965 - 1972 | Chevrolet | Chevelle | SS, Base |
1968 | Chevrolet | Chevy II | Nova |
1965 - 1974 | Chevrolet | Corvette | Base |
1966 - 1975 | Chevrolet | El Camino | Base |
1975 | Chevrolet | El Camino | Classic |
1968 - 1974 | Chevrolet | El Camino | Custom |
1968 - 1975 | Chevrolet | El Camino | SS |
1969 - 1970 | Chevrolet | Estate | Base |
1973 - 1974 | Chevrolet | G10 Van | Sportvan, Base |
1976 | Chevrolet | G20 | Beauville, Chevy Van, Sportvan |
1973 - 1974 | Chevrolet | G20 Van | Base, Sportvan |
1975 - 1996 | Chevrolet | G30 | Sportvan, Beauville, Hi-Cube, Chevy Van |
1973 - 1974 | Chevrolet | G30 Van | Base, Sportvan |
1963 - 1976 | Chevrolet | Impala | Base |
1976 | Chevrolet | Impala | Custom Landau, S |
1975 - 1976 | Chevrolet | Impala | Sport, Custom |
1965 - 1967 | Chevrolet | Impala | SS |
1976 - 1980 | Chevrolet | K10 | Cheyenne, Scottsdale, Custom Deluxe, Silverado |
1968 - 1974 | Chevrolet | K10 Pickup | Base |
1968 - 1974 | Chevrolet | K10 Suburban | Base |
1976 - 1980 | Chevrolet | K20 | Cheyenne, Scottsdale, Silverado, Custom Deluxe |
1968 - 1974 | Chevrolet | K20 Pickup | Base |
1968 - 1974 | Chevrolet | K20 Suburban | Base |
1985 | Chevrolet | K20 Suburban | Scottsdale, Custom, Silverado |
1991 - 1995 | Chevrolet | K2500 | Cheyenne, Silverado |
1991 - 1992 | Chevrolet | K2500 | Scottsdale |
1994 - 1995 | Chevrolet | K2500 | WT, Base |
1992 - 1995 | Chevrolet | K2500 Suburban | Base |
1995 | Chevrolet | K2500 Suburban | LS, LT |
1992 - 1994 | Chevrolet | K2500 Suburban | Silverado |
1977 - 1981 | Chevrolet | K30 | Cheyenne |
1981 - 1986 | Chevrolet | K30 | Custom |
1977 - 1980 | Chevrolet | K30 | Custom Deluxe |
1981 | Chevrolet | K30 | Deluxe |
1977 - 1986 | Chevrolet | K30 | Silverado, Scottsdale |
1968 - 1974 | Chevrolet | K30 Pickup | Base |
1994 - 1995 | Chevrolet | K3500 | Base |
1988 - 1995 | Chevrolet | K3500 | Cheyenne, Silverado |
1988 - 1992 | Chevrolet | K3500 | Scottsdale |
1976 | Chevrolet | K5 Blazer | Base |
1976 - 1978 | Chevrolet | K5 Blazer | Cheyenne |
1977 - 1978 | Chevrolet | K5 Blazer | Custom Deluxe |
1978 | Chevrolet | K5 Blazer | Silverado |
1969 - 1972 | Chevrolet | Kingswood | Estate, Base |
1973 - 1975 | Chevrolet | Laguna | Base |
1973 | Chevrolet | Laguna | Estate |
1975 | Chevrolet | Laguna | S3 |
1974 | Chevrolet | Laguna | Type S-3 |
1965 - 1975 | Chevrolet | Malibu | Base |
1974 - 1975 | Chevrolet | Malibu | Classic |
1975 | Chevrolet | Malibu | Classic Estate |
1973 - 1974 | Chevrolet | Malibu | Estate |
1970 - 1974 | Chevrolet | Monte Carlo | Base |
1973 - 1974 | Chevrolet | Monte Carlo | Landau |
1973 - 1975 | Chevrolet | Monte Carlo | S |
1969 - 1972 | Chevrolet | Nova | Base |
1988 | Chevrolet | R20 | Cheyenne |
1987 - 1988 | Chevrolet | R20 | Custom Deluxe, Scottsdale, Silverado |
1987 | Chevrolet | R20 Suburban | Custom Deluxe |
1987 - 1988 | Chevrolet | R20 Suburban | Scottsdale, Silverado |
1989 | Chevrolet | R2500 | Scottsdale, Cheyenne, Silverado |
1989 - 1991 | Chevrolet | R2500 Suburban | Silverado, Scottsdale |
1988 | Chevrolet | R30 | Cheyenne |
1987 - 1988 | Chevrolet | R30 | Scottsdale, Silverado, Custom Deluxe |
1989 - 1990 | Chevrolet | R3500 | Scottsdale |
1989 - 1991 | Chevrolet | R3500 | Silverado, Cheyenne |
1969 - 1972 | Chevrolet | Townsman | Base |
1987 | Chevrolet | V20 Suburban | Custom Deluxe |
1987 - 1988 | Chevrolet | V20 Suburban | Scottsdale, Silverado |
1990 | Chevrolet | V2500 Suburban | Scottsdale, Silverado |
1988 | Chevrolet | V30 | Cheyenne |
1987 - 1988 | Chevrolet | V30 | Silverado, Custom Deluxe, Scottsdale |
1989 - 1991 | Chevrolet | V3500 | Cheyenne, Silverado |
1989 - 1990 | Chevrolet | V3500 | Scottsdale |
1977 - 1978 | GMC | C15 | Heavy Half |
1977 | GMC | C15 | Indy Hauler |
1975 - 1978 | GMC | C15 | Sierra Grande, Base, Sierra Classic, High Sierra |
1978 | GMC | C15 | Street Coupe |
1975 - 1978 | GMC | C15 Suburban | High Sierra, Sierra Grande, Base, Sierra Classic |
1968 - 1974 | GMC | C15/C1500 Pickup | Base |
1968 - 1974 | GMC | C15/C1500 Suburban | Base |
1979 - 1980 | GMC | C1500 | Base, Sierra Classic, High Sierra, Heavy Half, Sierra Grande, Street Coupe |
1979 - 1980 | GMC | C1500 Suburban | Sierra Grande, Base, High Sierra, Sierra Classic |
1975 - 1978 | GMC | C25 | High Sierra, Sierra Classic, Base, Sierra Grande |
1975 - 1978 | GMC | C25 Suburban | High Sierra, Sierra Classic, Base, Sierra Grande |
1968 - 1974 | GMC | C25/C2500 Pickup | Base |
1968 - 1974 | GMC | C25/C2500 Suburban | Base |
1979 - 1986 | GMC | C2500 | High Sierra, Sierra Classic, Base |
1979 - 1982 | GMC | C2500 | Sierra Grande |
1991 - 1995 | GMC | C2500 | Sierra SLE |
1994 - 1995 | GMC | C2500 | Sierra SLT, Sierra SL |
1991 - 1993 | GMC | C2500 | Sierra SLX, Sierra |
1979 - 1995 | GMC | C2500 Suburban | Base |
1979 - 1986 | GMC | C2500 Suburban | High Sierra, Sierra Classic |
1979 - 1982 | GMC | C2500 Suburban | Sierra Grande |
1992 - 1995 | GMC | C2500 Suburban | SLE |
1995 | GMC | C2500 Suburban | SLT |
1975 - 1978 | GMC | C35 | High Sierra, Base, Sierra Classic, Sierra Grande |
1968 - 1974 | GMC | C35/C3500 Pickup | Base |
1979 - 1986 | GMC | C3500 | Base, Sierra Classic, High Sierra |
1979 - 1982 | GMC | C3500 | Sierra Grande |
1988 - 1995 | GMC | C3500 | Sierra SLE |
1994 - 1995 | GMC | C3500 | Sierra SLT, Sierra SL |
1988 - 1993 | GMC | C3500 | Sierra, Sierra SLX |
1975 - 1976 | GMC | G25 | Vandura, Rally STX, Rally |
1976 | GMC | G35 | Rally, Rally Camper Special, Vandura Special, Magnavan, Rally STX, Vandura |
1974 | GMC | G35/G3500 Van | Base |
1973 - 1974 | GMC | G35/G3500 Van | Vandura, Rally |
1988 - 1996 | GMC | G3500 | Rally Camper Special, Magnavan, Vandura Special, Rally STX, Vandura, Rally |
1988 | GMC | G3500 | Rally Custom |
1973 - 1976 | GMC | Jimmy | Base |
1976 | GMC | Jimmy | High Sierra, Sierra Classic, Sierra Grande |
1976 | GMC | K15 | High Sierra, Base, Sierra Classic, Sierra Grande |
1968 - 1974 | GMC | K15/K1500 Pickup | Base |
1968 - 1974 | GMC | K15/K1500 Suburban | Base |
1979 - 1980 | GMC | K1500 | Sierra Classic, Sierra Grande, High Sierra, Base |
1976 - 1978 | GMC | K25 | High Sierra, Sierra Classic, Base, Sierra Grande |
1976 - 1977 | GMC | K25 Suburban | Sierra Classic, Base, High Sierra, Sierra Grande |
1968 - 1974 | GMC | K25/K2500 Pickup | Base |
1968 - 1974 | GMC | K25/K2500 Suburban | Base |
1994 - 1995 | GMC | K2500 | Sierra SL, Sierra SLT |
1991 - 1995 | GMC | K2500 | Sierra SLE |
1991 - 1993 | GMC | K2500 | Sierra SLX, Sierra |
1992 - 1995 | GMC | K2500 Suburban | SLE, Base |
1995 | GMC | K2500 Suburban | SLT |
1968 - 1974 | GMC | K35/K3500 Pickup | Base |
1979 - 1986 | GMC | K3500 | Sierra Classic, High Sierra, Base |
1979 - 1982 | GMC | K3500 | Sierra Grande |
1988 - 1995 | GMC | K3500 | Sierra SLE |
1994 - 1995 | GMC | K3500 | Sierra SLT, Sierra SL |
1988 - 1993 | GMC | K3500 | Sierra SLX, Sierra |
1987 - 1989 | GMC | R2500 | High Sierra, Sierra Classic, Base |
1987 - 1991 | GMC | R2500 Suburban | Base |
1987 | GMC | R2500 Suburban | High Sierra |
1987 - 1989 | GMC | R2500 Suburban | Sierra Classic |
1990 | GMC | R2500 Suburban | SLE |
1987 - 1991 | GMC | R3500 | Base |
1987 - 1989 | GMC | R3500 | High Sierra, Sierra Classic |
1990 - 1991 | GMC | R3500 | SLE |
1971 - 1975 | GMC | Sprint | Base |
1972 - 1974 | GMC | Sprint | Custom |
1975 | GMC | Sprint | SP, Classic, High Sierra |
1987 - 1991 | GMC | V3500 | Base |
1987 - 1989 | GMC | V3500 | High Sierra, Sierra Classic |
1990 - 1991 | GMC | V3500 | SLE |
![Edelbrock Engine Cylinder Head 50459 Item Image](http://frsport.com/cdn/shop/products/050459_v1.jpg?v=1620258620&width=1280)
Edelbrock CYL Head, E-Street BB Chevy Oval Port Complete, Single
Sale price$1,419.43 USD
