Edelbrock Timing Cover 1997-04 for GM Gen 3, LS-Series 2-Piece

Edelbrock Timing Cover 1997-04 for GM Gen 3, LS-Series 2-Piece

$339.82
$339.82
Sale Sold out

Shipping calculated at checkout.

Low stock: 3 left

Shipping & returns

Shipping details

In-stock orders are processed within 48 hours; transit time is additional.

International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.

Read the shipping policy

Returns

Need help with a return? Request authorization within 30 days of delivery for eligible unused, uninstalled items. See details for exclusions and applicable fees.

Read the full return policy
Return details & how to start

Request return authorization (RMA) within 30 days of delivery for eligible items. Keep items unused and uninstalled, with original packaging and accessories. Electronics, liquids, special orders and other categories are excluded.

Email sales@frsport.com with RETURN and your order number in the subject to request an RMA. Please wait for return authorization before sending your item back.

Wrong part/size or change of mind: a 20% return processing fee applies, plus applicable shipping costs.

Original shipping is non-refundable. For orders shipped free, the actual outbound shipping cost is deducted from the refund. Return shipping is prepaid by the customer.

After payment capture, cancellations and refunds generally incur a 5% processing fee, except for our error, confirmed defects or confirmed carrier loss. The 5% and 20% fees do not stack; only the greater applicable fee applies. Store credit waives the 5% fee, but applicable return fees remain.

Missing, incorrect or transit-damaged items: report within 3 business days of receipt with photos of the product and packaging.

For defective items, contact us for help with the manufacturer's warranty process. The manufacturer decides the claim.

Specifications

Shipping weight
3.5 lb
Barcode
85347042548

Billable shipping weight; may include dimensional weight.

Timing Cover 1997-04 for GM Gen 3, LS-Series 2-Piece

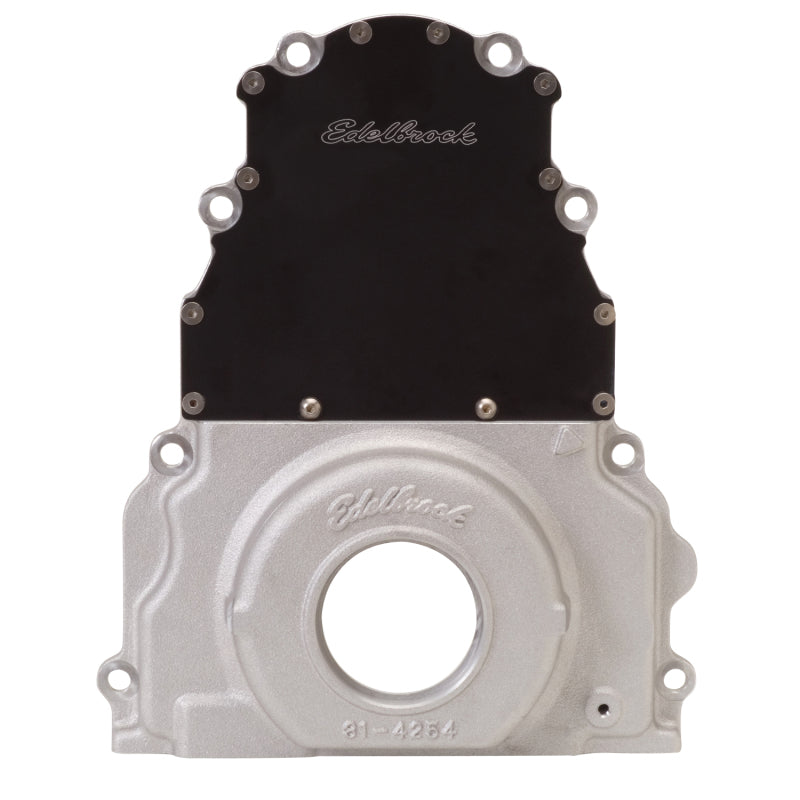

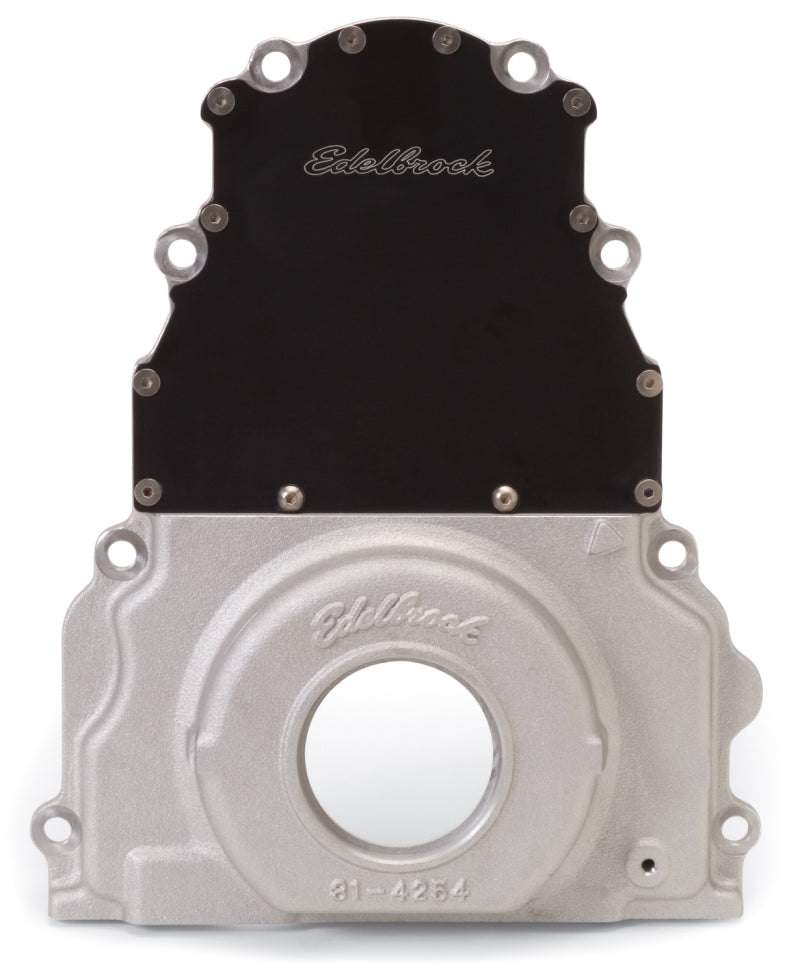

Edelbrock Part # 4254 With Rear Mounted Cam Sensor (LS1 and Early Model Trucks) These two-piece aluminum timing covers for GM Gen III & IV LS Series allow quick camshaft removal and installation without the need to remove the damper pulley or steering components. The cam can be installed and removed through a window in the front of the cover which is sealed with a plate and O-ring for superior leak prevention. Not for use with a double roller timing chains.

Specs:

  • Application: Universal
  • GTIN: 00085347042548
  • Emissions Code: N/A
  • Color: Black
  • Finish: Black
  • Material: Aluminum

Installation Notes:

  • Timing Cover #4255 is not compatible with Chevrolet Gen III engines which include LS1, LS6, and others. if you are uncertain of your engine generation
  • Remove the front cover and gasket. Edelbrock recommends installing a new front crank seal as it will difficult to remove your stock seal without damaging it. At this time, you should inspect the oil pan gasket for damage
  • Remove the oil pan and replace the gasket if necessary (See service manual)
