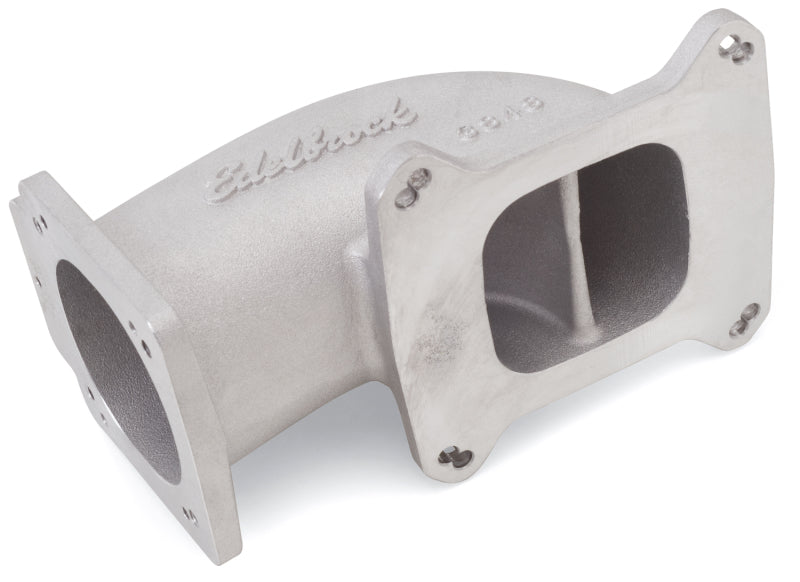

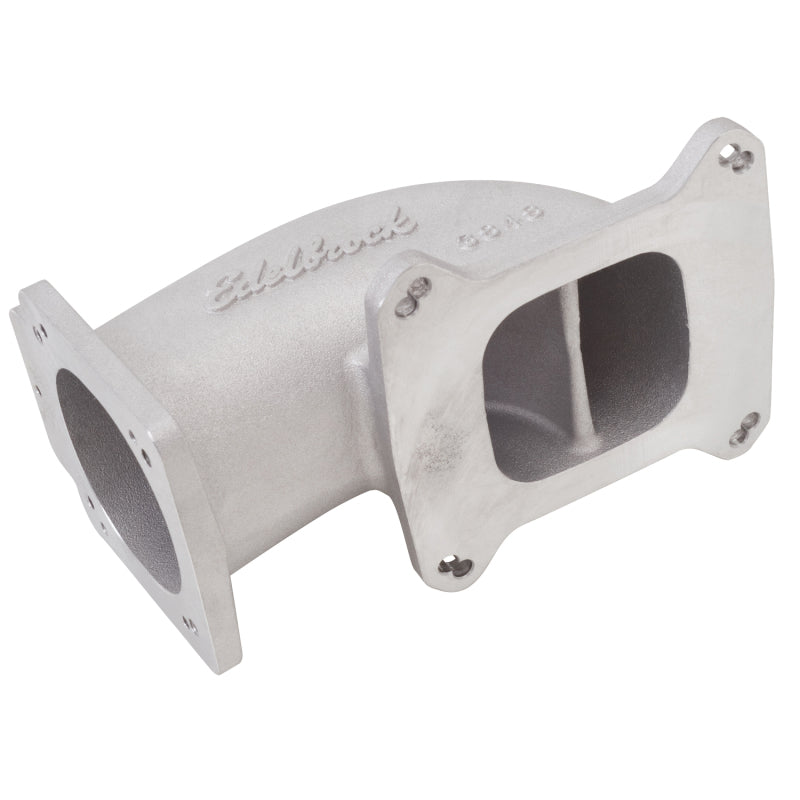

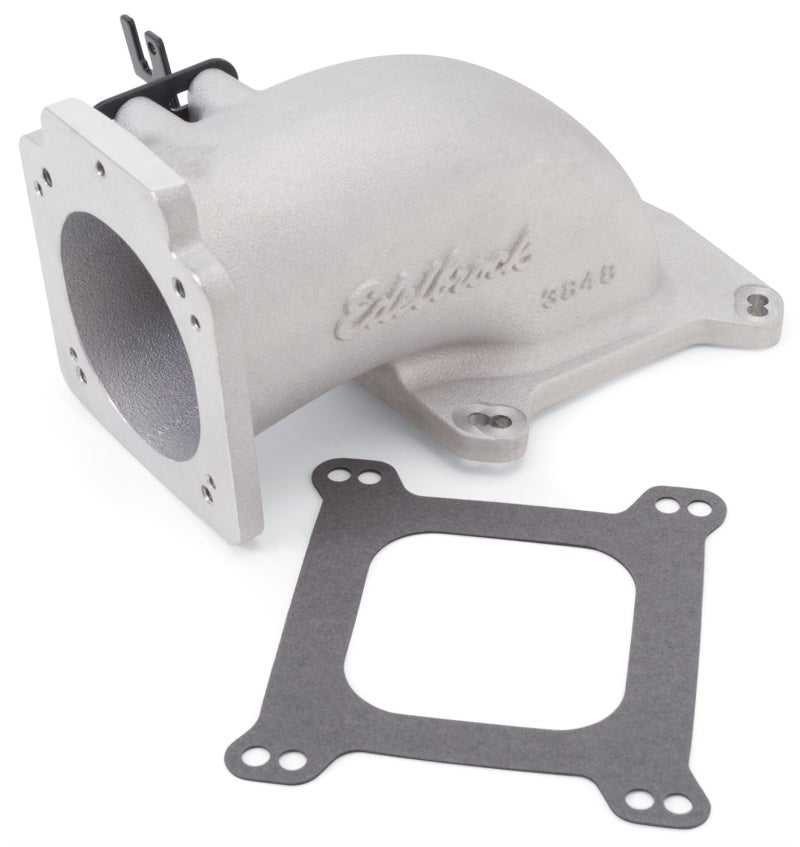

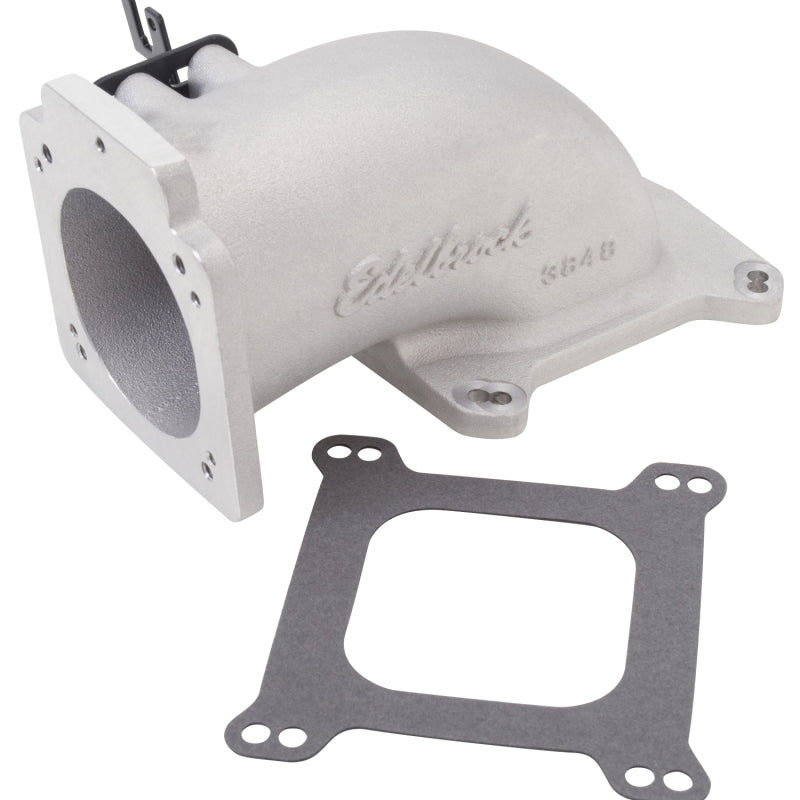

Edelbrock Low Profile Intake Elbow, 90mm Throttle Body to Square-bore Flange

Name: Edelbrock Low Profile Intake Elbow, 90mm Throttle Body to Square-bore Flange
Brand: Edelbrock
SKU: 0414N
Price: 203.76 USD
Availability: InStock

Edelbrock Low Profile Intake Elbow, 90mm Throttle Body to Square-bore Flange

sku: 0414N | mpn: 3848

$203.76

Sale Sold out

Shipping calculated at checkout.

45 in stock

Not sure this is the right part? Ask us to check fitment. Include your year, make, model, engine and manufacturer part number.

Emissions

⚠️ RACING/COMPETITION Use Only

California: Non-compliant parts may be used only on designated closed-course racing vehicles that are never registered for highway use.

Other: Please consult your local statutes and ordinances to ensure compliance with regional emissions standards.

Quantity

Shipping & returns

Shipping details

In-stock orders are processed within 48 hours; transit time is additional.

International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.

Read the shipping policy

Return policy

Edelbrock Throttle Body Intake Elbows

LOW & ULTRA LOW PROFILE ELBOWS

Ultra Low Profile Elbow #3847 is designed to fit our Victor Jr. LS1 EFI manifold #29085 and is ideal for tight engine compartments. The throttle bore center sits 9.00" forward and only 0.56" up from the manifold mounting flange. Includes throttle body adapter plate #2737 for use with LS1 throttle bodies. We recommend Edelbrock 90mm throttle body #3869 for optimum performance. Low Profile Elbow #3848 has a throttle body bore center 7.00" forward and 2.00" above the manifold flange. Designed for use with Edelbrock Pro-Flo XT throttle bodies #3869/#38693/#3818/#38183, GM and Ford 90mm throttle bodies.

Application	Emissions	Satin	Black
Ultra Low Profile Intake Elbow (up to 90mm Throttle Body)		3847	38473
Low Profile Intake Elbow (up to 90mm Throttle Body)		3848	38483
