Edelbrock Victor 340/360 Intake Manifold for Small-Block Chrysler LA
Edelbrock # 2915 Victor 340/360 Intake Manifold for Small-Block Chrysler LA

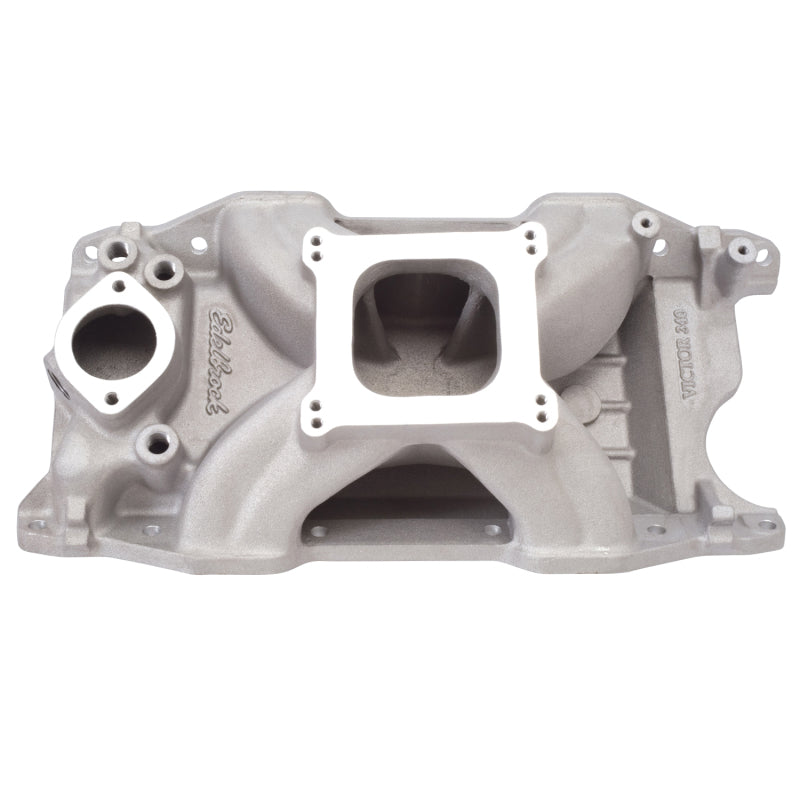

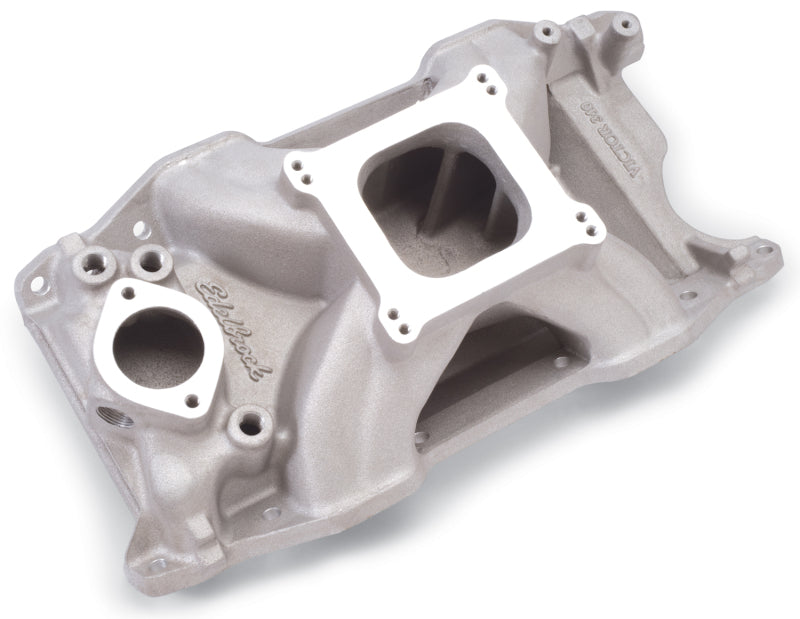

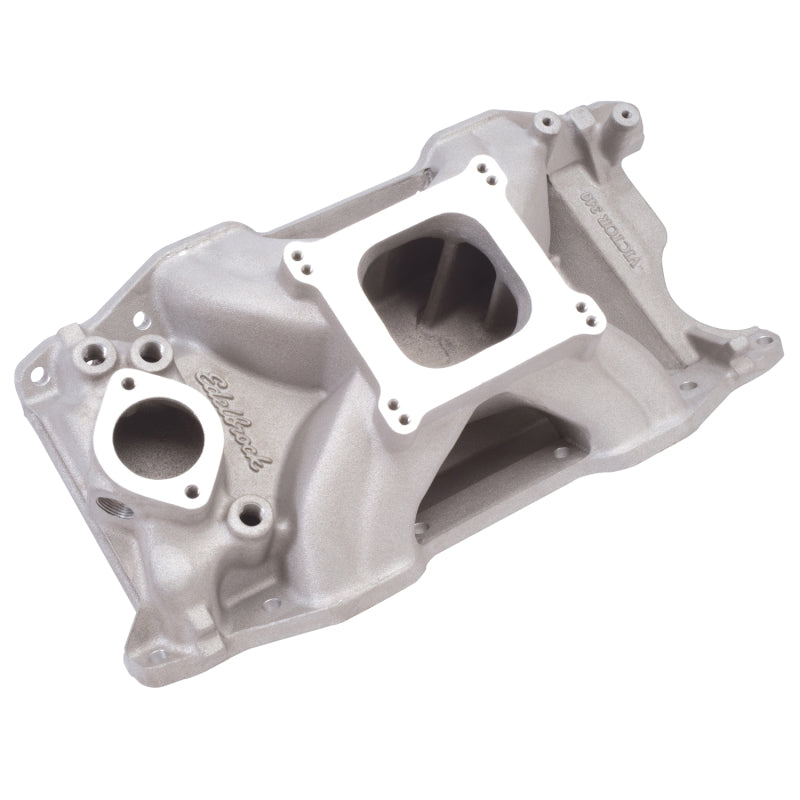

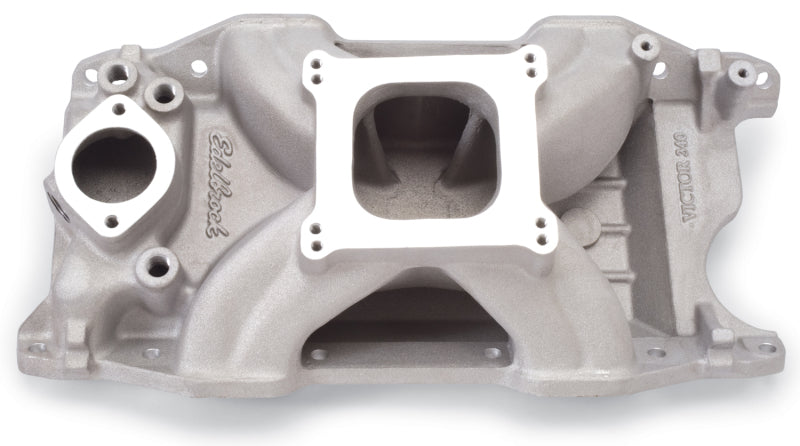

Edelbrock Part # 2915 Victor 340 intake manifold is designed for 340-360 c.i.d. Chryslers using standard rectangular-port heads. For oval track and drag race engines operating from 3500-8000 rpm. This intake manifold can be used on 318 c.i.d. engines with 340-360 heads. Will not fit 1992 and later Magnum engines. Accepts 1975 and earlier waterneck only.
Specs:
- Application: Universal
- GTIN: 00085347029150
- Center Maximum Height: 4.920 in
- Color: Satin
- Front Maximum Height: 4.920 in
- Material: Aluminum
- Rear Maximum Height: 4.920 in
- Single Or Dual Plane Type: Single Plane
Installation Notes:
- Recommended intake gasket: Edelbrock # 7276, Fel-Pro # 1213
- Manifold height.: A-4.15", B-5.70"
- Carb recommendations: Use appropriate racing carburetor
- Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant # 1076
- Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.
DO NOT USE END SEALS GASKETS
