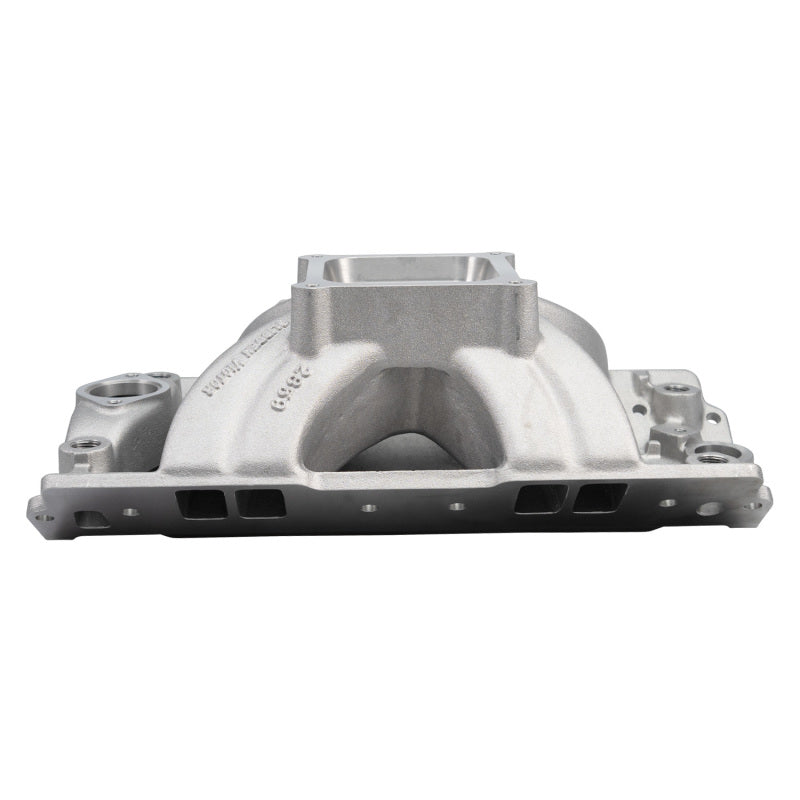

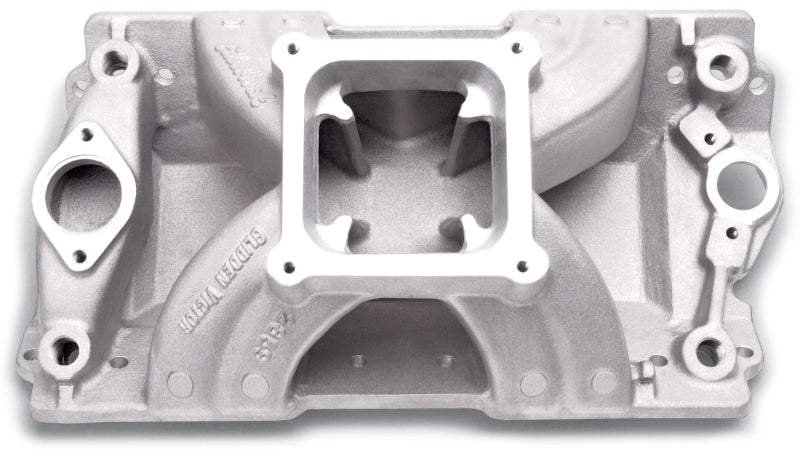

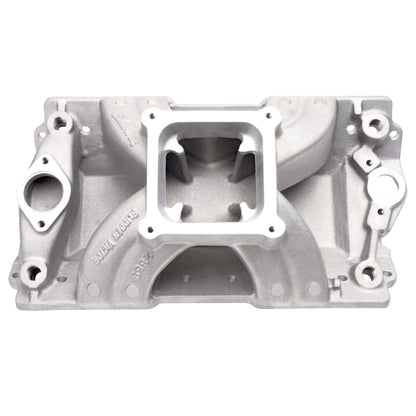

• Edelbrock SBC 18 Degree 4500 Manifold 2859 Photo - Primary

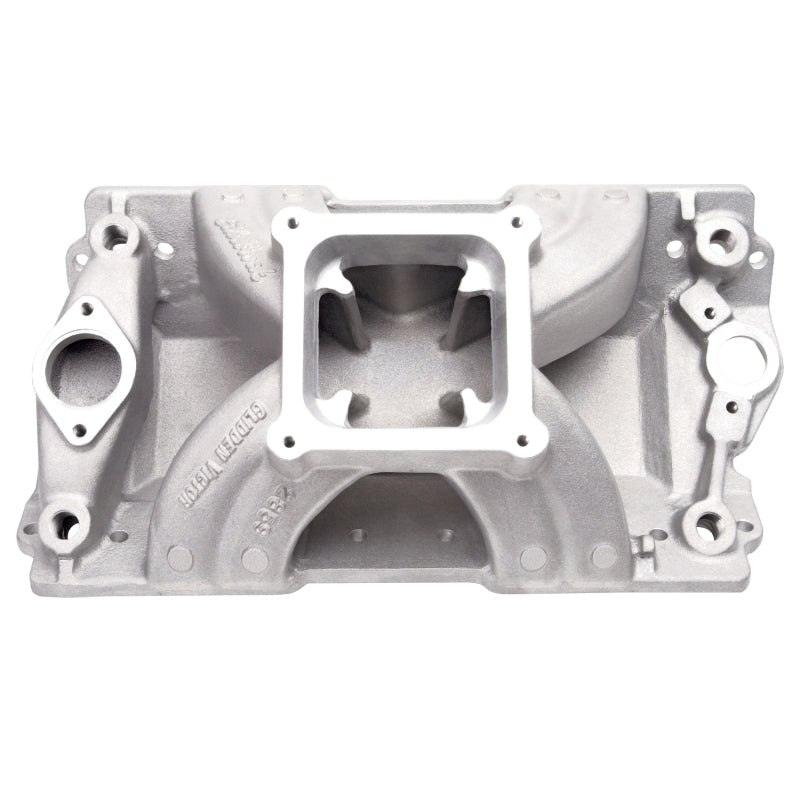

  • Edelbrock SBC 18 Degree 4500 Manifold 2859 Photo - Primary
  • Edelbrock SBC 18 Degree 4500 Manifold 2859 Photo - Primary

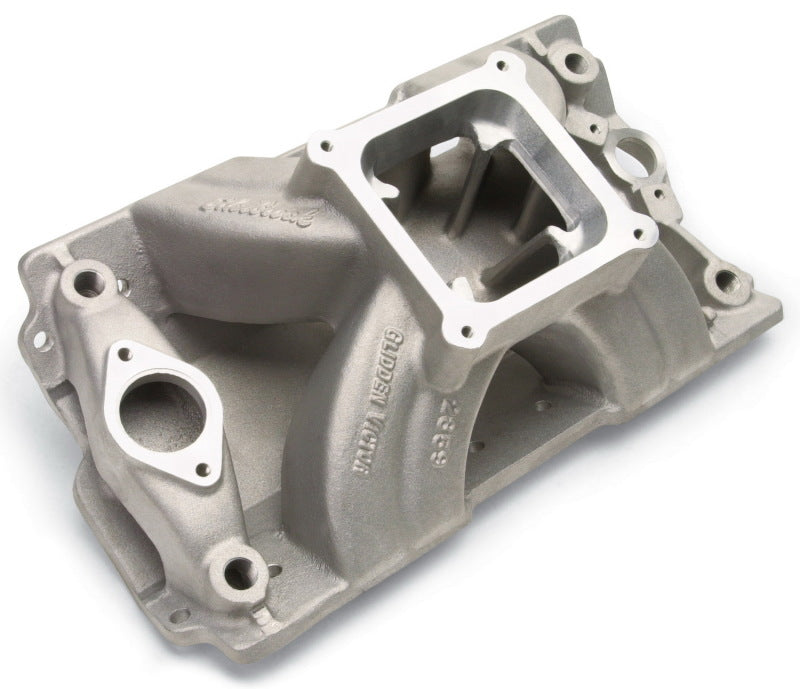

  • Edelbrock SBC 18 Degree 4500 Manifold 2859 Photo - Unmounted

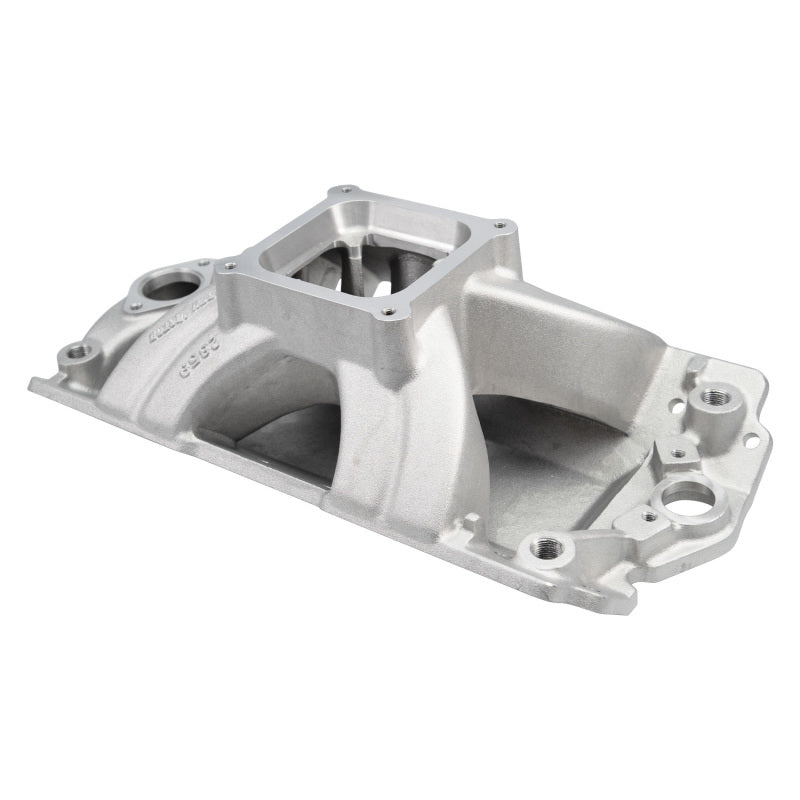

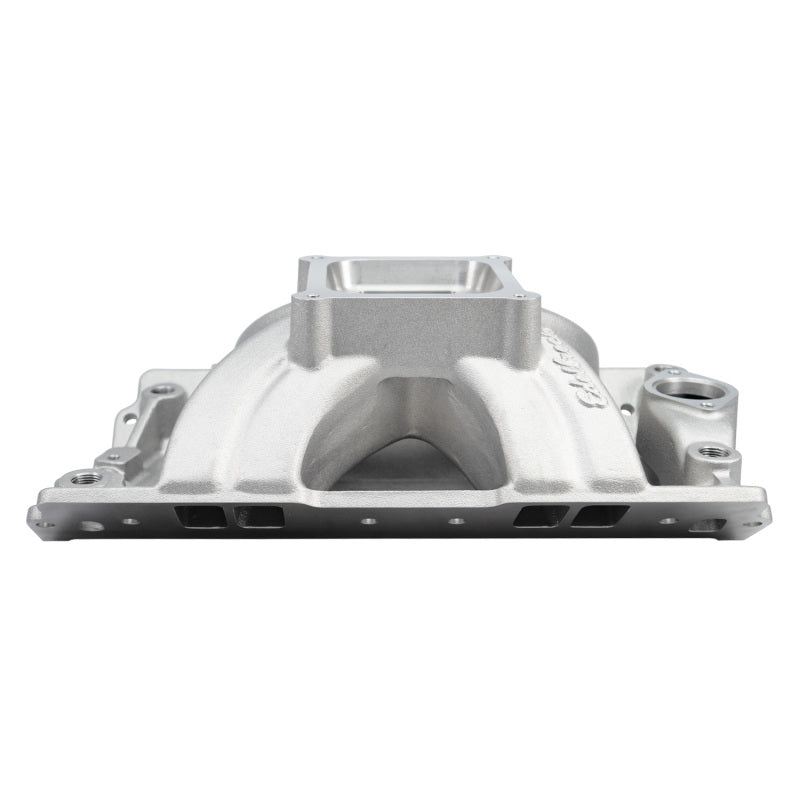

  • Edelbrock SBC 18 Degree 4500 Manifold 2859 Photo - out of package

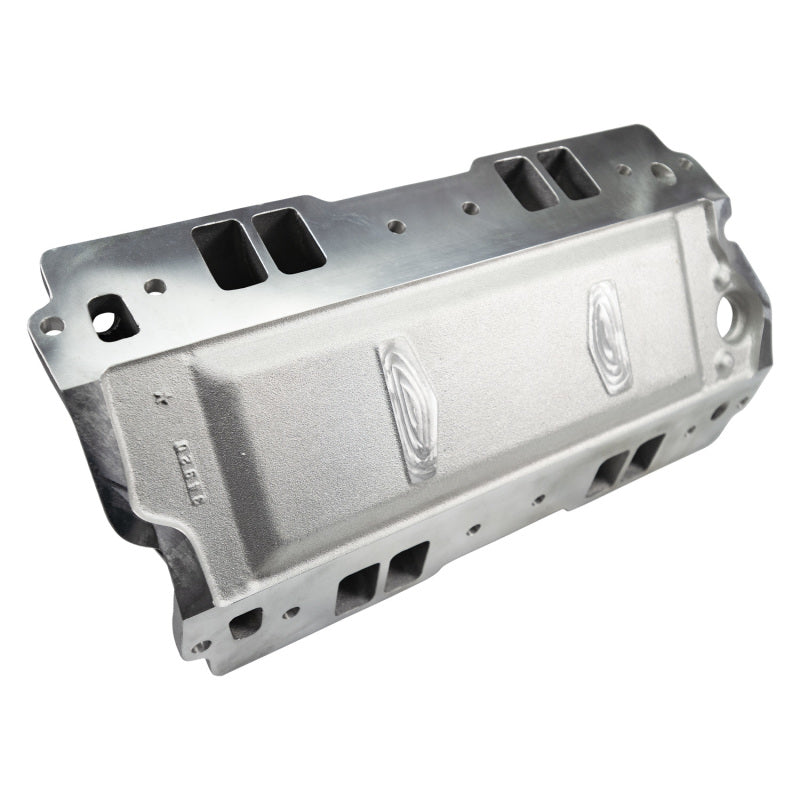

  • Edelbrock SBC 18 Degree 4500 Manifold 2859 Photo - out of package

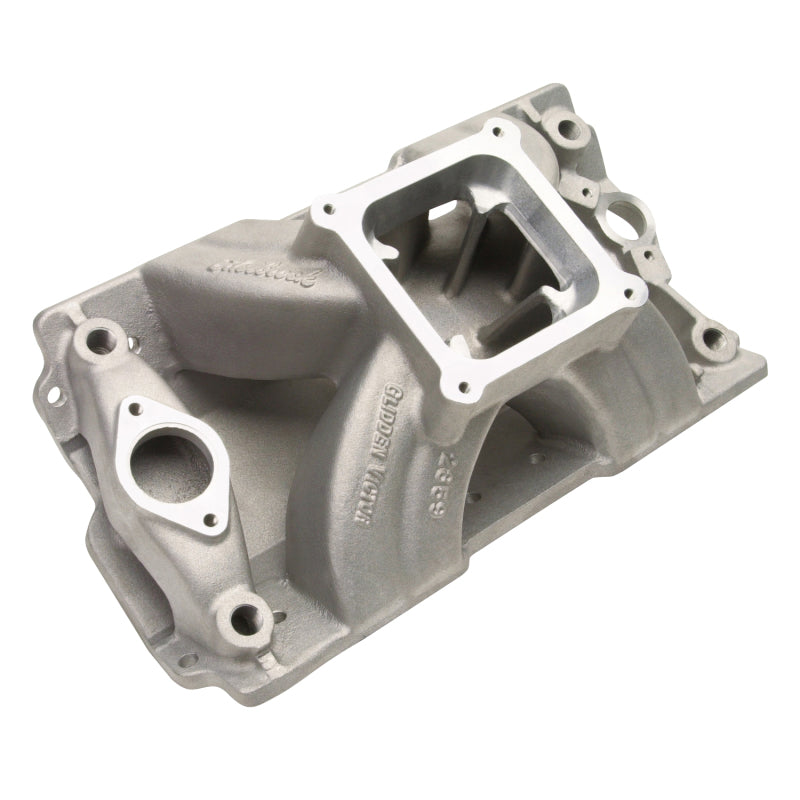

  • Edelbrock SBC 18 Degree 4500 Manifold 2859 Photo - out of package

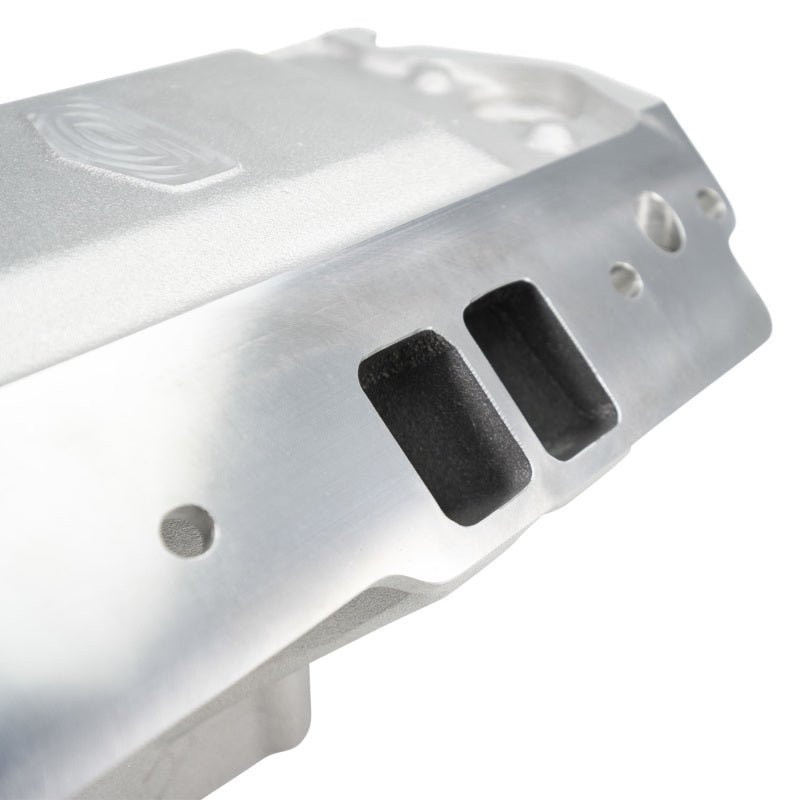

  • Edelbrock SBC 18 Degree 4500 Manifold 2859 Photo - out of package

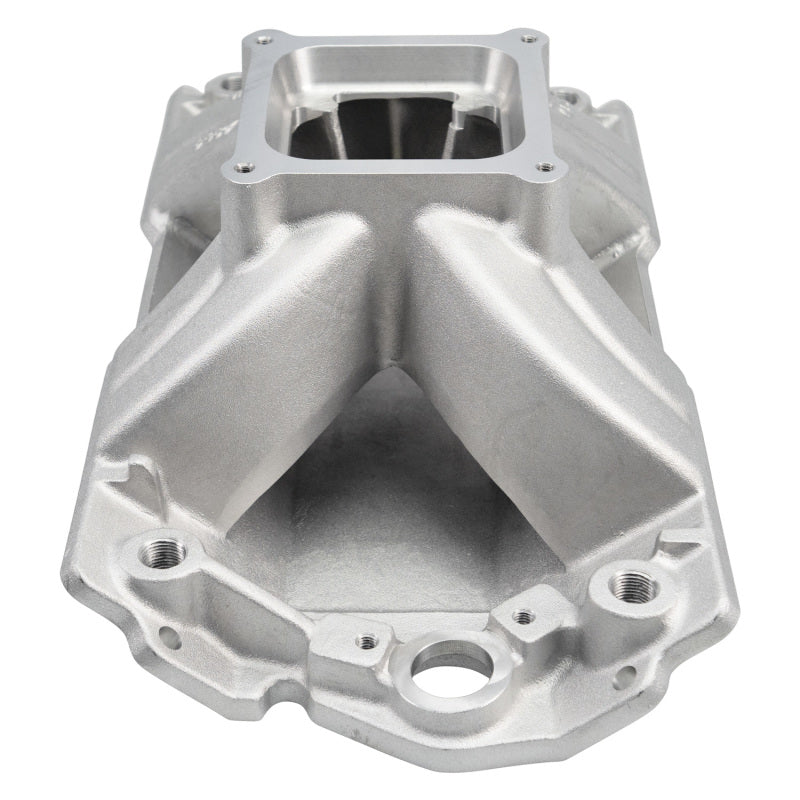

  • Edelbrock SBC 18 Degree 4500 Manifold 2859 Photo - out of package
  • Edelbrock SBC 18 Degree 4500 Manifold 2859 Photo - out of package
  • Edelbrock SBC 18 Degree 4500 Manifold 2859 Photo - out of package

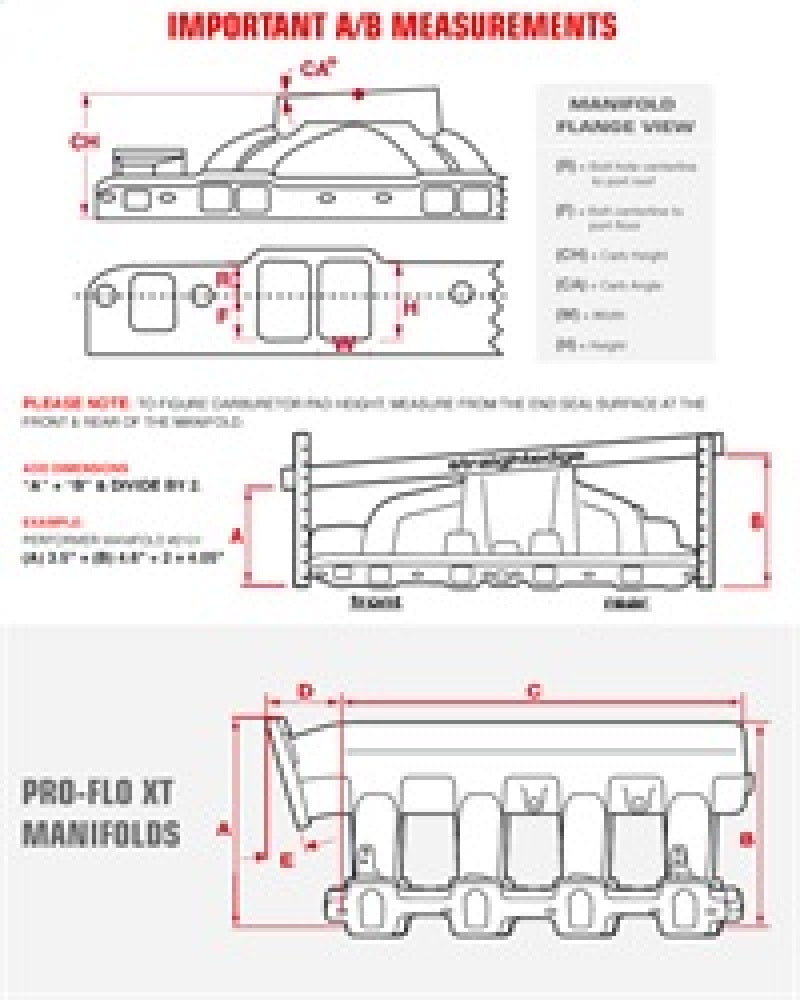

  • Edelbrock SBC 18 Degree 4500 Manifold 2859 Technical Drawing
  • Edelbrock SBC 18 Degree 4500 Manifold 2859 User 3
  • Edelbrock SBC 18 Degree 4500 Manifold 2859 User 4
  • Edelbrock SBC 18 Degree 4500 Manifold 2859 User 1
1 15
Edelbrock Authorized Dealer

Edelbrock SBC 18 Degree 4500 Manifold

Edelbrock SBC 18 Degree 4500 Manifold

sku: 02GZ8 | mpn: 2859
$710.08
$710.08 $710.08
Sale Sold out
Shipping calculated at checkout.

Low stock: 8 left

Emissions

⚠️ RACING/COMPETITION Use Only

California: Non-compliant parts may be used only on designated closed-course racing vehicles that are never registered for highway use.

Other: Please consult your local statutes and ordinances to ensure compliance with regional emissions standards.

  • Ships Worldwide
  • Easy Returns
  • Fast Shipping

Glidden Victor Intake Manifold for SBC 15°/18° Heads 4500

Edelbrock Part # 2859 Victor Glidden intake manifold is for all-out nitrous-assisted drag race applications. Designed with noted drag racer Billy Glidden, it features intake runners with a large cross-section area of 3.2 square-inches for maximum high-end horsepower in engines operating from 5000 to 8500 rpm with GM or Edelbrock 18-degree heads. Carb mount flange and plenum are machined for 4500 Series carburetors and require port matching and blending prior to use. The Edelbrock Victor Glidden is a single-plane, high-rise intake designed for maximum race-winning power at higher engine speeds.

SPECS

Application Universal
Installation Notes
  • Recommended intake gasket: Edelbrock # 7218 or Fel-Pro # 1282
  • Carb Pad Height: 7.03?
  • For use with 15 and 18 Degree Chevy with 4500 Series Carburetor.
  • Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant # 1076, DO NOT USE END SEALS GASKETS.
  • Optimum cylinder head port opening size should be as close as possible to the size of the gasket being used.
  • Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.
  • Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage.
  • NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure proper seal.
  • Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage.
Center Maximum Height 7.030 in
Color Satin
Front Maximum Height 7.030 in
Material Aluminum
Rear Maximum Height 7.030 in
Single Or Dual Plane Type Single Plane
