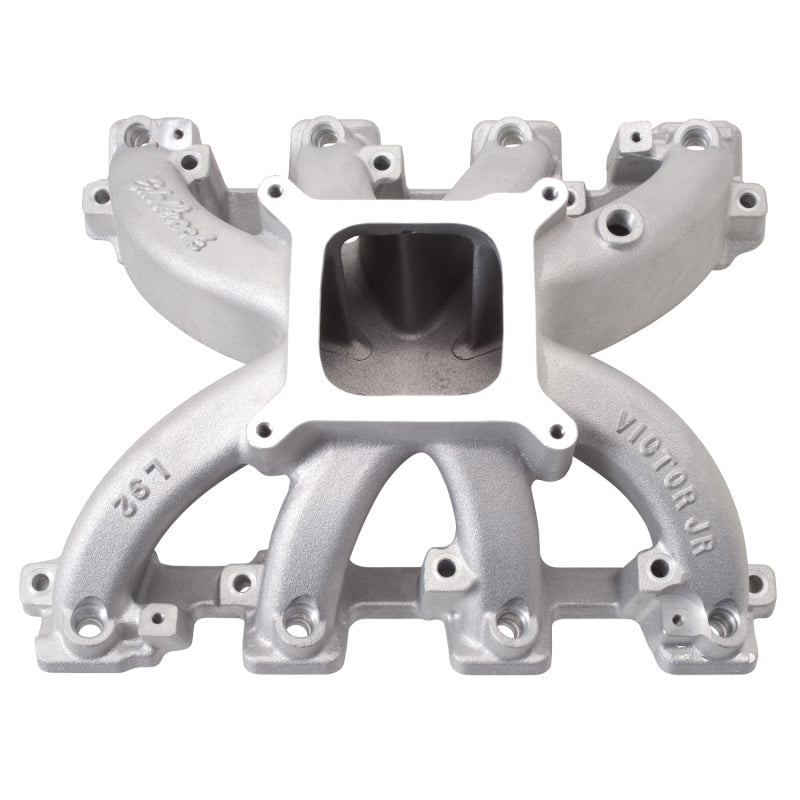

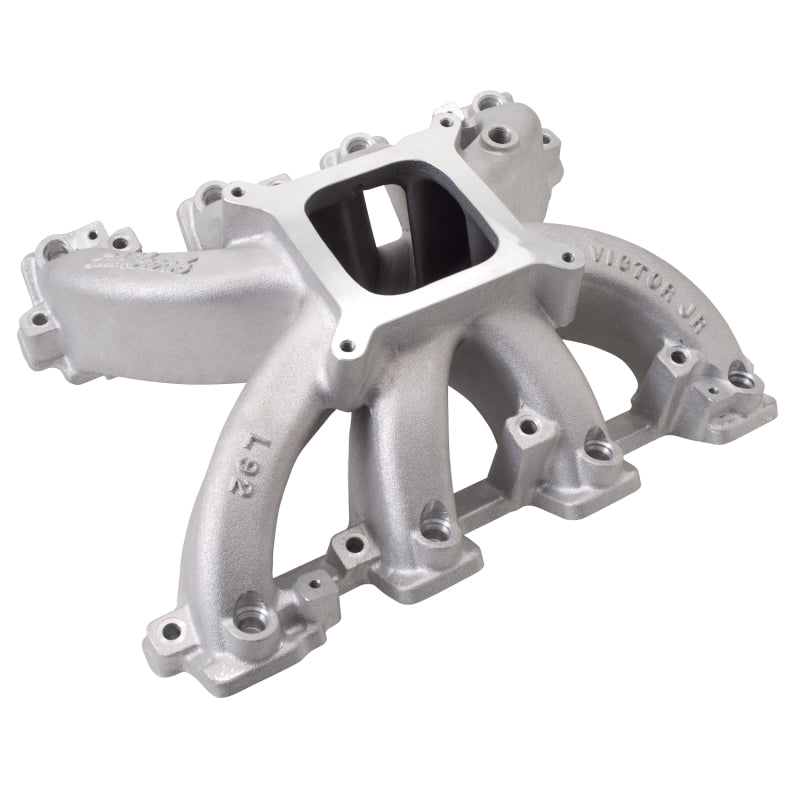

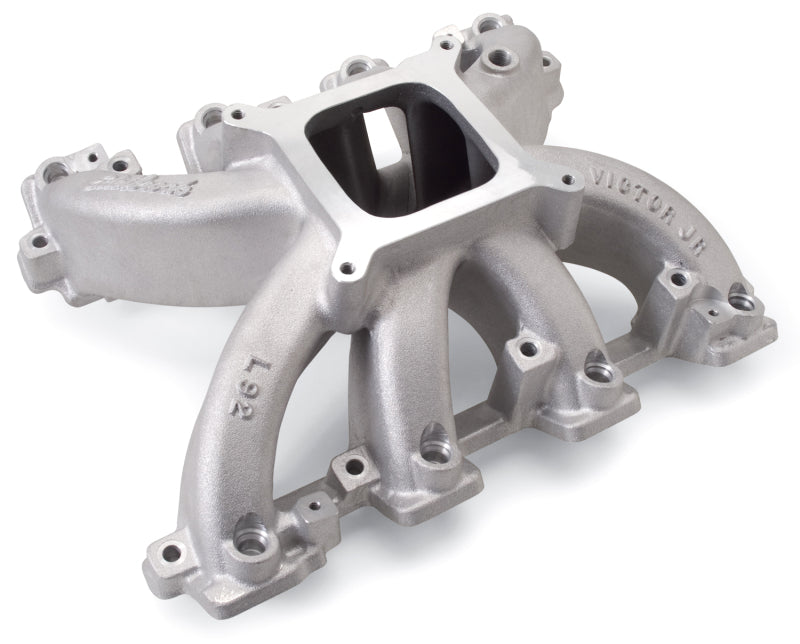

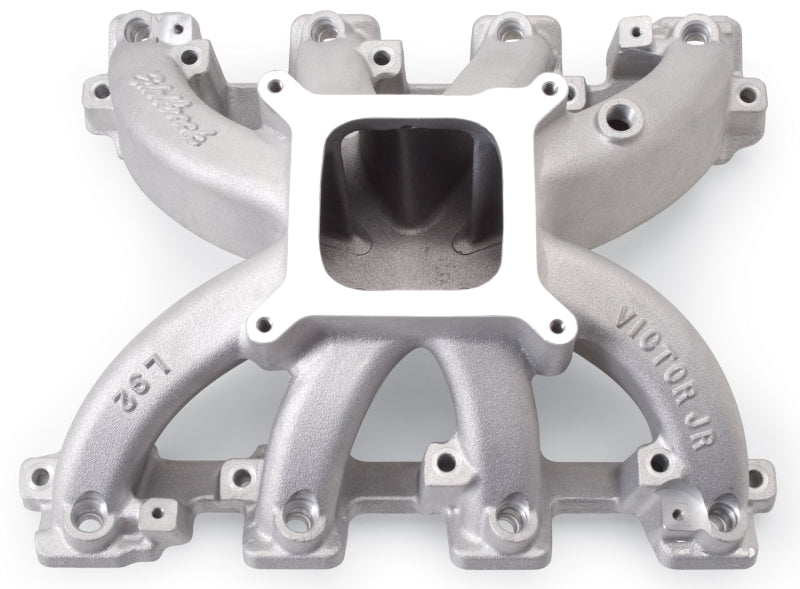

Edelbrock Victor JR., GM Gen IV*, L92, EFI Intake Manifold

Victor Jr LS3/L76/L92 GM EFI Intake Manifold
The Edelbrock Victor JR. LS3 #28455 intake manifold is designed for Gen IV LS engines equipped with LS3, L92 and L76 cylinder heads, this manifold is for EFI racing applications operating between 3500-7500 rpm. This manifold uses a standard square bore throttle body flange that is compatible with both Edelbrock EFI intake elbows with single bore 90mm throttle body or four-barrel #4150 throttle bodies. The Edelbrock Victor JR. LS3 #28455 intake has additional bosses and machining that allow for the use of fuel injectors when combined with the #3638 fuel rail kit (sold separately)
Specs:
- Application: Universal
- GTIN: 00085347284559
- Center Maximum Height: 6.000 in
- Color: Satin
- Front Maximum Height: 6.000 in
- Material: Aluminum
- Rear Maximum Height: 6.000 in
- Single Or Dual Plane Type: Single Plane

Edelbrock Victor JR., GM Gen IV*, L92, EFI Intake Manifold
Sale price$641.33 USD
