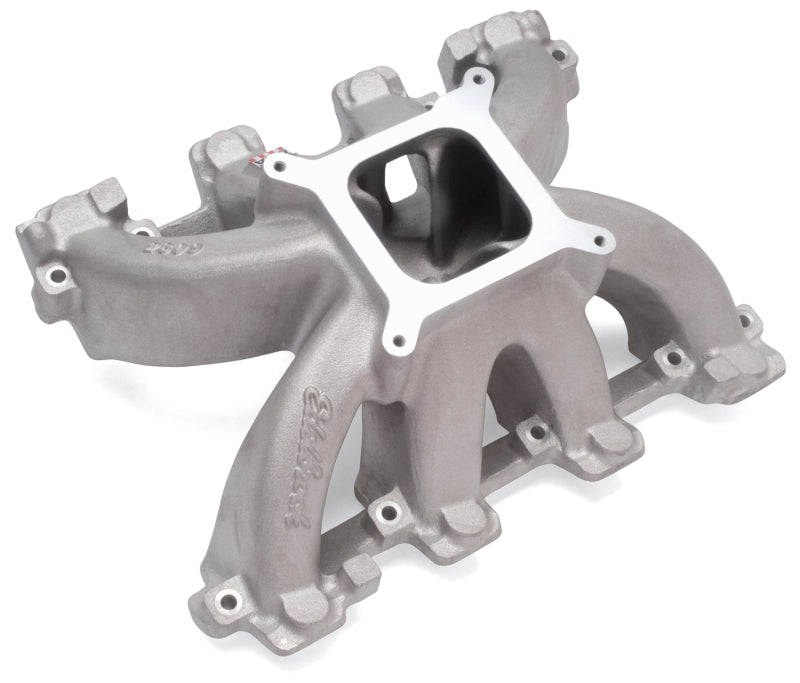

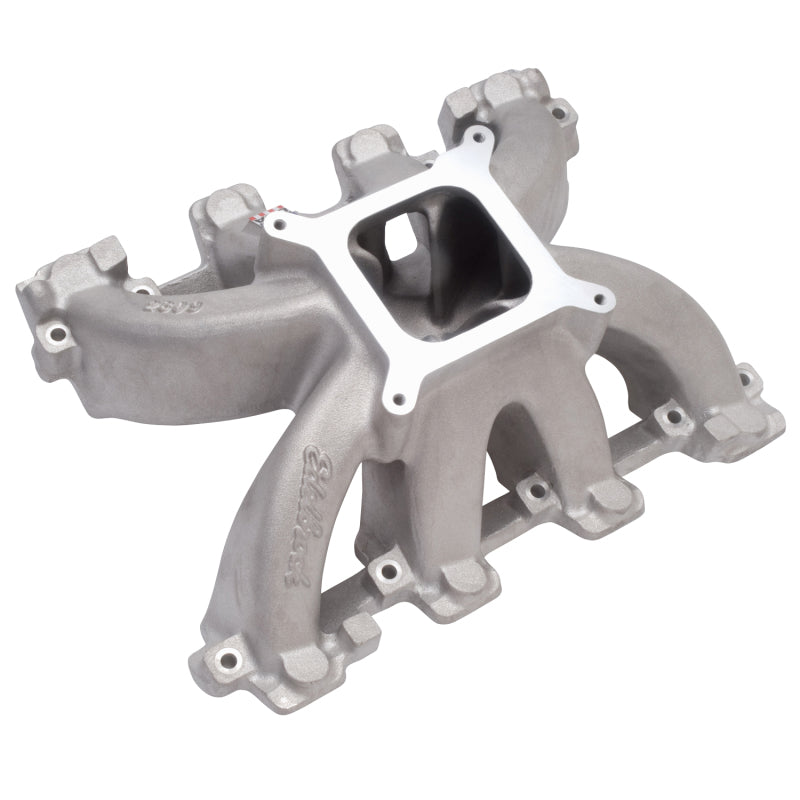

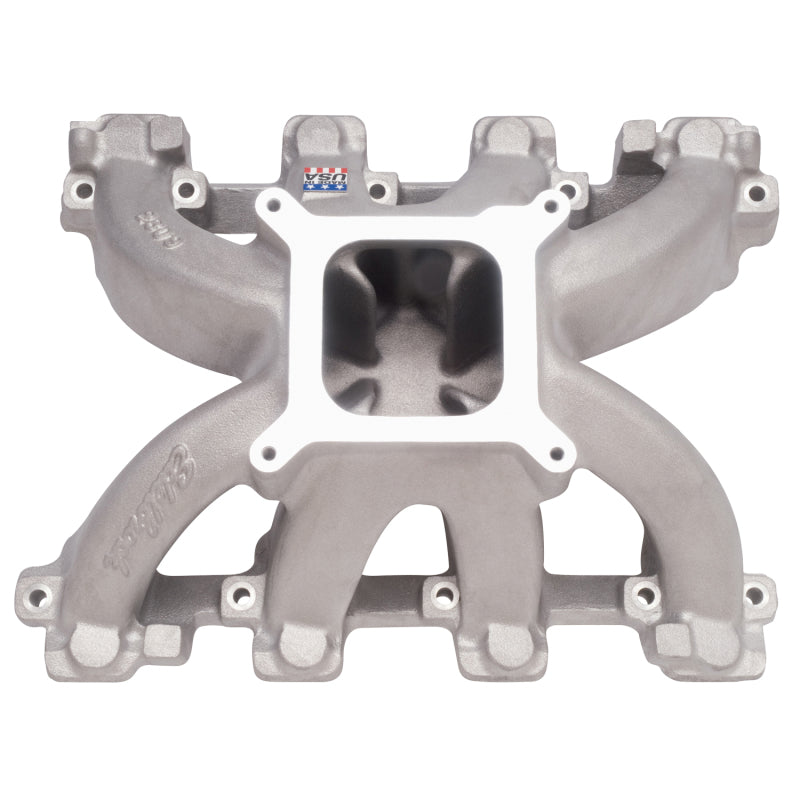

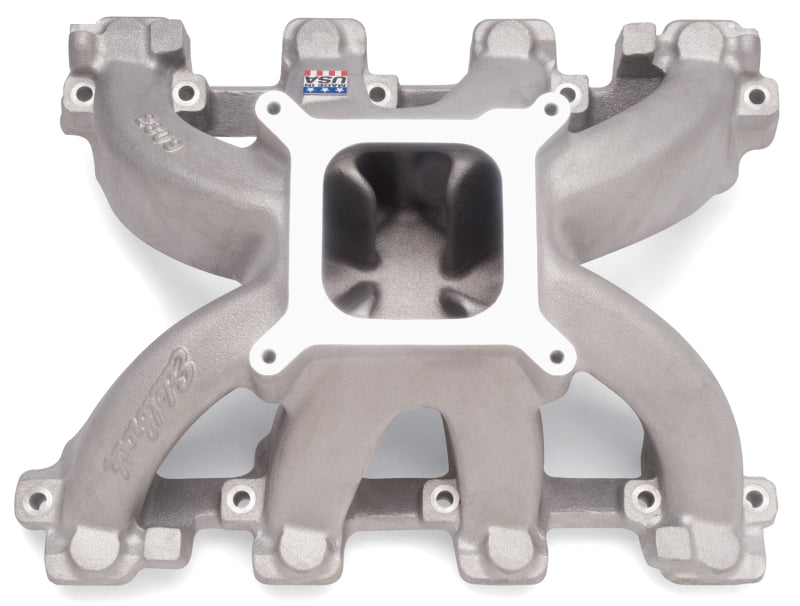

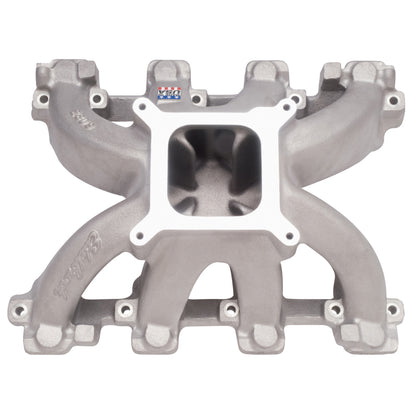

Intake Manifold GM, Super Victor, LS1 w/ Carburetor (Manifold Only)
Edelbrock Part # 28097 Super Victor LS1 intake manifold offers greater air flow potential for even bigger power gains, this manifold has been accepted by NASCAR for use in the Grand National West/Grand National East series. The carb mount pad is 1.12" taller than the Victor Jr. LS1, and the port exits have been increased to 1.08" x 2.74". Edelbrock offers the optional LS1 Timing Control Module #91238 to drive the stock LS1 Coil-on-Plug ignition system. LS2 applications require MSD's #6012 LS2 ignition controller (available through MSD Performance).
Specs:
- Application: Universal
- GTIN: 00085347280971
- Color: Satin
- Front Maximum Height: 6.070 in
- Material: Aluminum
- Rear Maximum Height: 6.070 in
- Single Or Dual Plane Type: Single Plane
Installation Notes:
- Recommended intake gasket: Fel-Pro # 1312-3
- Crankshaft sleeve # HP3795 and Flexplate # HP4004 is recommended when using a TH350, TH400 or 700R4 on a LS1; items are available through Hughes Performance retailers or call Hughes at 800-274-RACE.
- Manifold height: A-6.07", B-6.07"; Carb pad height: 6.07"
- Port exit dimensions: 1.08" x 2.74"
