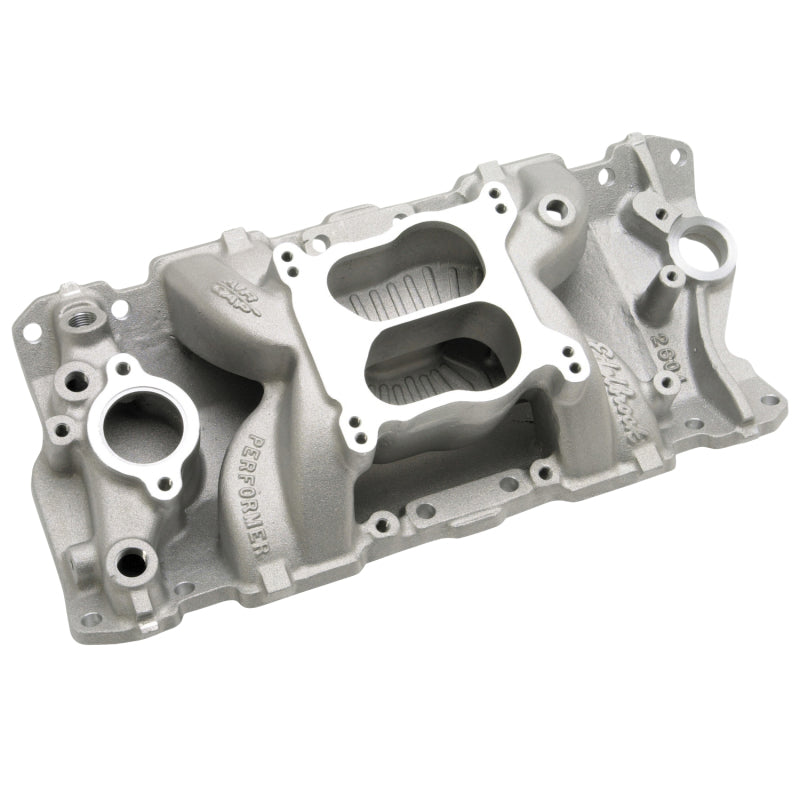

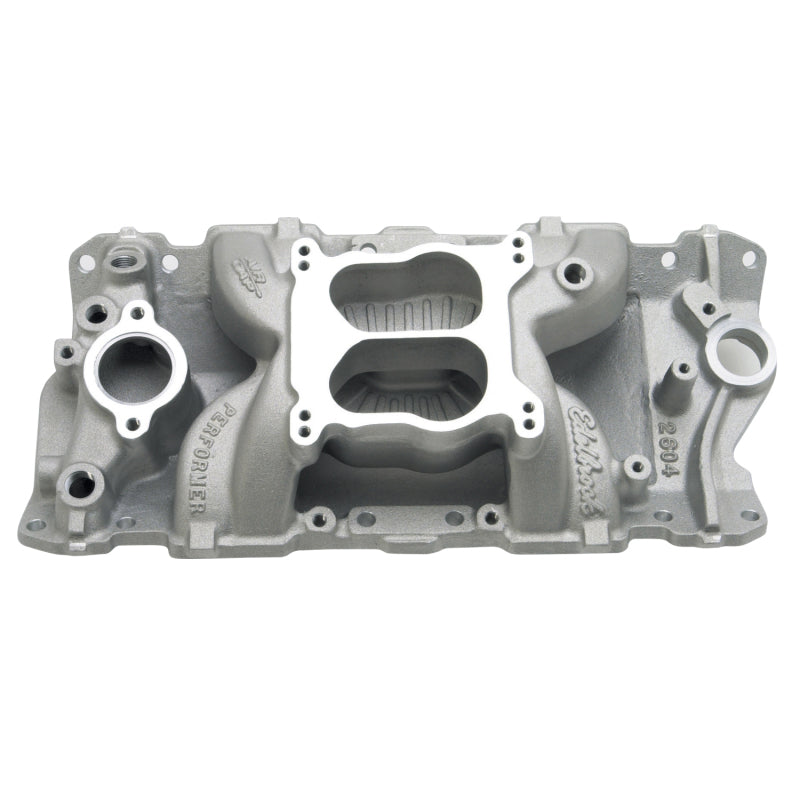

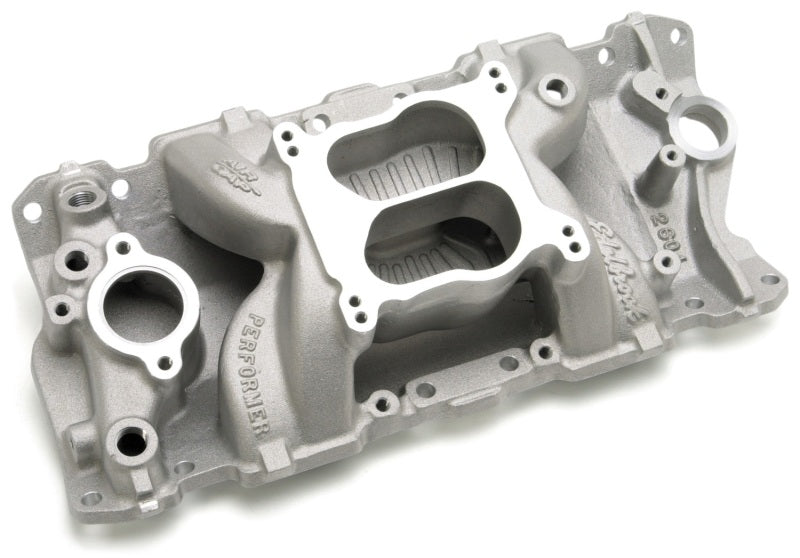

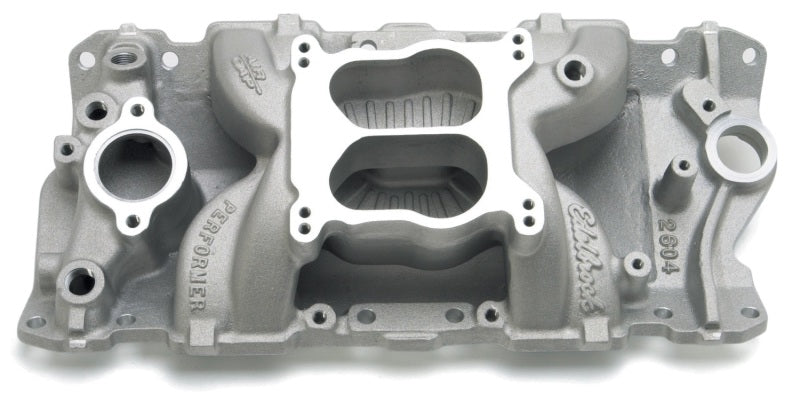

Edelbrock Intake Manifold: Performer Air-Gap S/B Chevy 87-95 Std flange/Sprdbore
CHEVROLET 262-400 SMALL-BLOCK V8
PERFORMER AIR-GAP (IDLE-5500 RPM)
Designed for 1955-86 262-400 c.i.d. small-block Chevys, the Performer Air-Gap intake manifold features the air-gap design for the ultimate street performance in the idle to 5500 rpm range. This design features an open air space that separates the runners from the hot engine oil resulting in a cooler, denser charge for more power. High-velocity runners deliver excellent throttle response throughout the power band. The great looks of the Performer Air-Gap along with the solid idle to 5500 rpm performance makes this an ideal choice for street rods and street machines. Performer Air-Gap #2604 is for 1987-95 cast iron heads with canted center bolt holes. No provision for exhaust heated chokes or exhaust crossover. Fits spread-bore or square-bore carburetors. Will not fit under stock Corvette hood. Available with satin, polished, or EnduraShine finish.
CARB RECOMMENDATIONS: Edelbrock Thunder Series AVS or Performer Series (500-650 cfm) Carburetor. Use bracket #8031 or #8036 for 1972-78.
INSTALLATION NOTE: Recommended intake gasket: Edelbrock #7201 (#2601); GM #10163409 (#2604). Manifold height: A-3.72", B-4.92" (.27" taller than #2101); Carb pad height: 4.32". Port exit dimensions: 1.14" x 1.88". For the heights of all Edelbrock manifolds, please visit the the Manifold Reference Dimensions page.
CAMSHAFT RECOMMENDATIONS: Performer Plus #2102 and #2103. See Camshaft section for cam card specifications.
