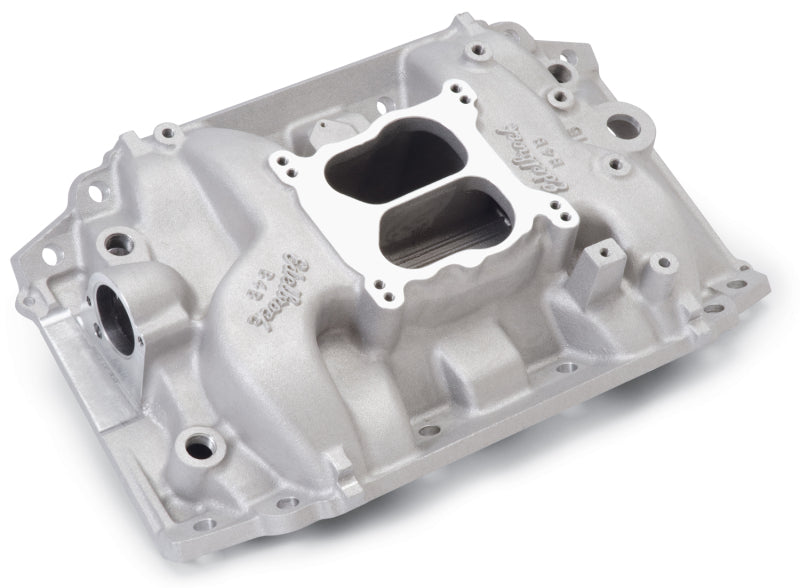

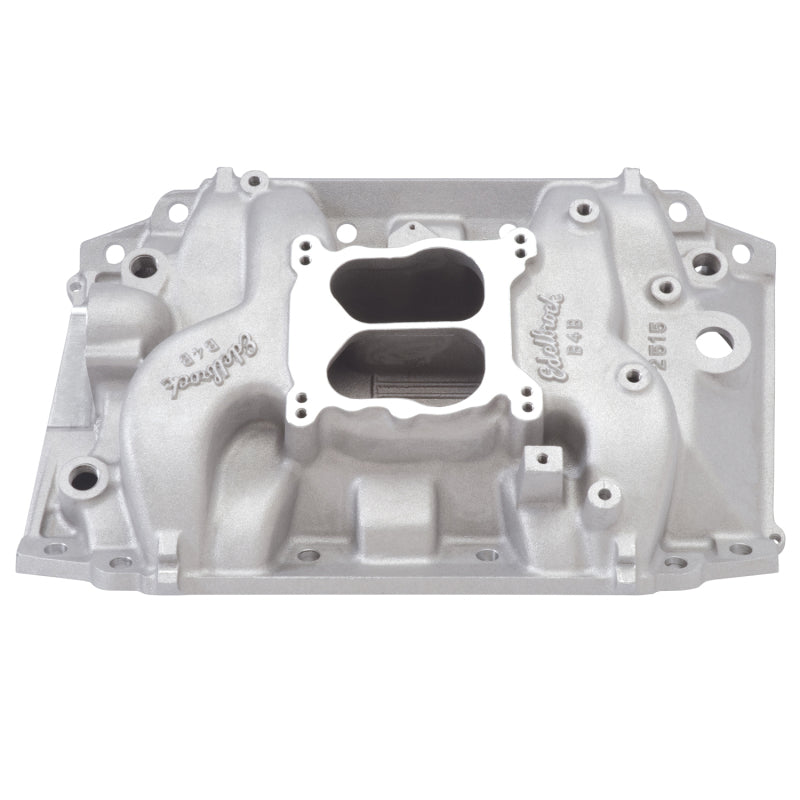

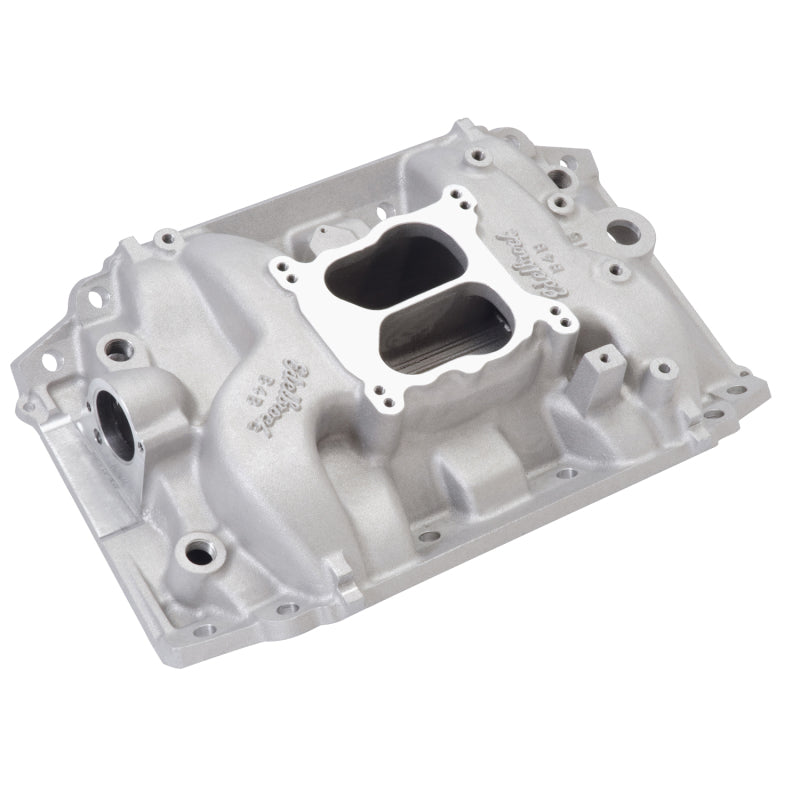

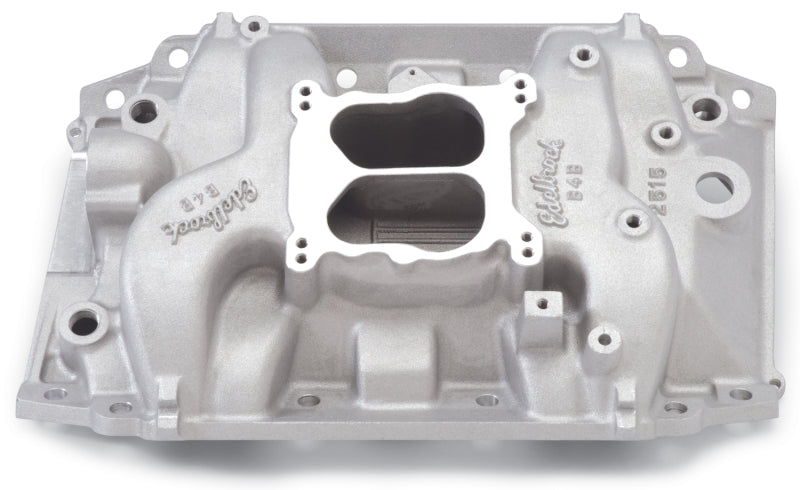

Edelbrock Buick B4 B Manifold

Edelbrock Part # 2515 Buick B-4B intake manifold is a resurrection of the popular B-4B manifold made in the late 1960s for street 400-430-455 c.i.d. Buick V8's. The only change to the original design is the addition of our proven Performer-style carb pad that accepts either square-bore or spread-bore carbs, making this manifold an excellent choice for both restoration and performance-minded Buick fans. Edelbrock's Patented Dual-plane, low-rise design with a 180-degree firing order greatly improves torque over a wide rpm range for excellent throttle response from off-idle through 5500rpm. This Performer intake manifold is ideal for passenger cars, trucks, 4x4s, tow vehicles and RVs.

Specs:

Hazardous Materials Warning	WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Installation Notes	Recommended intake gaskets: for 1967-76, Edelbrock # 7246 or Fel-Pro # MS96005; 1972-76, Fel-Pro # MS96014 Manifold height: A-3.80", B-4.75" Carb pad height: 4.27" Carb recommendations: OEM 4-Bbl. Edelbrock Avs2 or Performer Series 650-800 cfm Port exit dimensions: 1.14" x 2.26" Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant # 1076, DO NOT USE END SEALS GASKETS. Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.
Center Maximum Height	4.270 in
CNC Ported	No
Color	Satin
Front Maximum Height	3.800 in
Material	Aluminum
Rear Maximum Height	4.750 in
Single Or Dual Plane Type	Dual Plane

Vehicle Fitments:
