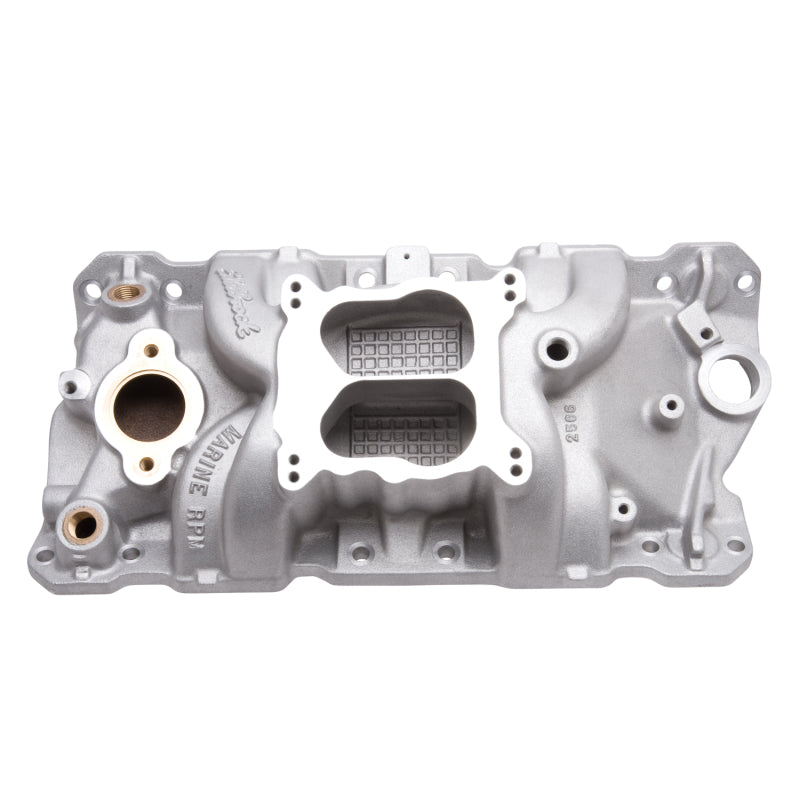

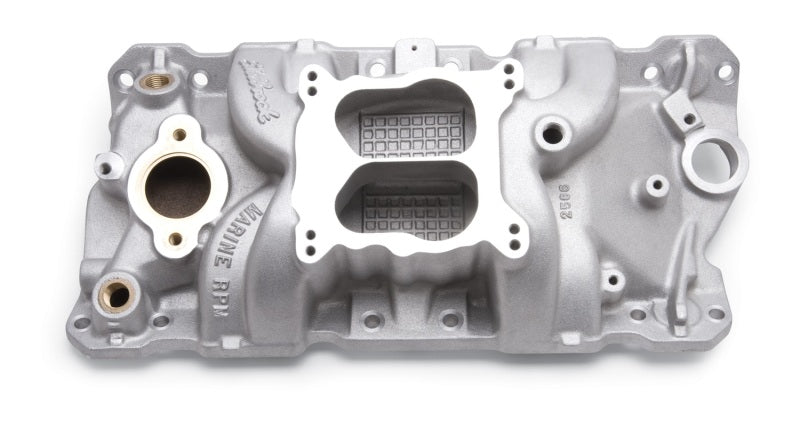

Edelbrock Manifold, Sbc 23-degree, Marine Rpm, 1987-1995, With Brass 2506 Photo - Primary
Edelbrock Manifold, Sbc 23-degree, Marine Rpm, 1987-1995, With Brass 2506 Photo - Primary

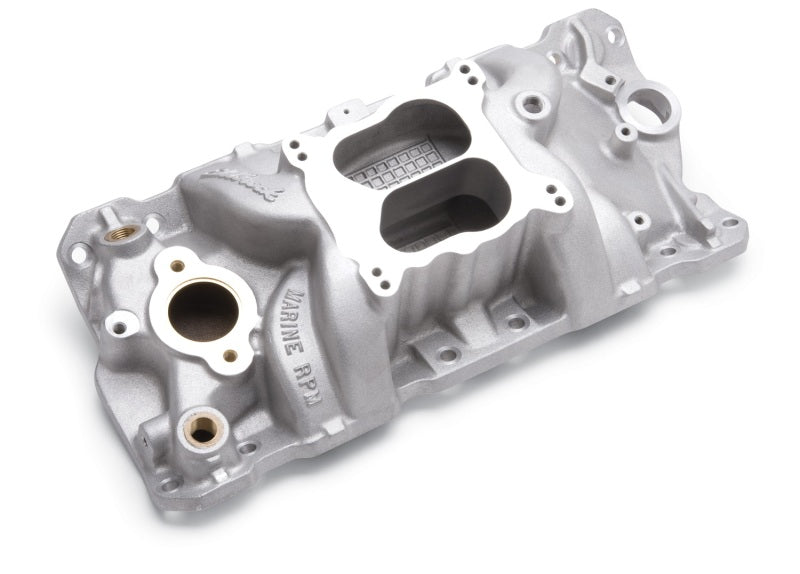

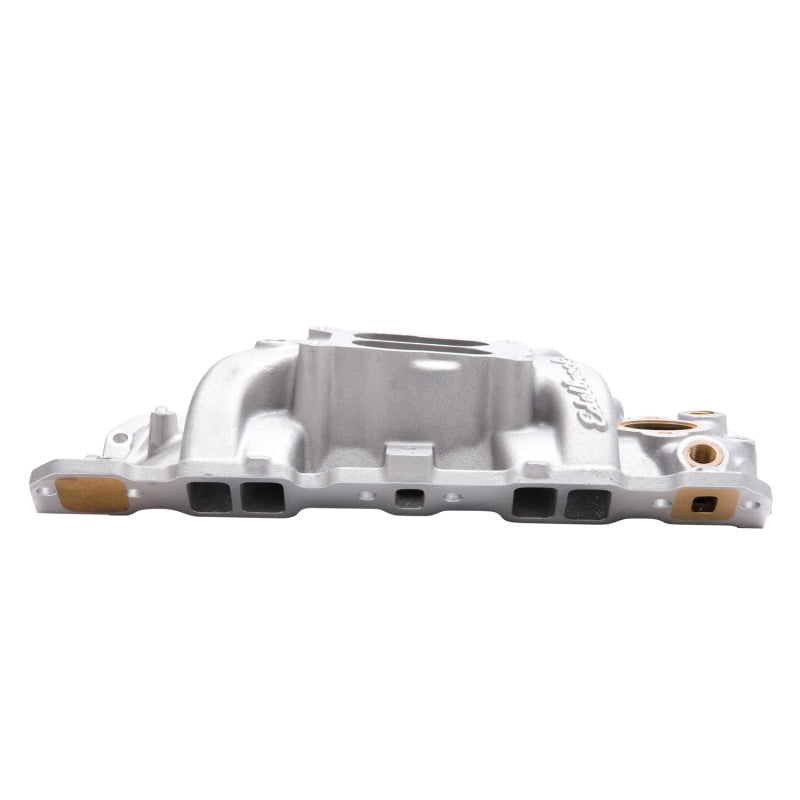

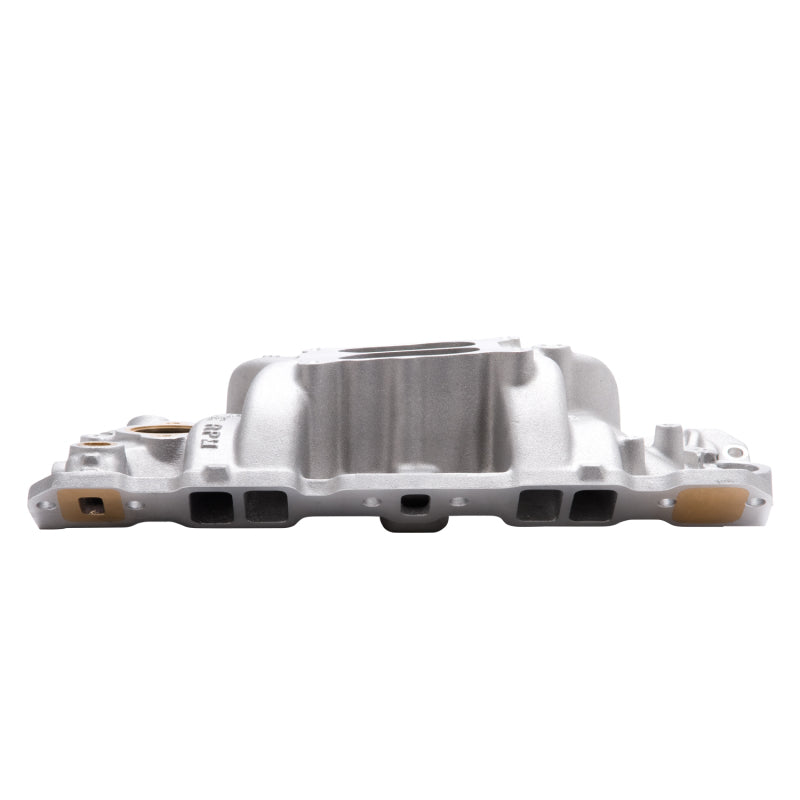

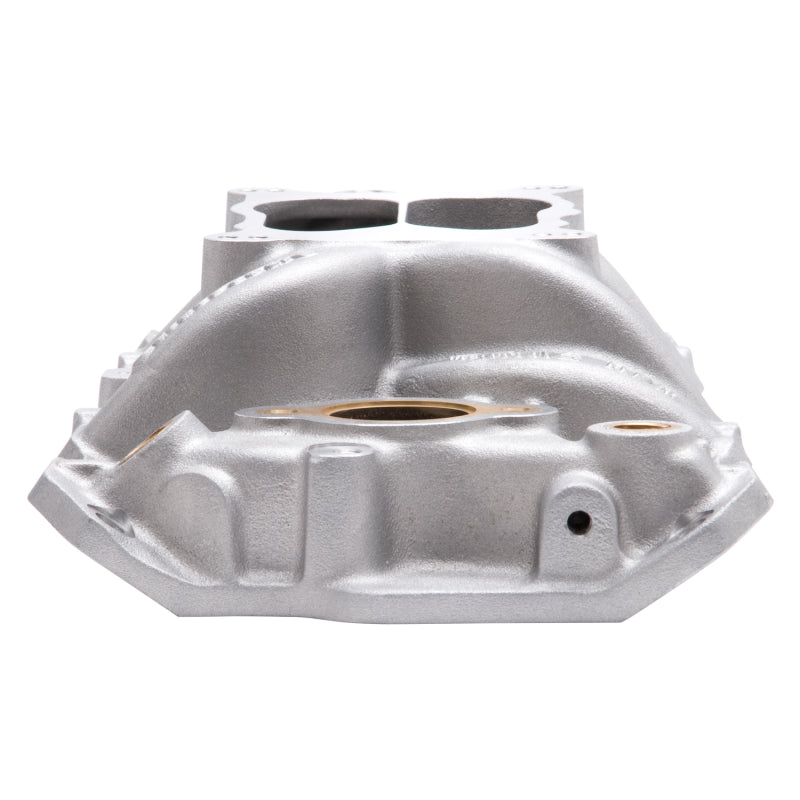

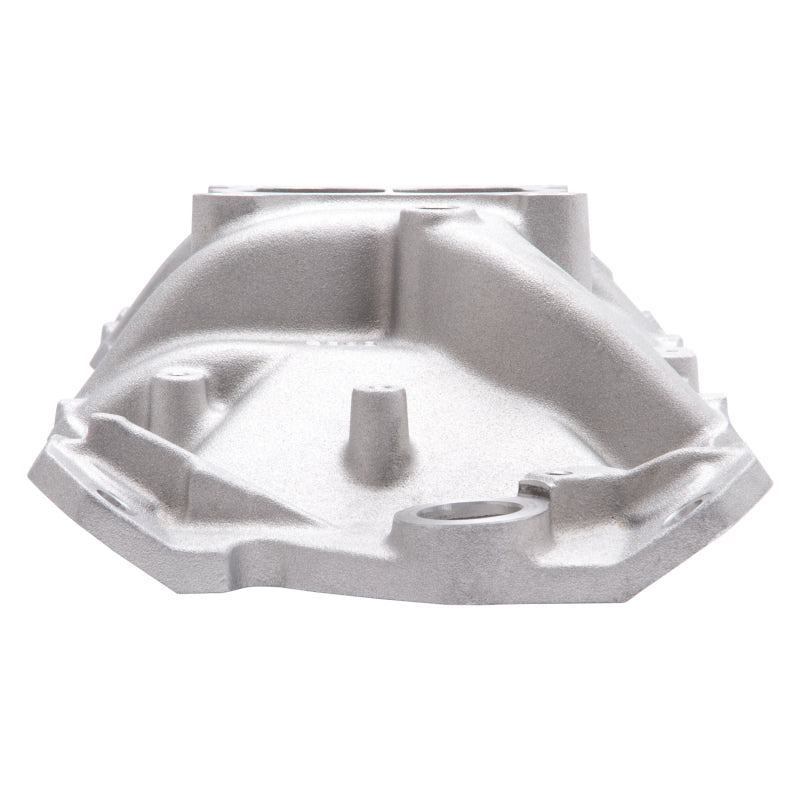

Edelbrock Manifold, Sbc 23-degree, Marine Rpm, 1987-1995, With Brass 2506 Photo - out of package
Edelbrock Manifold, Sbc 23-degree, Marine Rpm, 1987-1995, With Brass 2506 Photo - out of package
Edelbrock Manifold, Sbc 23-degree, Marine Rpm, 1987-1995, With Brass 2506 Photo - out of package
Edelbrock Manifold, Sbc 23-degree, Marine Rpm, 1987-1995, With Brass 2506 Photo - out of package
Edelbrock Manifold, Sbc 23-degree, Marine Rpm, 1987-1995, With Brass 2506 Photo - out of package

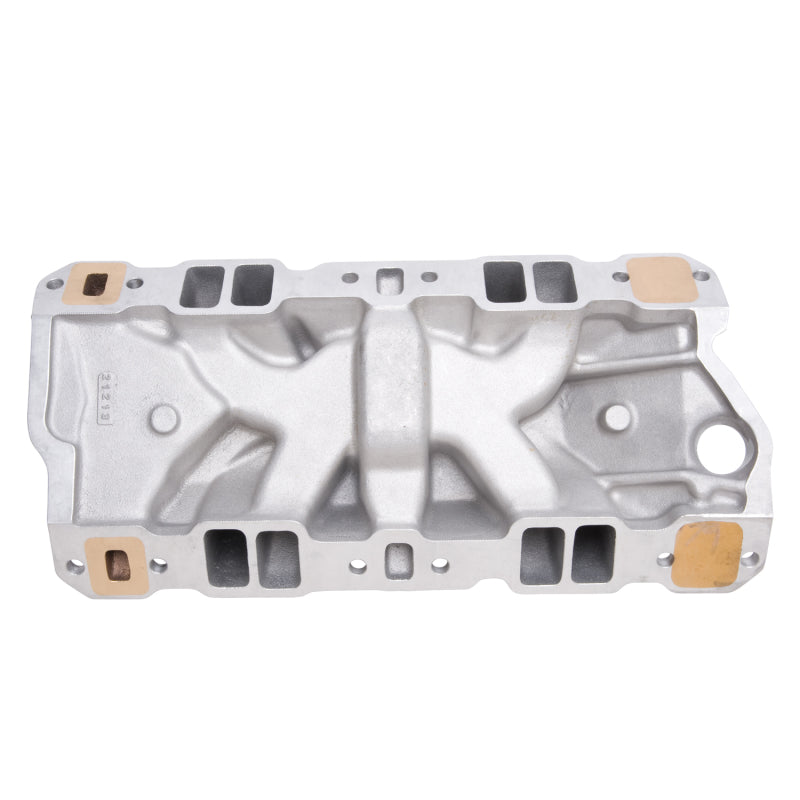

Edelbrock Manifold, Sbc 23-degree, Marine Rpm, 1987-1995, With Brass 2506 Photo - Unmounted
Edelbrock Manifold, Sbc 23-degree, Marine Rpm, 1987-1995, With Brass 2506 Technical Drawing
Edelbrock Manifold, Sbc 23-degree, Marine Rpm, 1987-1995, With Brass 2506 User 4
Edelbrock Manifold, Sbc 23-degree, Marine Rpm, 1987-1995, With Brass 2506 User 3
Edelbrock Manifold, Sbc 23-degree, Marine Rpm, 1987-1995, With Brass 2506 Photo - Unmounted
Edelbrock Manifold, Sbc 23-degree, Marine Rpm, 1987-1995, With Brass 2506 User 1
Edelbrock

Edelbrock Manifold, Sbc 23-degree, Marine Rpm, 1987-1995, With Brass

SKU: 0NZ94 | MPN:  2506
In stock
Sale price$657.20 USD

The Edelbrock Performer RPM Q-Jet #2506 marine intake manifold is designed for 1987-95 262-400 c.i.d. Chevy V8's for spread-bore (Q-Jet) or square-bore carbs. The Edelbrock Performer RPM Q-Jet #2506 intake manifold is designed specifically for demanding marine applications and delivers maximum power and a broad torque curve for high-performance marine. Delivers maximum power and a broad torque curve for high-performance marine. Carb pad will accept square-bore carbs without adapters. The Edelbrock Performer RPM Q-Jet #2506 marine intake manifold features brass lined front water crossover and brass flange inserts to cover the rear water openings.

SPECS

Application Universal
Center Maximum Height 4.720 in
CNC Ported No
Color Satin
Front Maximum Height 4.200 in
Material Aluminum
Rear Maximum Height 5.250 in
Single Or Dual Plane Type Dual Plane
