Edelbrock

Edelbrock In-Line Black Electric Fuel Pump - 80 GPH

SKU: 00ZN1 | MPN:  1790
In stock
Sale price$1,001.19 USD

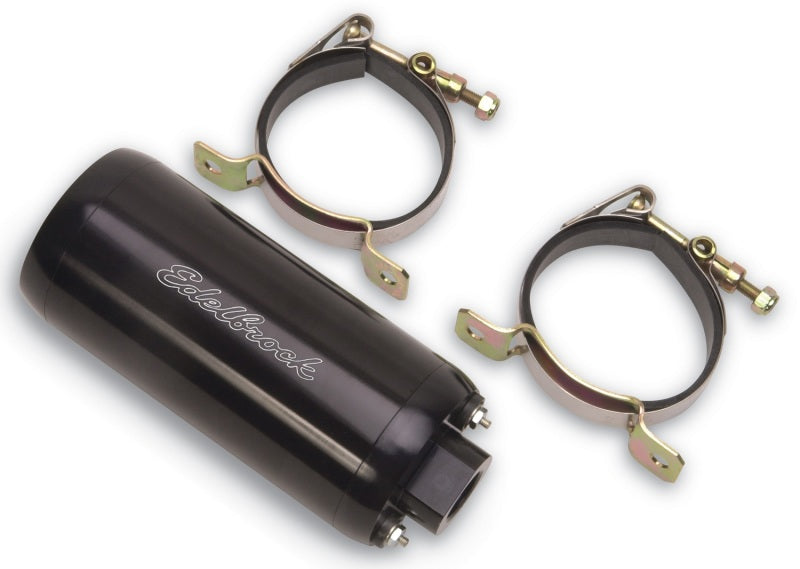

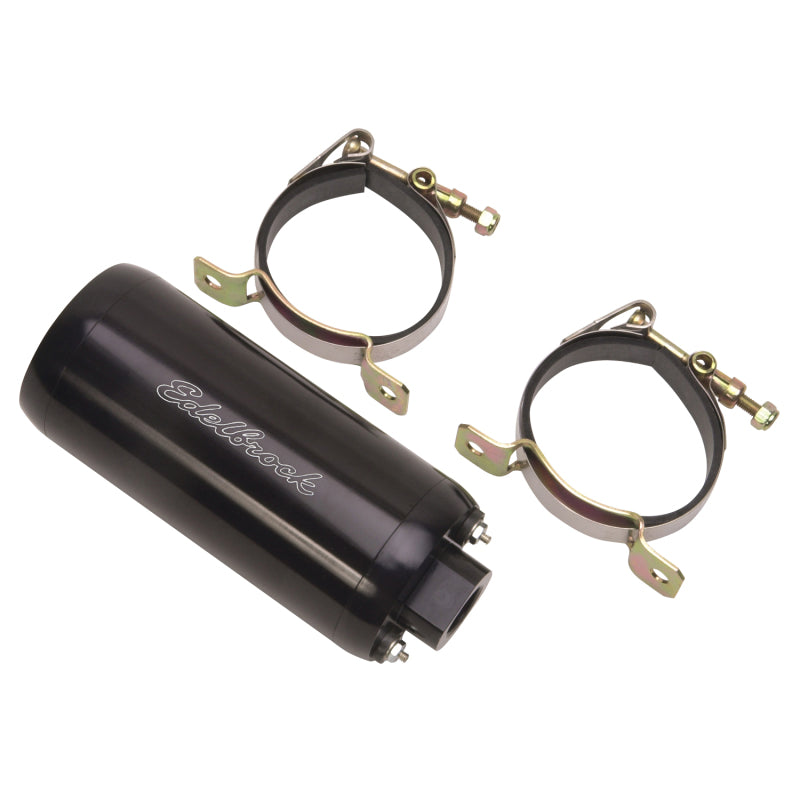

Edelbrock part # 1790 is a 80GPH In-Line Electric fuel pump featuring a black anodized aluminum housing and high-quality internals, resulting in both a strong and durable design. The in-line design keeps the pump motor and components cool even under harsh conditions. Compatible with all grades of gasoline and methanol type fuels only. Each pump is factory-tested and includes mounting brackets.

Installation Notes

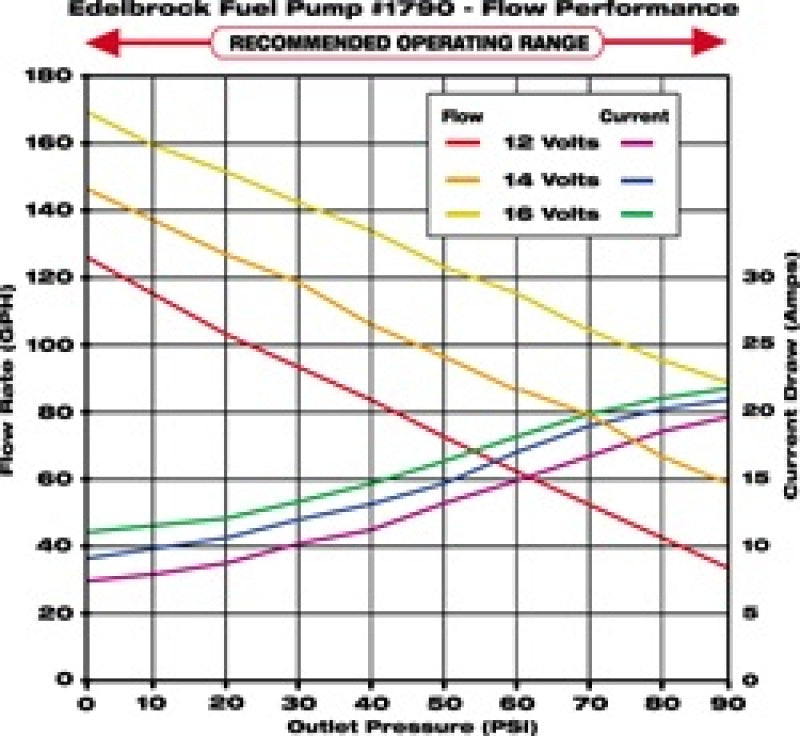

  • 80GPH @ 45 psi
  • Inlet Port: -10 (SAE)
  • Outlet Port: -10 (SAE)
  • Pump must be gravity fed
  • Edelbrock offers fuel pump rebuilding services ? Call for more information.
Average Flow Rating 80 gpm
Compatible Fuel Type Gas
Fuel Type Gas
In Tank or External External
Inlet Fitting Thread Size -10 AN
Inlet Thread Diameter 0.875 in
Inlet Type Female AN
Internal Or External External
Maximum Flow Rating 125.0 gpm
Maximum Pressure 90.0
Outlet Fitting Thread Size -10 AN
Outlet Quantity 1
Outlet Type AN
Regulator Included No
Universal Or Specific Fit Universal
