Edelbrock Fuel Pressure Regulator,Carbureted,180 GPH,5-10 PSI -10 In/Out

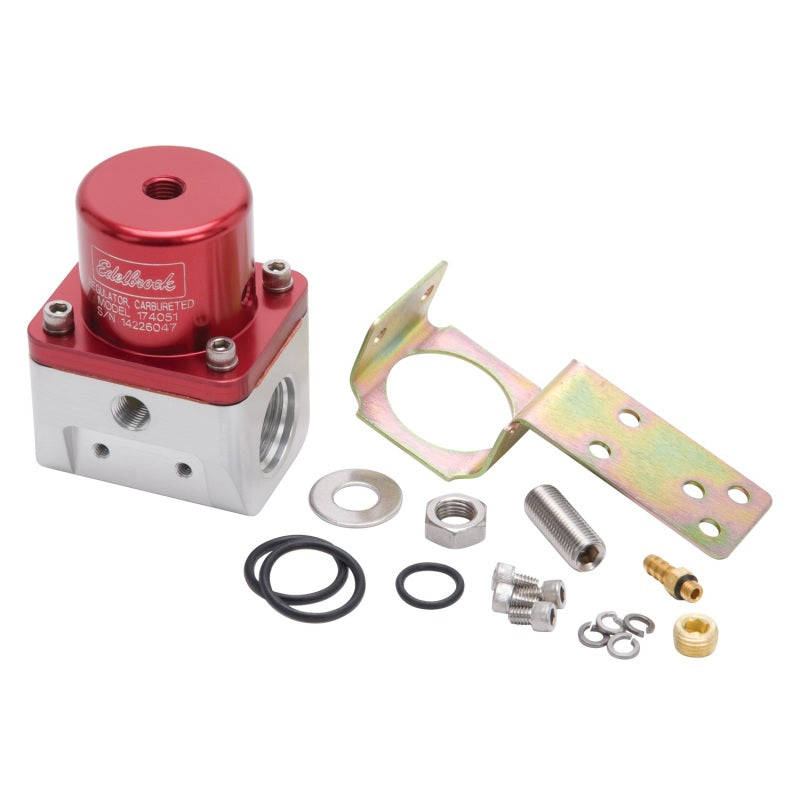

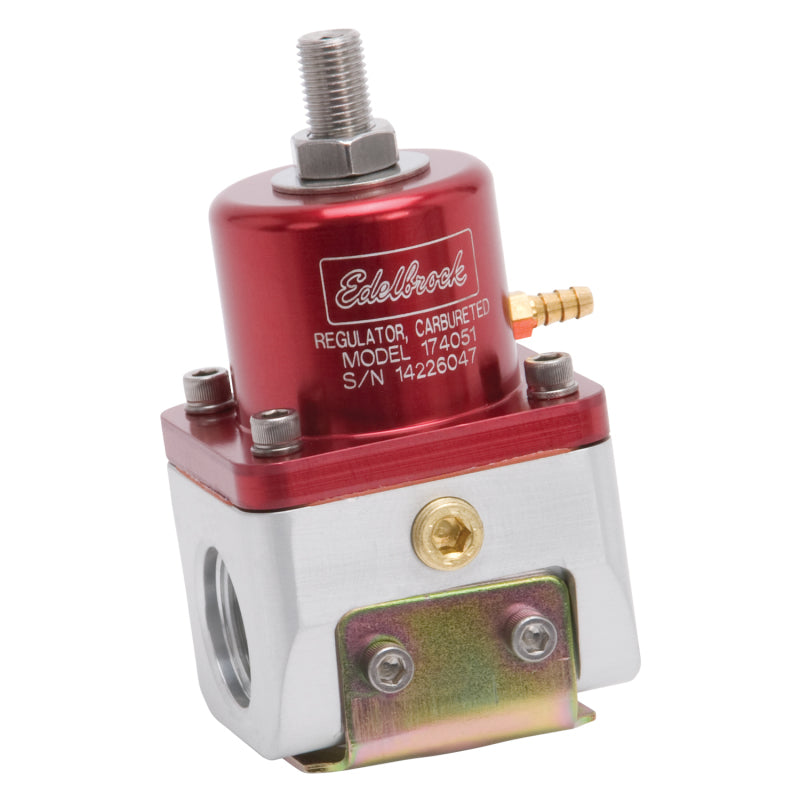

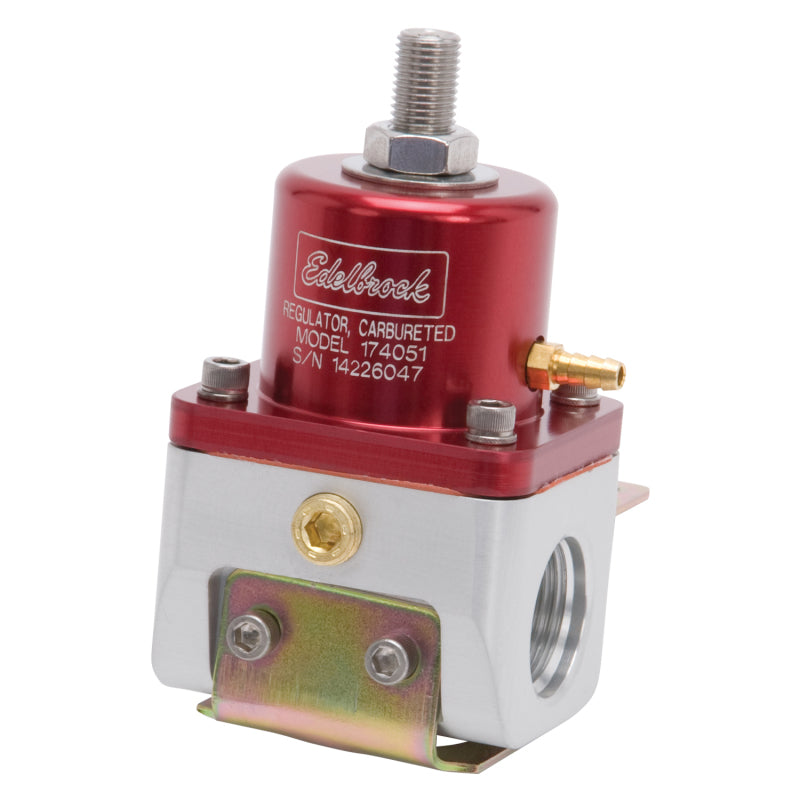

This Edelbrock fuel pressure regulator #174051 is machined from aircraft quality aluminum for those who demand the best. This carbureted fuel pressure regulator has an internal diaphragm made of fluorosilicone to ensure high temperature protection resulting in an extended life. This Edelbrock fuel pressure regulator #174051 is compatible with all grades of gasoline, ethanol, methanol and E85 fuels. Pressure regulation slope is 0.75 psi/gal of flow rate change. Will hold fuel system pressure for at least 20 minutes after pump shutdown. Developed for optimum compatibility with Edelbrock electric fuel pumps. This regulator is available with 1/8" NPT gauge port and a boost reference fitting for blow through or pressurized carburetor applications (even beyond 30 psi of boost).

Specifications

Free Flow Rating: 180 gpm

Inlet Port Diameter: 0.810 in

Inlet Type: Threaded

Mounting Type: Bracket

Outlet Port Diameter: 0.810 in

Outlet Type: Threaded

Port Quantity: 5
