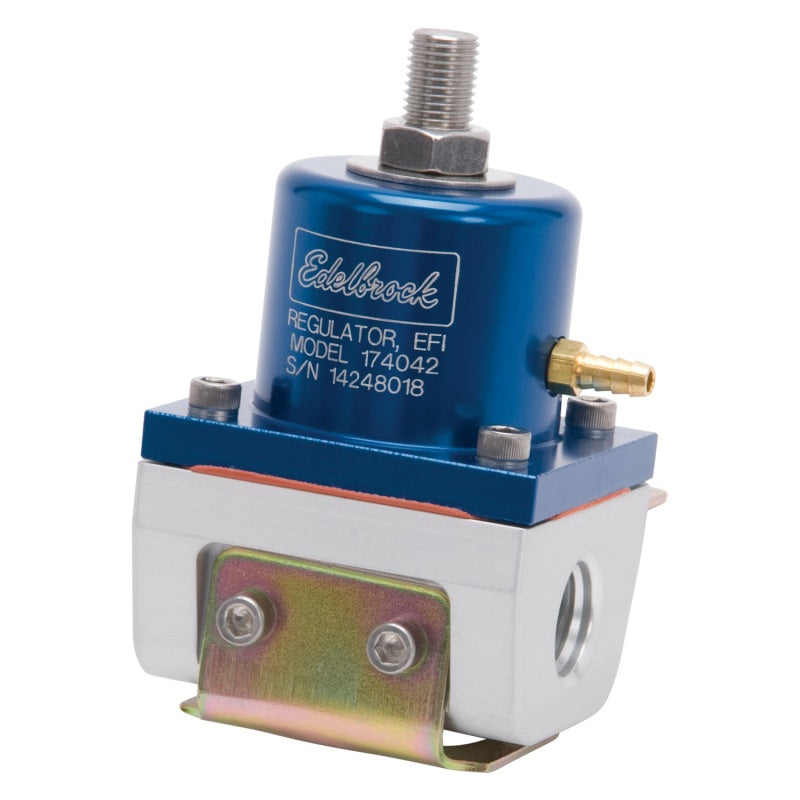

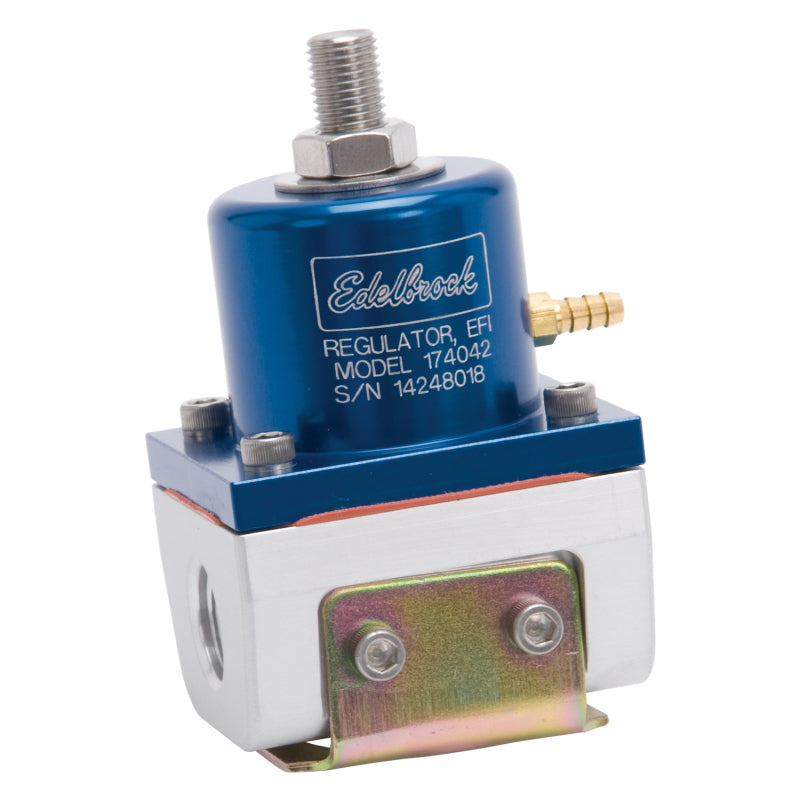

Edelbrock Fuel Pressure Regulator,EFI,180 GPH,35-90 PSI,-6 In/Out,-6 Return

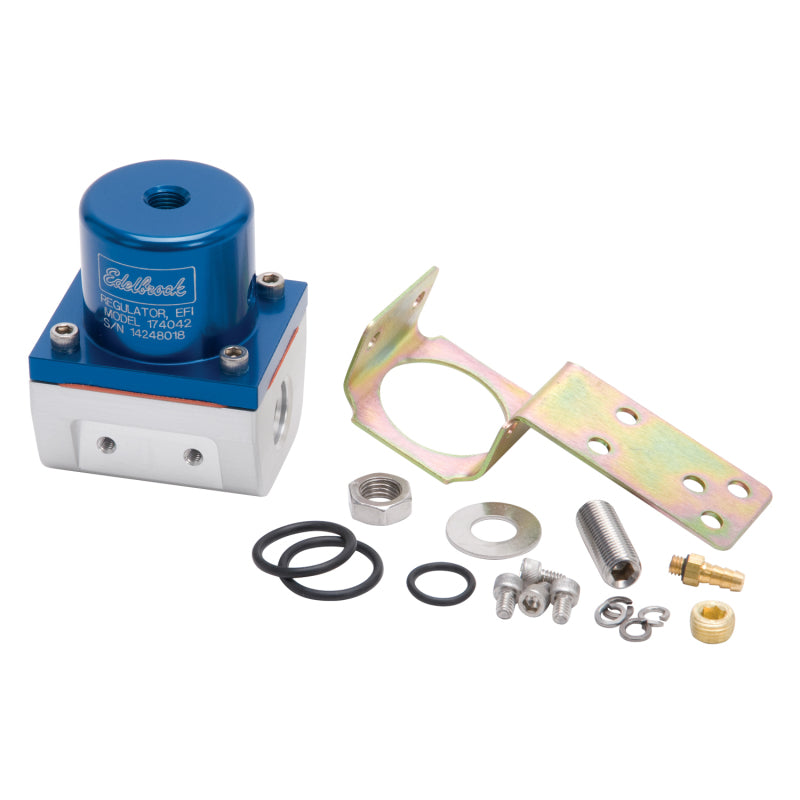

Edelbrock fuel pressure regulators #174042 are machined from aircraft quality aluminum for those who demand the best. These EFI fuel pressure regulators have an internal diaphragm made of fluorosilicone to ensure high temperature protection resulting in an extended life. They are compatible with all grades of gasoline, ethanol, methanol and E85 fuels. These regulators will hold fuel system pressure for at least 20 minutes after pump shutdown. Mounting bracket and hardware are included. Each regulator features a vacuum/boost compensating port for a supercharger, turbo or intake manifold vacuum connection.

Specifications

Adjustable: Yes

Free Flow Rating: 180 gpm

Gauge Port: No

Inlet Port Diameter: 6.0 in

Inlet Quantity: 1

Inlet Type: Port

Maximum Pressure Reading: 90

Mounting Type: Bracket

Outlet Port Diameter: 6.0 in

Outlet Quantity: 1

Outlet Type: Port

Port Quantity: 4
