Edelbrock Supercharger

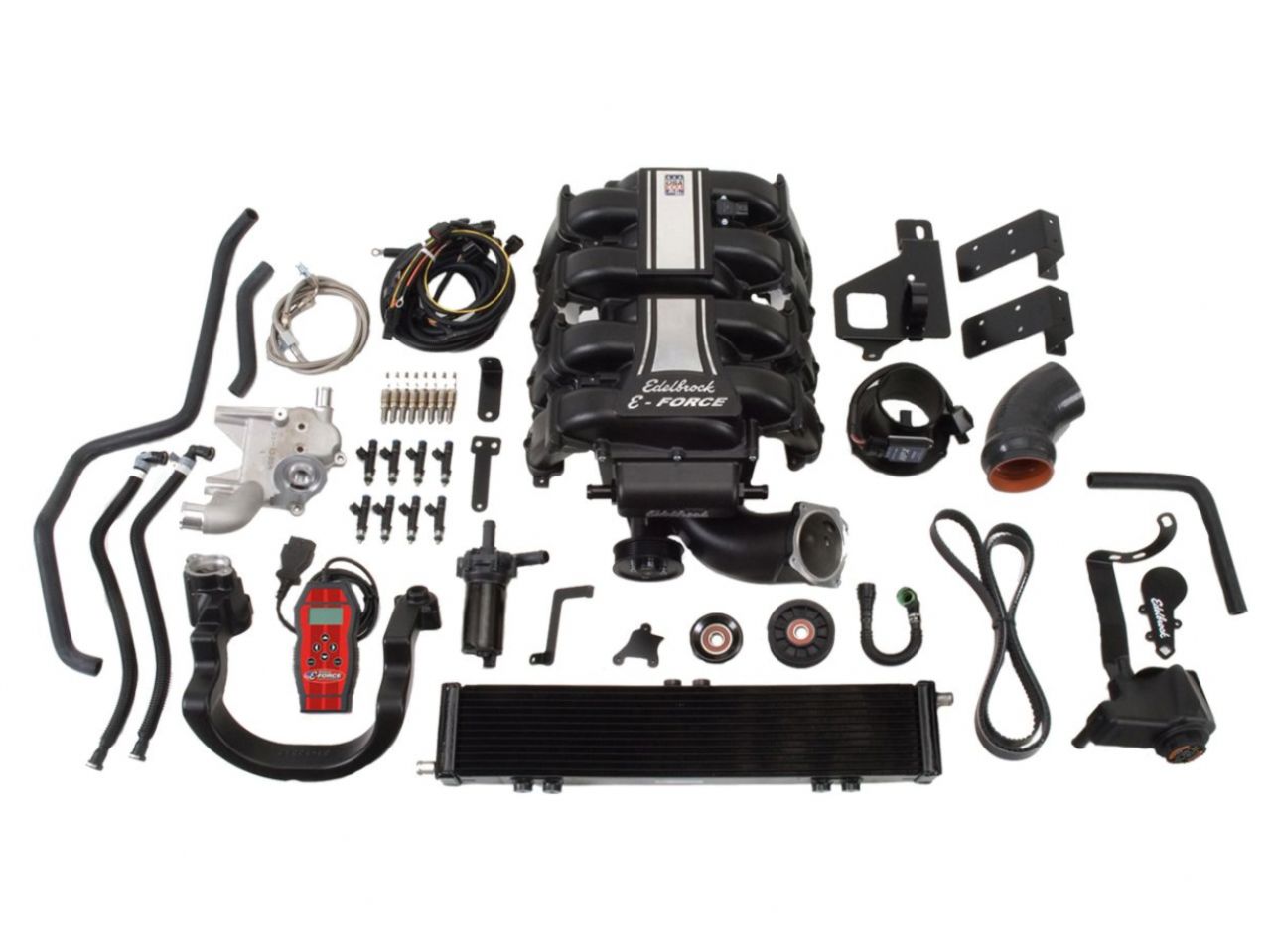

The Edelbrock E-Force Supercharger Stage 1 Street system part # 1583 for 2009-10 2-Wheel Drive Ford F-150 Trucks. This kit produces excellent horsepower and torque. The core of this system is the Eaton Gen VI 2300 TVS Supercharger rotating assembly with a four lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved air flow, without the need for a jack-shaft. Keeping the air cool is a high capacity air to water intercooler and low temp heat exchanger. The Edelbrock #1583 system is emissions legal and provide the best combination for your daily driver. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust. This kit will include a tune for 91 octane fuels.

Specifications

Maximum Boost Pressure: 6

Maximum Pressure Reading: 6

Pulley Belt Width: 6.0 in

Vehicle Fitments:
