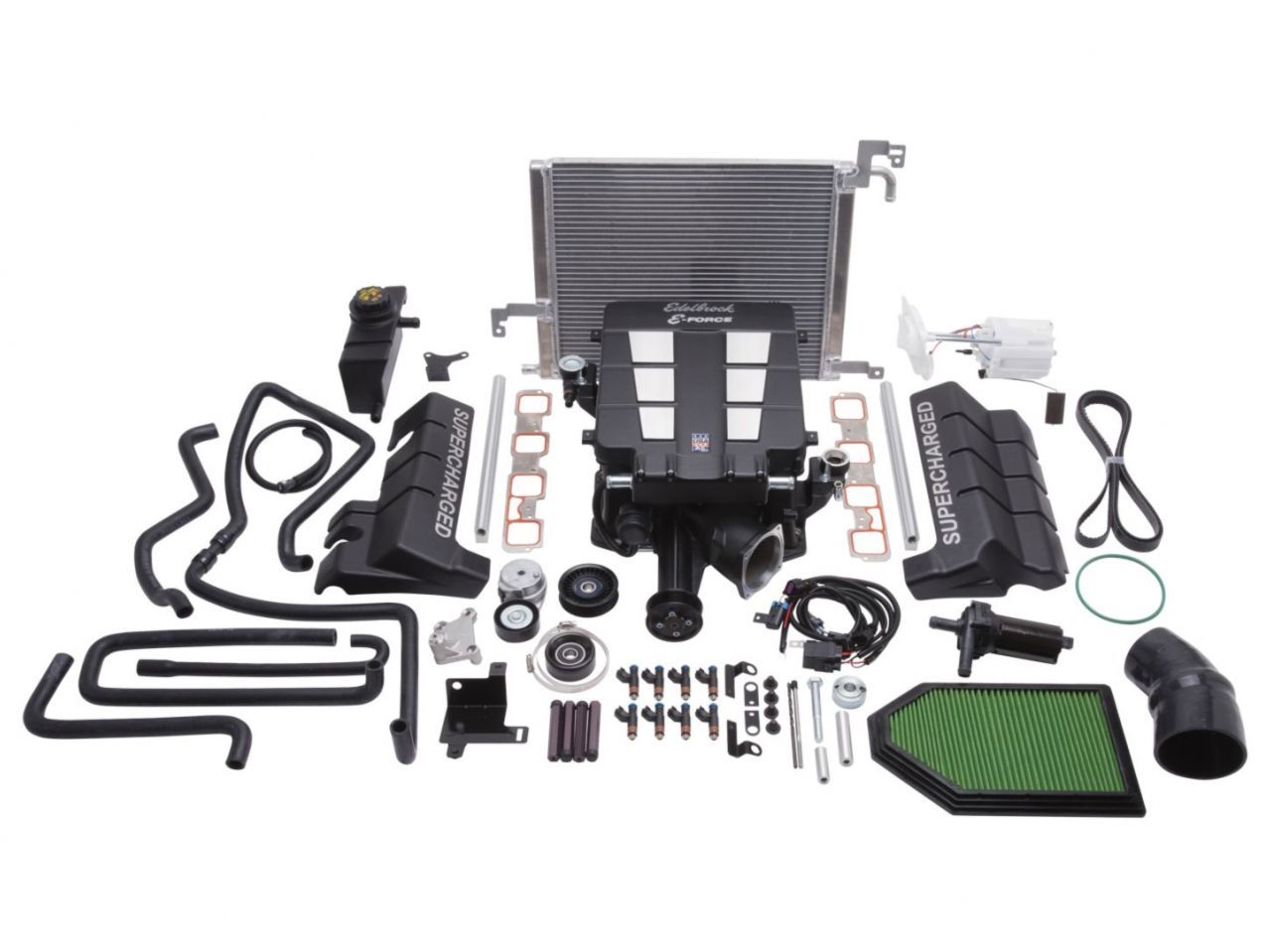

Edelbrock Supercharger, Stage 1 - Street Kit, 2011-2014, Chrysler, LX & LC, 5.7L

• The Edelbrock E-Force Supercharger system part # 1534 is designed for your 2011-14 5.7L HEMI Chrysler 300, Dodge Charger or Challenger and made 471rwhp and 475rwtq. Featuring a unique design with minimal components makes it possible to fit an E-Force Supercharger under the stock hood. The core of each system is the Eaton Gen VI 2300 Supercharger rotating assembly with a four lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved air flow, without the need for a jack-shaft. Keeping the air cool is a high capacity air to water intercooler and low temp heat exchanger. For safety, the Edelbrock supplied program will retain the factory vehicle speed limiter setting. Edelbrock E-Force Supercharger part # 1534 is backed by our FREE 3 YEAR/36,000 MILE LIMITED POWERTRAIN WARRANTY!

Specs:

• Application: Application Specific
• GTIN: 00085347015344

Installation Notes:

• Supercharger systems without tunes are not eligible for supplemental warranty. Supercharger systems sold without tunes are only emissions legal when used with the correct Edelbrock tune, which can be downloaded on the supercharger tech support page. All E-Force stage 1 systems supplied with a tuner, are eligible for our FREE 3 year/36,000 mile Limited Powertrain Warranty. Visit www.Edelbrock.com/eforcewarranty or call 1-877-266-3838 for more information.
• Maximum Boost Pressure: 7
• Maximum Pressure Reading: 7
• Pulley Belt Width: 6.0 Inches
