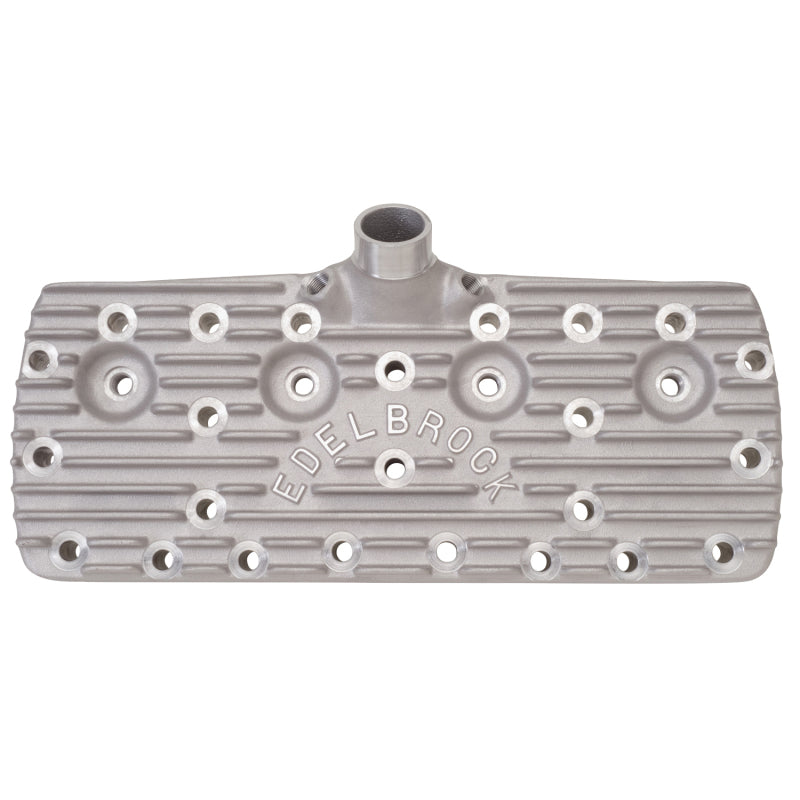

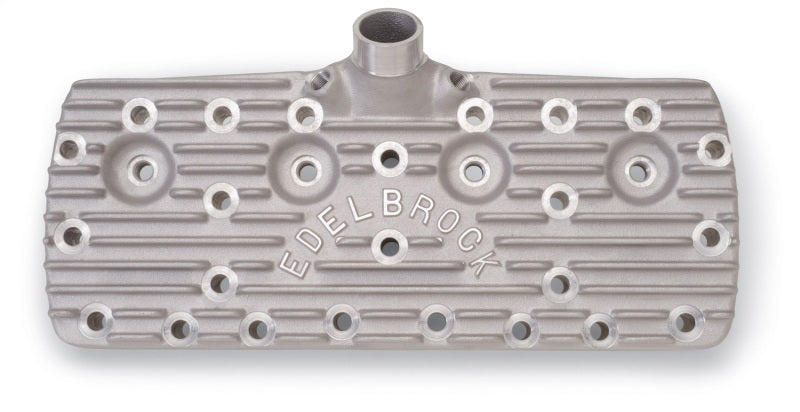

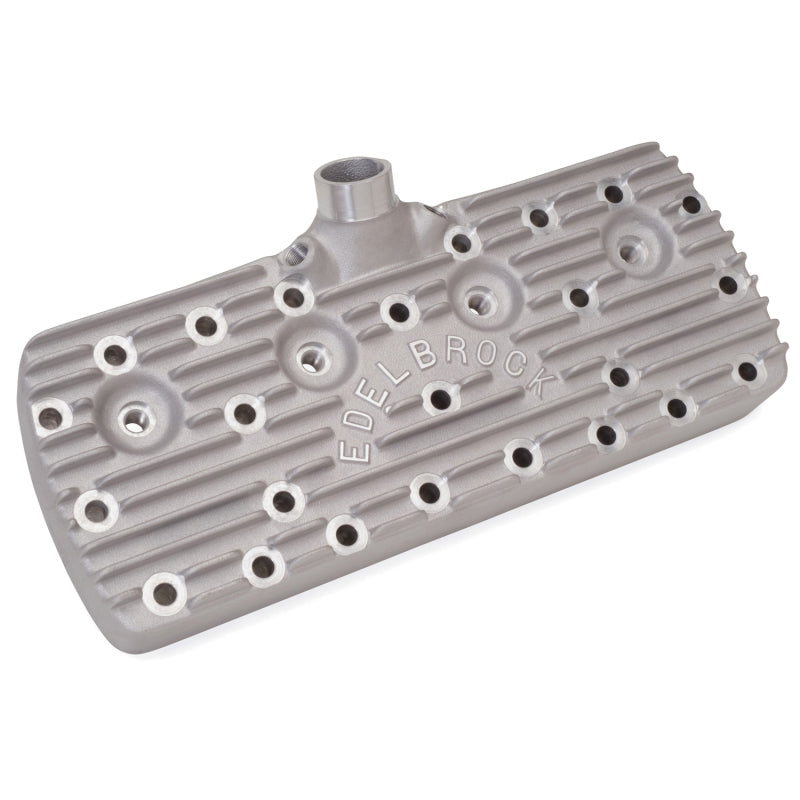

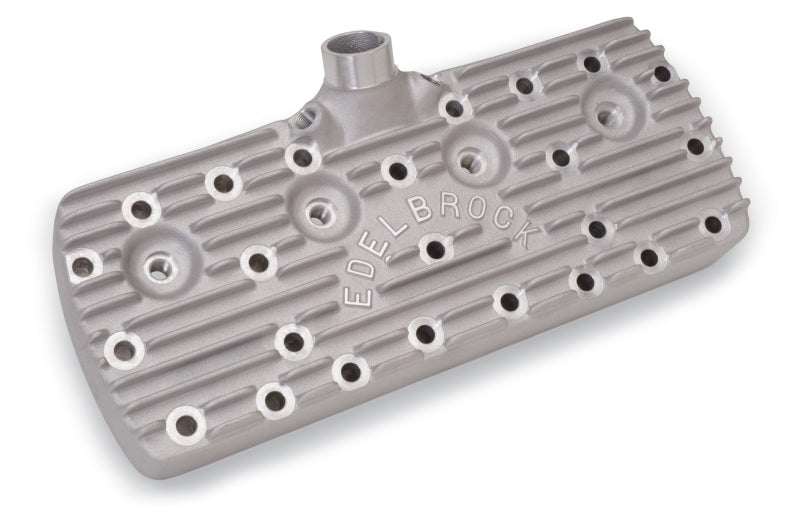

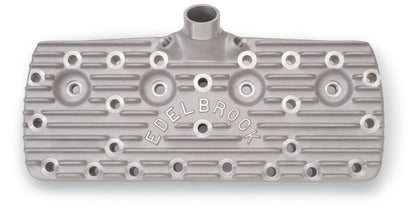

Edelbrock Cylinder Heads 1939-48 Model Ford Flatheads with Block Letter Logo
Cylinder Heads 1939-48 Model Ford Flatheads with Block Letter Logo
The Edelbrock #1126 Ford Flatheads feature a block logo design for Fords and Mercurys, and are casted at the Edelbrock Foundry in the USA of T-6 tempered A356 aluminum. The Edelbrock #1126 heads are rugged, ribbed internally and externally, with a large water capacity and excellent breathing characteristics. The 65cc heads support 8.0:1 compression ratio on blocks with a 3/16" base relief (stock bore and stroke), compression ratio increase is approximately 3/10 of a percent with each 1/8" stroke.
Specs:
- Application: Universal
- GTIN: 00085347011261
- CNC Ported: Yes
- Combustion Chamber Volume: 65.0 cu.in
- Material: Aluminum
Installation Notes:
- Flathead head copper gaskets for 1938-48 use Victor #3036; or Fel-Pro® #7548; or Edelbrock Head Gasket Set #7394; for 1949-53 use Fel-Pro #1055 and Fel-Pro #1056 or Edelbrock Head Gasket Set #7393.
- Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat.
- Head stud kit for 1938-48, use #8505
- Head stud kit for 1949-53, use #850.
- Generator stud kit for 1938-48, use #8506.
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1945 | Ford | 1 Ton Pickup | 1 Ton |
| 1938 - 1947 | Ford | 1 Ton Pickup | Base |
| 1945 | Ford | 1/2 Ton Pickup | 1/2 Ton |
| 1938 - 1947 | Ford | 1/2 Ton Pickup | Base |
| 1938 - 1947 | Ford | 3/4 Ton Pickup | Base |
| 1940 - 1948 | Ford | Deluxe | Base |
| 1948 | Ford | F1 | Base |
| 1948 | Ford | F2 | Base |
| 1948 | Ford | F3 | Base |
| 1948 | Ford | F4 | Base |
| 1942 | Ford | Model 21 A Deluxe | Base |
| 1938 | Ford | Model 82 A | Base |
| 1938 - 1947 | Ford | Sedan Delivery | Base |
| 1939 - 1940 | Ford | Standard | Base |
| 1942 - 1948 | Ford | Super Deluxe | Base |
| 1946 - 1948 | Mercury | Mercury | Base |
| 1941 | Mercury | Series 19A | Base |
| 1942 | Mercury | Series 29A | Base |
| 1939 | Mercury | Series 99A | Base |
| 1940 | Mercury | Series O9A | Base |
