Wiring Specialties SR20DET S13 Swap Keyboard EMU-ECUKB4-KEY

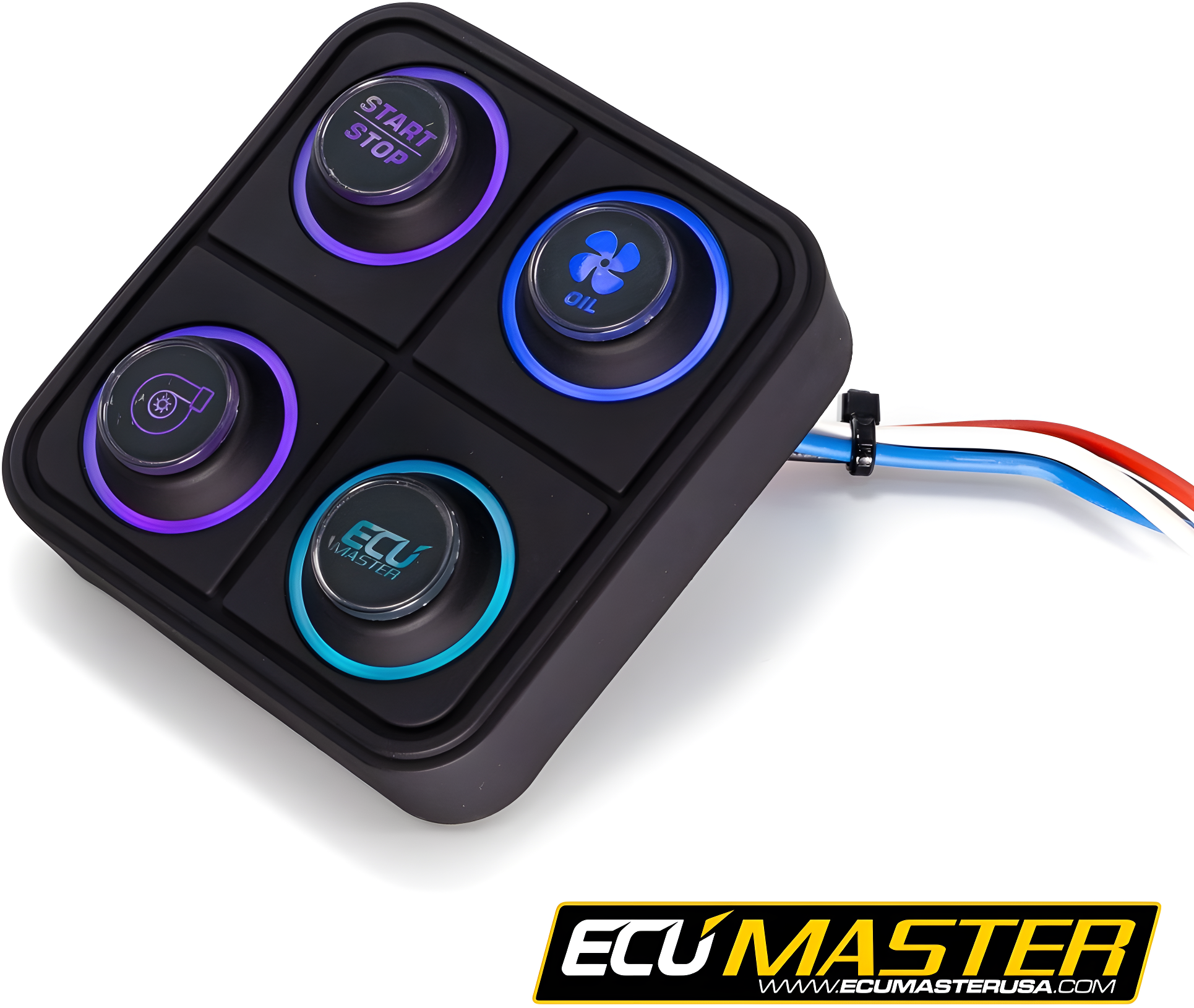

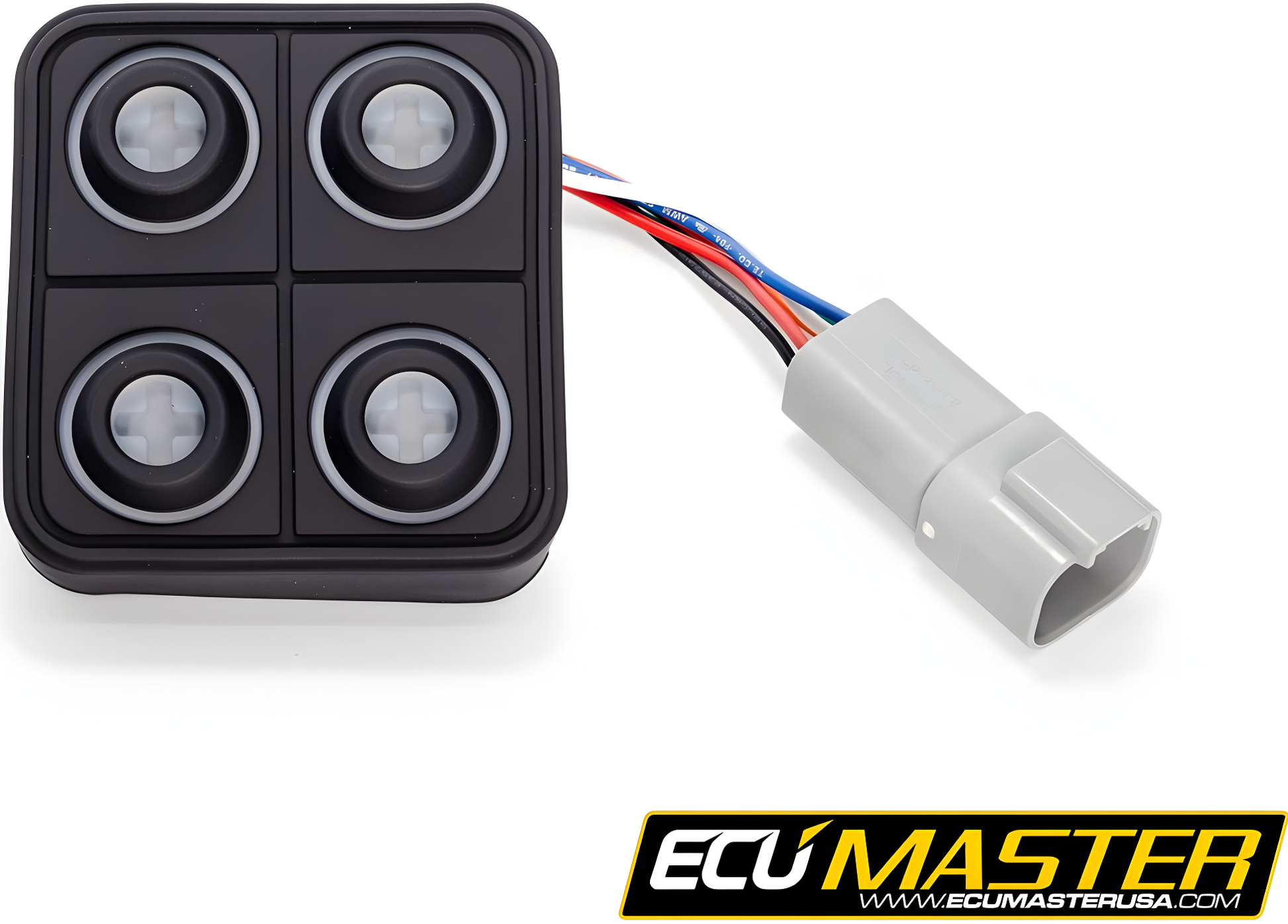

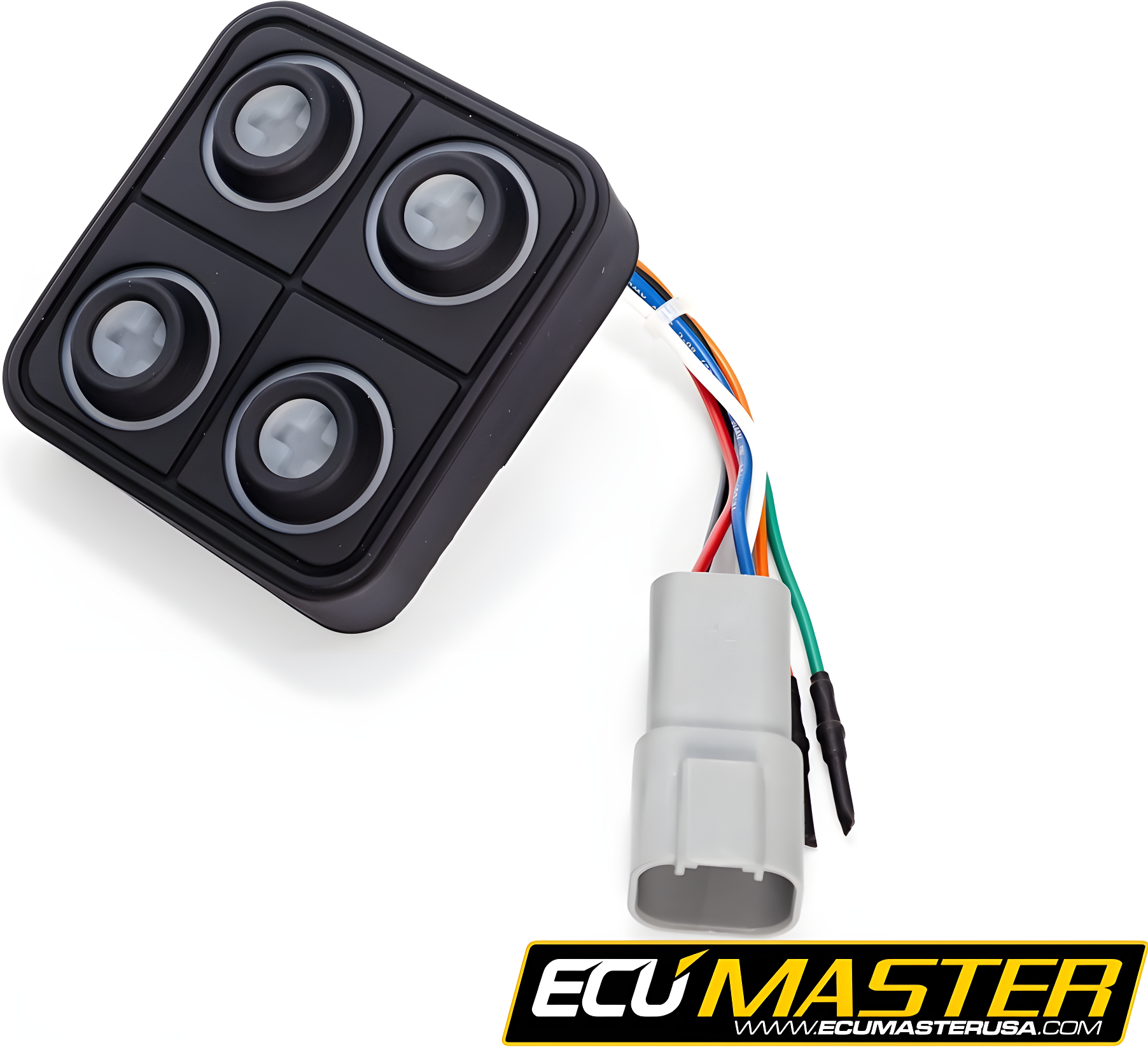

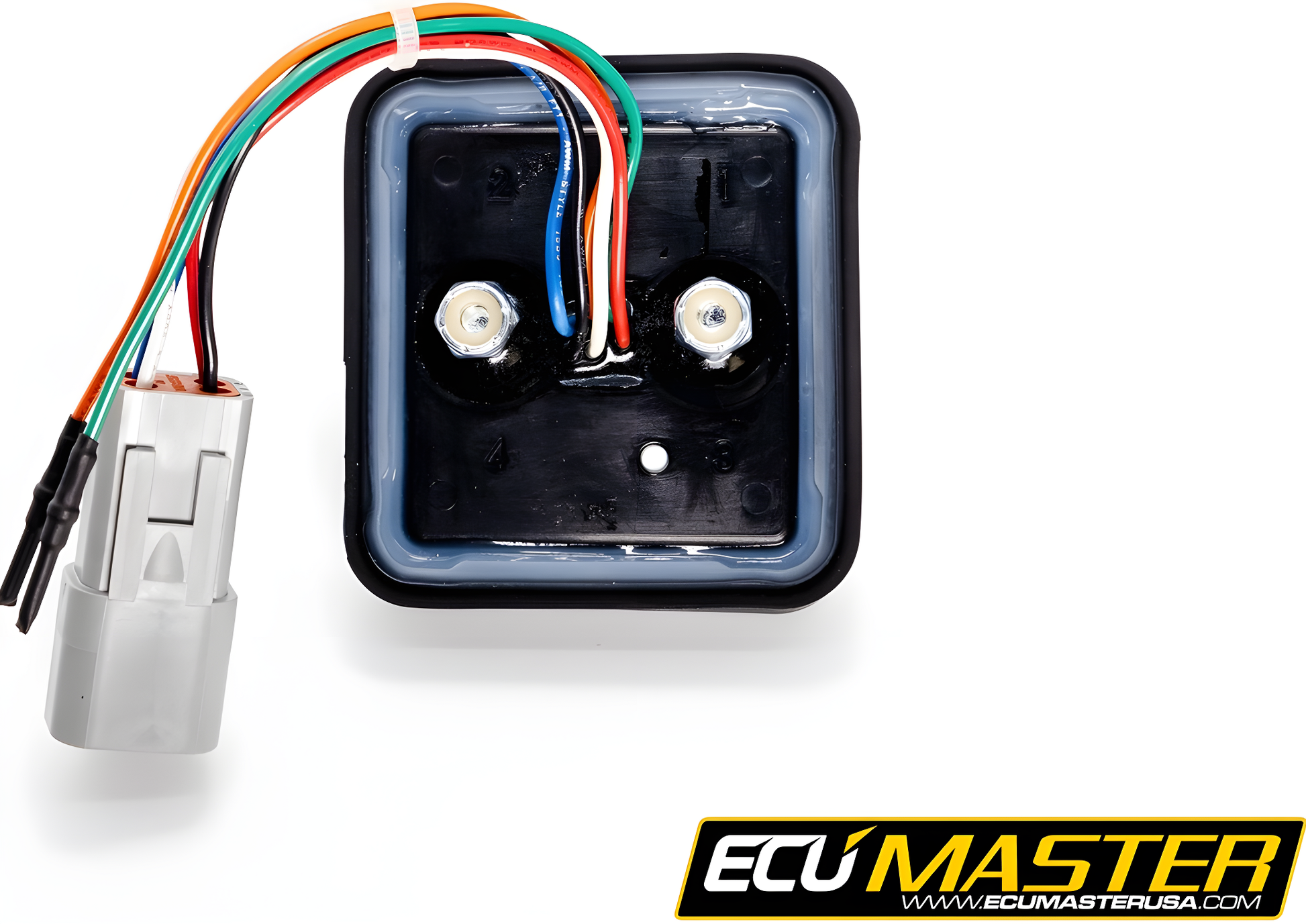

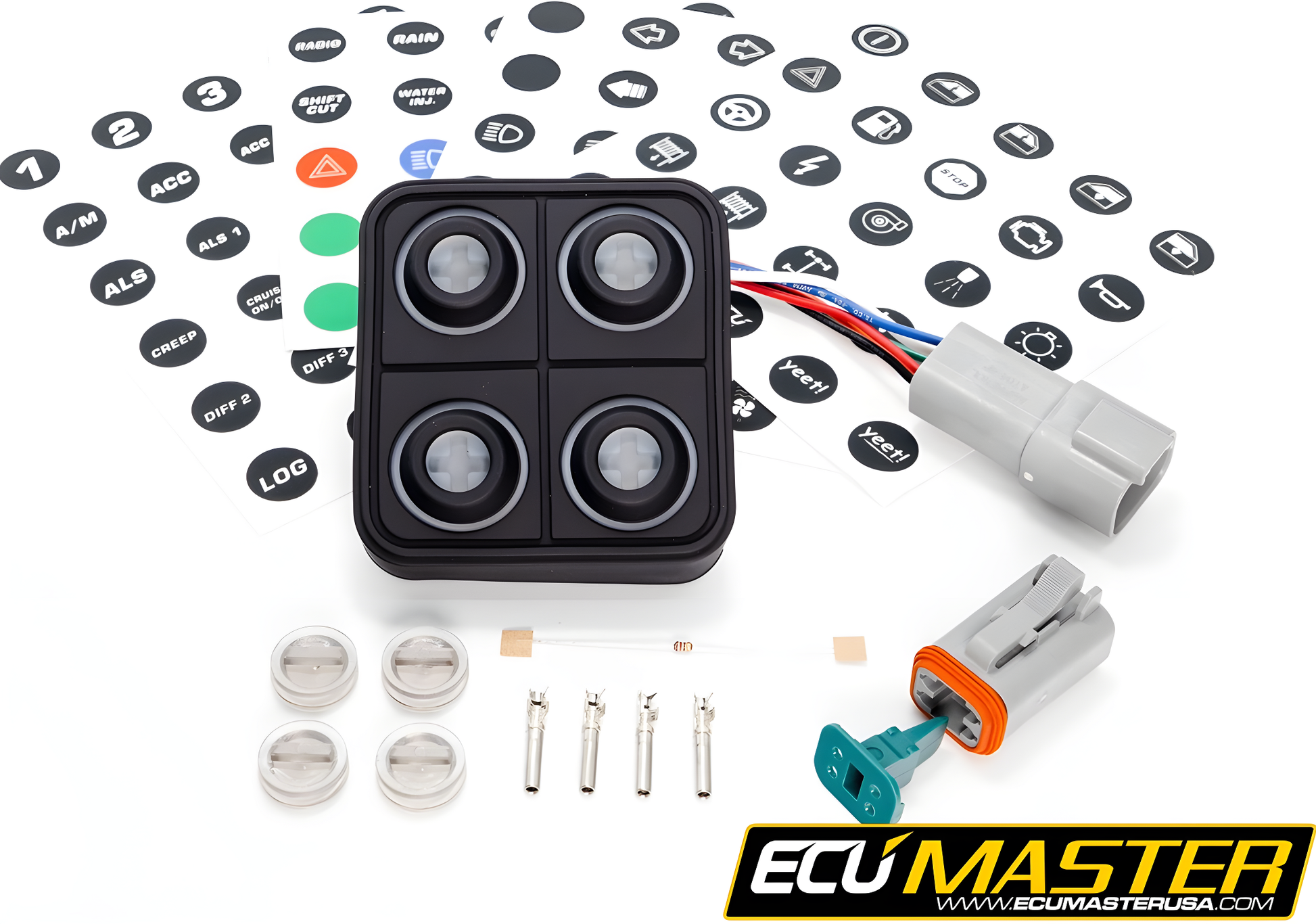

CAN Keyboards offer drivers control of key ECU and PMU functions. Designed to withstand the harshest conditions, ECUMaster CAN Keyboards are completely immune to water, mud, and fuel. It is worth mentioning that CAN keyboards offer a massive simplification and reduction of wiring in comparison to traditional switch panel, requiring only 4 wires for the entire keyboard. Built-in LEDs indicate button states (red, green, amber) and also serve as backlighting for the keyboard. The behavior of each key is fully configurable in the EMU BLACK or PMU client software. Thanks to a unique system of interchangeable key inserts, it is easy to rearrange the keypad layout using existing inserts. Custom inserts can also be supplied. Key features CAN bus compatible keyboard, 125kbps, 250kbps, 500kbps CAN bus speeds supported, works with EMU BLACK (1 keyboard) and PMU devices (up to 2 keyboards), full customization possible, IP 67 rated CAN keyboards come with a sheet of labels and blank buttons to configure them any way you want. Downloads: CAN KEYBOARD WIRING,INSTALL,PROGRAMMING, AND PMU CONFIGURATION CAN KEYBOARD SPECIFICATIONS MANUAL Click here for specific CAN information
