Hamburger's Performance ECONO-SERIES Oil Pan; SB Chevy (305-350) 1986-99- Drag Race; 7 Qts.

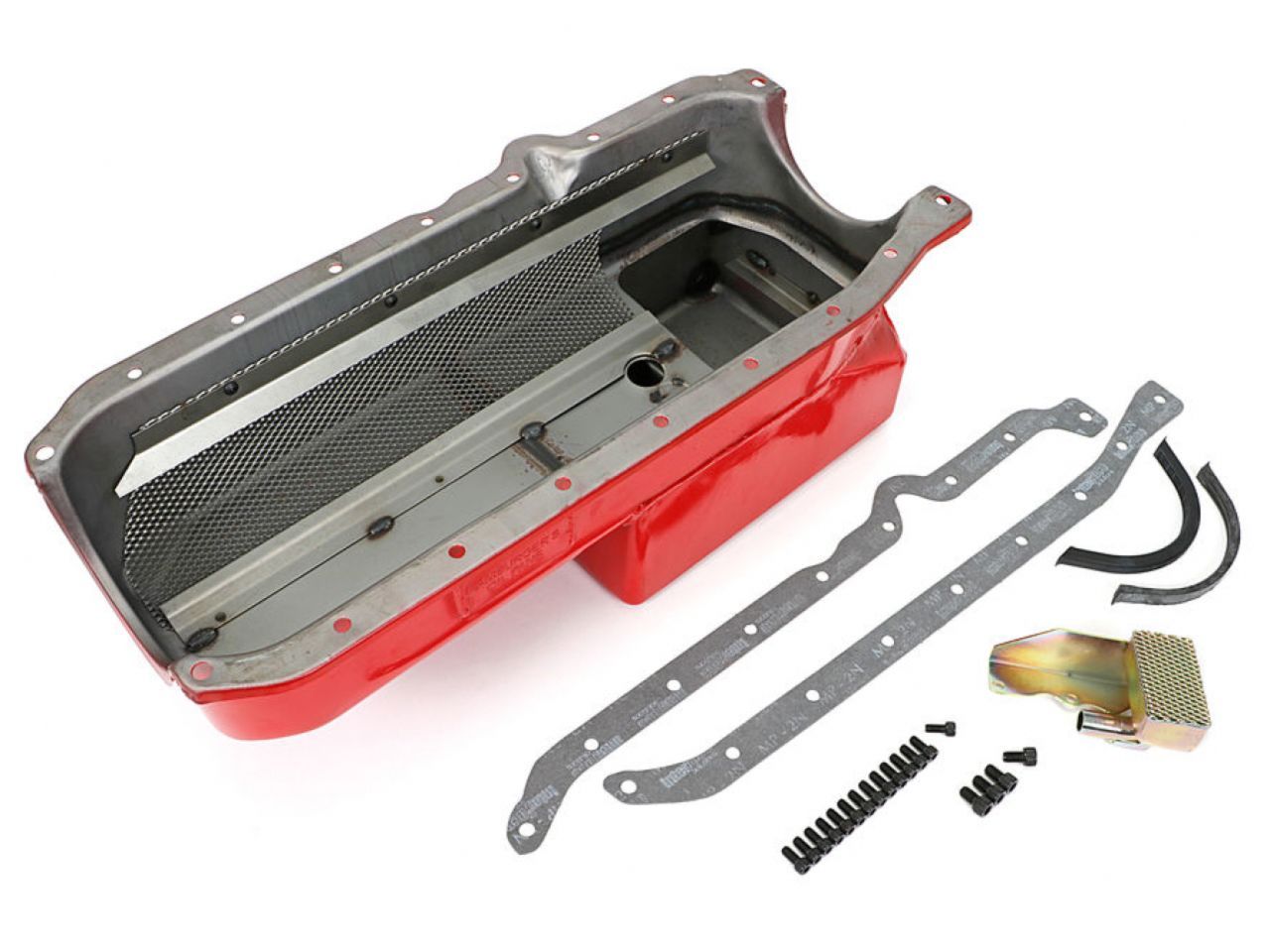

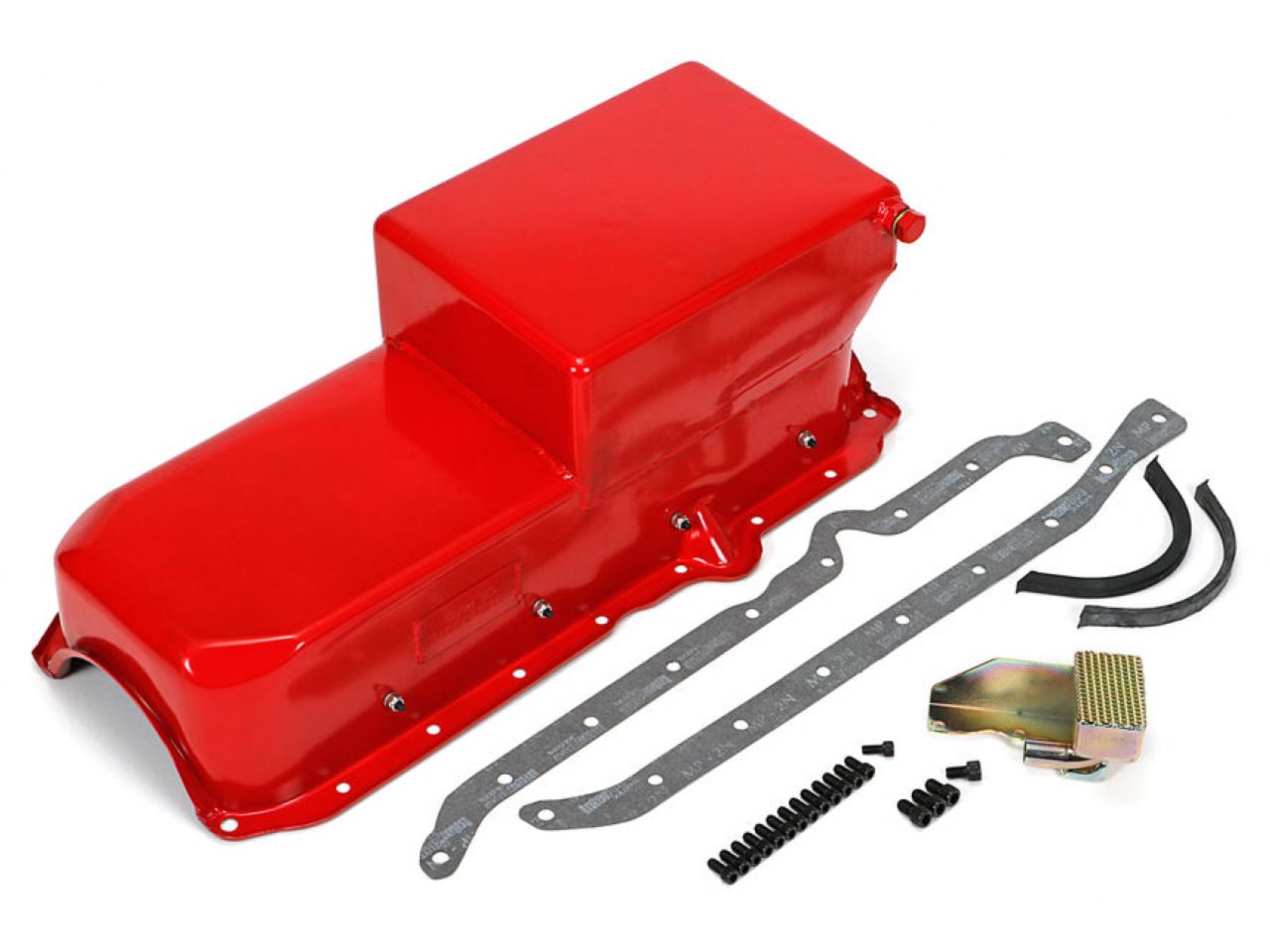

This Hamburger's Performance Drag racing oil pan is for use on 1986-1999 SB Chevy 305-350 engines in most drag racing chassis, street rods that require the use of a rear sump style oil pan. The pan is 8" deep and offers a 7 quart oil capacity. The all steel construction is durable, but lightweight. With a built-in crankshaft scraper, windage screen and trap door baffles, this affordably priced pan gives you all the benefits of pricier pans. Specially designed oil pump pick-up (for use with stock oil pump), gasket set, bolts and drain plug included.

Specifications:

• BAFFLED: Yes
• CALIFORNIA PROPOSITION 65: WARNING: Cancer & Reproductive Harm. For more info visit www.P65Warnings.ca.gov
• CAPACITY: 7 Qts.
• COLOR: RED
• CONTENTS: Oil Pan, pickup, gaskets
• CRANK SHAFT WIPER INCLUDED: Yes
• DEPTH: 8"
• DIPSTICK LOCATION: Passenger side
• DIPSTICK PROVISION: notched
• DRAIN PLUG THREAD SIZE: 1/2"-20
• ENGINE: Chevy SB 305-350; '86-99
• ENGINE MANUFACTURER: Chevrolet
• ENGINE OIL COOLER RETURN FITTING: No
• FINISH: RED Painted
• GASKET OR SEAL INCLUDED: Yes
• HARDWARE INCLUDED: YES
• KICKED OUT: No
• LENGTH: 10-1/2"
• MATERIAL: Steel
• MAXIMUM STROKE WITH OE ROD: 3.875 in.
• NOTES: ECONO-SERIES Oil Pan; SB Chevy (305-350) 1986-99- Drag Race; 7 Qt; WET Sump; NO NOTCH
• OIL PAN CAPACITY: 7 Qts. Capacity
• OIL PAN DEPTH (IN): 8.000 in.
• OIL PAN FINISH: Red Painted
• OIL PAN MATERIAL: Steel
• OIL PUMP COMPATIBILITY: Melling #10550, #M55, Chevy #12555884, #14044872 or equivalent
• PACKAGE CONTENTS: Oil Pan, pickup, gaskets
• PAN CAPACITY: 7 Qts.
• PICKUP #2508
• PICKUP INCLUDED: Yes
• QUANTITY: Sold as a kit.
• REAR MAIN SEAL STYLE: 1-piece
• STROKER CLEARANCED: Yes
• SUMP LOCATION: Rear
• SUMP STYLE: WET
• WIDTH: 8"
• WINDAGE TRAY INCLUDED: Yes
• YEAR/MAKE/MODEL/ENGINE: S10 Swap pan 1986-1999 Small block Chevy
