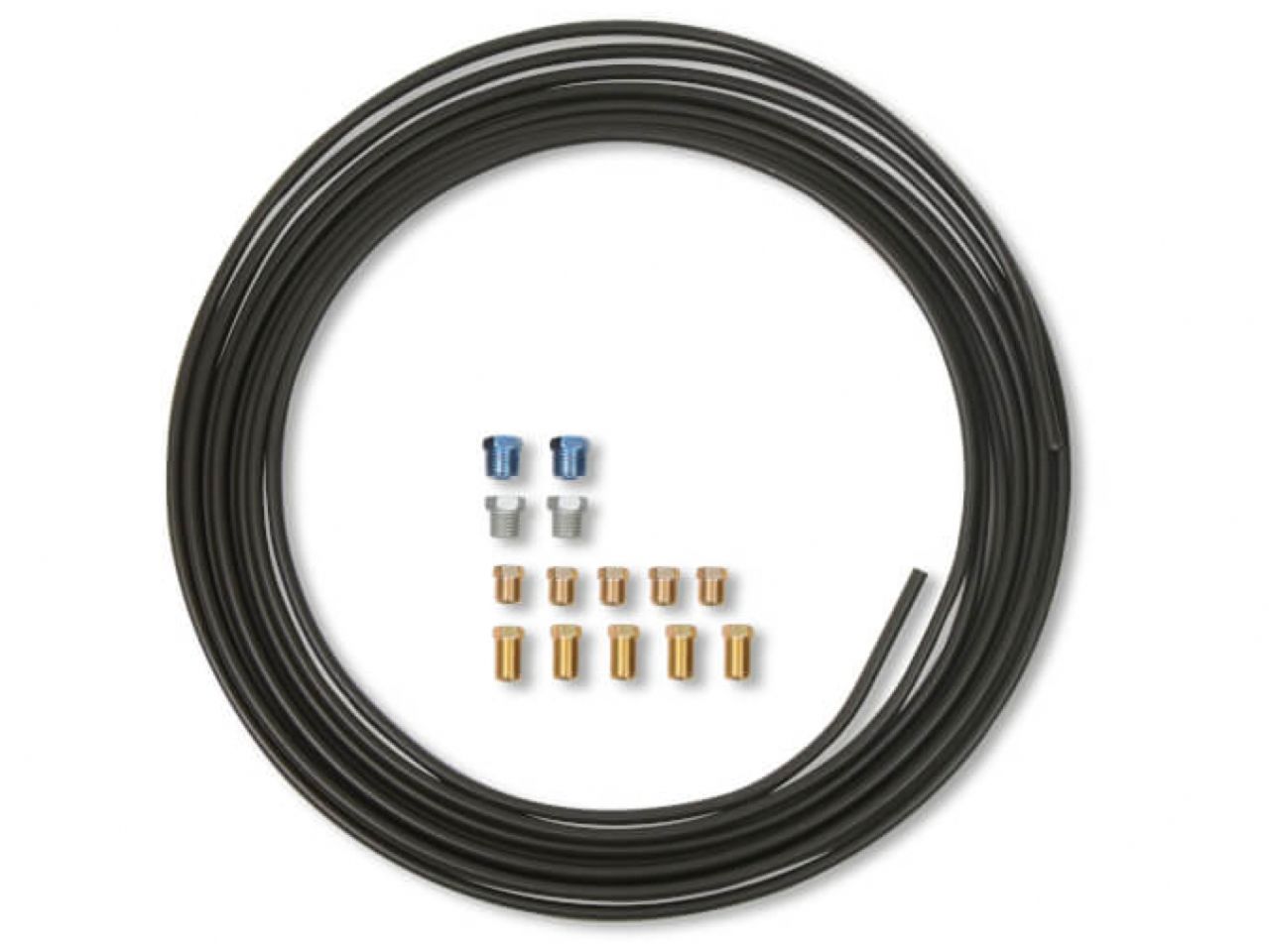

Earl's Steel Olive Hardline Tubing Kit W/ Tube Nuts

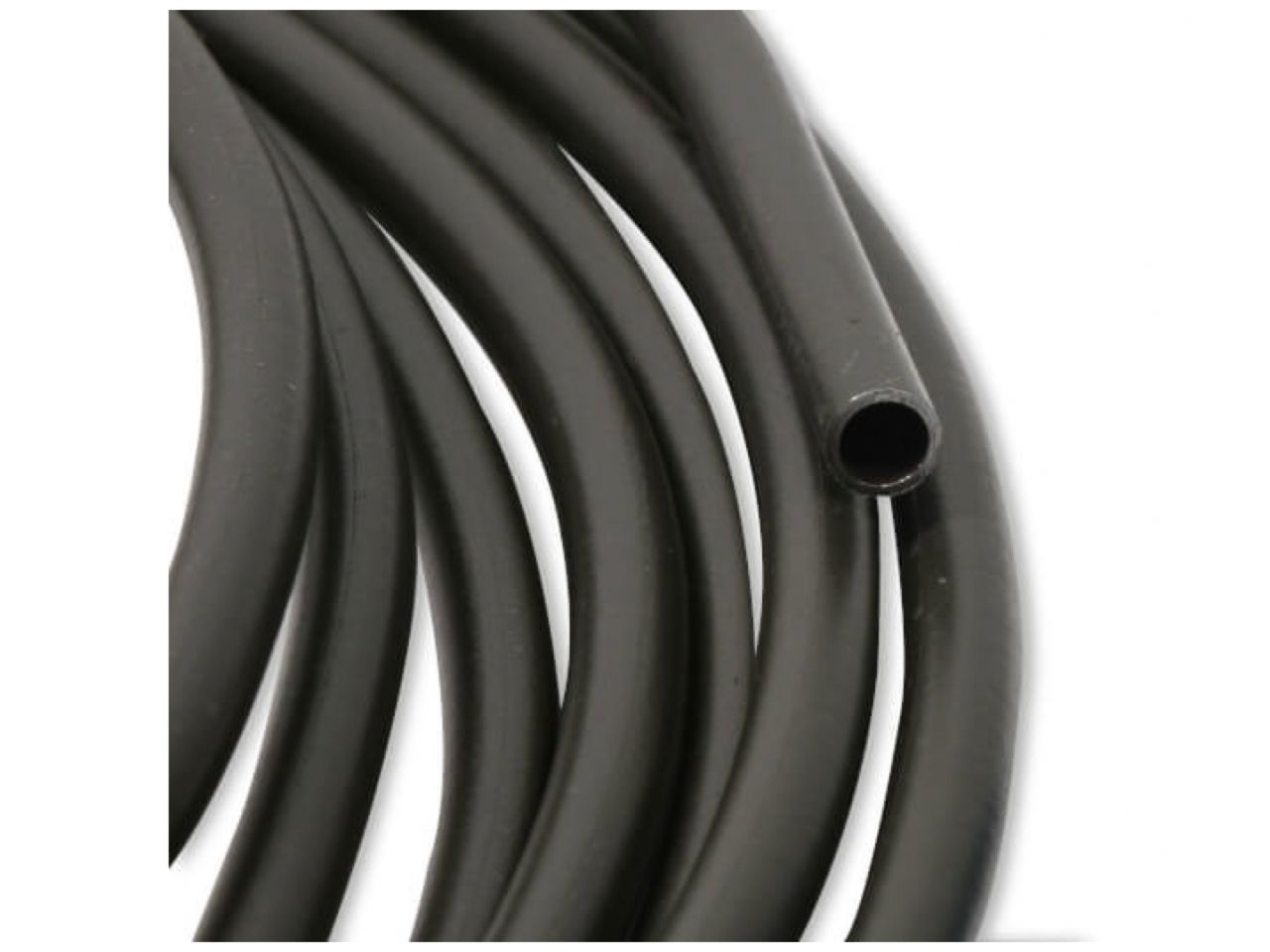

Earl's steel hardline is a double wall low carbon steel, copper brazed tubing that has an olive PVF coating. The olive coating is a PVF (poly-vinyl-fluorine) material that provides superior corrosion protection and is ideal for vehicles that are exposed to snow, salt, salt air, gravel or other harsh environments. Earl's new hardline tubing is ideal for use on all automotive hardline systems - brake lines, transmission cooler lines, fuel lines, etc.

Features:

25’ Coil

Olive PVF Coating for Corrosion Protection

DOT Approved for Hydraulic Brake Systems

Ideal for Use on All Automotive Hardline Applications

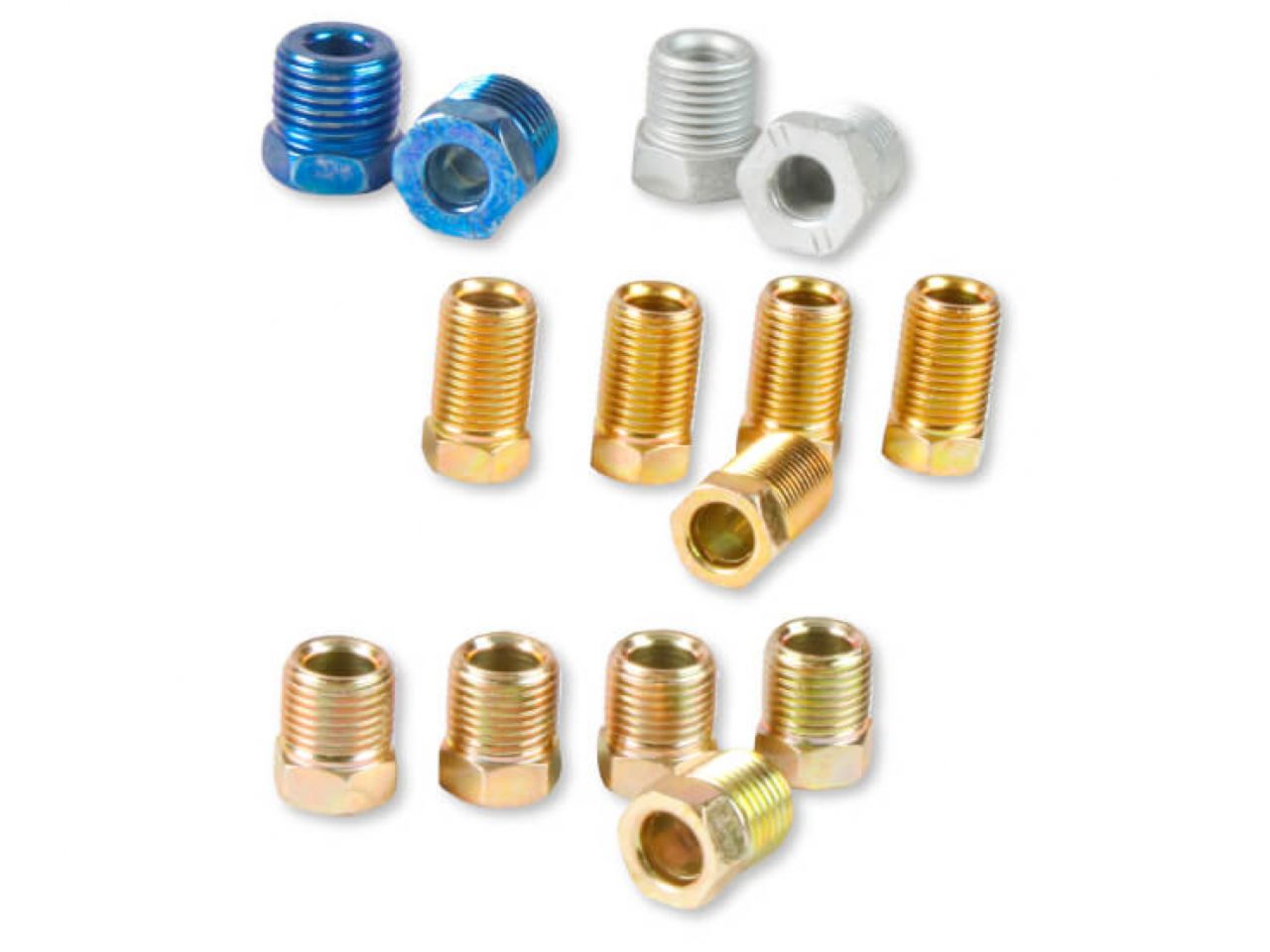

Tube Nuts Included: (5) 7/16"-24 Short, (2) 7/16"-24 Long, (2) 9/16"-18, (2) 1/2"-20

Specifications:

• Diameter: 1/4 in.
• Emission Code: 5
• Finish: Olive
• Fluid Type Rating - Automatic Transmission Fluid: 5 out of 5 Rating
• Fluid Type Rating - Bio-Fuels: 5 out of 5 Rating
• Fluid Type Rating - Brake Fluid: 5 out of 5 Rating
• Fluid Type Rating - Coolant: 4 out of 5 Rating
• Fluid Type Rating - Diesel: 5 out of 5 Rating
• Fluid Type Rating - E85: 4 out of 5 Rating
• Fluid Type Rating - Methanol/Alcohol: 4 out of 5 Rating
• Fluid Type Rating - Oil: 5 out of 5 Rating
• Fluid Type Rating - Power Steering Fluid: 5 out of 5 Rating
• Fluid Type Rating - Pump Gas: 5 out of 5 Rating
• Fluid Type Rating - Race Gas: 5 out of 5 Rating
• Fluid Type Rating - Vacuum: 5 out of 5 Rating
• Hose Family: Hardline Olive
• Length: 25 ft.
• Material: Steel
• Max Working PSI: 3000 PSI
• Product Type: Hardline
• Tube Nuts Included: Yes
• Tube Wall Style: Double Wall
• Tube Wall Thickness: .028"
