Earl's AN Adapter Aluminum

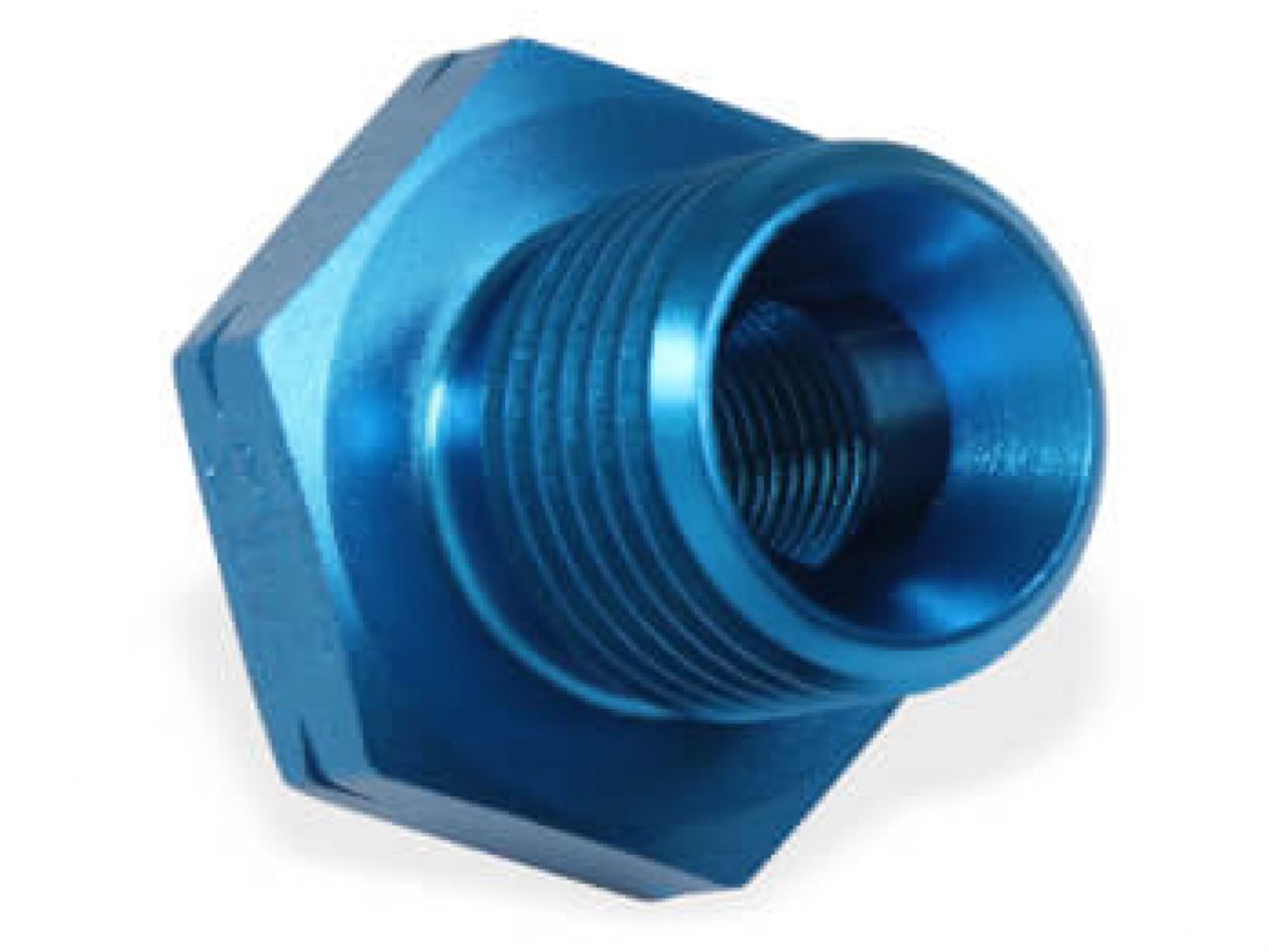

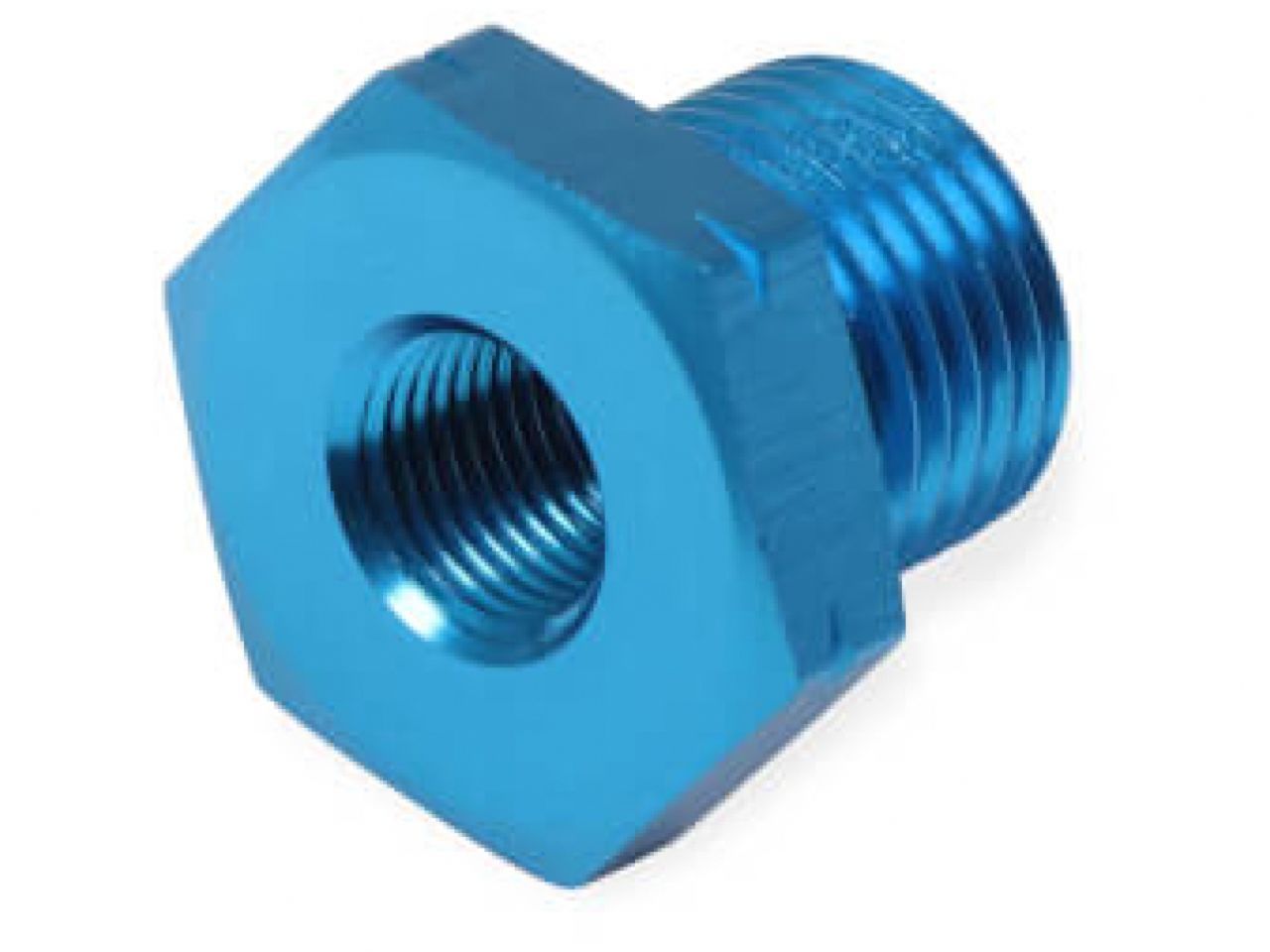

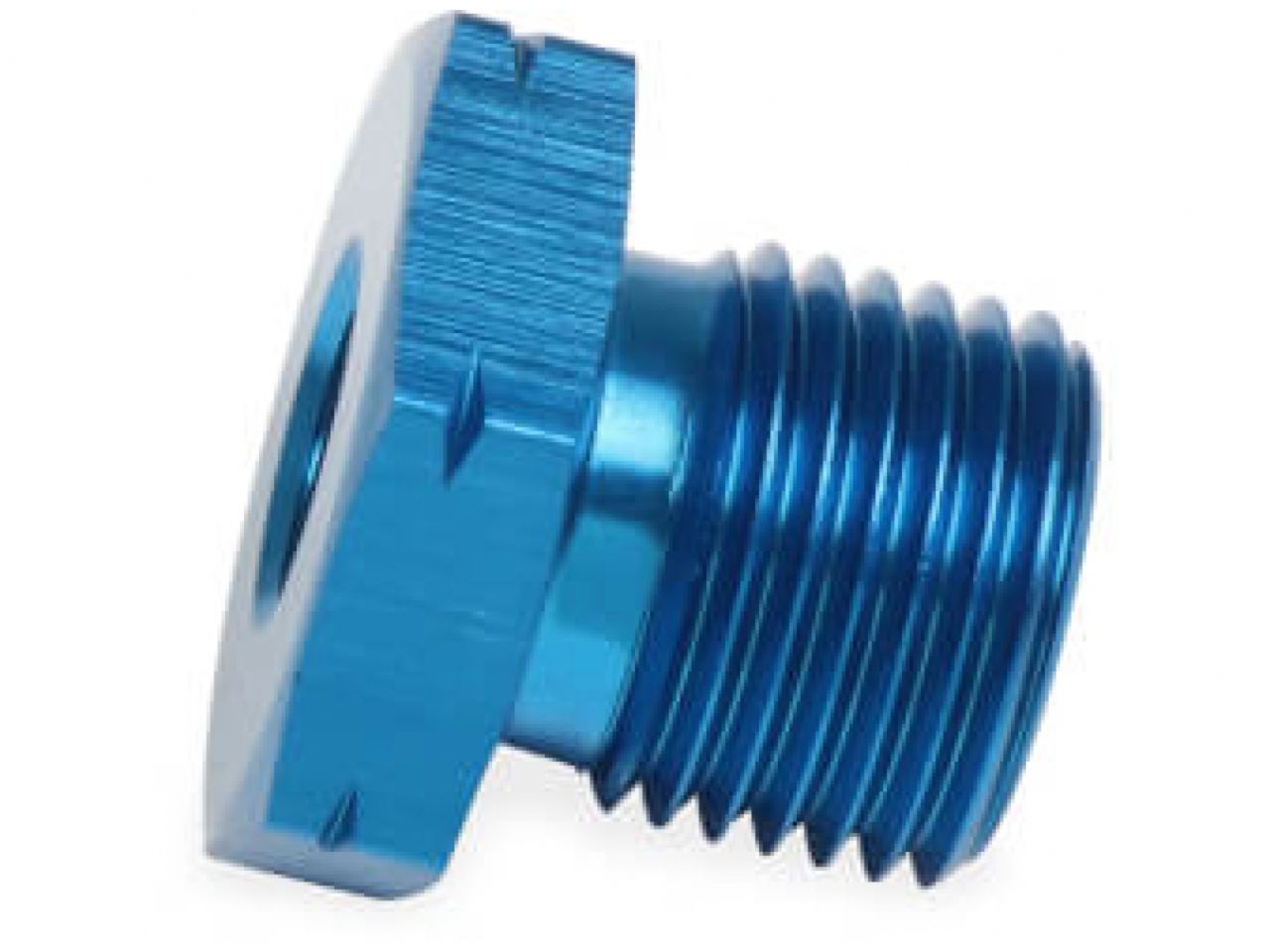

Earl's new adapter fittings are ideal for installing an after-market oil pressure gauge on GM LS engine swaps. These fittings screws directly into the M16 x 1.5mm oil passage on the rear china wall of the GM LS engine block. Options are available to fit most after-market sending units or mechanical gauge hoses (1/8" NPT female, -3 AN male, or -4 AN male). Blue anodized 2024-T8 aluminum construction. Made in the USA.

Features:

• M16 x 1.5mm – Fits GM LS Series Engine Blocks

• Choose From 1/8” NPT Female, -3 AN Male, or -4 AN Male

• Blue Anodized Finish

• 2024-T8 Aluminum – More Durable than 6061-T6

• Simple & Easy Adapter Fitting for Installing After-Market Gauges on GM LS Engines

• Can Also Be Used on Other M16 x 1.5mm Plumbing Applications

Specifications

Adapter NPT Size ( A ): 1/8 NPT FEMALE

Adapter Type: Oil Pressure Adapter

Emission Code: 5

Finish: Anodized Blue

Material: 2024 Aluminum

Metric Thread ( B ): 16MM X 1.5

Product Line: Premium

Product Type: Gauge Adapter
