Earl's Performance

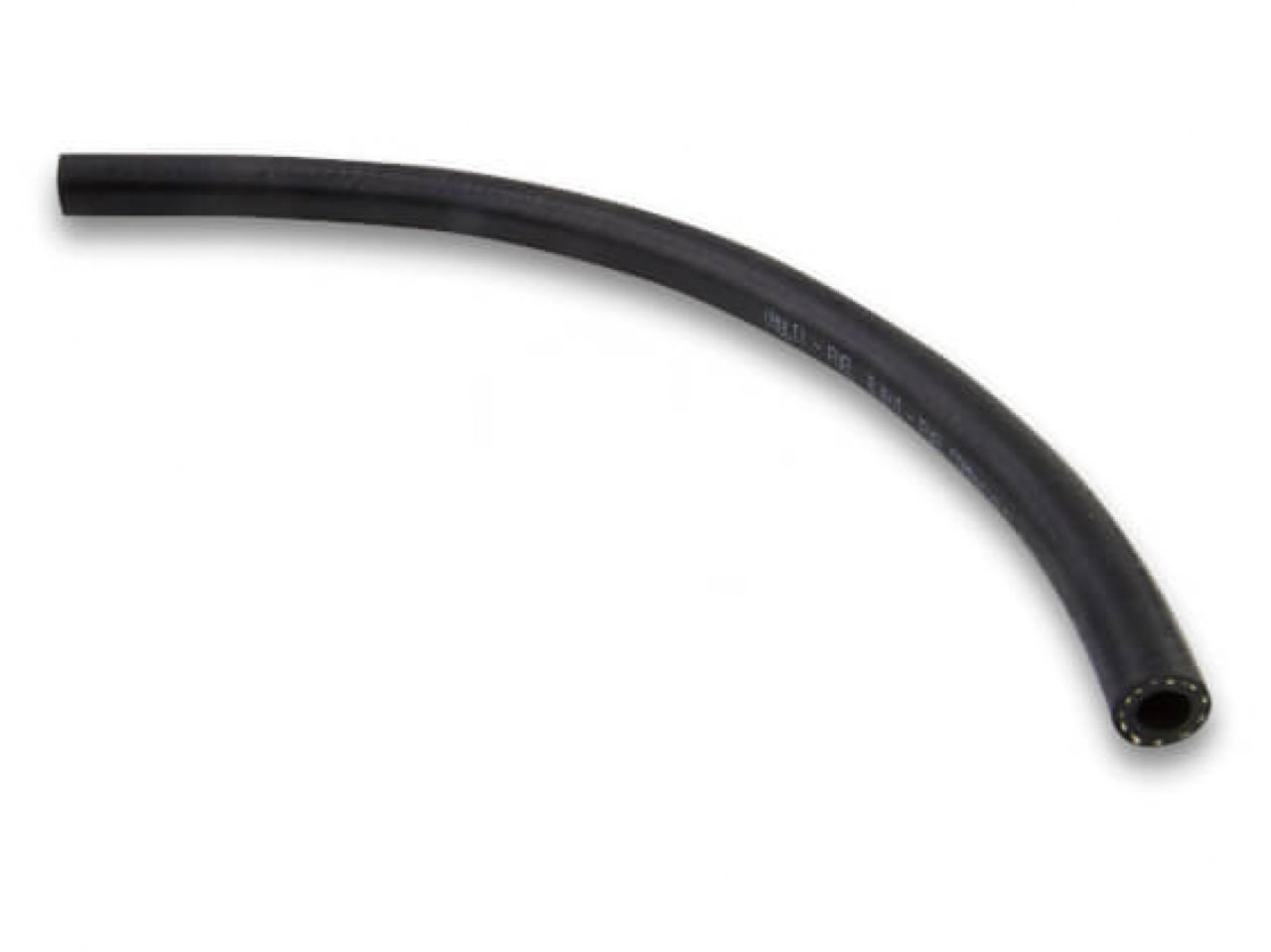

Earl's 20 FT - 3/8 I.D. Vapor Guard Carburetor Hose

Earl's 20 FT - 3/8 I.D. Vapor Guard Carburetor Hose

sku: 0R90Y | mpn: 762066ERL
$143.15
$152.95 $143.15
Sale Sold out

Out of stock

Not sure this is the right part? Ask us to check fitment. Include your year, make, model, engine and manufacturer part number.

Need this part?

This item is currently unavailable. Ask us about availability or help finding a suitable replacement.

Ask about availability or fitment

Year, make, model and engine help us check fitment.

We'll reply to your inquiry by email. This is not an automatic restock alert.

Shipping & returns

This selection is unavailable. Ask us to confirm availability and timing.

Shipping details

In-stock orders are processed within 48 hours; transit time is additional.

International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.

Read the shipping policy
Return policy
Modern fuels are at war with your fuel system. Modern fuels (more than 40 EPA-approved fuel blends in the US alone) include additives that break down traditional rubber hose. This breakdown leads to potentially dangerous leaks & weeping as well as vapors that waste fuel and leave unwanted odors in your shop. Once fuel lines are degraded, hose particles can contaminate and obstruct fuel injectors and carburetor passages. Earl's Vapor Guard hose and hose ends provide a complete, economical solution that virtually eliminates these fuel permeation issues common with most rubber fuel lines. The secret to Earl's Vapor Guard hose is in its layers. The innermost Primary Barrier Layer offers high resistance to heat and aggressive fuels. The middle Earl's Vapor GuardT Barrier is a Thermoplastic layer that provides superior fuel isolation and virtually eliminates vapors from escaping through the hose. The Exterior Cover Barrier provides extreme tolerance to heat and ozone giving Earl's Vapor Guard a three way shield against hose deterioration.

Features:

  • Multi-layer rubber hose designed to withstand to the corrosive properties of modern fuels
  • Multi-fuel compatible: Approved for use with leaded and unleaded Gasoline, Diesel, Biodiesel, E-85, 100% Methanol, ETHANOL and Gasohol fuels
  • A two foot section of Earl's Vapor Guard saves one gallon of gas each year as compared to traditional rubber hose from permeation alone
  • Primary Barrier Liner - initial layer offers high resistance to heat and aggressive fuels
  • Vapor Guard Barrier - Thermoplastic layer provides superior fuel isolation significantly reducing vapors from escaping through the hose
  • Reinforcement braid-aramid material - (EFI hose only) is used to provide the higher pressure rating that is required with fuel injection
  • Exterior cover - provides extreme tolerance of heat and ozone
  • Choose from carburetor or higher pressure EFI hose
  • Hose available in 5/16" and 3/8" sizes
  • Not for use in applications where the hose is submersed in fuel
  • Carburetion Hose - Rated Maximum 50 PSI (not for use with fuel injection systems)

Specs

Compatible Hose Ends: Vapor Guard
Fluid Type: Bio-Fuels
Coolant
Diesel
E85
Methanol/Alcohol
Pump Gas
Race Gas
Fuel System Type: Carburetor
Hose Length: 20 Feet
Hose Size: 3/8
Max PSI: 50
Max Vacuum: 10 inHg
Min. Bend Radius: 2.5 in.
Outside Diameter: .625 in.
Product Type: Hose
Submersible in Fuel: No
Temperature Range: -40° to 257° F
