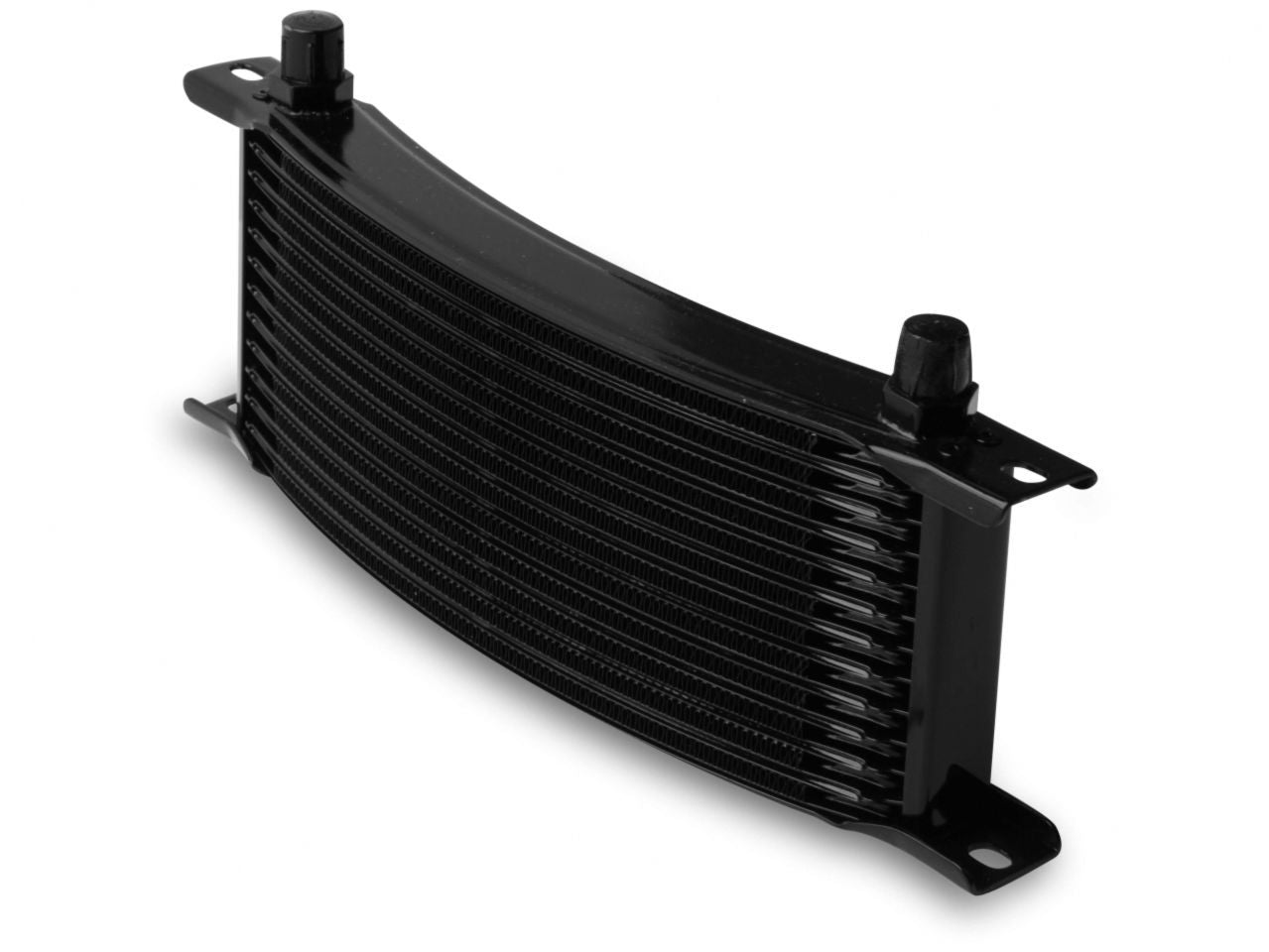

Earl's -6 Male 13 Row Curved Cooler-Black

Earl's curved coolers are constructed with the same high grade aluminum and the same internal design as our standard 2" coolers, but have a curved design to fit neatly between the down tubes of the frame of a motorcycle for maximum heat dissipation. The curved design allows for full wheel travel no matter where it is mounted on the front of the frame. These coolers are only 1-1/4" thick and are available in two widths, three different heights and male -6 or -8 inlet and outlet fittings.

Specifications

Application: Motorcycle Oil Cooler

Body Width (Overall): 11.562"

Brackets Included: No

Construction: Stacked Plate - Brazed

Cooler Fittings: Not Required

Cooler Fittings Included: Yes

Finish: Black

Fitting Centers: 9.050"

Height: 3.977"

Material: Aluminum

Mounting Brackets: N/A

Port Size: 6 AN MALE

Product Line: Temp-A-Cure

Product Type: Oil Cooler

Rows: 13 Rows

Temperature Range: -40° F to 302° F

Thickness: 1.250"

Width: Narrow Curved Cooler

Width Between Tanks: 8.000"

Features:

• Manufactured in the U.S.A from aircraft spec aluminum alloy, using the latest vacuum brazing technology.
• Corrugated screen internal turbulator plates increase both thermal efficiency and mechanical strength resulting in the most efficient, smallest and lightest practical package.
• Manufactured from thin aluminum plates for the fastest possible heat transfer.
• Inlet and outlet fittings o-ring to the top plate assembly.
• Designed for the range of oil flows and air speeds encountered in high performance motorcycles.
• Available in two widths with inlet and outlet fittings male AN.
• Every cooler is pressure checked to 175 psi. Periodic samples are burst tested to 350 psi.
