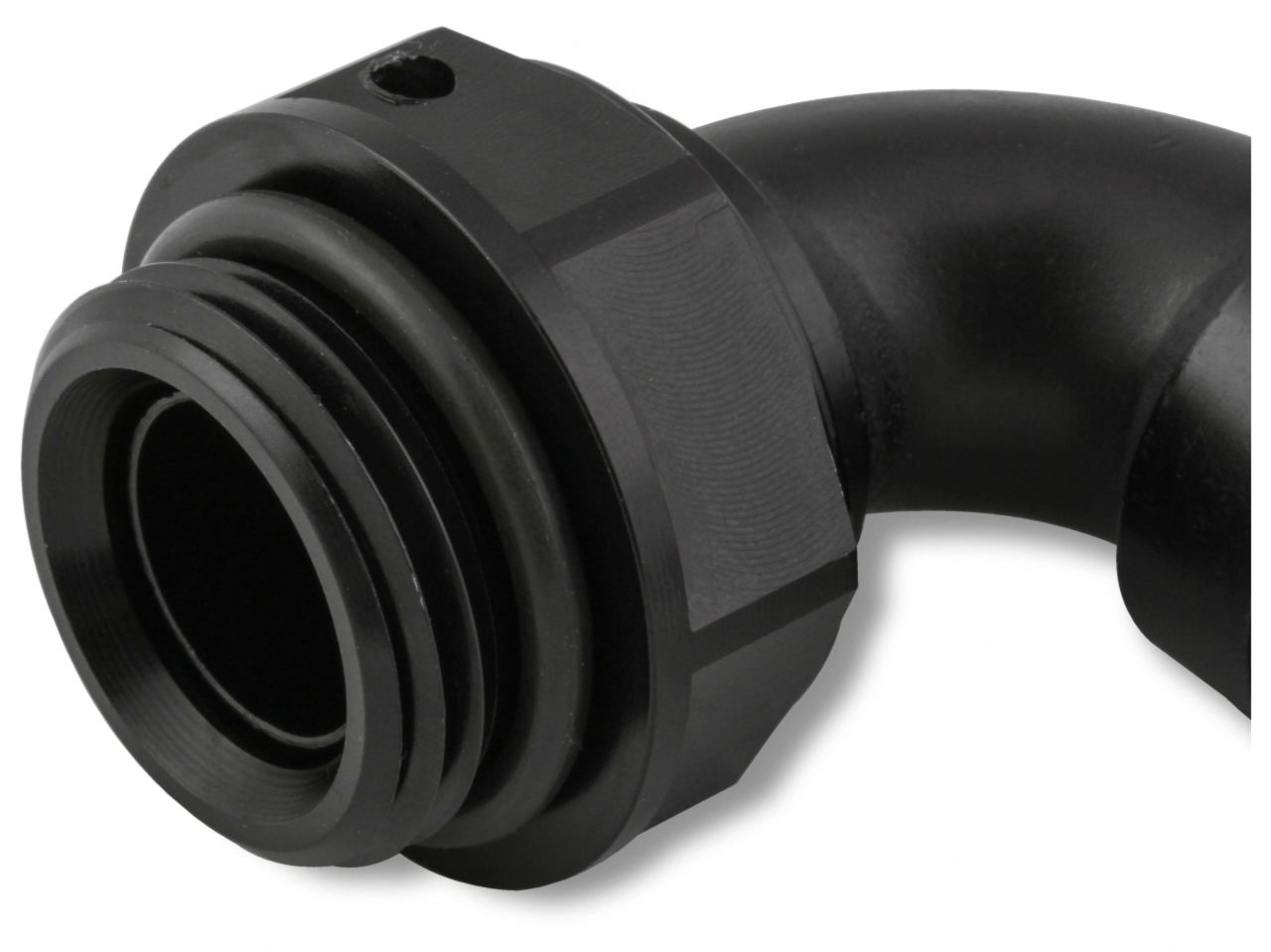

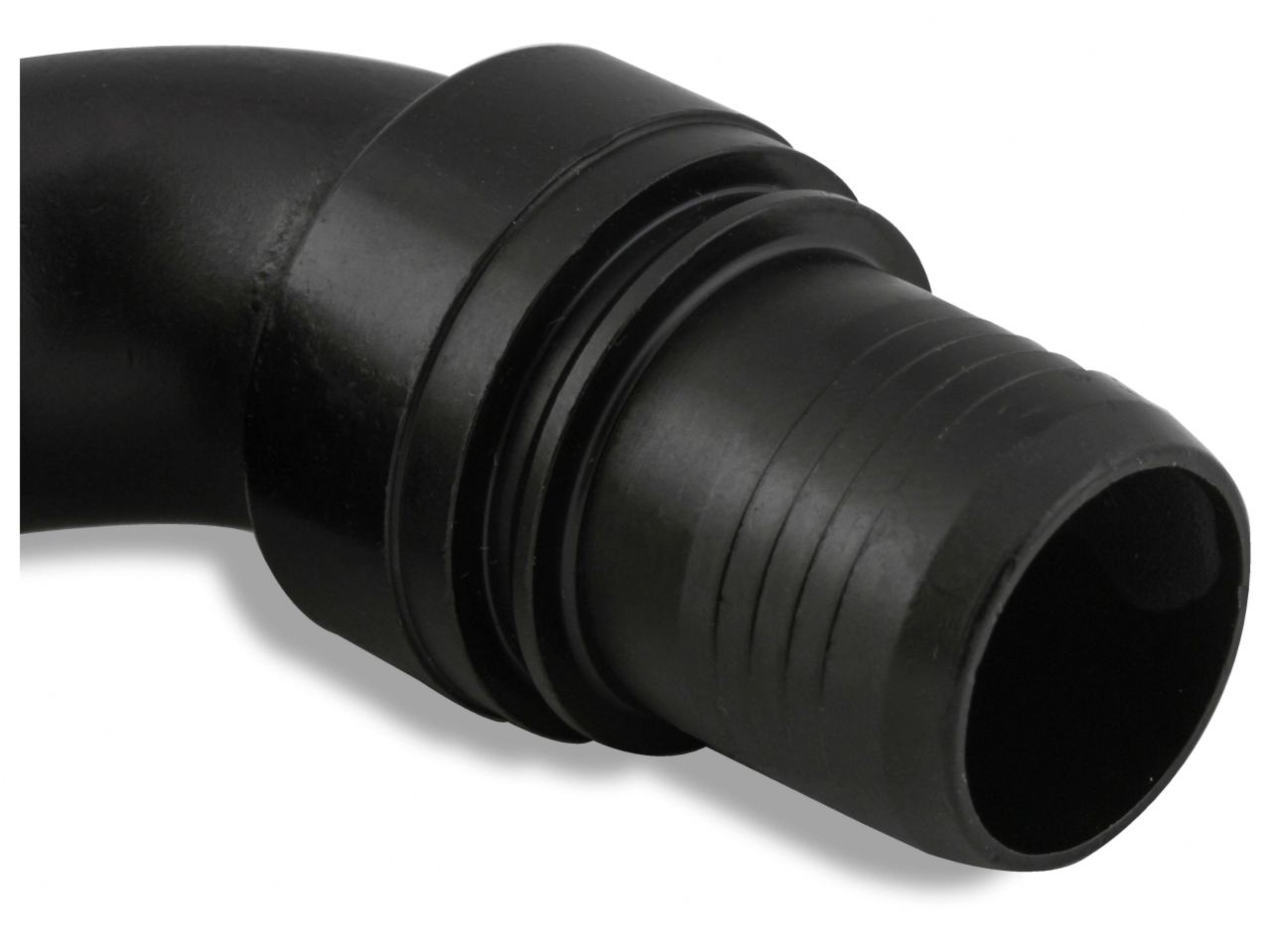

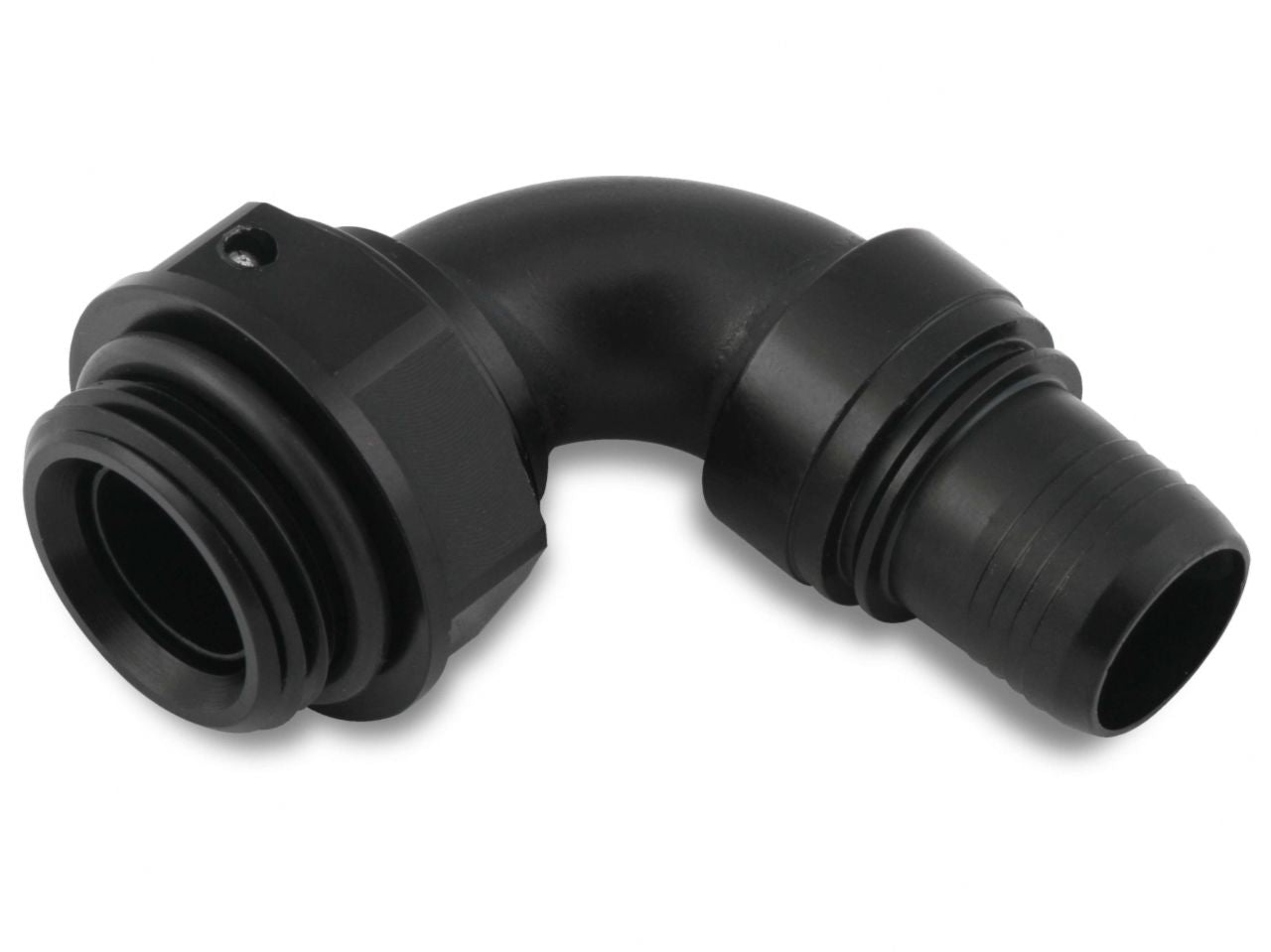

Earl's -12 90 DEG. ULTRAPRO CRIMP HOSE END TO 1-1/16 PORT
Earls -12AN 90 Degree Bent Tube Port Hose-end - 12 AN (1-1/16"-12) O-ring Port
-12 AN Crimp-On (Dynamic Swivel) 90 Degree Bent Tube Port Hose-End w/ 12 AN (1-1/16"-12) O-Ring Port
Earl's UltraPro Series hose-ends are manufactured from premium materials to be light weight and rugged and are perfectly matched to Earl's UltraPro Series hose. Earl's UltraPro Series hose-ends feature ultra high-strength 2024-T8 aluminum in high-stress components, and ?uoroelastomer internal seals which are chemically resistant to all known fuels, oils, and coolants. They feature brazed bent tubes for unmatched strength and all unnecessary weight has been eliminated from Ultra-Pro components.
Features:
- Available Dynamic SwivelT technology used in selected hose-ends allows 360 degrees of rotation of installed line after installation!
- Internal seals are a ?uoroelastomer material which is resistant to all known fuel, oil and coolant!
- Traditional Mil-Spec Bent tube design for unmatched strength and ?ow!
- UltraPro bent tube hose-ends are dip-brazed for a permanent and robust bond!
- Designed to withstand harsh environments, brutal vibration, high ?ow requirements and extreme pressures!
- Black Anodized
- Assembled with an olive that threads onto the double-helix ribbed inner liner of the hose for positive engagement and retention of the hose-ends!
- High stress components are made of high-strength 2024-T8 grade aluminum instead of 6061-T6 aluminum used by competitors!
- SAE port, jump size, and Wiggins connector adapter/hose-ends available
- 45º & 90º angles available
Specification
| Adjustable | Yes |
|---|---|
| AN Thread | 12 AN |
| Angle | 90 Degree |
| Assembly Method | Crimp On |
| Compatible Hose | UltraPro |
| Finish | Anodized Black |
| Fitting to Hose Mate Type | Crimp Collar |
| Hose End Series | 68 |
| Hose End Size | 12 AN |
| Hose Size | 12 AN |
| Material | Aluminum |
| Product Type | Port Crimp-on Hose Ends |
| Reusable | No |
| Swivel | Yes |
Earl's -12 90 DEG. ULTRAPRO CRIMP HOSE END TO 1-1/16 PORT
Sale price$44.71 USD
