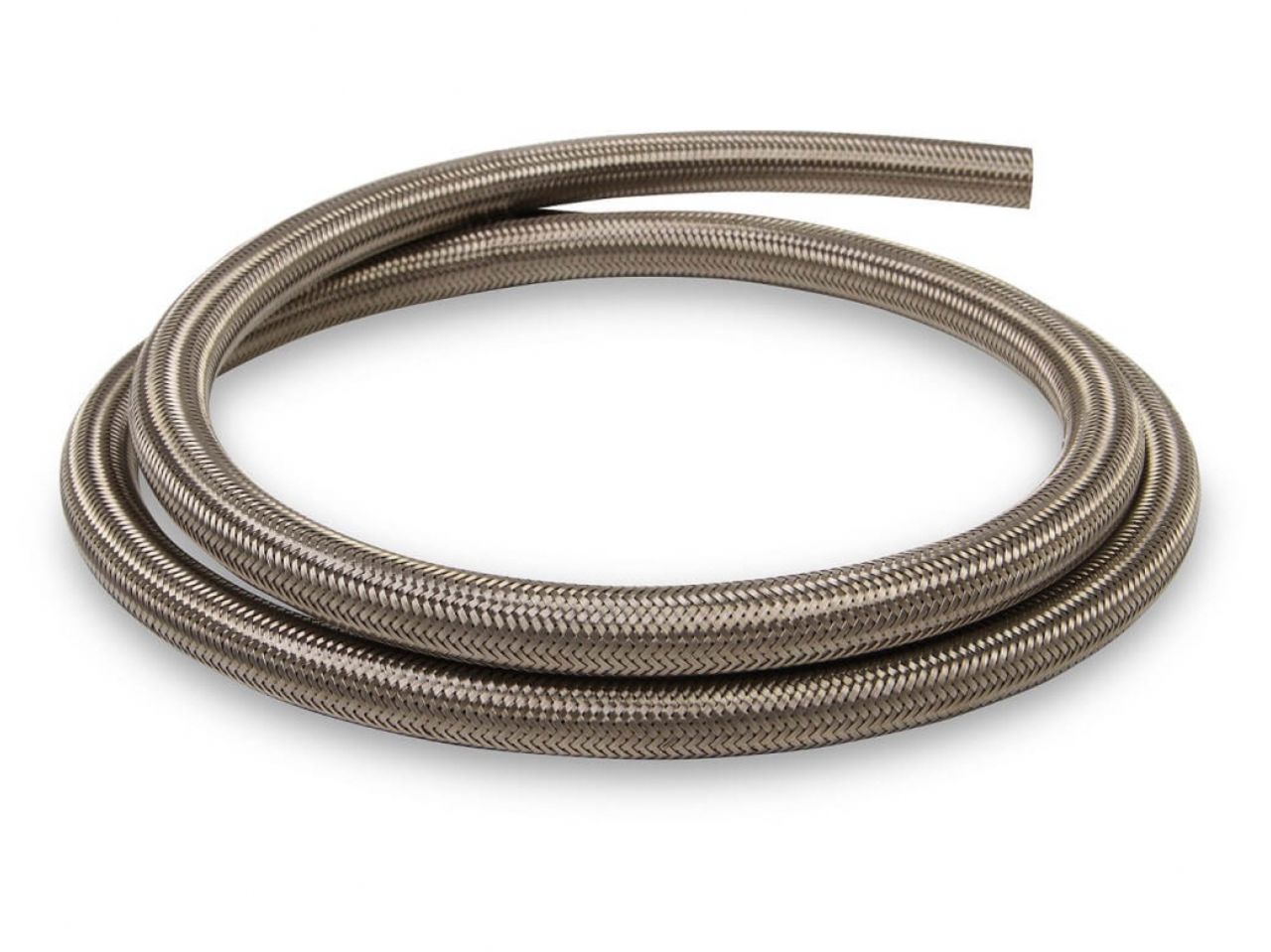

Earl's 10 Double-Helix Ribbed PTFE Hose, Stainless Steel Braided, 500 PSI, 6F

Modern day high performance vehicles require a plumbing system designed to withstand today's fuids, harsh environments, brutal vibration, ?ow requirements & extreme pressures. UltraPro from Earl's was engineered as a system to exceed the rigorous demands of even the most extreme forms of racing. Don't settle for good enough. Go UltraPro!

Features:

• PTFE inner liner impervious to all known fuels, oils and coolants used in automotive applications
• Designed to withstand harsh environments, brutal vibrations, high flow requirements and extreme pressures
• Double-helix ribbed inner hose liner offers extreme ?exibility and full ?ow making tough plumbing jobs a snap with less hard connections!
• Liner is reinforced with an outside glass-?ber wrap for additional strength and integrity!
• PTFE inner liner is carbon infused for static dissipation
• PTFE inner liner has ultra low coef?cient of friction to promote maximum ?ow
• Assembled with an olive that threads onto the double-helix ribbed inner liner of the hose for positive engagement and retention of the hose-ends
• Available in popular -6, -8, -10, -12, -16, and -20 sizes in both woven polyester braid and stainless steel braid
• UltraPro Polyester Braid hose is up to 67% lighter than traditional rubber hose with stainless steel braid
• UltraPro Stainless Steel Braid is up to 37% lighter than traditional rubber hose with stainless steel braid

Specifications:

• Compatible Hose Ends:UltraPro
• Crimping Die:19MM - D10019BERL
• Final Crimp O.D. Range: .848"-.852"
• Fluid Type: Automatic Transmission Fluid/Bio-Fuels/Coolant/Diesel/E85/Oil/Pump Gas/Race Gas
• Fluid Type Rating - Automatic Transmission: 5 out of 5 Rating
• Fluid Type Rating - Bio-Fuels:5 out of 5 Rating
• Fluid Type Rating - Coolant:5 out of 5 Rating
• Fluid Type Rating - Diesel:5 out of 5 Rating
• Fluid Type Rating - E85:5 out of 5 Rating
• Fluid Type Rating - Methanol/Alcohol:5 out of 5 Rating
• Fluid Type Rating - Oil:5 out of 5 Rating
• Fluid Type Rating - Pump Gas:5 out of 5 Rating
• Fluid Type Rating - Race Gas:5 out of 5 Rating
• Fluid Type Rating - Vacuum: 3 out of 5 Rating
• Hose Family:UltraPro
• Hose Length:6 Feet
• Hose Outer Material:Stainless Steel Braided
• Hose Size:10 AN
• Inside Diameter:.520"
• Max Vacuum:28 in Hg
• Max Working PSI:500 PSI
• Min. Bend Radius:2.0"
• Outside Diameter:.757"
• Product Type:UltraPro Stainless Steel Braided
• Submersible in Fuel:Yes
• Temperature Range:-67° F to 400° F
