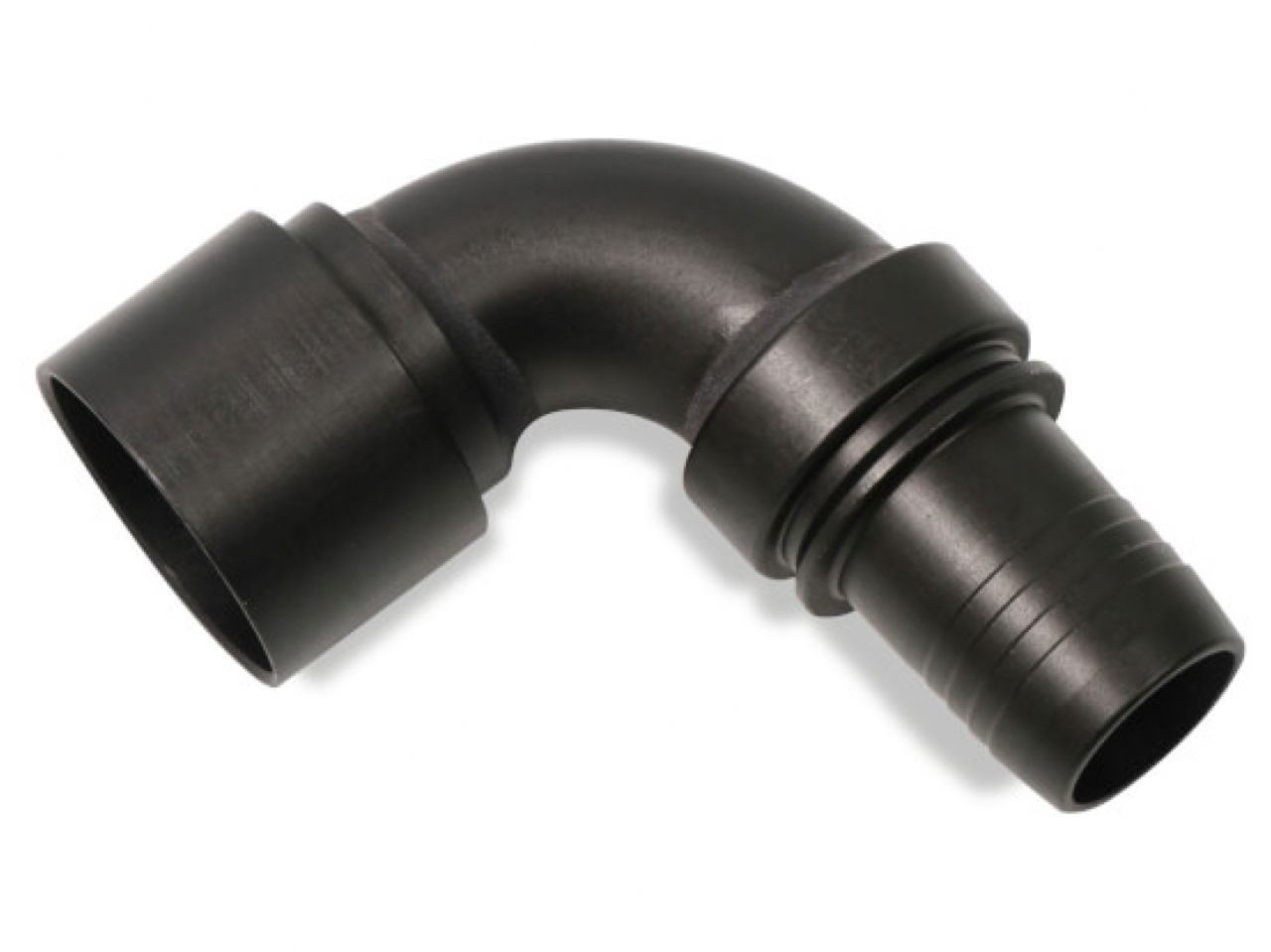

Earl's -20 90 Deg. Female Wiggins Ultrapro Crimp Hose End
Earl's UltraPro Series hose-ends are manufactured from premium materials to be light weight and rugged and are perfectly matched to Earl's UltraPro Series hose. Earl's UltraPro Series hose-ends feature ultra high-strength 2024-T8 aluminum in high-stress components, and fluoroelastomer internal seals which are chemically resistant to all known fuels, oils, and coolants. They feature brazed bent tubes for unmatched strength and all unnecessary weight has been eliminated from Ultra-Pro components.
Features:
- Available Dynamic SwivelT technology used in selected hose-ends allows 360 degrees of rotation of installed line after installation!
- Internal seals are a fluoroelastomer material which is resistant to all known fuel, oil and coolant!
- Bent tube design for unmatched strength and flow!
- UltraPro bent tube hose-ends are furnace-brazed for a permanent and robust bond!
- Designed to withstand harsh environments, brutal vibration, high flow requirements and extreme pressures!
- Black Anodized
- Assembled with an olive that threads onto the double-helix ribbed inner liner of the hose for positive engagement and retention of the hose-ends!
- High stress components are made of high-strength 2024-T8 grade aluminum instead of 6061-T6 aluminum used by competitors!
- Available in Twist-on and Crimp-on styles for more plumbing options at home or at the track!
- SAE port, jump size, and Wiggins connector adapter/hose-ends available
- Straight, 30º, 45º, 60º, 90º, 120º, 150º, and 180º angles available
Specs
Adjustable: Yes
Angle: 90 Degree
Assembly Method: Crimp On
Compatible Hose: UltraPro
Finish: Anodized Black
Fitting to Hose Mate Type: Crimp Collar
Hose End Series: 68
Hose End Size: 20 AN
Hose Size: 20 AN
Material: Aluminum
Product Type: Wiggins Crimp-on Hose Ends
Reusable: No
Swivel: Yes
Wiggins and Hose Size: 20 AN
Wiggins Clamp Size: 20 Wiggins
Wiggins Side: Female Side
Earl's -20 90 Deg. Female Wiggins Ultrapro Crimp Hose End
Sale price$31.53 USD
