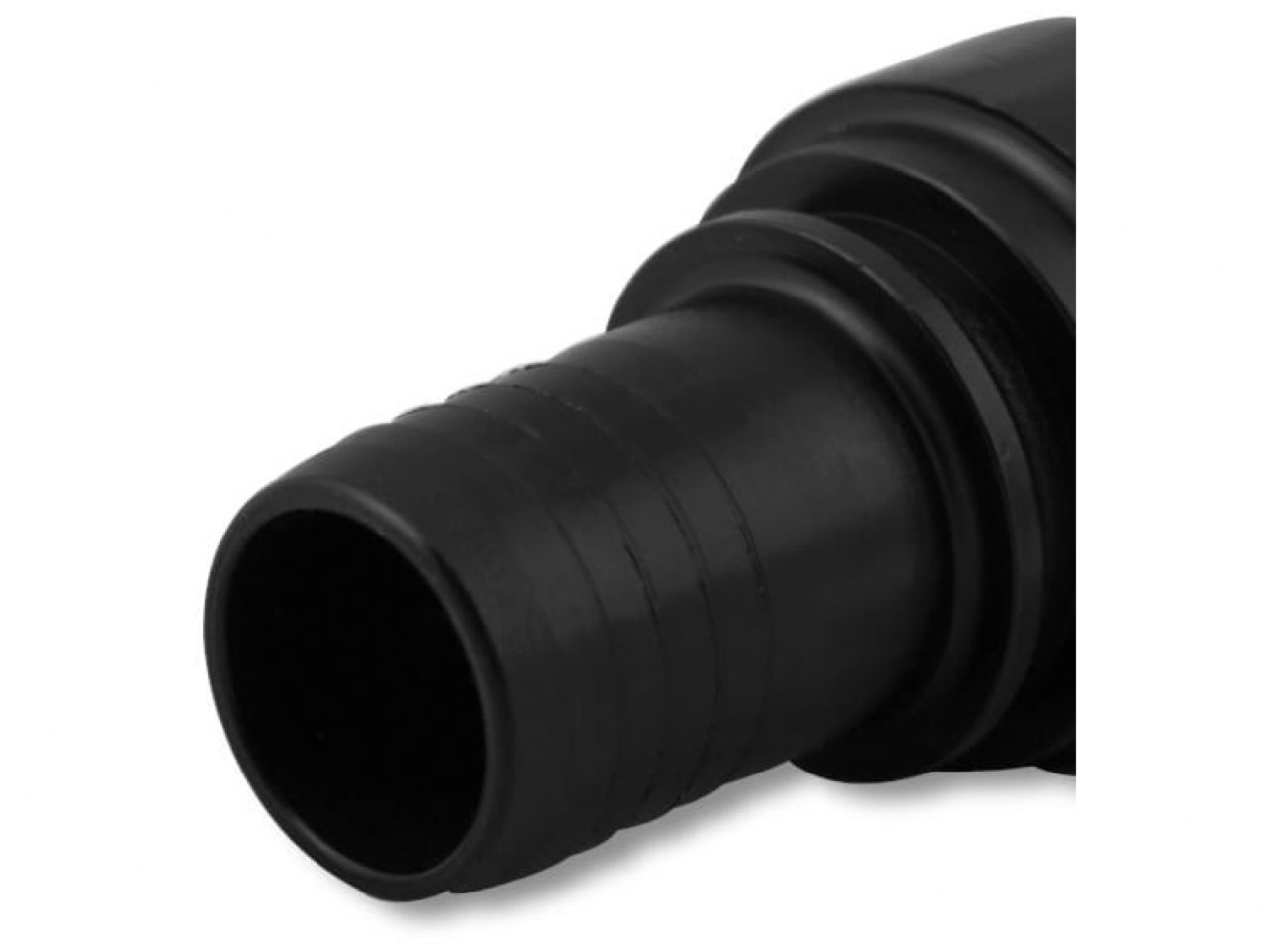

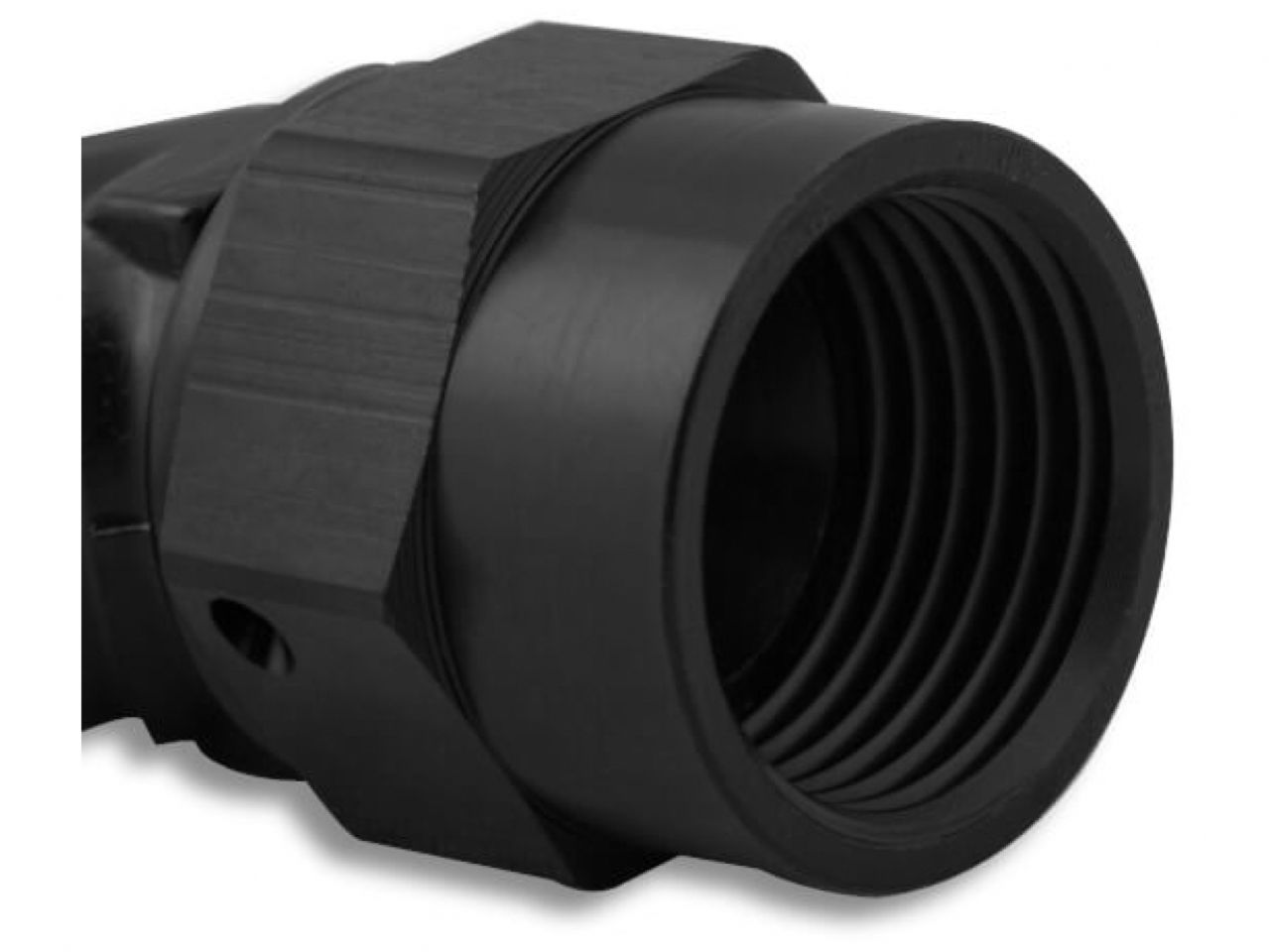

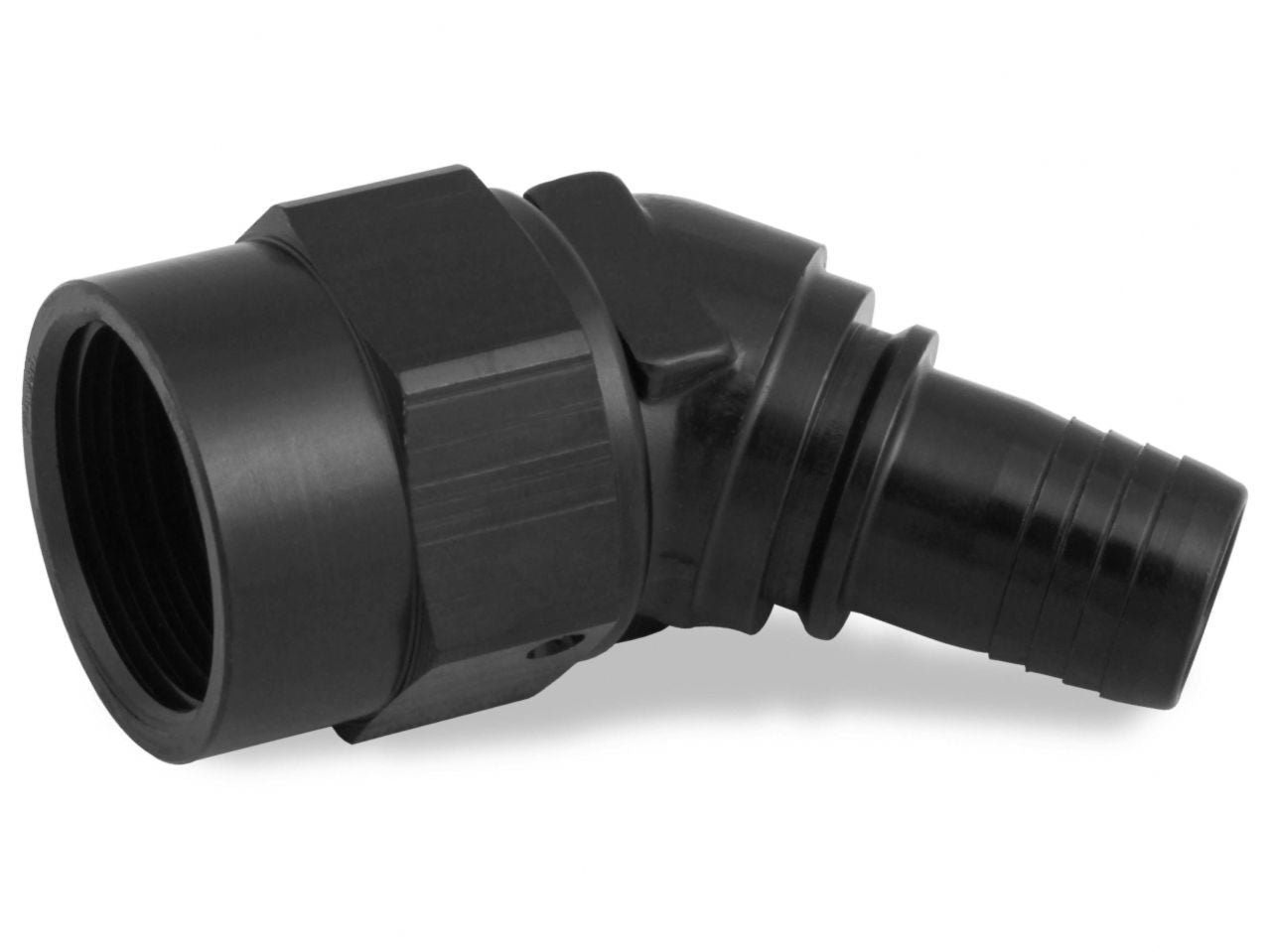

Earl's -8 AN Crimp-On (Non-Swivel) 45 Degree Forged Tube Hose-End
Earl's UltraPro Series hose-ends are manufactured from premium materials to be light weight and rugged and are perfectly matched to Earl's UltraPro Series hose. Earl's UltraPro Series hose-ends feature ultra high-strength 2024-T8 aluminum in high-stress components, and ?uoroelastomer internal seals which are chemically resistant to all known fuels, oils, and coolants.
Features:
Non-swivel, crimp-on hose ends
Internal seals are a ?uoroelastomer material which is resistant to all known fuel, oil and coolant!
Traditional Mil-Spec Bent tube design for unmatched strength and ?ow!
UltraPro bent tube hose-ends are dip-brazed for a permanent and robust bond!
Designed to withstand harsh environments, brutal vibration, high ?ow requirements and extreme pressures!
Black Anodized
Assembled with an olive that threads onto the double-helix ribbed inner liner of the hose for positive engagement and retention of the hose-ends!
High stress components are made of high-strength 2024-T8 grade aluminum instead of 6061-T6 aluminum used by competitors!
Available in Twist-on and Crimp-on styles for more plumbing options at home or at the track!
SAE port, jump size, and Wiggins connector adapter/hose-ends available
Straight, 30º, 45º, 60º, 90º, 120º, 150º, and 180º angles available
Specifications:
- Adjustable:Yes
- AN Thread:8 AN
- Angle:45 Degree
- Assembly Method:Crimp On
- Compatible Hose:UltraPro
- Emission Code:5
- Finish:Anodized Black
- Fitting to Hose Mate Type:Crimp Collar
- Hose End Family:UltraPro - Crimp On
- Hose End Series:68
- Hose End Size:8 AN
- Material:Aluminum
- Product Type:Crimp-on Hose Ends
- Reusable:No
- Swivel:No
