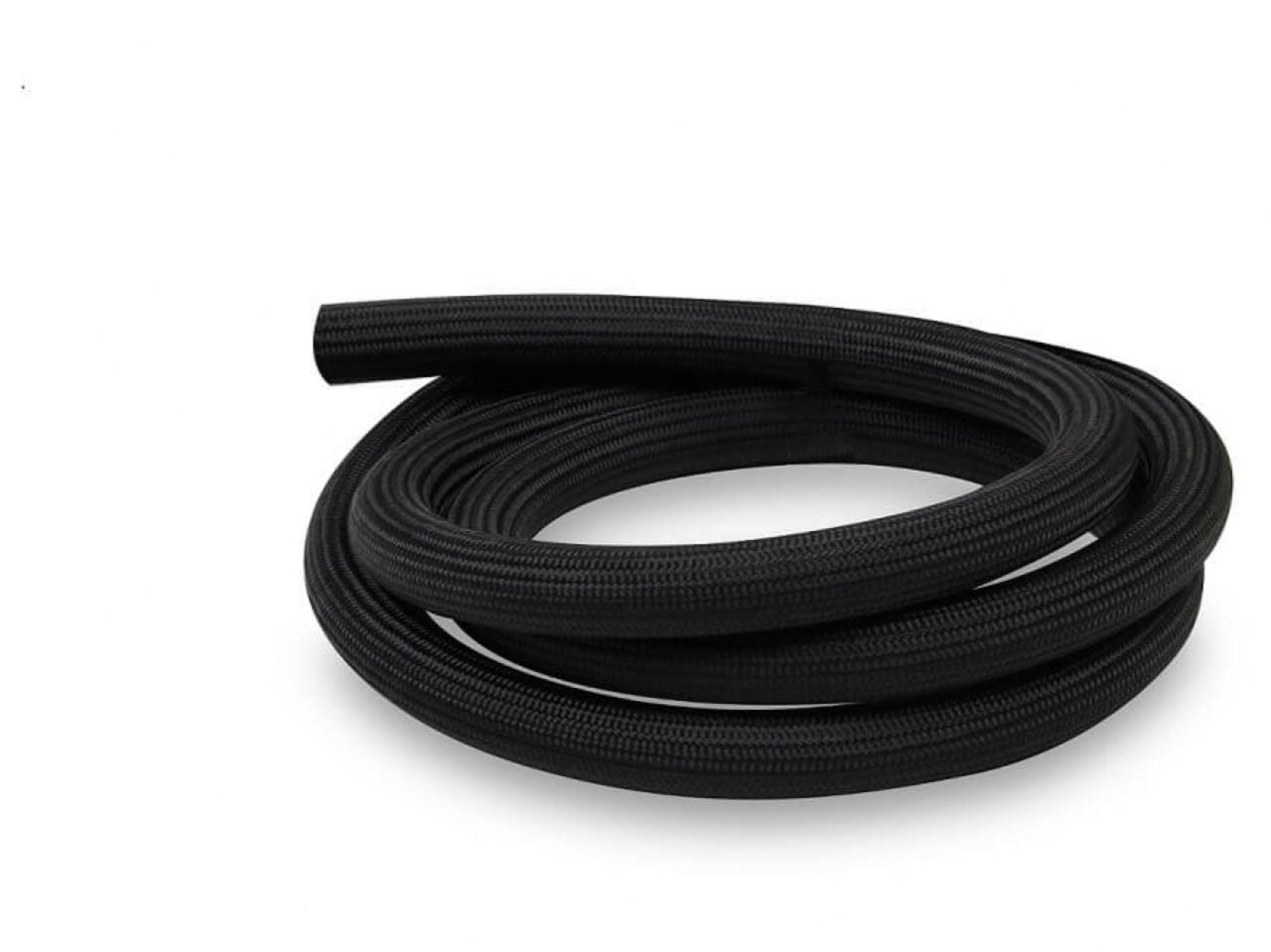

Earl's 10 ft -16 Convoluted Poly Check 680016ERL For Inv.

Modern day high performance vehicles require a plumbing system designed to withstand today's fuids, harsh environments, brutal vibration, ?ow requirements & extreme pressures. UltraPro from Earl's was engineered as a system to exceed the rigorous demands of even the most extreme forms of racing. Don't settle for good enough. Go UltraPro.

Specifications

Compatible Hose Ends: UltraPro

Crimping Die: 29MM - D10029BERL

Final Crimp O.D. Range: 1.179"-1.183"

Fluid Type: Automatic Transmission Fluid; Bio-Fuels; Coolant; Diesel; E85; Methanol/Alcohol; Oil; Pump Gas; Race Gas

Fluid Type Rating - Automatic Transmission Fluid: 5 out of 5 Rating

Fluid Type Rating - Coolant: 5 out of 5 Rating

Fluid Type Rating - Diesel: 5 out of 5 Rating

Fluid Type Rating - E85: 5 out of 5 Rating

Fluid Type Rating - Methanol/Alcohol: 5 out of 5 Rating

Fluid Type Rating - Oil: 5 out of 5 Rating

Fluid Type Rating - Pump Gas: 5 out of 5 Rating

Fluid Type Rating - Race Gas: 5 out of 5 Rating

Hose Family: UltraPro

Hose Length: 10 Feet

Hose Outer Material: Black Polyester

Hose Size: 16 AN

Inside Diameter: .855"

Max Vacuum: 10 in Hg

Max Working PSI: 250 PSI

Min. Bend Radius: 3.5"

Outside Diameter: 1.110"

Product Type: UltraPro Black Polyester Braided

Submersible in Fuel: No

Temperature Range: -67° F to 257° F

Features:

• PTFE inner liner impervious to all known fuels, oils and coolants used in automotive applications
• Designed to withstand harsh environments, brutal vibrations, high flow requirements and extreme pressures
• Double-helix ribbed inner hose liner offers extreme ?exibility and full ?ow making tough plumbing jobs a snap with less hard connections!
• Liner is reinforced with an outside glass-?ber wrap for additional strength and integrity!
• PTFE inner liner is carbon infused for static dissipation
• PTFE inner liner has ultra low coef?cient of friction to promote maximum ?ow
• Assembled with an olive that threads onto the double-helix ribbed inner liner of the hose for positive engagement and retention of the hose-ends
• Available in popular -6, -8, -10, -12, -16, and -20 sizes in both woven polyester braid and stainless steel braid
• UltraPro Polyester Braid hose is up to 67% lighter than traditional rubber hose with stainless steel braid
• UltraPro Stainless Steel Braid is up to 37% lighter than traditional rubber hose with stainless steel braid.
