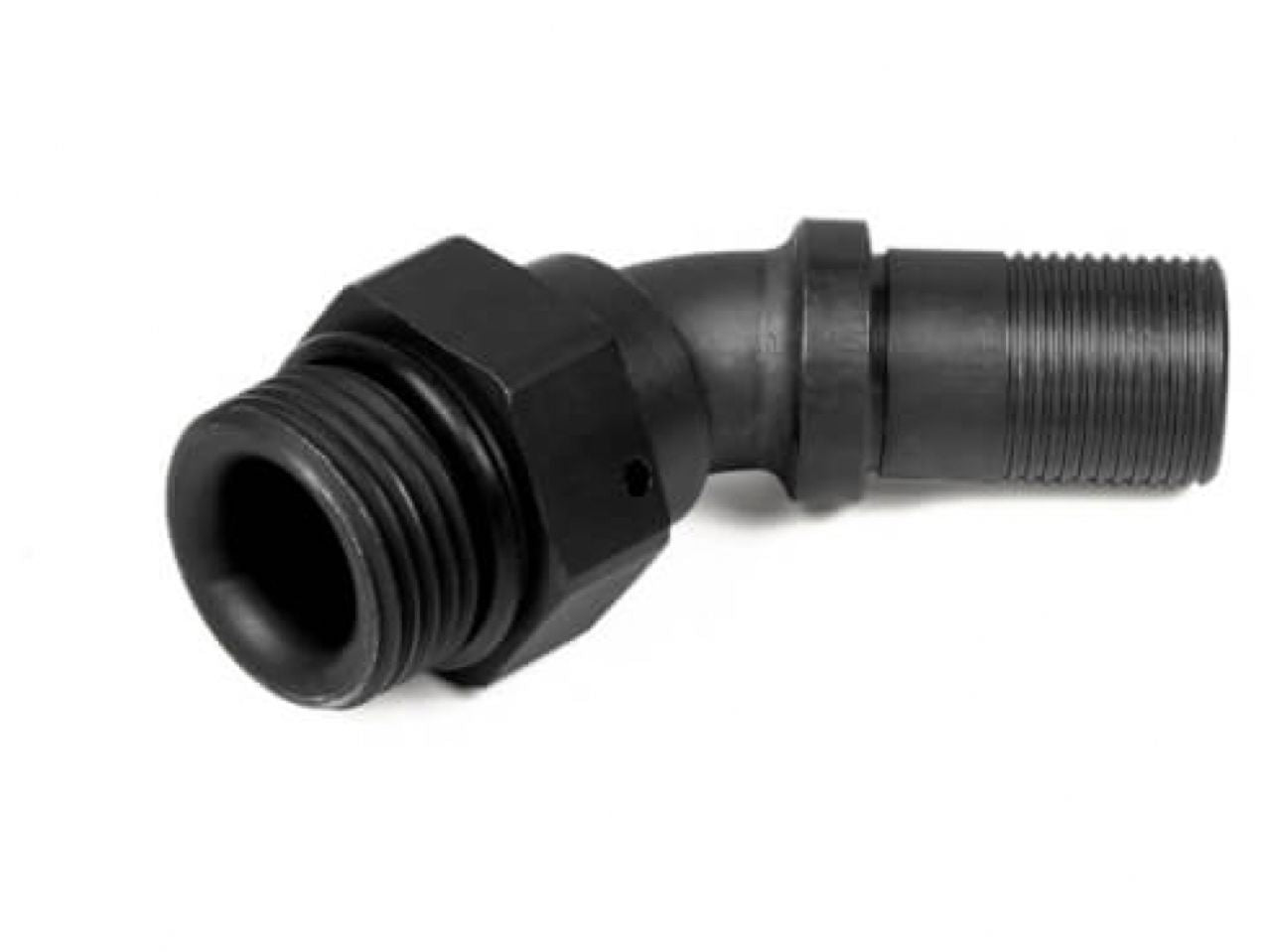

Earl's Ultra-Flex Hose End - 45 Degree ORB - Size -10

Ultra-Flex Male AN Hose ends have been developed by Earl's to be used with our Ultra-Flex 650™ hose. These hose ends eliminate the need for an adapter so they provide a lower profile where space is limited. The male AN thread swivels for easy installation and seals on a Buna O-ring. The traditional hex sizes have also been reduced to save weight and the port side is contoured for increased flow.
Features:
• Reliable and Professional
• Lightweight Aircraft Aluminum
• Easy To Assemble
Specifications
Adjustable: No
Angle: 45 Degree
Assembly Method: Crimp On
Collar Material: Aluminum
Compatible Hose: Ultra-Flex
Emission Code: 5
Finish: Anodized Black
Fitting to Hose Mate Type: Crimp Collar
Hose End Family: Ultra-Flex
Hose End Series: 67
Hose Size: 10 AN
Male AN Thread: 10 AN O-Ring Swivel
Material: Aluminum
Product Type: Port Crimp-on Hose Ends
Reusable: No
Swivel: No
