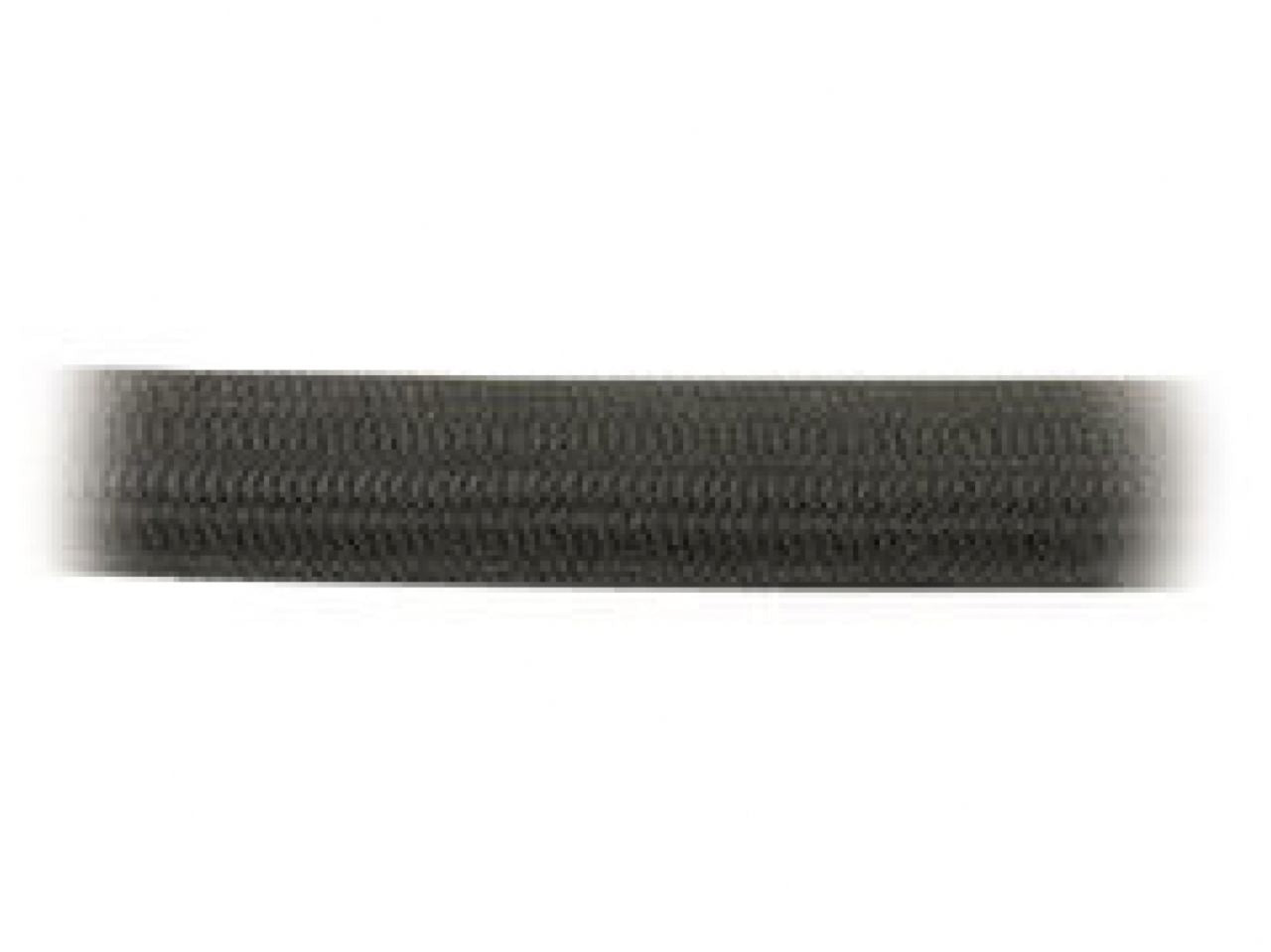

Earl's 6 Ft-12 Ultra Flex Kevlar Braided Hose
The packaging envelopes of the modern racing car become tighter each year - leaving less room for auxiliaries such as plumbing. At the same time it becomes more and more difficult to get the cars down to minimum weight. Earl's Ultra-Flex 650™ hose solves these issues. Earl's finest and lightest hose combines a woven Ultra-light Kevlar® braid with a smooth bore PTFE tubing for increased flow and convoluted outside for incredible flexibility. It also has significantly higher flow and pressure ratings than conventional convoluted PTFE hose. Ultra-Flex 650™ is 60% lighter than our stainless braid-protected synthetic rubber hose, and 15% lighter than our Pro-Lite 350™ hose. You have spent a lot of time, energy and money on your race engine and you should bring the life sustaining fluid to it with the best hose on the market today - Earl's Ultra-Flex 650™. (All trademarks are property of their respective owners.).
Specifications
Compatible Hose Ends: Ultra Flex
Crimping Die: 25MM - D10025BERL
Final Crimp O.D. Range: 1.145"-.1.159"
Fluid Type: Automatic Transmission Fluid; Bio-Fuels; Coolant; Diesel; E85; Methanol/Alcohol; Oil; Pump Gas; Race Gas
Fluid Type Rating - Alcohol: 5 out of 5 Rating
Fluid Type Rating - Automatic Trans Fluid: 5 out of 5 Rating
Fluid Type Rating - Coolant: 5 out of 5 Rating
Fluid Type Rating - Diesel: 5 out of 5 Rating
Fluid Type Rating - E85: 5 out of 5 Rating
Fluid Type Rating - Oil: 5 out of 5 Rating
Fluid Type Rating - Pump Gas: 5 out of 5 Rating
Fluid Type Rating - Race Gas: 5 out of 5 Rating
Fluid Type Rating - Vacuum: 3 out of 5 Rating
Hose Length: 6 Feet
Hose Outer Material: KEVLAR
Hose Size: 12 AN
Inside Diameter: .780"
Max Working PSI: 880 PSI
Min. Bend Radius: 3.93"
Outside Diameter: .961"
Product Type: Hose
Submersible in Fuel: No
Features:
- Ultra-light Kevlar®
- High-Temp. Smooth bore PTFE tubing
- Convoluted outer wall of inner tube for incredible flexibility
- Remains Flexible at Temperatures Between -94°F and +500°F
- Clean and Fast Flowing
- Sold in Pre-Packaged Boxed Lengths
