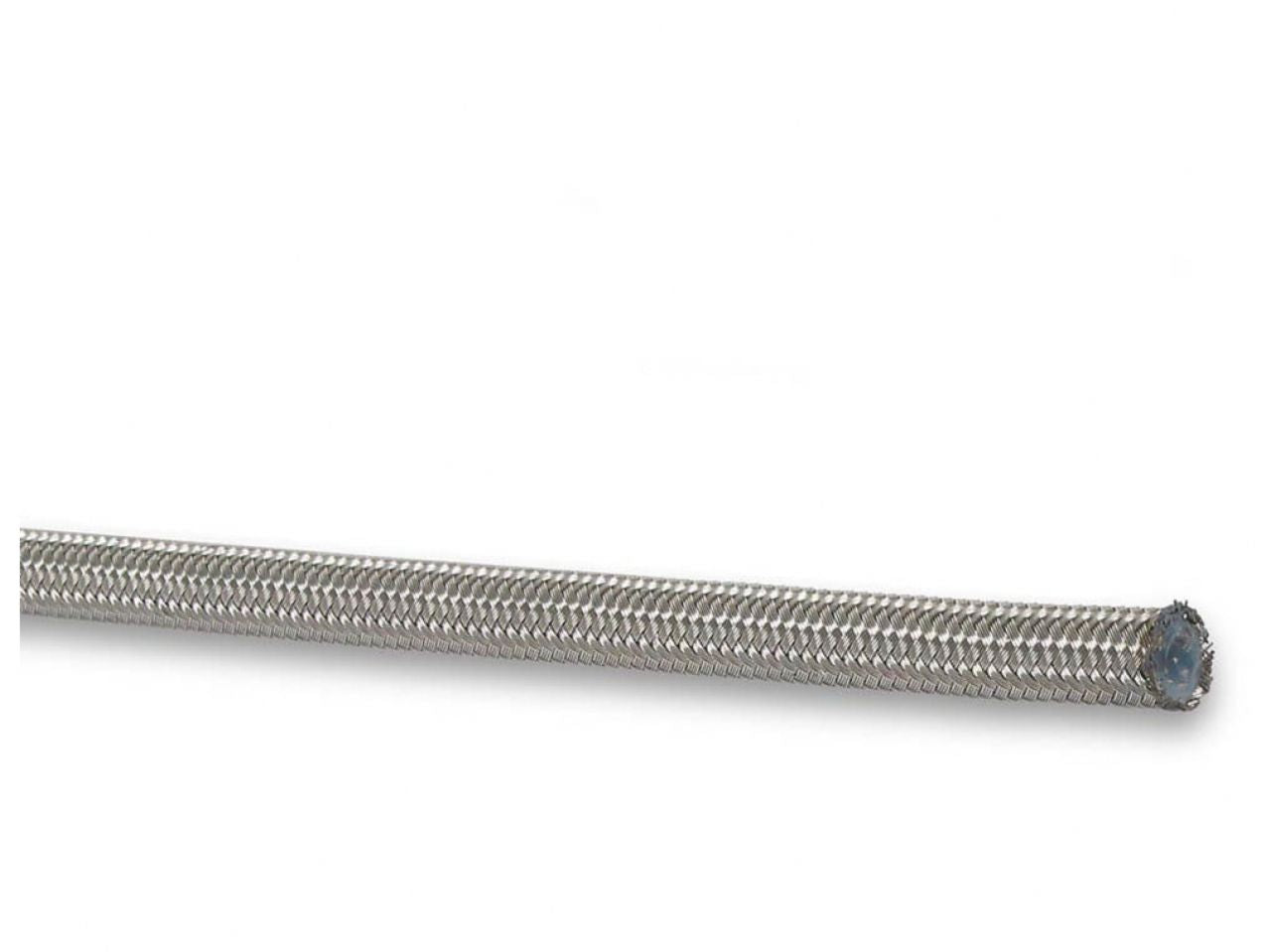

Earl's Speed-Flex Hose Size -8 Stainless Steel Braid - 33 Ft

Speed-Flex Hose Size -8 Stainless Steel Braid - 33 Ft

Speed-Flex hose is intended for use with Speed-Seal hose ends only. No other Earl's hose end is intended for use with Speed-Flex hose. The use of other manufacturers hose ends is not recommended.

Lightweight Stainless Steel Outer Braid Over PTFE Liner, High Pressure Hose, Withstands 1500 Max PSI, Easy to Cut and Assemble. Accepts Speed-Seal Hose Ends Only.

Features:

• Use Of Extruded PTFE

• Stainless Steel Outer Braid

• Improved Abrasion Resistance

• Increased Temp. Capacity

• Impervious To Any Fuel Blend

• Carbon Lined for Static Dissipation

• -65° to +450° F Operating Temperature

Specifications

Carbon Lined: Yes

Compatible Hose Ends: Speed-Seal

Emission Code: 5

Fluid Type: Automatic Transmission Fluid; Bio-Fuels; Brake Fluid; Coolant; Diesel; E85; Methanol/Alcohol; Oil; Pump Gas; Race Gas

Fluid Type Rating - Automatic Transmission Fluid: 5 out of 5 Rating

Fluid Type Rating - Bio-Fuels: 5 out of 5 Rating

Fluid Type Rating - Brake Fluid: 5 out of 5 Rating

Fluid Type Rating - Coolant: 5 out of 5 Rating

Fluid Type Rating - Diesel: 5 out of 5 Rating

Fluid Type Rating - E85: 5 out of 5 Rating

Fluid Type Rating - Methanol/Alcohol: 5 out of 5 Rating

Fluid Type Rating - Oil: 5 out of 5 Rating

Fluid Type Rating - Power Steering Fluid: 5 out of 5 Rating

Fluid Type Rating - Pump Gas: 5 out of 5 Rating

Fluid Type Rating - Race Gas: 5 out of 5 Rating

Fluid Type Rating - Vacuum: 1 out of 5 Rating

Hose End Finish: Electroless Nickel Plated

Hose End Material: Steel

Hose Family: Speed-Flex

Hose Length: 33 Feet

Hose Outer Material: Stainless Steel

Hose Size: 8 AN

Inside Diameter: .391"-.421"

Max Working PSI: 1000 PSI

Min. Bend Radius: 5.0"

Outside Diameter: .546"-.585"

Product Type: Hose

PTFE Wall Thickness: .040"

Submersible in Fuel: Yes

Temperature Range: -65° to 450° F
