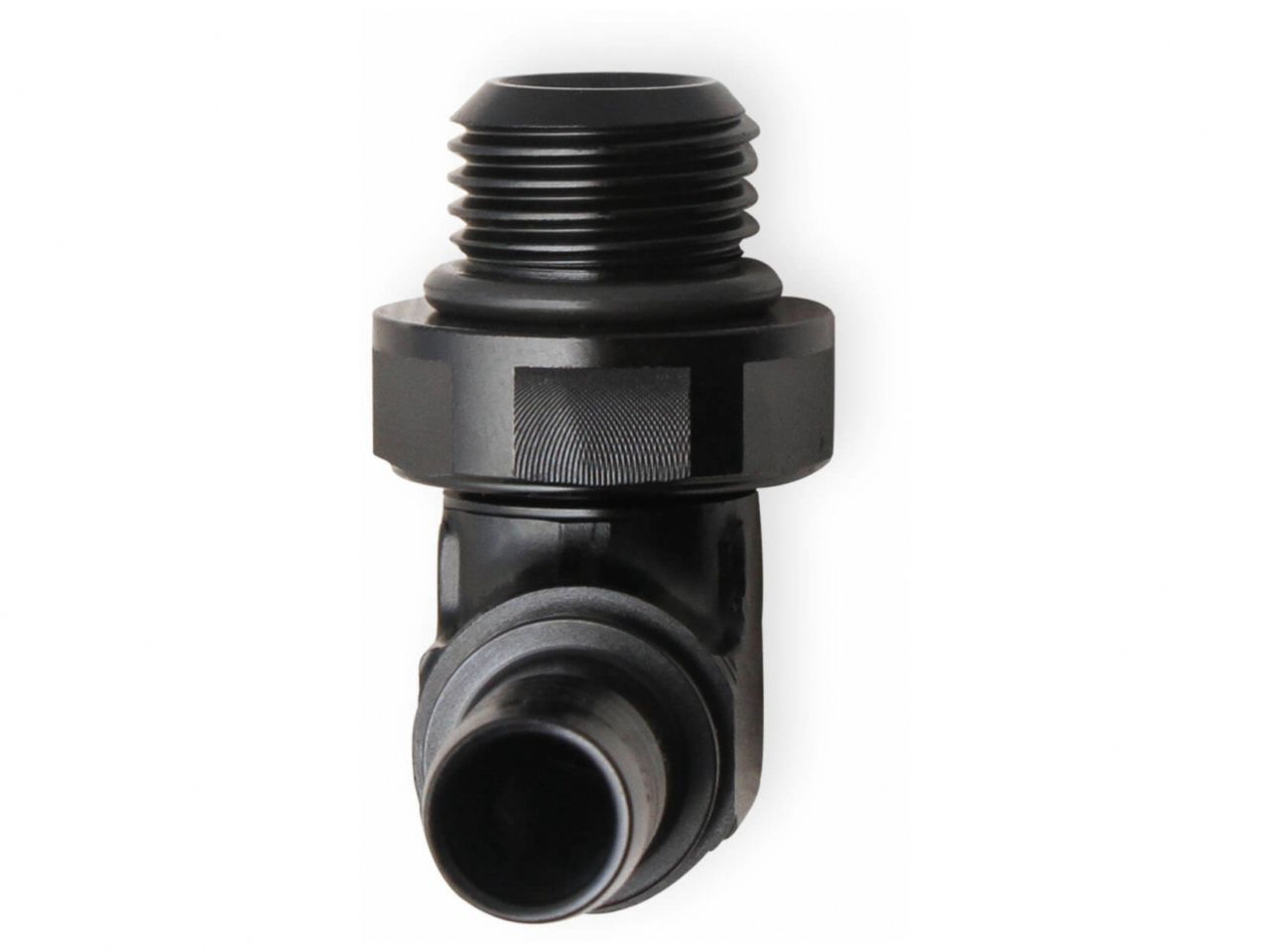

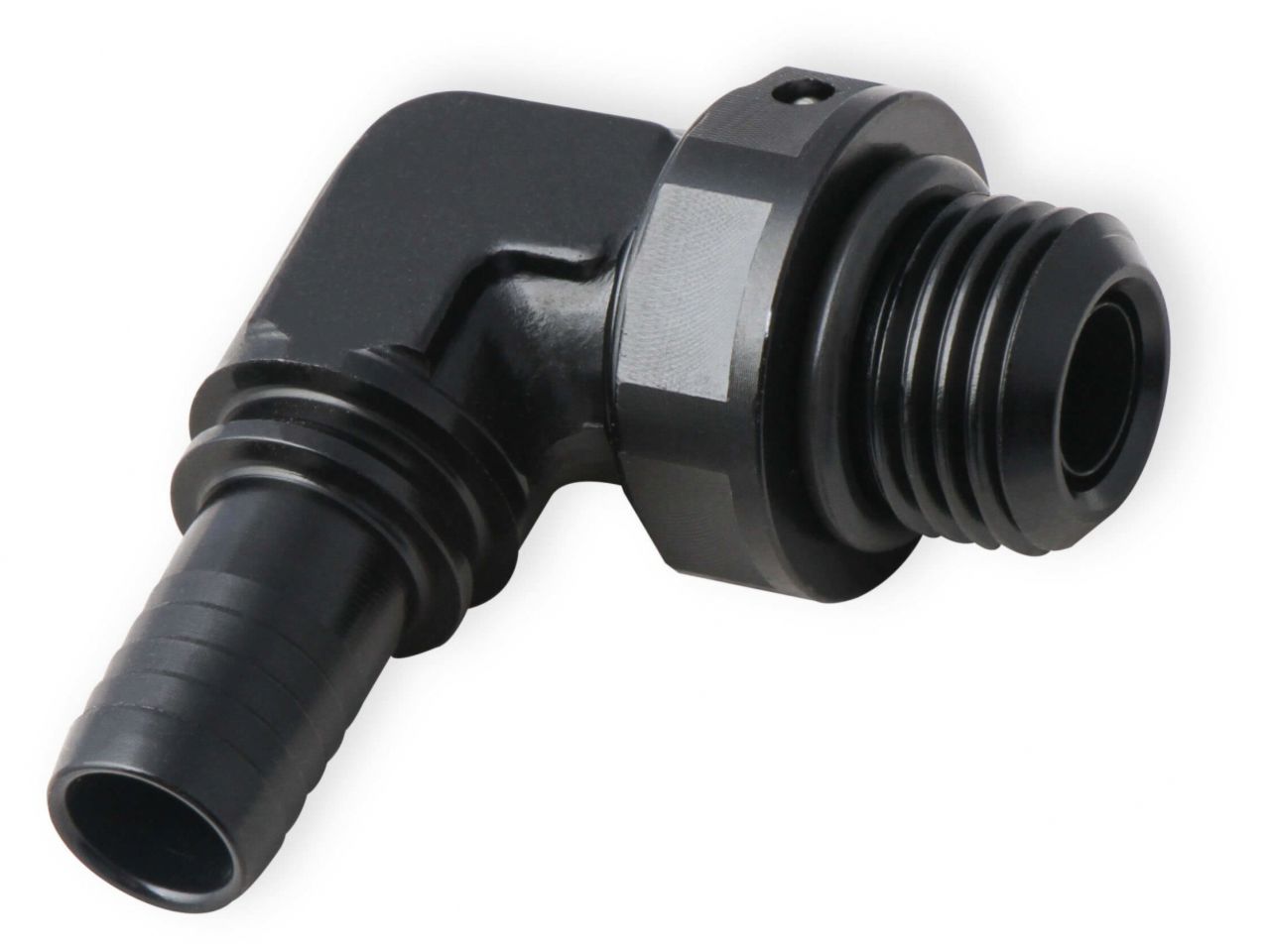

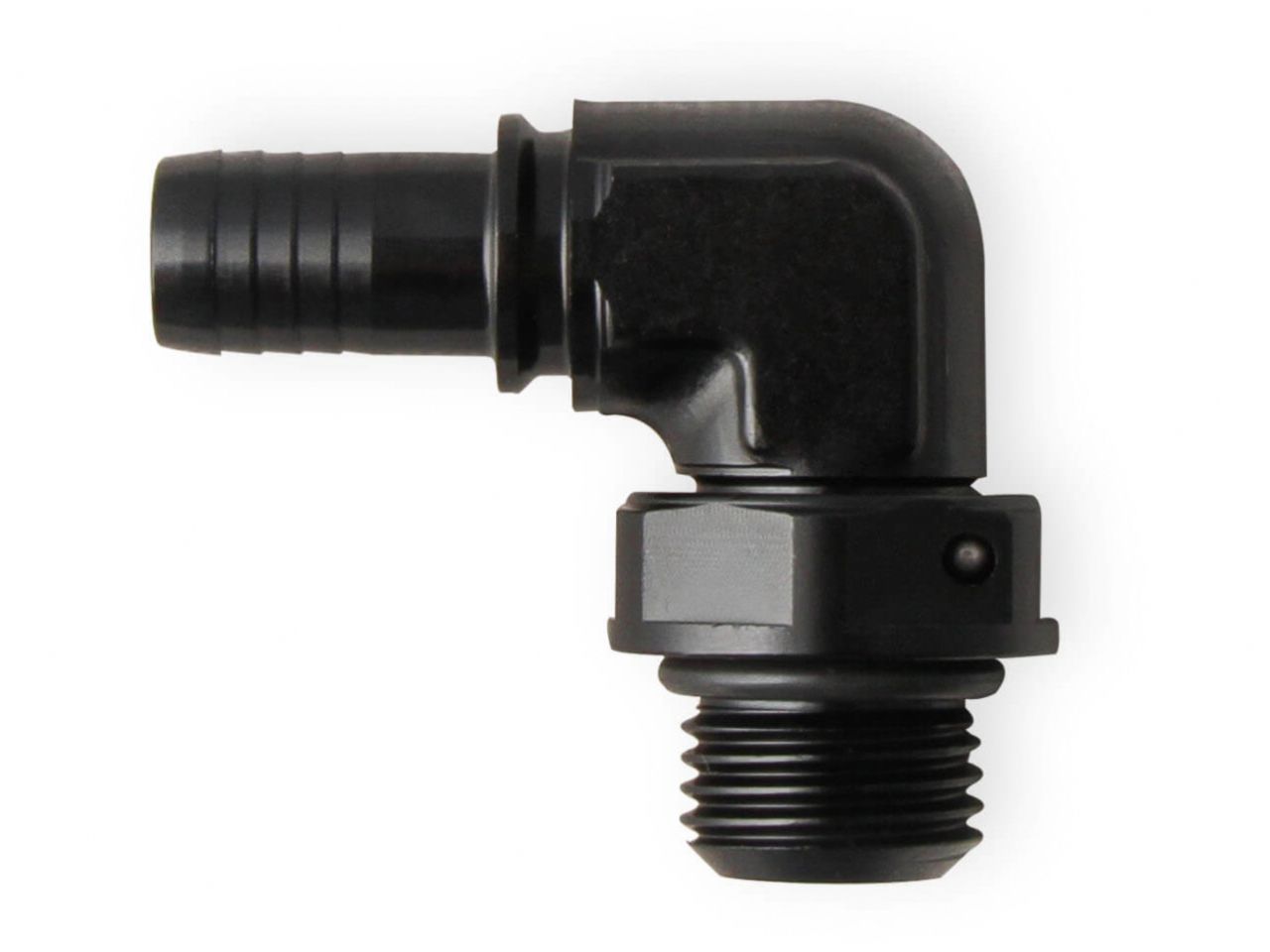

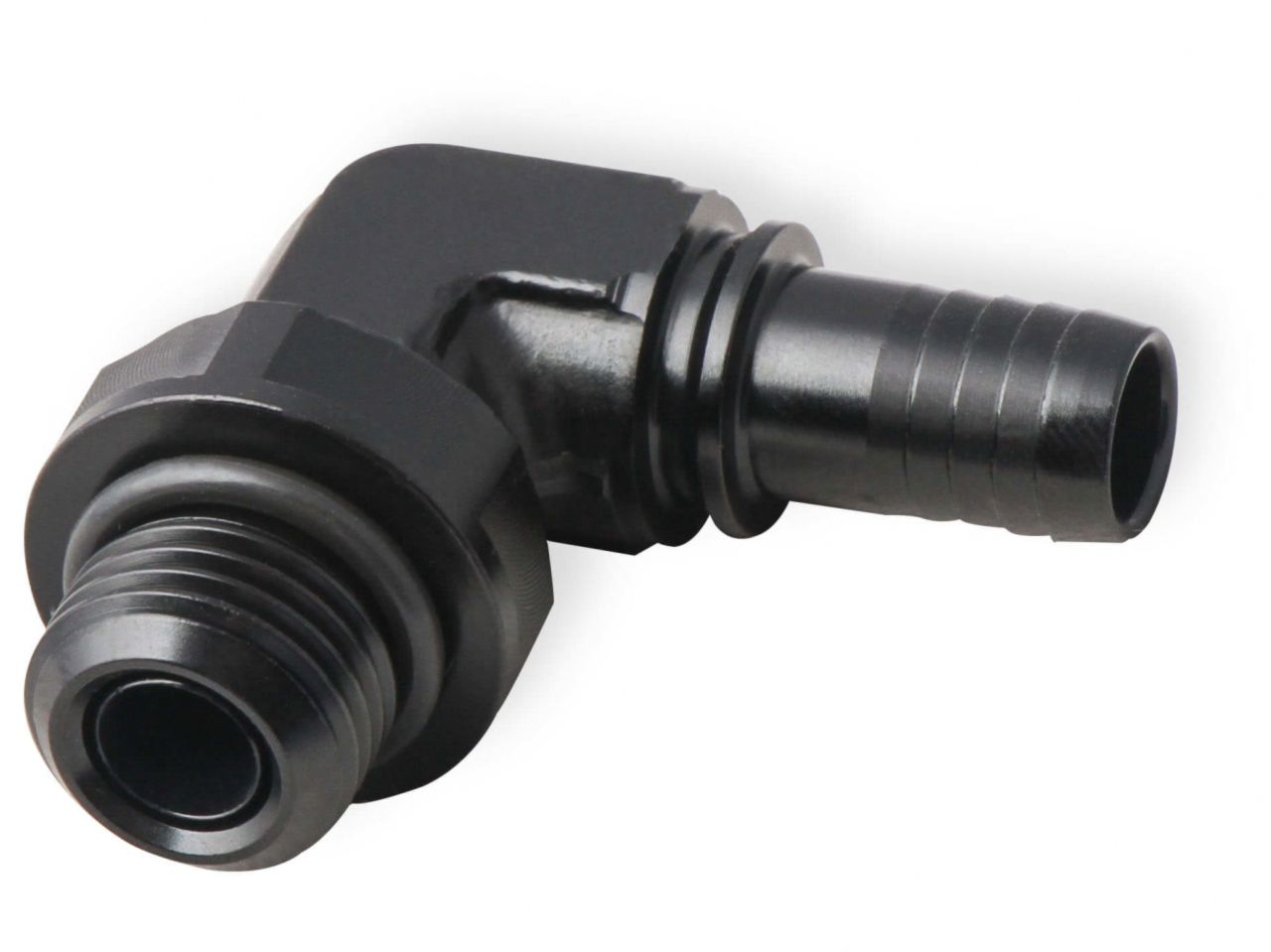

Earl's -10 90 Deg. L/P Ultrapro Hose End To 1-1/16 Port

Earl's UltraPro Series hose-ends are manufactured from premium materials to be light weight and rugged and are perfectly matched to Earl's UltraPro Series hose. Earl's UltraPro Series hose-ends feature ultra high-strength 2024-T8 aluminum in high-stress components, and ?uoroelastomer internal seals which are chemically resistant to all known fuels, oils, and coolants. They feature brazed bent tubes for unmatched strength and all unnecessary weight has been eliminated from Ultra-Pro components.Features:

• Available Dynamic Swivel™ technology used in selected hose-ends allows 360 degrees of rotation of installed line after installation!
• Internal seals are a ?uoroelastomer material which is resistant to all known fuel, oil and coolant!
• Bent tube design for unmatched strength and ?ow!
• UltraPro bent tube hose-ends are Dip-brazed for a permanent and robust bond!
• Designed to withstand harsh environments, brutal vibration, high ?ow requirements and extreme pressures!
• Black Anodized
• Assembled with an olive that threads onto the double-helix ribbed inner liner of the hose for positive engagement and retention of the hose-ends!
• High stress components are made of high-strength 2024-T8 grade aluminum instead of 6061-T6 aluminum used by competitors!
• SAE port, jump size, and Wiggins connector adapter/hose-ends available
• 45 & 90 angles available

Specification

• Adjustable: Yes
• AN Thread: 12 AN
• Angle: 90 Degree
• Assembly Method: Crimp On
• Compatible Hose UltraPro
• Finish: Anodized Black
• Fitting to Hose Mate Type: Crimp Collar
• Hose End Family: UltraPro
• Hose End Series: 68
• Hose End Size: 10 AN
• Hose Size: 10 AN
• Material: Aluminum
• Product Type: Port Crimp-on Hose Ends
• Reusable: No
• Swivel: Yes
