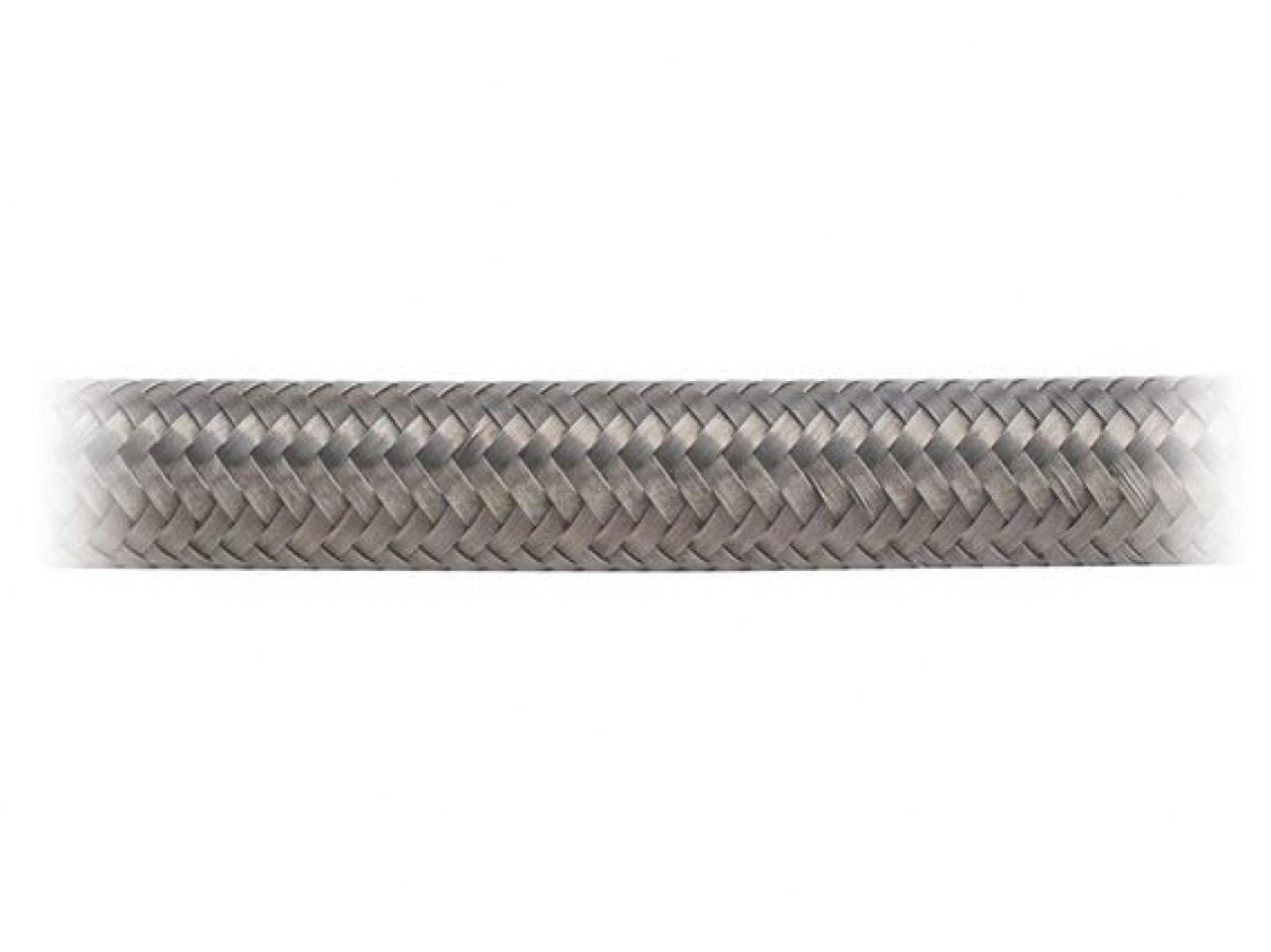

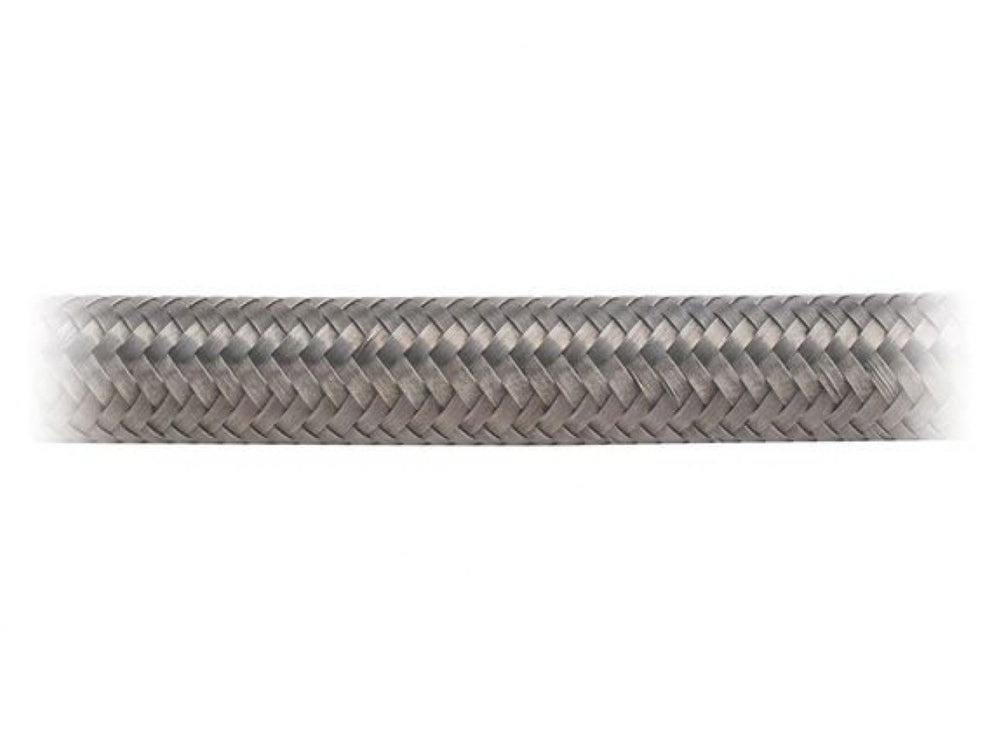

Earl's 20 Ft. -20 Perform-O-Flex

Earl's Perform-O-Flex stainless braid-protected synthetic rubber hose is the premium quality racing hose depended on by the top racing teams of every professional sanctioning body in the world. PERFORM-O-FLEX features an inner liner of synthetic rubber. A partial coverage protective sheath of stainless steel braid is embedded in the liner during manufacturing. The reinforced hose liner is then bonded to a full-coverage outer protective sheath of high tensile stainless steel wire braid. Tougher than this, hose doesn't get. Yet Perform-O-Flex, with its inner liner, remains flexible at temperatures between -40 and +350 degrees F. Racing Greats have depended on Perform-O-Flex hose and Swivel-Seal hose ends since 1972. Perform-O-Flex hose is intended for use with Swivel-Seal, Auto-Fit and Auto-Crimp hose ends only. No other Earl's hose ends are intended for use with Perform-O-Flex hose. The use of other manufacturer's hose ends is not recommended. PSI rating is determined by many factors including hose end in use and assembly method.

Features:

• Stainless Steel Inner Braid

• High-Temp. Synthetic Rubber

• Mechanical Bond Between Layers

• Clean and Fast Flowing

• Provides Constant Flow

• Full Coverage Outer Braid

Specifications

Compatible Hose Ends: Auto-Crimp; Auto-Fit; Econ-O-Fit; Swivel-Seal

Emission Code: 5

Fluid Type: Automatic Transmission Fluid; Coolant; Diesel; E85; Methanol/Alcohol; Oil; Pump Gas; Race Gas

Fluid Type Rating - Automatic Transmission Fluid: 5 out of 5 Rating

Fluid Type Rating - Coolant: 5 out of 5 Rating

Fluid Type Rating - Diesel: 2 out of 5 Rating

Fluid Type Rating - E85: 2 out of 5 Rating

Fluid Type Rating - Methanol/Alcohol: 1 out of 5 Rating

Fluid Type Rating - Oil: 5 out of 5 Rating

Fluid Type Rating - Pump Gas: 2 out of 5 Rating

Fluid Type Rating - Race Gas: 3 out of 5 Rating

Fluid Type Rating - Vacuum: 5 out of 5 Rating

Hose Family: Perform-O-Flex

Hose Length: 20 Feet

Hose Outer Material: Stainless Steel

Hose Size: 20 AN

Inside Diameter: 1.125"

Min. Bend Radius: 8.0"

Outside Diameter: 1.438"

Product Type: Hose

Submersible in Fuel: No

Temperature Range: -40° to 350° F
