Earl's 20 FT. -10 Perform-O-Flex

SKU: 04491 | MPN:  420010ERL
Sale price$273.00 USD
Sold out

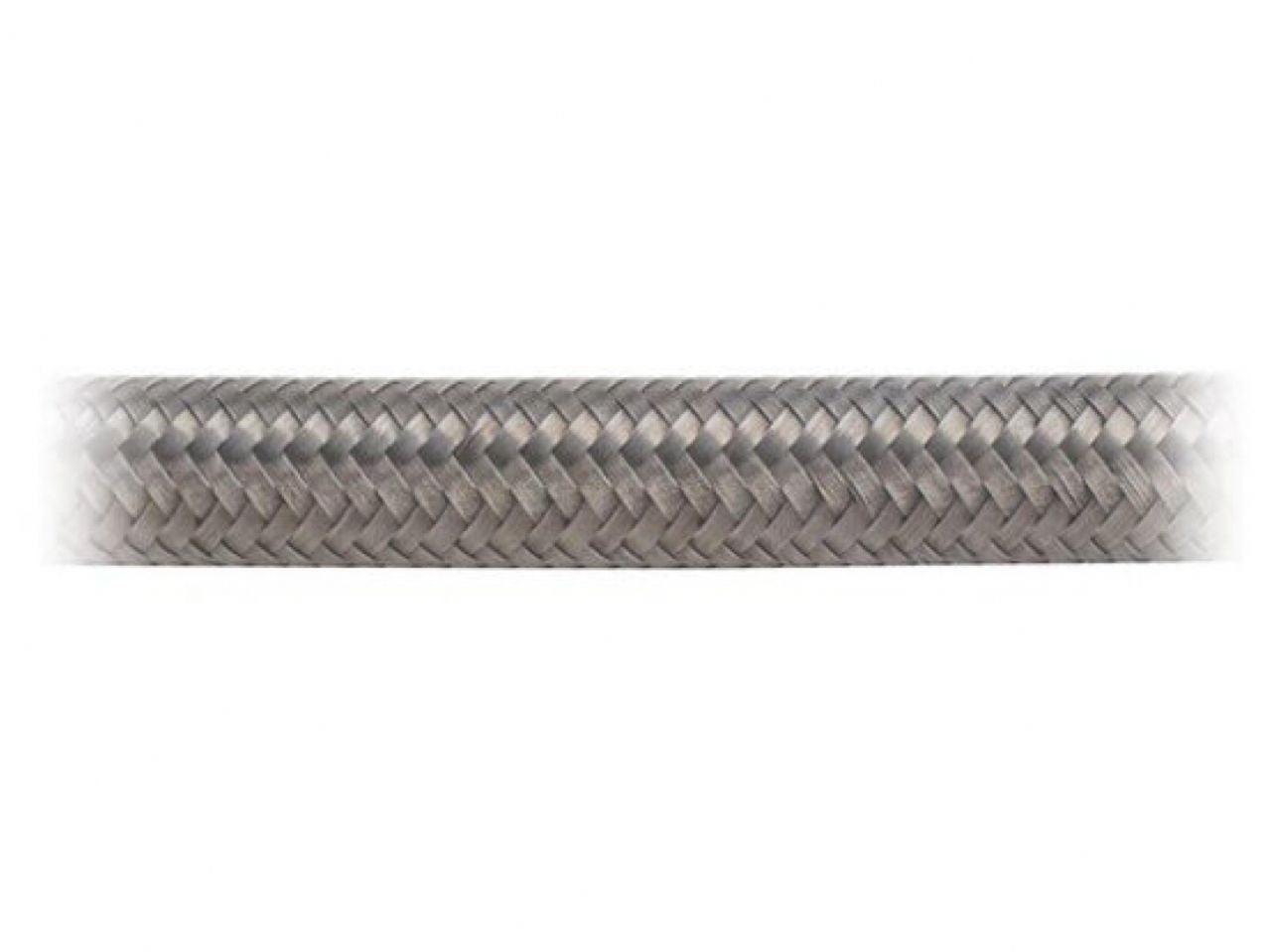

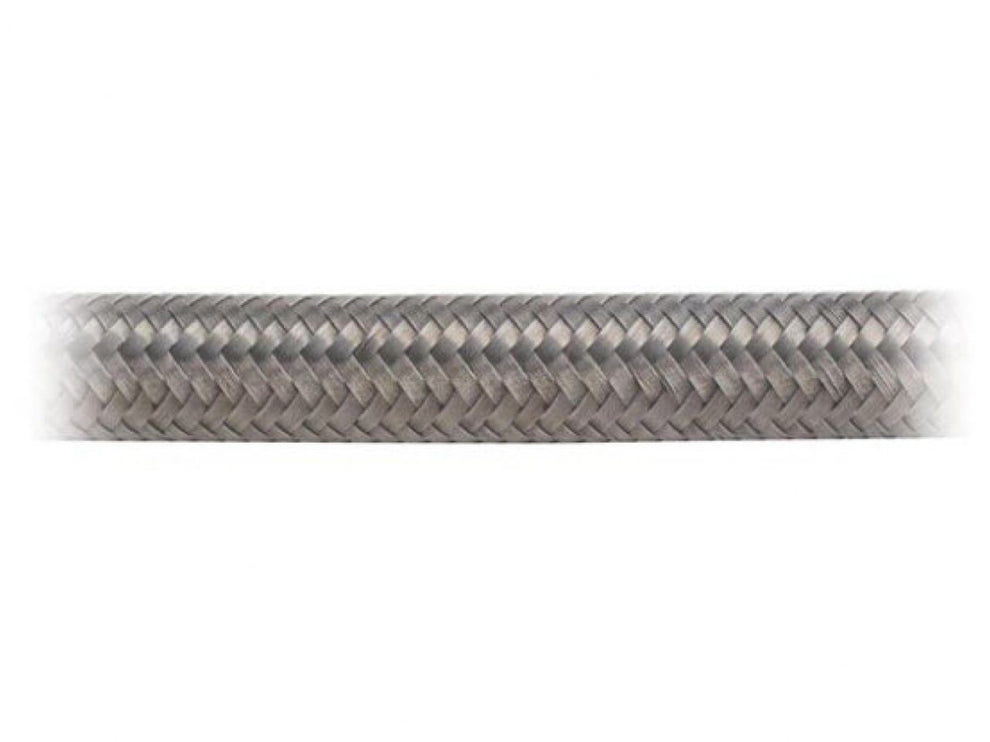

Earl's PERFORM-O-FLEX stainless braid-protected synthetic rubber hose is the premium quality racing hose depended on by the top racing teams of every professional sanctioning body in the world. PERFORM-O-FLEX features an inner liner of synthetic rubber. A partial coverage protective sheath of stainless steel braid is embedded in the liner during manufacturing. The reinforced hose liner is then bonded to a full-coverage outer protective sheath of high tensile stainless steel wire braid. Tougher than this, hose doesn't get. Yet Perform-O-Flex, with its inner liner, remains flexible at temperatures between -40 and +350 degrees F. Racing Greats have depended on PERFORM-O-FLEX hose and SWIVEL-SEAL hose ends since 1972. Perform-O-Flex hose is intended for use with Swivel-Seal, Auto-Fit and Auto-Crimp hose ends only. No other Earl's hose ends are intended for use with Perform-O-Flex hose. The use of other manufacturer's hose ends is not recommended. PSI rating is determined by many factors including hose end in use and assembly method.

Features:

  • Stainless Steel Inner Braid
  • High-Temp. Synthetic Rubber
  • Mechanical Bond Between Layers
  • Clean and Fast Flowing
  • Provides Constant Flow
  • Full Coverage Outer Braid

Specs

Compatible Hose Ends: Auto-Crimp,Auto-Fit,Econ-O-Fit,Swivel-Seal
Fluid Type: Automatic Transmission Fluid,Coolant,Diesel,E85,Methanol/Alcohol,Oil
Pump Gas,Race Gas
Hose Length: 20 Feet
Hose Outer Material: STAINLESS STEEL
Hose Size: 10 AN
Inside Diameter: .563"
Max Working PSI; 1250 PSI
Min. Bend Radius: 4.0"
Outside Diameter: .797"
Product Type: Hose
Submersible in Fuel: No
Temperature Range: -40° to 350° F
