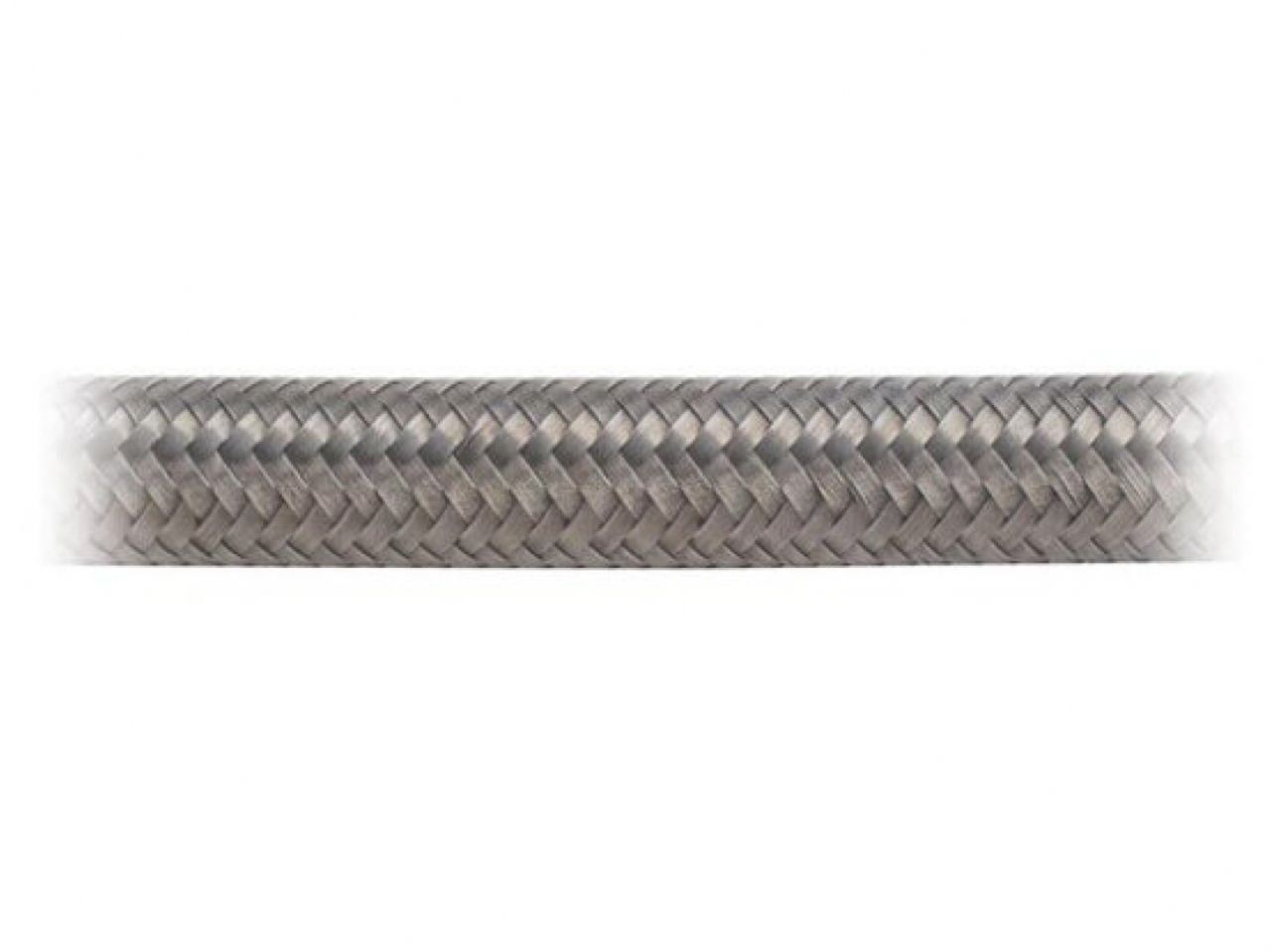

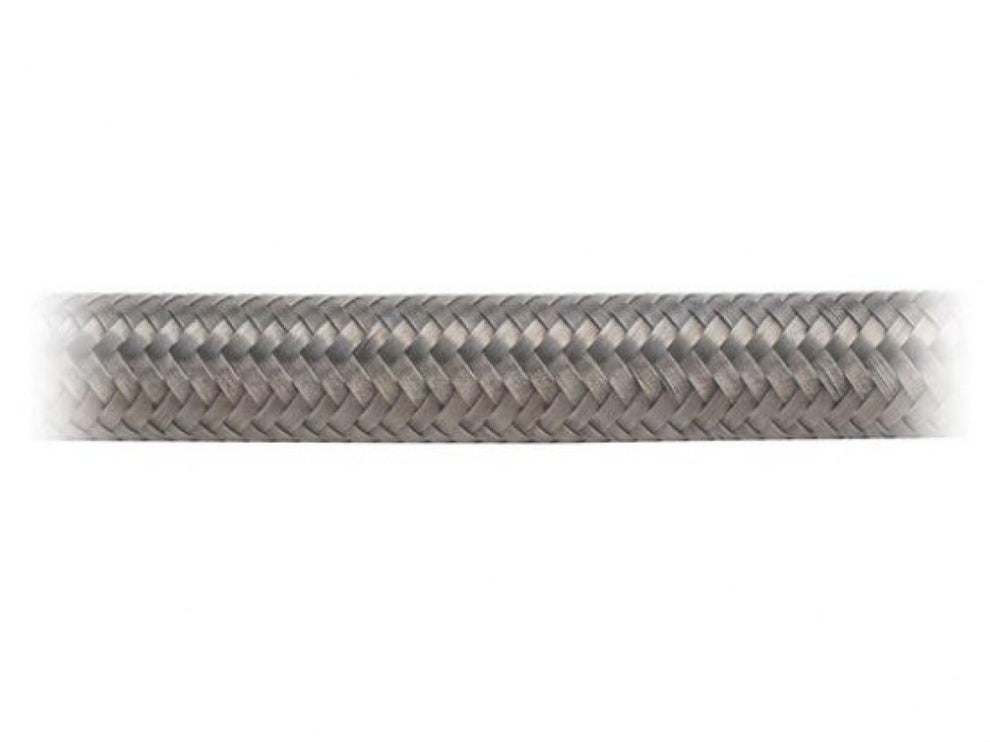

Earl's 20 Ft. -4 Perform-O-Flex

SKU: 03G38 | MPN:  420004ERL
Sale price$233.69 USD
Sold out

Earl's PERFORM-O-FLEX stainless braid-protected synthetic rubber hose is the premium quality racing hose depended on by the top racing teams of every professional sanctioning body in the world. PERFORM-O-FLEX features an inner liner of synthetic rubber. A partial coverage protective sheath of stainless steel braid is embedded in the liner during manufacturing. The reinforced hose liner is then bonded to a full-coverage outer protective sheath of high tensile stainless steel wire braid. Tougher than this, hose doesn't get. Yet Perform-O-Flex, with its inner liner, remains flexible at temperatures between -40 and +350 degrees F. Racing Greats have depended on PERFORM-O-FLEX hose and SWIVEL-SEAL hose ends since 1972. Perform-O-Flex hose is intended for use with Swivel-Seal, Auto-Fit and Auto-Crimp hose ends only. No other Earl's hose ends are intended for use with Perform-O-Flex hose. The use of other manufacturer's hose ends is not recommended. PSI rating is determined by many factors including hose end in use and assembly method.

Features:

  • Stainless Steel Inner Braid
  • High-Temp. Synthetic Rubber
  • Mechanical Bond Between Layers
  • Clean and Fast Flowing
  • Provides Constant Flow
  • Full Coverage Outer Braid

Specs :

Brand : Earls
Compatible Hose Ends : Auto-Crimp
: Auto-Fit
: Econ-O-Fit
: Swivel-Seal
Fluid Type : Automatic Transmission Fluid
: Coolant
: Diesel
: E85
: Methanol/Alcohol
: Oil
: Pump Gas
: Race Gas
Hose Length : 20 Feet
Hose Outer Material : STAINLESS STEEL
Hose Size : 4 AN
Inside Diameter : .219"
Max Working PSI : 1500 PSI
Min. Bend Radius : 2.0"
Outside Diameter : .436"
Product Type : Hose
Submersible in Fuel : No
Temperature Range : -40° to 350° F
Part Number : 420004ERL
