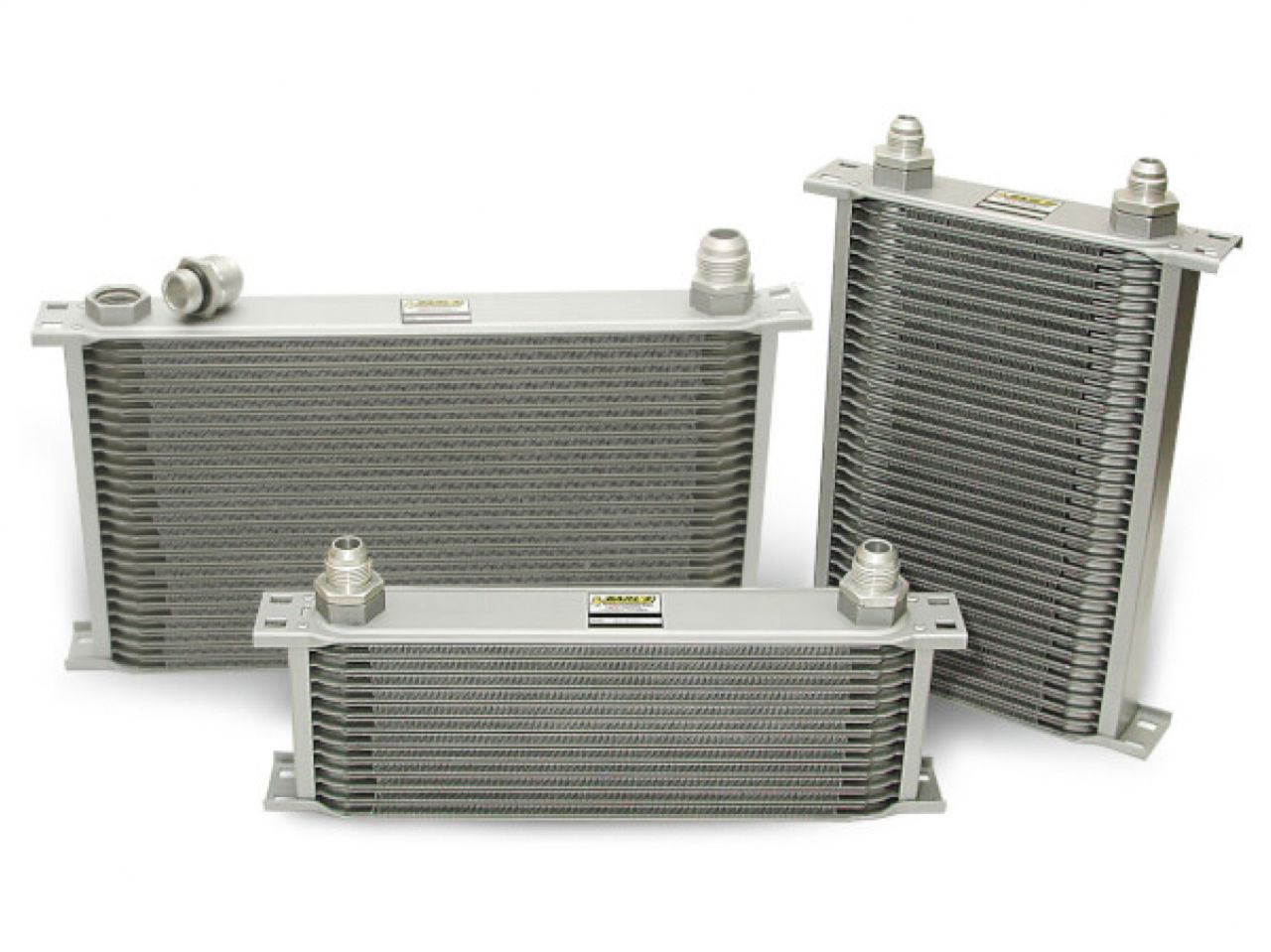

Earl's Temp-A-Cure Oil Cooler - Grey - 13 Rows - Wide Cooler -16 AN Male
Earl's Temp-A-Cure Oil Cooler - Grey - 13 Rows - Wide Cooler -16 AN Male
Out of stock
Not sure this is the right part? Ask us to check fitment. Include your year, make, model, engine and manufacturer part number.
Need this part?
This item is currently unavailable. Ask us about availability or help finding a suitable replacement.
Shipping & returns
This selection is unavailable. Ask us to confirm availability and timing.
Shipping details
In-stock orders are processed within 48 hours; transit time is additional.
International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.
Read the shipping policyTow vehicles, motor homes, passenger cars and even motorcycles can realize extended engine and/or transmission efficiency and life with an Earl's TEMP-A-CURE oil cooler. Racing cars have always required oil coolers. This type of cooler with its internal turbulator plates and dense air fins provides maximum liquid side and air side surface area. The large collector tanks ensure minimum flow restriction. All of this adds up to the most thermally efficient liquid-to-air heat exchanger available. Earls Oil Coolers offer more cooling per square inch than your traditional coil and fin coolers. This is the real deal, and not a toy cooler like the competition's.
Features:
- Manufactured in the U.S.A. using the latest vacuum brazing technology.
- Internal turbulator plates increase both thermal efficiency and mechanical strength resulting in the most efficient, smallest practical package.
- Manufactured in Aluminum for the fastest possible heat transfer.
- Inlet and outlet fittings O-ring female bosses -10 AN port ( 7/8-14)
- Designed for wide ranges of oils and oil flows with air speeds encountered in motorsports and highway use.
- Available in three widths, Narrow, Wide , Extra Wide.
- Every cooler is pressure checked to 175 psi.
- Engineering samples are burst tested to 350 psi.
Specs
Application Engine: Oil Cooler
Body Width (Overall): 13.000"
Brackets Included: No
Construction: Stacked Plate - Brazed
Cooler Fittings: Not Required
Cooler Fittings Included: Yes
Finish: Grey
Fitting Centers: 9.750"
Height: 4.000"
Material: Aluminum
Port Size: 16 AN MALE
Product Line: Temp-A-Cure
Product Type: Oil Cooler
Rows: 13 Rows
Temperature Range: -40° F to 302° F
Thickness: 2.000"
Width: Wide Cooler
Width Between Tanks: 9.000"
