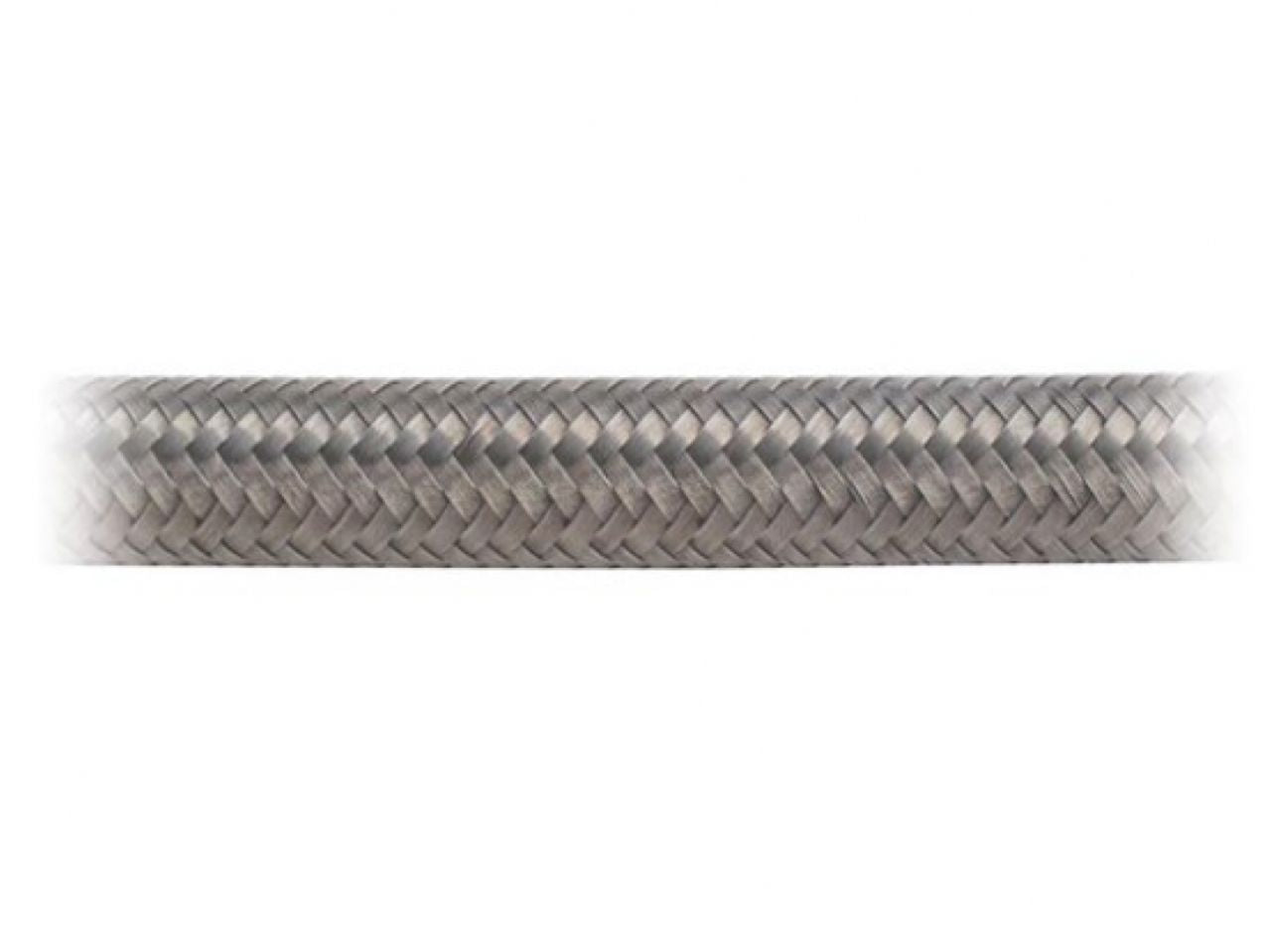

Earl's Perform-O-Flex Hose- SIZE 24 - 10 FT. Lenght
Earl's PERFORM-O-FLEX stainless braid-protected synthetic rubber hose is the premium quality racing hose depended on by the top racing teams of every professional sanctioning body in the world. PERFORM-O-FLEX features an inner liner of synthetic rubber. A partial coverage protective sheath of stainless steel braid is embedded in the liner during manufacturing. The reinforced hose liner is then bonded to a full-coverage outer protective sheath of high tensile stainless steel wire braid. Tougher than this, hose doesn't get. Yet Perform-O-Flex, with its inner liner, remains flexible at temperatures between -40 and +350 degrees F. Racing Greats have depended on PERFORM-O-FLEX hose and SWIVEL-SEAL hose ends since 1972. Perform-O-Flex hose is intended for use with Swivel-Seal, Auto-Fit and Auto-Crimp hose ends only. No other Earl's hose ends are intended for use with Perform-O-Flex hose. The use of other manufacturer's hose ends is not recommended. PSI rating is determined by many factors including hose end in use and assembly method.
Features:
Stainless Steel Inner Braid
High-Temp. Synthetic Rubber
Full Coverage Outer Braid
Provides Constant Flow
Clean and Fast Flowing
Mechanical Bond Between Layers
Specifications:
- Compatible Hose Ends: Auto-Crimp/Auto-Fit/Econ-O-FitSwivel-Seal
- Fluid Type: Automatic Transmission Fluid/Coolant/Diesel/Methanol/Alcohol/E85/Pump Gas/Race Gas
- Fluid Type Rating - Automatic Transmission : 5 out of 5 Rating
- Fluid Type Rating - Coolant:5 out of 5 Rating
- Fluid Type Rating - Diesel:5 out of 5 Rating
- Fluid Type Rating - E85:2 out of 5 Rating
- Fluid Type Rating - Methanol/Alcohol: 1 out of 5 Rating
- Fluid Type Rating - Oil:5 out of 5 Rating
- Fluid Type Rating - Pump Gas:2 out of 5 Rating
- Fluid Type Rating - Race Gas:3 out of 5 Rating
- Fluid Type Rating - Vacuum:5 out of 5 Rating
- Hose Family: Perform-O-Flex
- Hose Length: 10 Feet
- Hose Outer Material: Stainless Steel
- Hose Size:24 AN
- Inside Diameter:1.375"
- Max Working PSI:250 PSI
- Min. Bend Radius:9.0"
- Outside Diameter:1.703"
- Product Type: Hose
- Submersible in Fuel: No
- Temperature Range: -40° to 350° F
