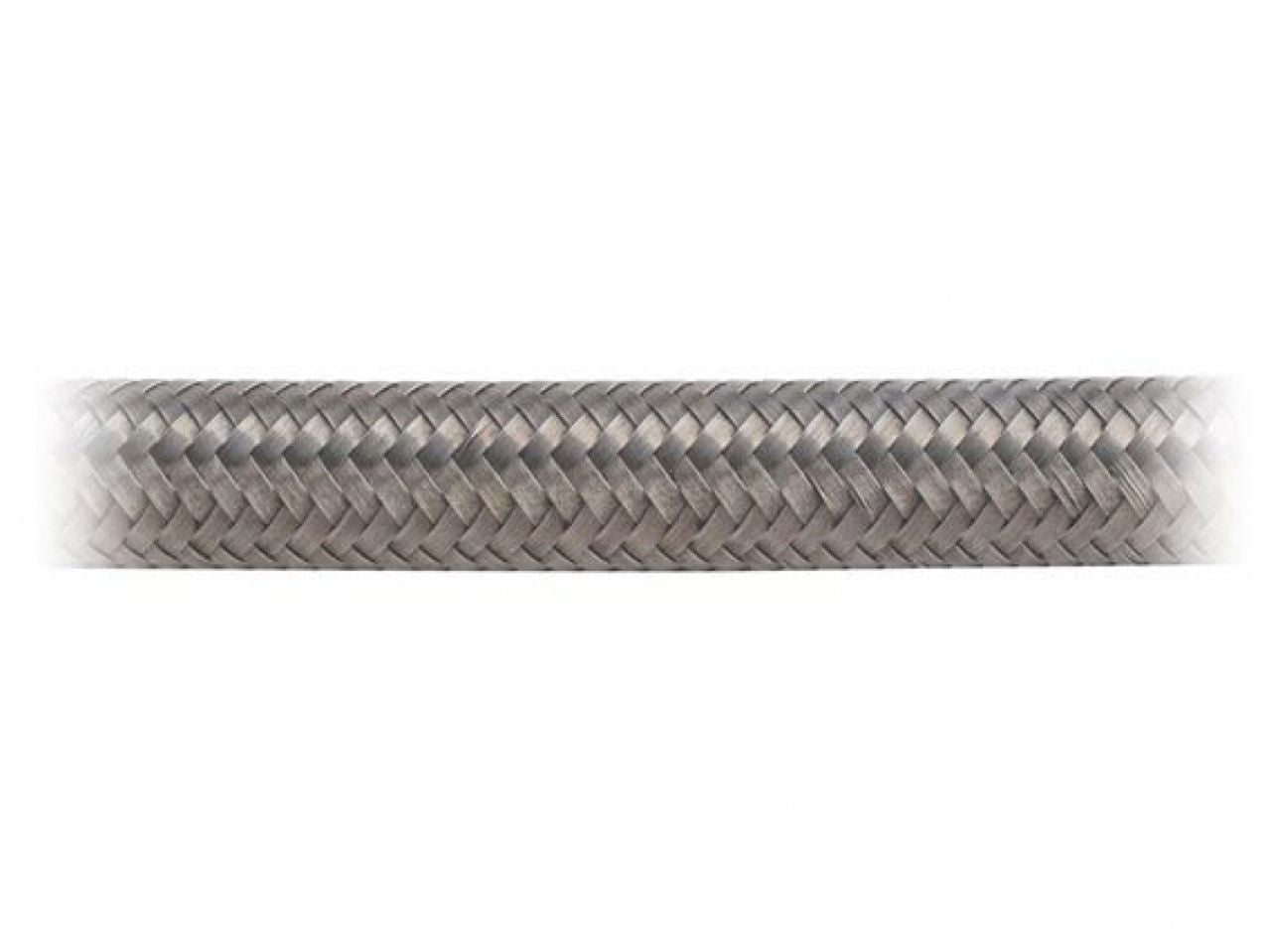

Earl's Fuel Hoses 410020ERL Item Image
Earl's

Earl's Premium Racing Hose. Tough Stainless Steel Wire Braid-Protected

SKU: 01XUN | MPN:  410020ERL
Sale price$277.95 USD
Sold out

Earl's PERFORM-O-FLEX stainless braid-protected synthetic rubber hose is the premium quality racing hose depended on by the top racing teams of every professional sanctioning body in the world. PERFORM-O-FLEX features an inner liner of synthetic rubber. A partial coverage protective sheath of stainless steel braid is embedded in the liner during manufacturing. The reinforced hose liner is then bonded to a full-coverage outer protective sheath of high tensile stainless steel wire braid. Tougher than this, hose doesn't get. Yet Perform-O-Flex, with its inner liner, remains flexible at temperatures between -40 and +350 degrees F. Racing Greats have depended on PERFORM-O-FLEX hose and SWIVEL-SEAL hose ends since 1972. Perform-O-Flex hose is intended for use with Swivel-Seal, Auto-Fit and Auto-Crimp hose ends only. No other Earl's hose ends are intended for use with Perform-O-Flex hose. The use of other manufacturer's hose ends is not recommended. PSI rating is determined by many factors including hose end in use and assembly method.

Features:

Full Coverage Outer Braid

Provides Constant Flow

Clean and Fast Flowing

Mechanical Bond Between Layers

High-Temp. Synthetic Rubber

Stainless Steel Inner Braid

Specifications:

  • Compatible Hose Ends:Auto-Crimp/Auto-Fit/Econ-O-Fit/Swivel-Seal
  • Emission Code:5
  • Fluid Type: Automatic Transmission Fluid/Coolant/Diesel/E85/Methanol/Alcohol/Oil/Pump Gas/Race Gas
  • Fluid Type Rating - Automatic Transmission Fluid: 5 out of 5 Rating
  • Fluid Type Rating - Coolant:5 out of 5 Rating
  • Fluid Type Rating - Diesel:2 out of 5 Rating
  • Fluid Type Rating - E85:2 out of 5 Rating
  • Fluid Type Rating - Methanol/Alcohol:1 out of 5 Rating
  • Fluid Type Rating - Oil:5 out of 5 Rating
  • Fluid Type Rating - Pump Gas:2 out of 5 Rating
  • Fluid Type Rating - Race Gas:3 out of 5 Rating
  • Fluid Type Rating - Vacuum:5 out of 5 Rating
  • Hose Family:Perform-O-Flex
  • Hose Length:10 Feet
  • Hose Outer Material:Stainless Steel
  • Hose Size:20 AN
  • Inside Diameter:1.125"
  • Min. Bend Radius:8.0"
  • Outside Diameter:1.438"
  • Product Type:Hose
  • Submersible in Fuel:No
  • Temperature Range:-40° to 350° F
