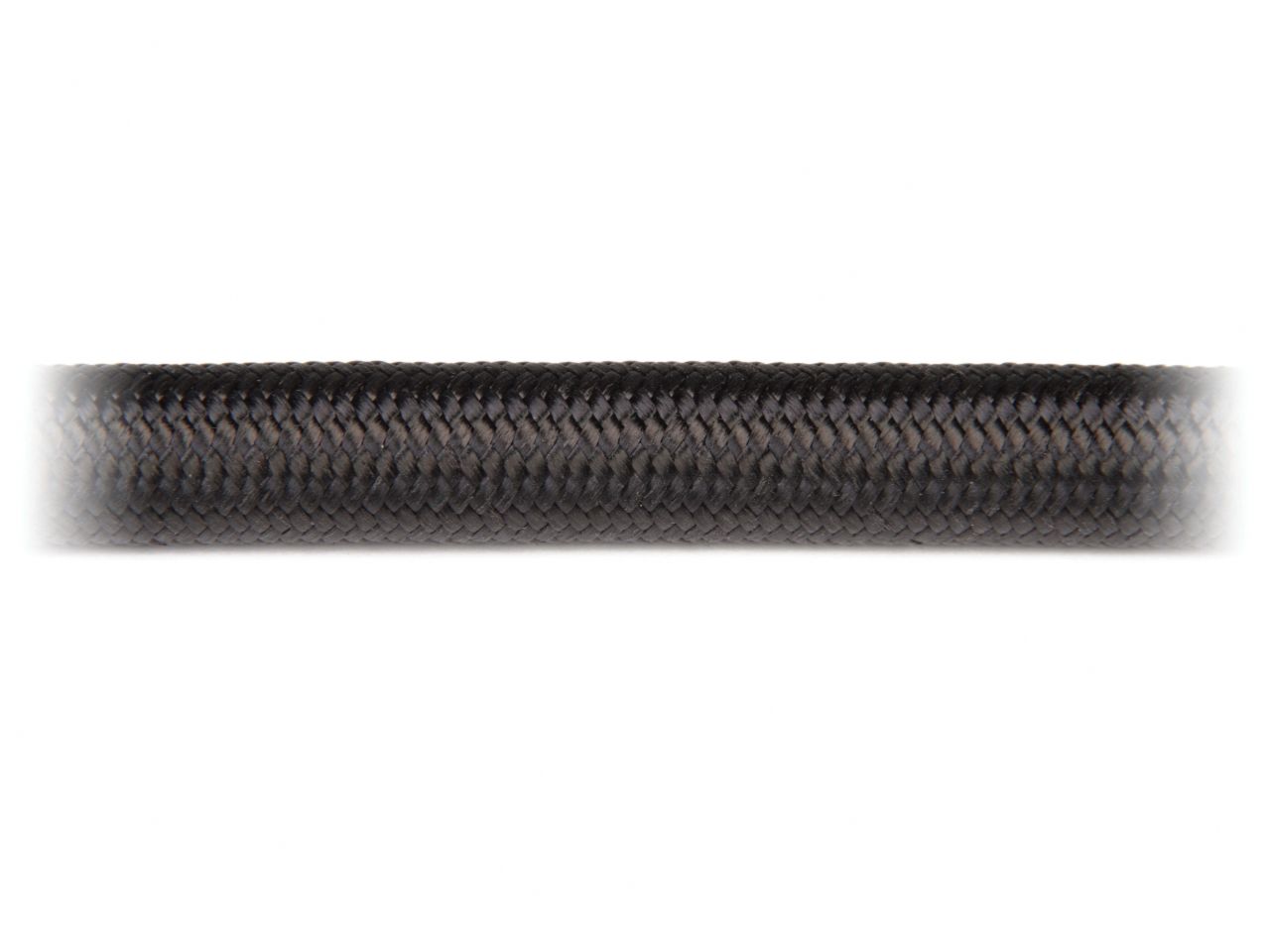

Earl's 3 FT. -4 Pro-Lite Ultra Hose
Introducing Pro-Lite 390™ from Earl's! A perfect mix of Stainless under braid and fabric outer braid and 100% constructed in the USA. Pro-Lite 390 consists of an inner tube of oil resistant "PKR" synthetic rubber. A partial coverage stainless wire inner braid and an oil, weather, and abrasion resistant, black, entangled filament nylon fiber cover. This added stainless braid under the cover and over the liner, adds additional hoop strength for higher pressure ratings and added strength for tight radius applications. It also adds needed strength for high suction and vacuum conditions. Much more durable for extreme uses over Pro Lite 350 which does not have the inner stainless braid. For use with Swivel Seal, Auto Crimp, and Auto Fit hose ends.
Features:
- In recent years various fuel manufacturers may have added any number of new unpublished additives to their blends. It is therefore very difficult to know how the tube compound used in the inner liner of our Pro-Lite Ultra™ or any other brand of elastomeri
Specification
- Compatible Hose Ends: Auto-Crimp, Auto-Fit, Econ-O-Fit, Swivel-Seal
- Fluid Type: Automatic Transmission Fluid, Coolant, Diesel, E85,
- Methanol/Alcohol, Oil, Pump Gas, Race Gas
- Fluid Type Rating - Automatic Transmission Fluid: 5 out of 5 Rating
- Fluid Type Rating - Coolant: 5 out of 5 Rating
- Fluid Type Rating - Diesel: 2 out of 5 Rating
- Fluid Type Rating - E85: 2 out of 5 Rating
- Fluid Type Rating - Methanol/Alcohol: 1 out of 5 Rating
- Fluid Type Rating - Oil: 5 out of 5 Rating
- Fluid Type Rating - Pump Gas: 2 out of 5 Rating
- Fluid Type Rating - Race Gas: 3 out of 5 Rating
- Fluid Type Rating - Vacuum: 1 out of 5 Rating
- Hose Family: Pro-Lite 390
- Hose Length: 3 Feet
- Hose Outer Material: BLACK NYLON
- Hose Size: 4 AN
- Inside Diameter: .22"
- Max Vacuum: 27 in Hg
- Max Working PSI: 500 PSI
- Min. Bend Radius: 2.0"
- Outside Diameter: .44"
- Product Type: Hose
- Submersible in Fuel: No
